Tire Pressure Module

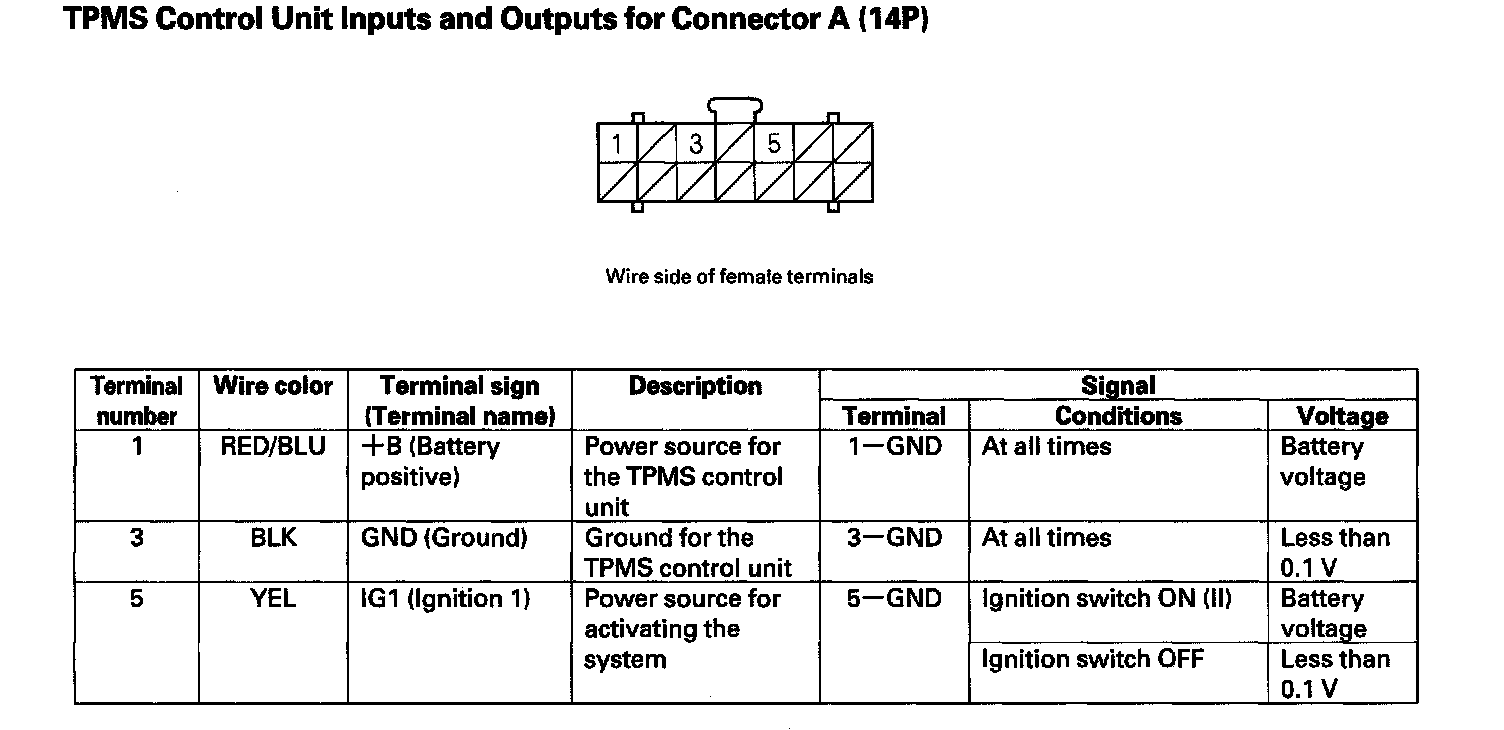

TPMS Control Unit Inputs and Outputs for Connector A (14P):

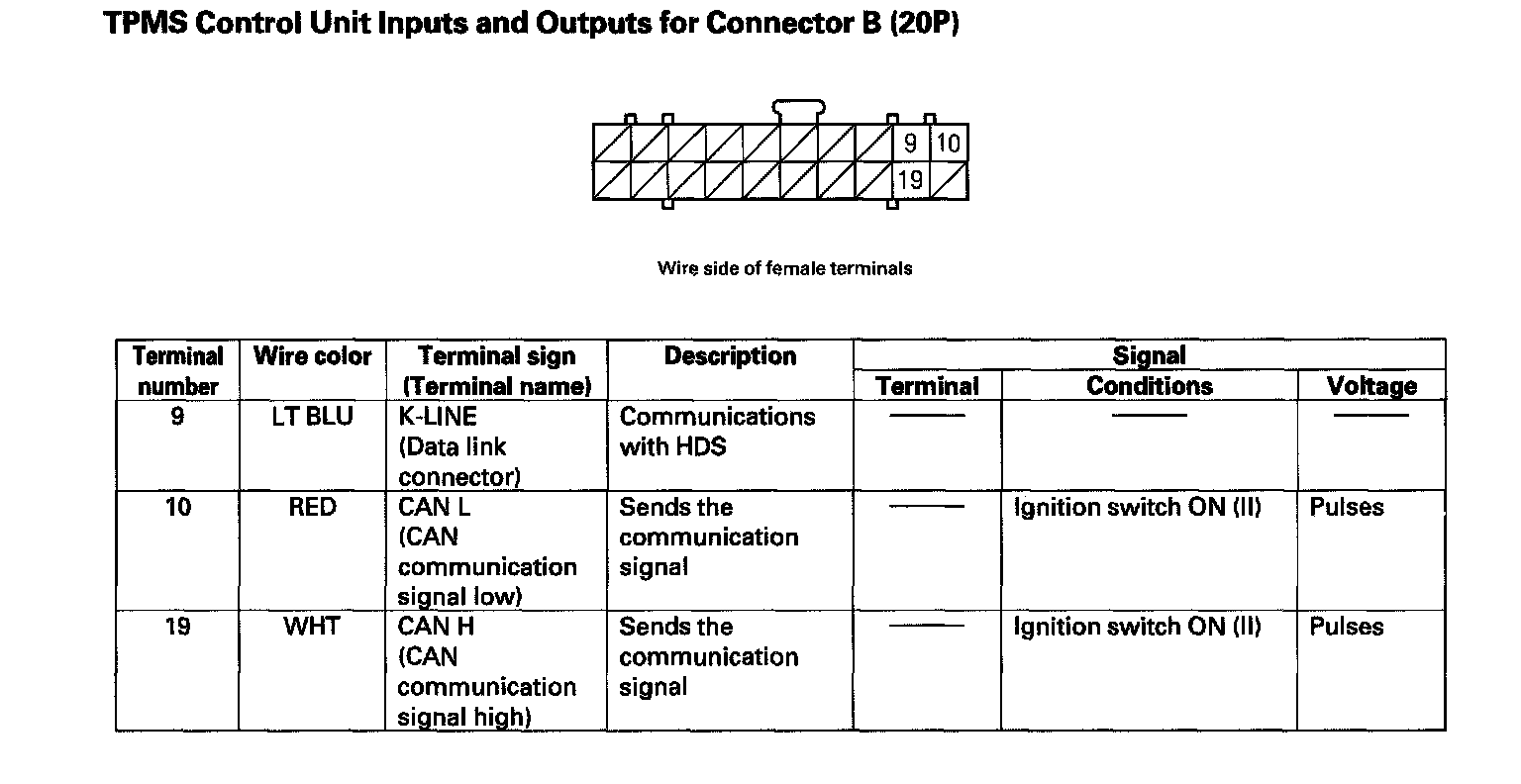

TPMS Control Unit Inputs and Outputs for Connector B (20P):

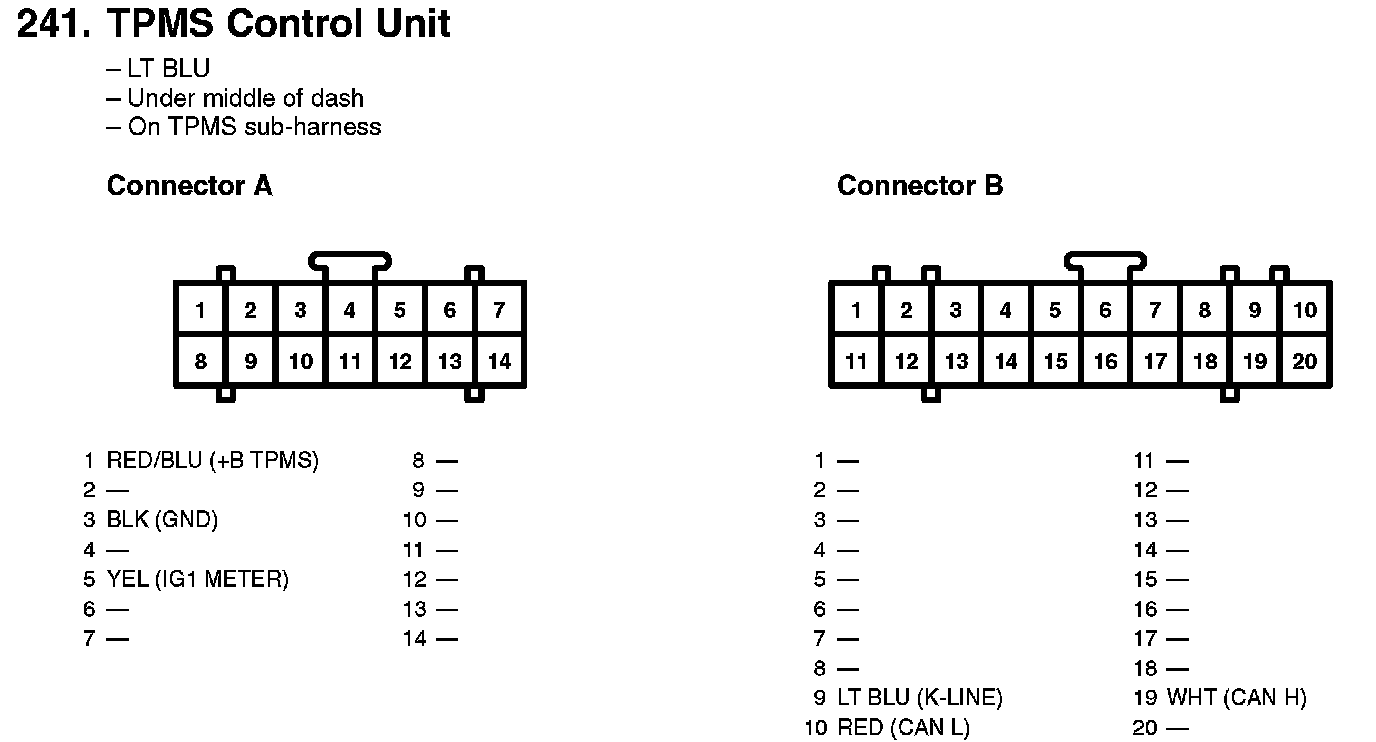

241. TPMS Control Unit:
