Wheel Speed Sensor

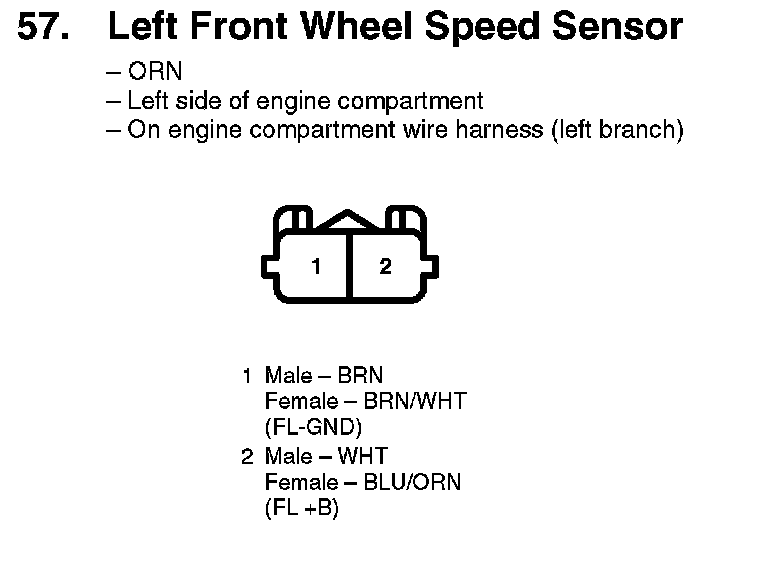

57. Left Front Wheel Speed Sensor:

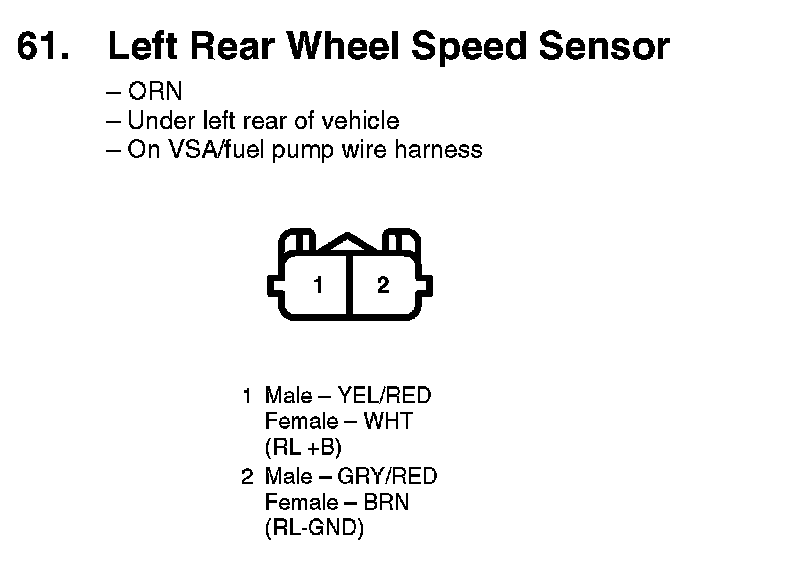

61. Left Rear Wheel Speed Sensor:

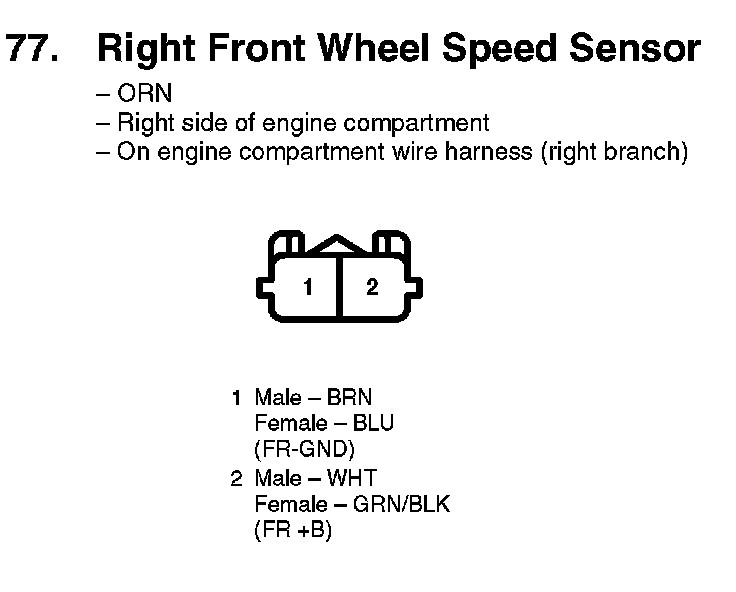

77. Right Front Wheel Speed Sensor:

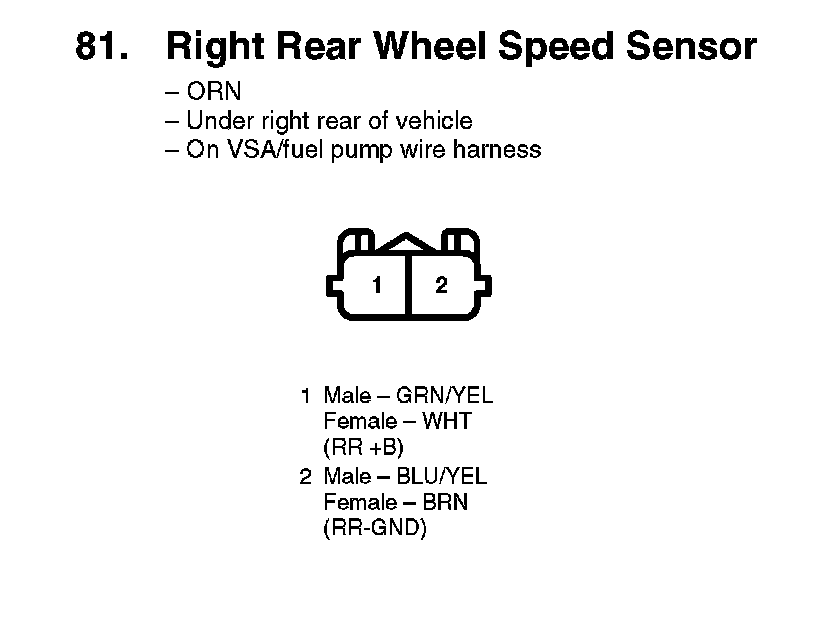

81. Right Rear Wheel Speed Sensor:
