Engine Oil: Service and Repair

Engine Oil Replacement
1. Warm up the engine.

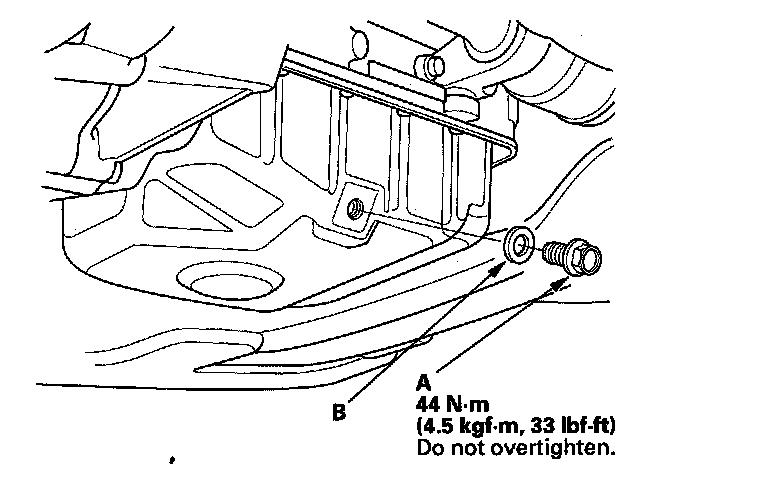

2. Remove the drain bolt (A), and drain the engine oil.





3. Reinstall the drain bolt with a new washer (B).
4. Refill with the recommended oil.

Capacity
At Oil Change: 4.0 L (4.2 US qt)
At Oil Change including Filter:
4.2 L (4.4 US qt)
After Engine Overhaul:
5.3 L (5.6 US qt)

5. Run the engine for more than 3 minutes, then check for oil leakage.
