CMP Pulse Plate B Replacement

CMP Pulse Plate B Replacement
1. Remove the cylinder head cover.

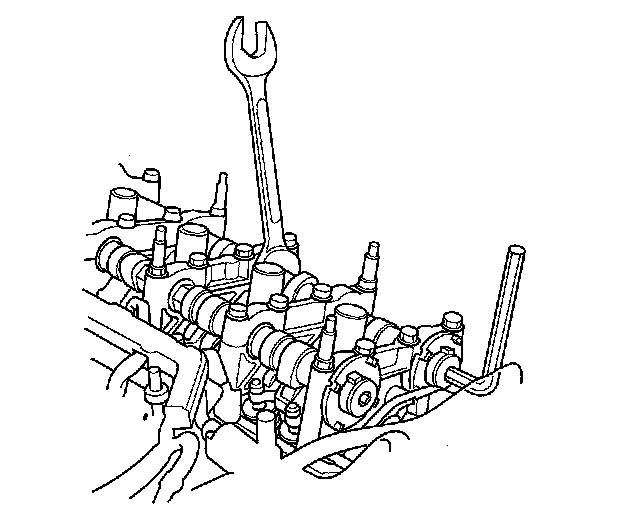

2. Hold the exhaust camshaft with an open-end wrench, then loosen the bolt.

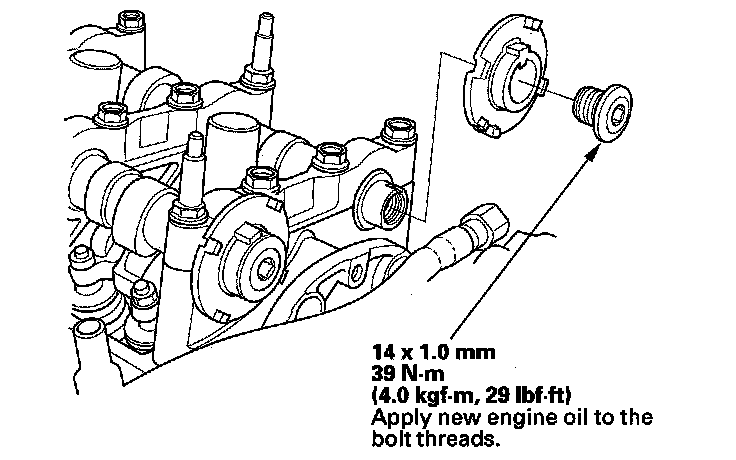

3. Remove the camshaft position (CMP) pulse plate B.





4. Install the CMP pulse plate B in the reverse order of removal.
