ECT Sensor 2 Replacement

ECT Sensor 2 Replacement

1. Drain the engine coolant.
2. Remove the splash shield.

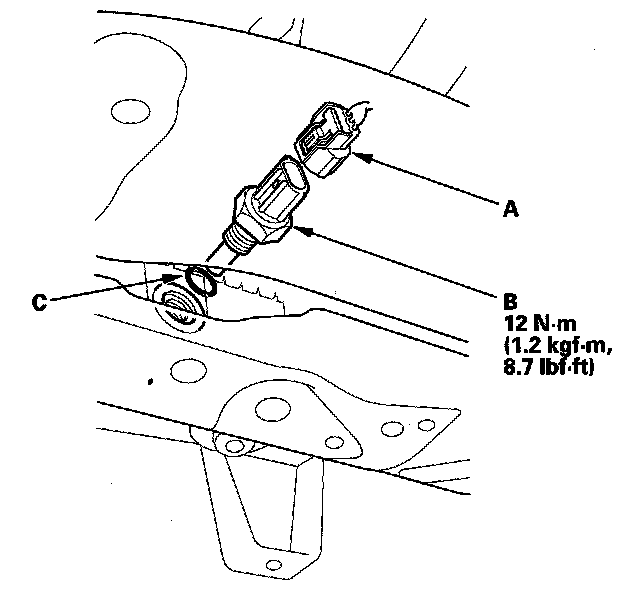

3. Disconnect the ECT sensor 2 2P connector (A).
4. Remove ECT sensor 2 (B).
5. Install the parts in the reverse order of removal with a new O-ring (C) coated with the clean engine oil, then refill the radiator with engine coolant.
