Intake Air System

Intake Air System

Refer to the system diagram to see a functional layout of the system.

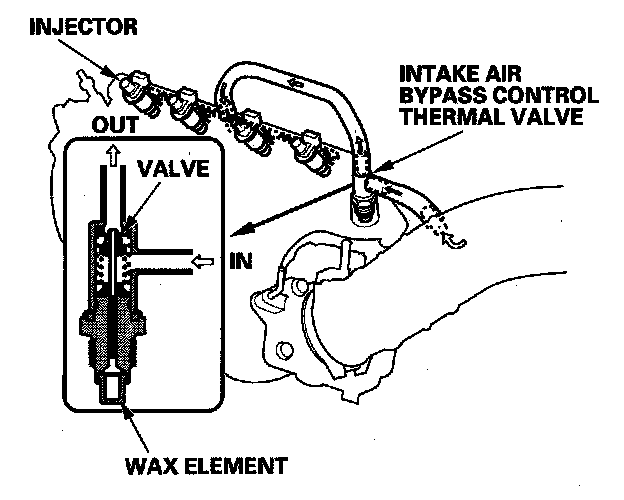

Intake Air Bypass Control Thermal Valve
When the engine is cold, the intake air bypass control thermal valve sends air to the injector.
The amount of air is regulated by engine coolant temperature. Once the engine is warmed up, the intake air bypass control thermal valve closes, stopping air to the injector.
