Overhaul Specifications

Drive Plate





Tighten the eight bolts in a crisscross pattern in two or more steps.

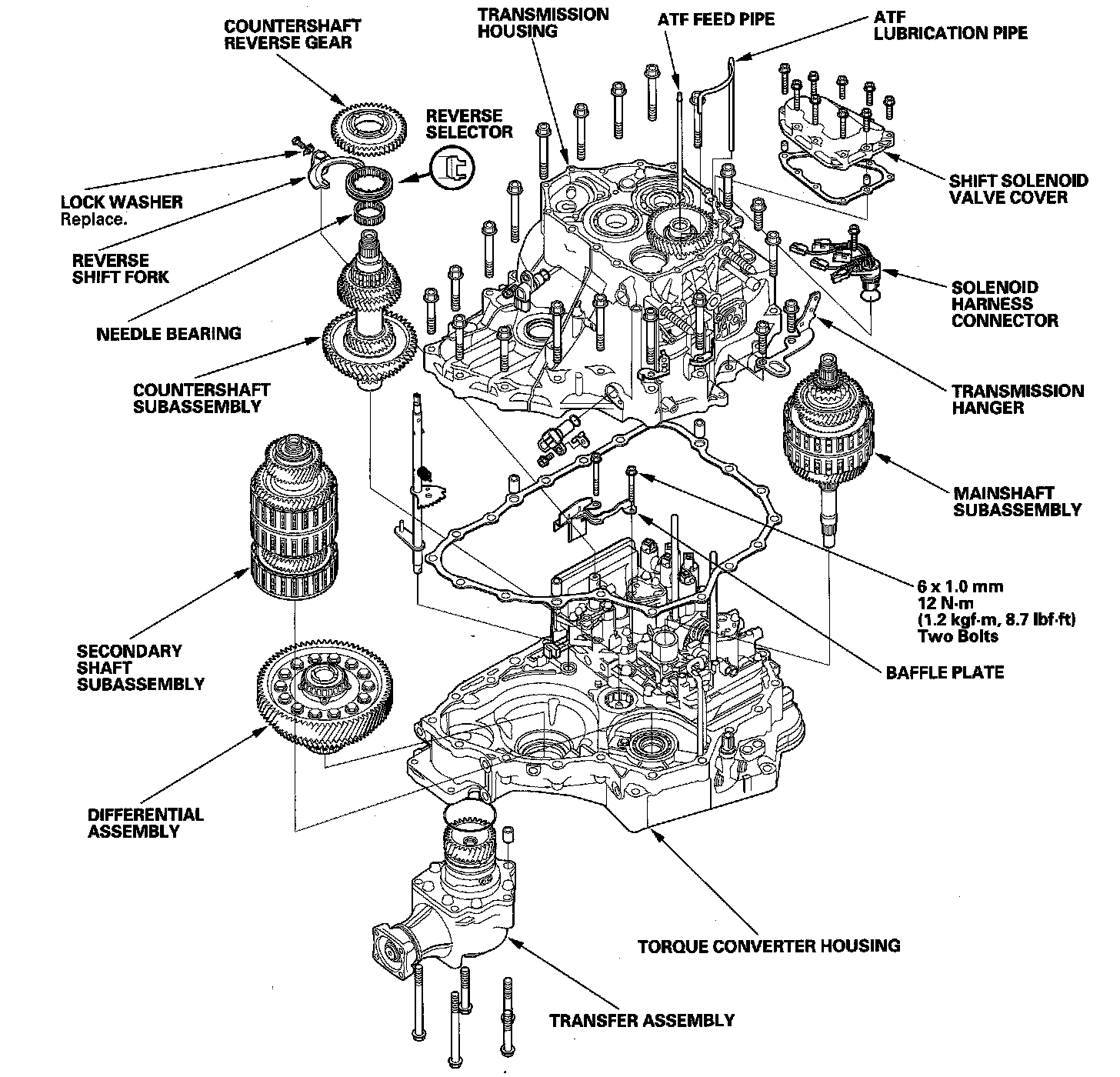

Transmission Housing

Housing and Shaft Assemblies:

Valve Body

Valve Body:

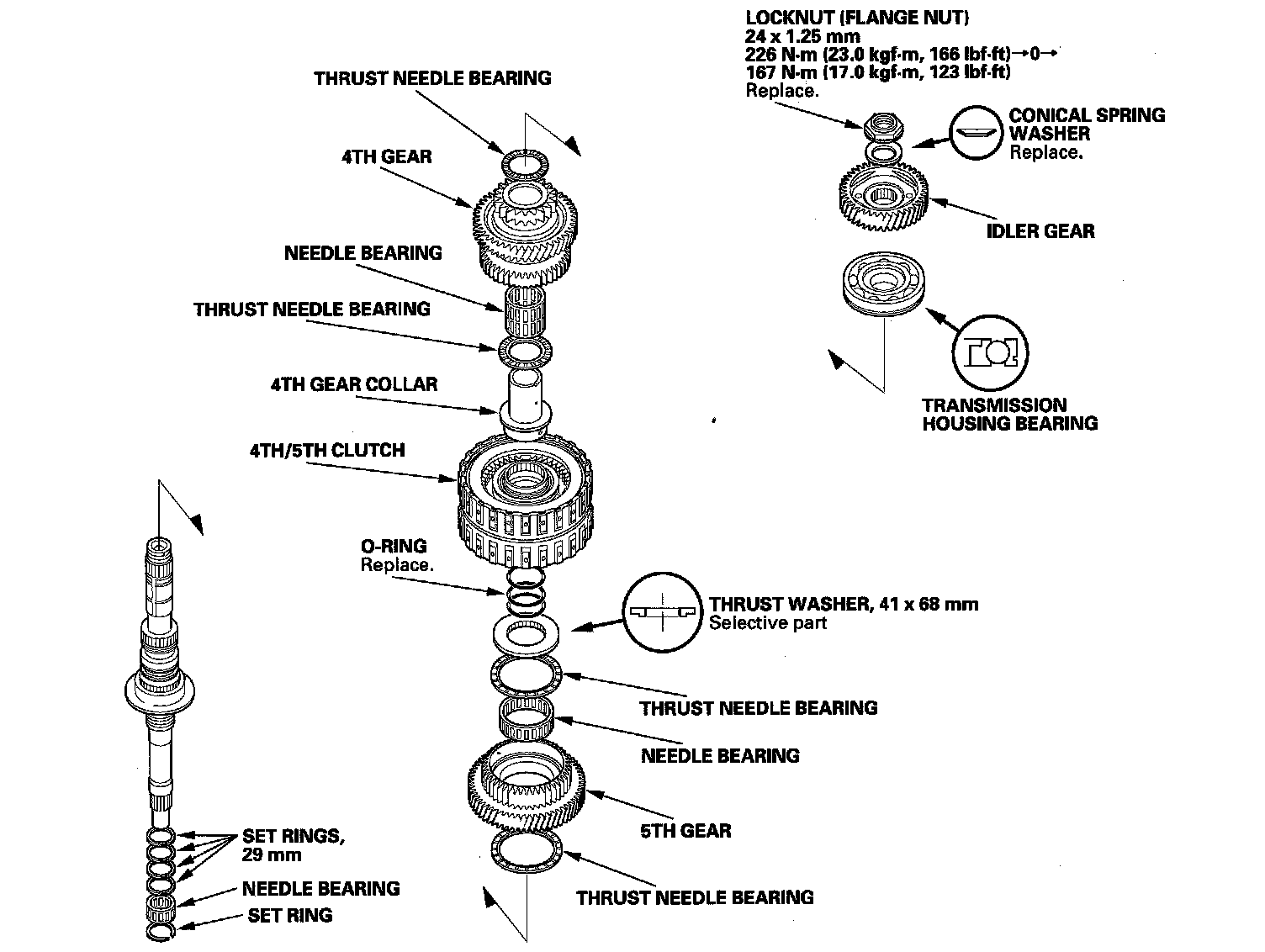

Mainshaft

Mainshaft:

Countershaft

Countershaft:

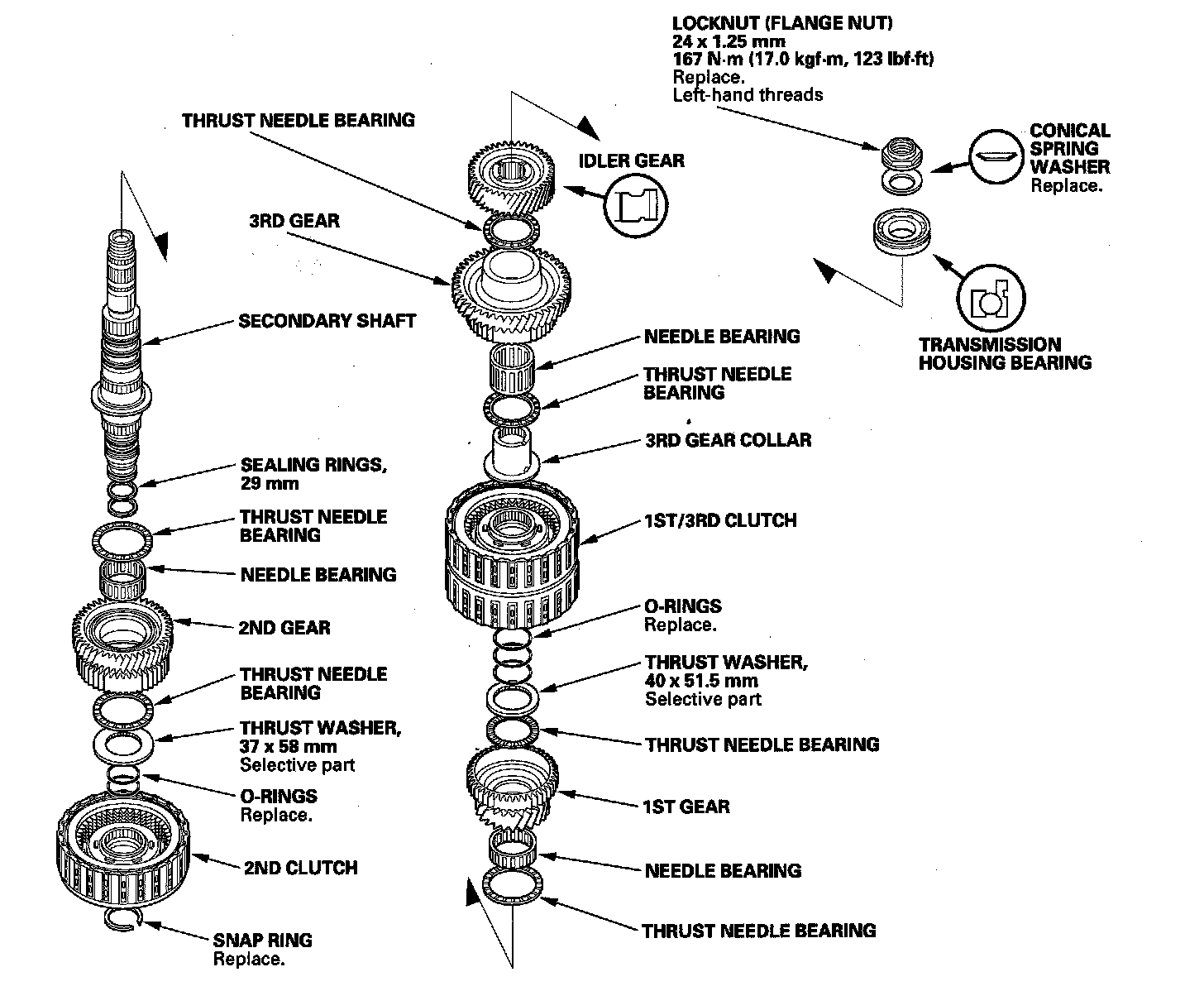

Secondary Shaft

Secondary Shaft:

For information regarding Transmission Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
