Standards and Service Limits

Automatic Transmission and A/T Differential

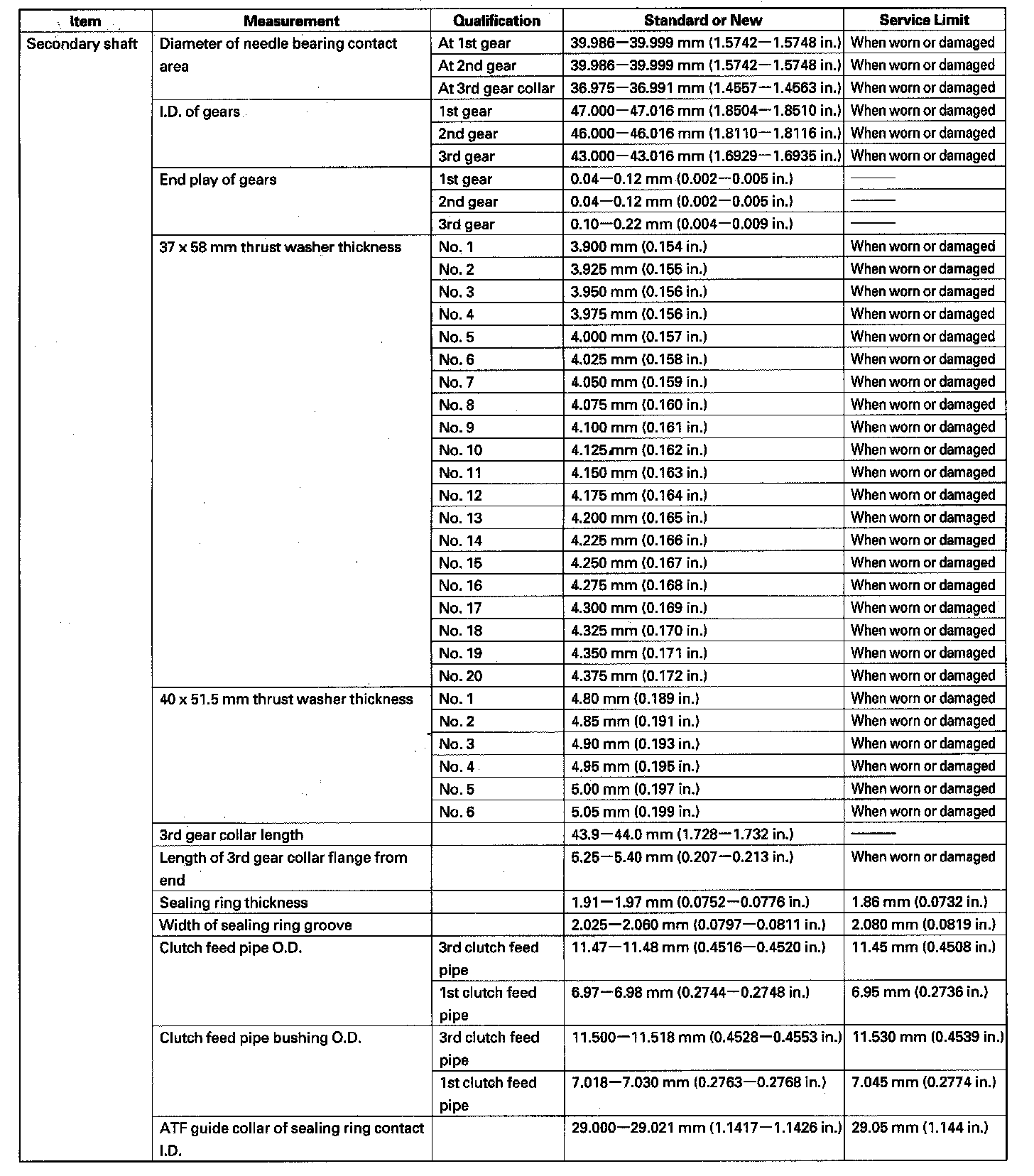

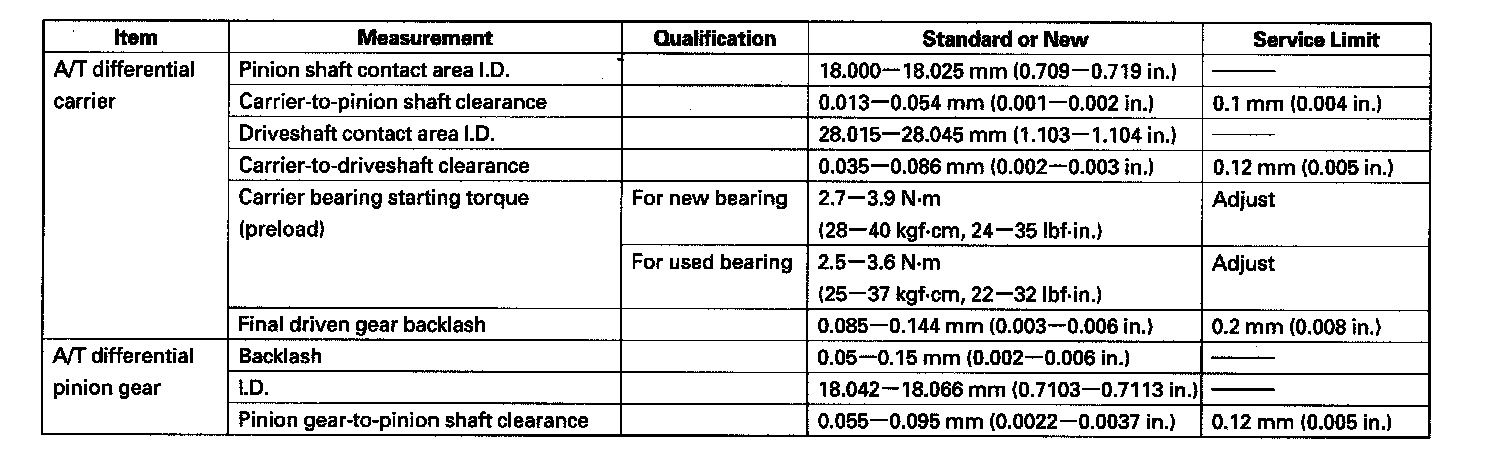

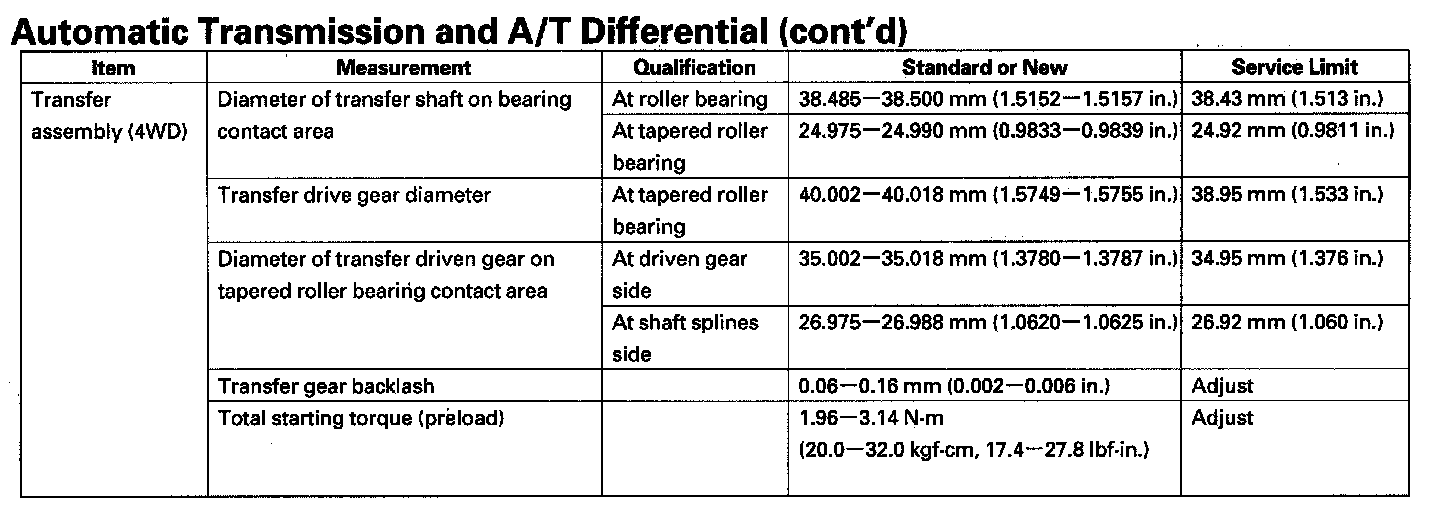

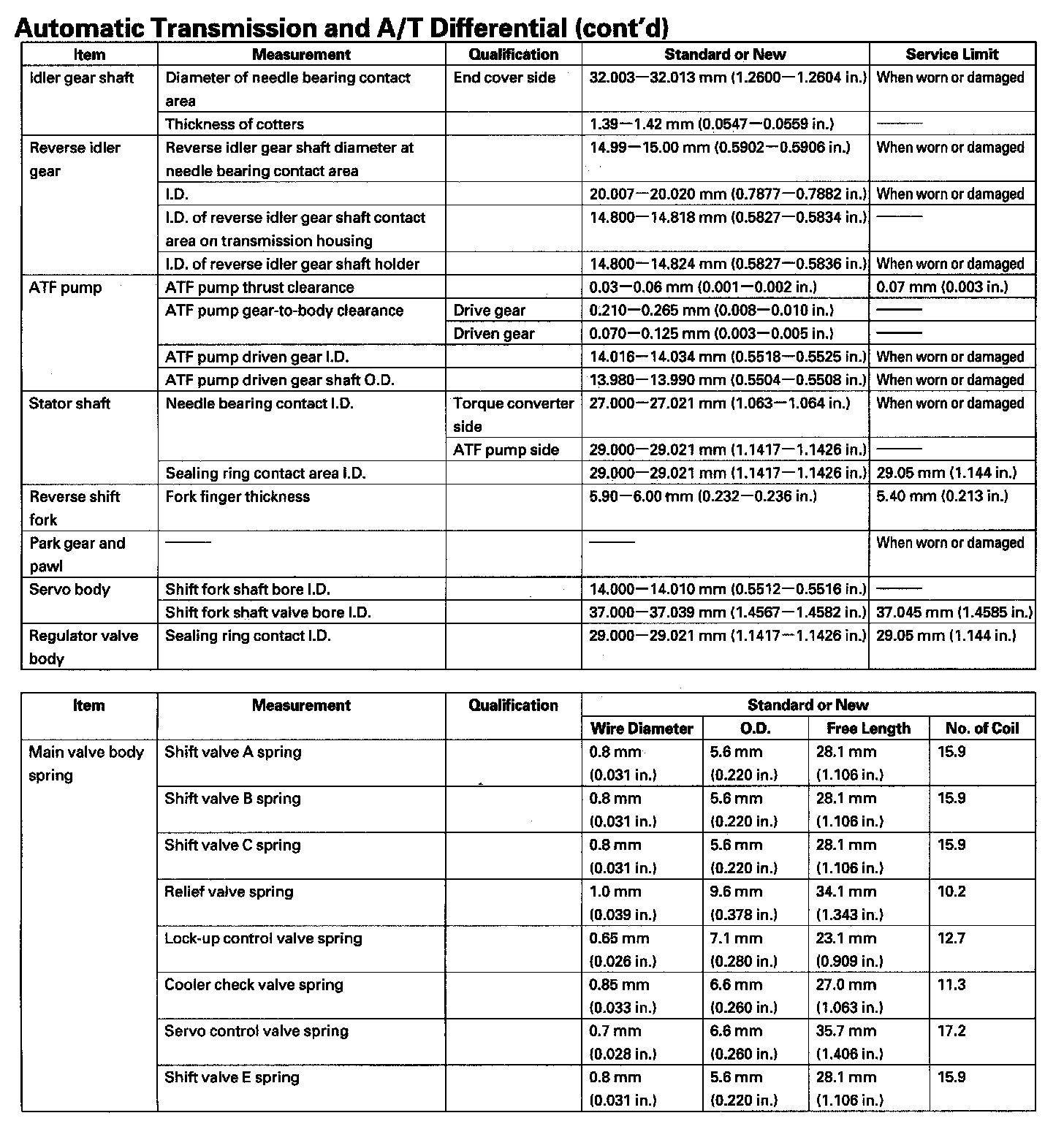

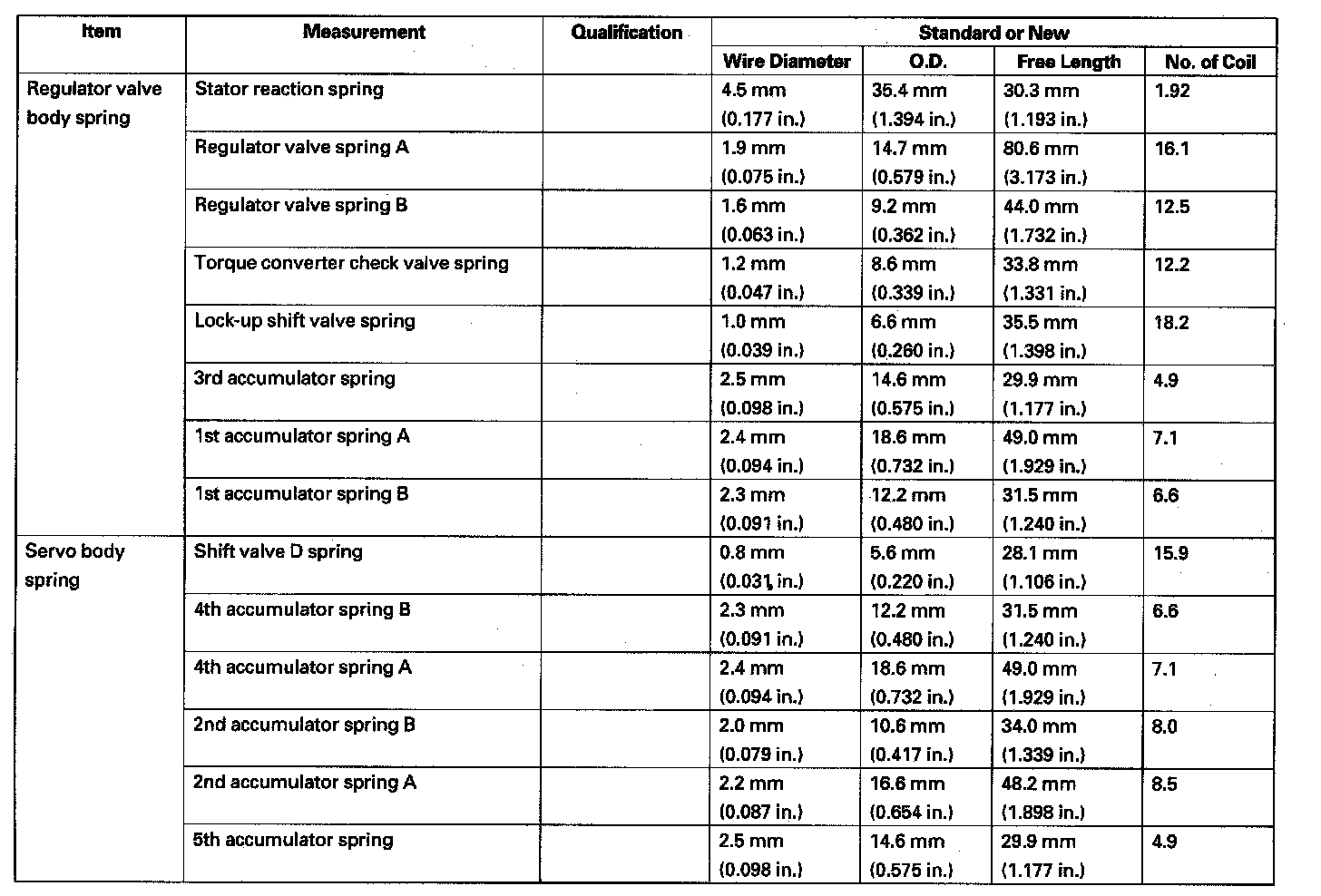

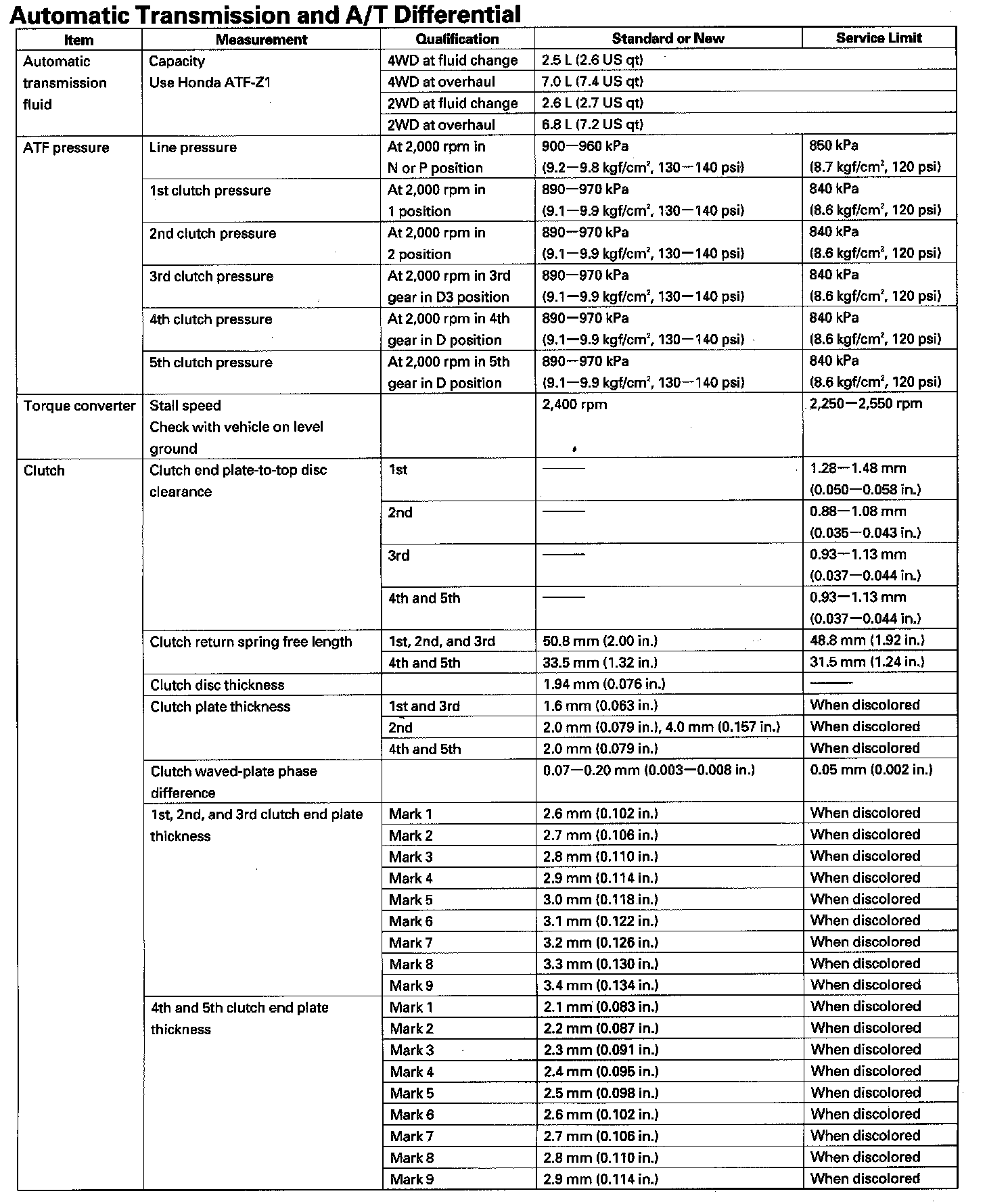

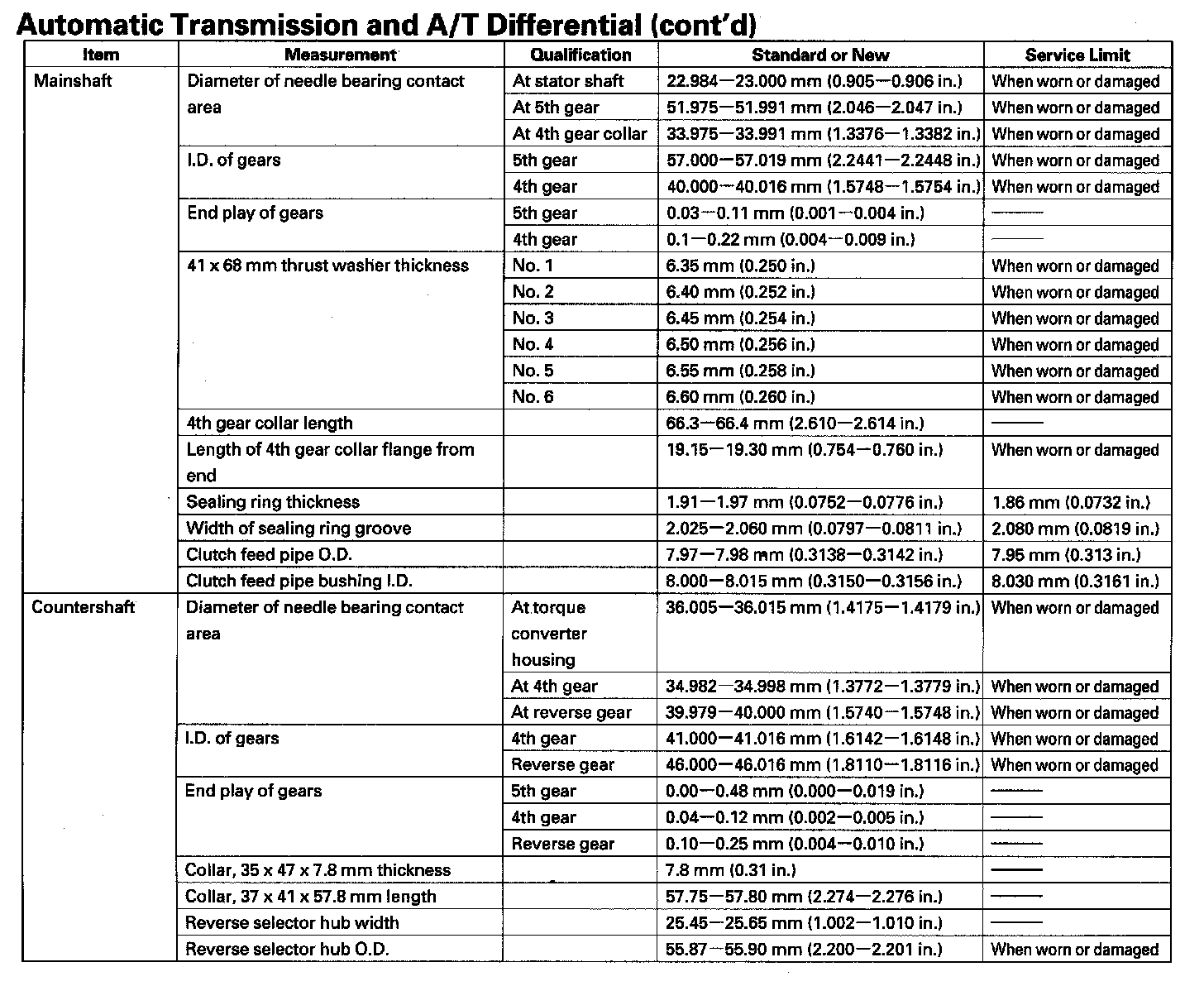

Automatic Transmission and A/T Differential (Part 1):




Automatic Transmission and A/T Differential (Part 2):




Automatic Transmission and A/T Differential (Part 3):




Automatic Transmission and A/T Differential (Part 4):




Automatic Transmission and A/T Differential (Part 5):




Automatic Transmission and A/T Differential (Part 6):




Automatic Transmission and A/T Differential (Part 7):
