Torque Specifications

Main Bearing Cap
Tighten the bearing cap bolts in sequence 29 Nm (3.0 kgf-m, 22 lbf-ft).





Tighten the bearing cap bolts an additional 56°.





Tighten the 8 mm bolts in sequence 22 Nm (2.2 kgf-m, 16 lbf-ft).

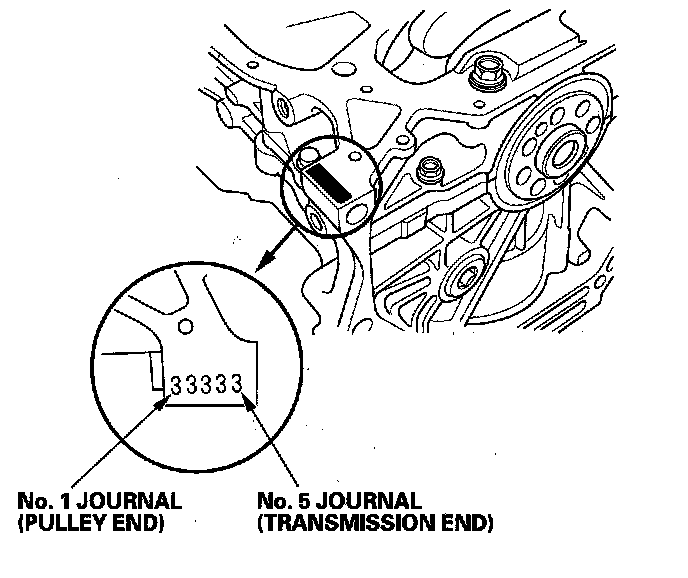

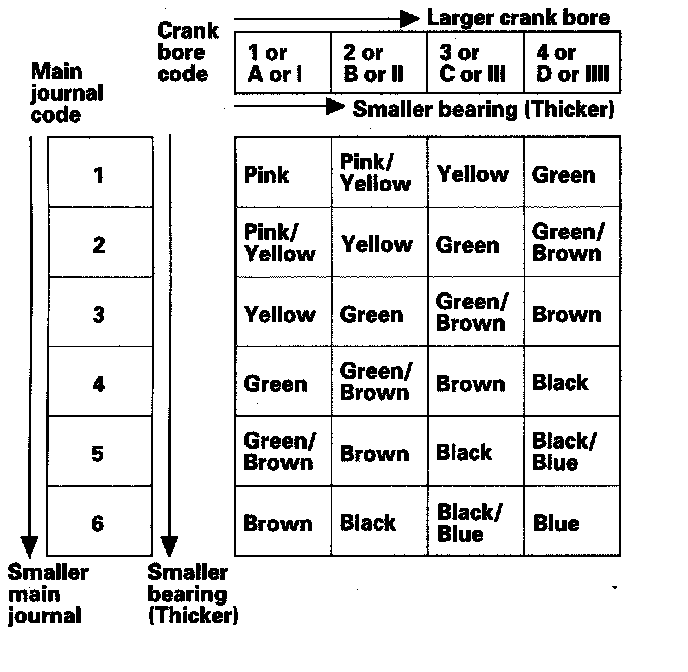

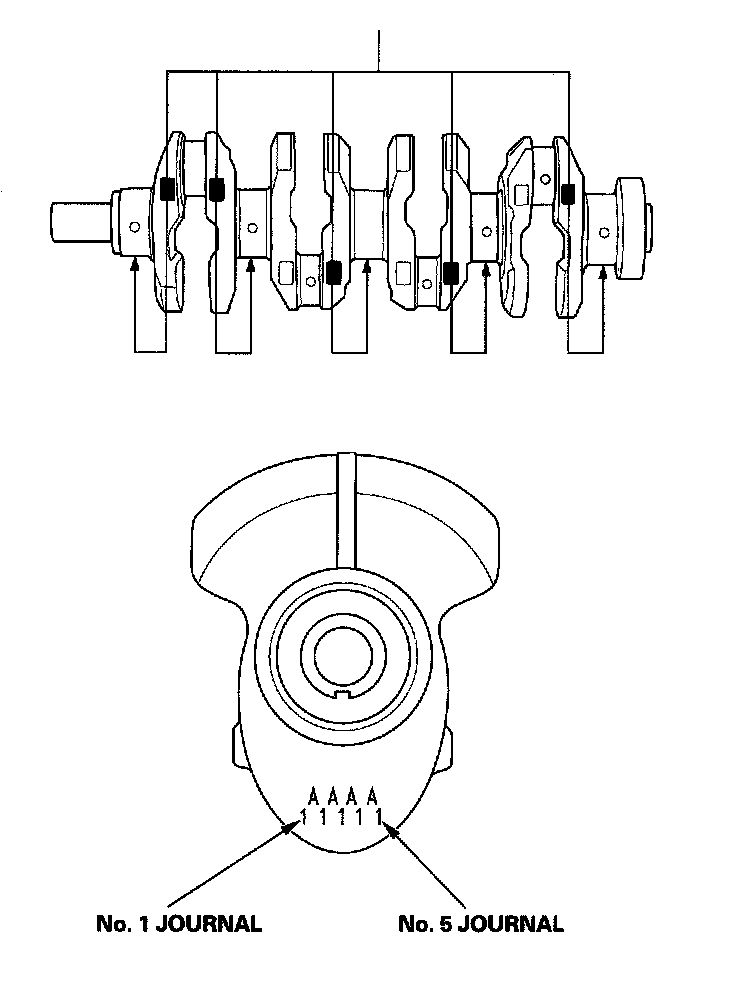

Main Journal Code Location and Selection












Crankshaft Pulley
Tightening Torque 49 Nm (5.0 kgf-m, 36 lbf-ft) + an additional 90°
