Variable Valve Timing Pressure Switch: Service and Repair

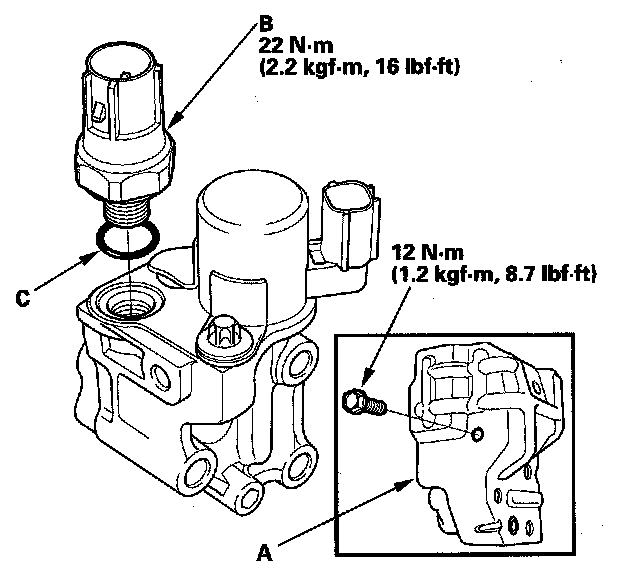

Rocker Arm Oil Pressure Switch Removal/Installation

1. Remove the rocker arm oil control valve.




2. Remove the cover (A).
3. Remove the rocker arm oil pressure switch (B).
4. Install the parts in the reverse order of removal with a new O-ring (C).
