Ignition Switch Test

SRS components are located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES , before performing repairs or service.

1. Do the battery terminal disconnection procedure (see .
2. Remove the steering column upper and lower covers (see ).
3. Disconnect the 7P connector (A) from the ignition switch (B).

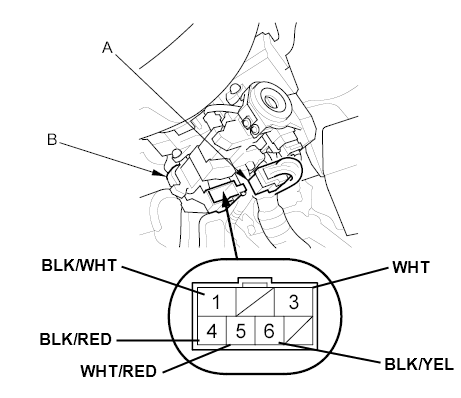

   Fig 1: Identifying 7P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each switch position according to the table below.
   Fig 2: Identifying Continuity Table

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. If the continuity checks do not agree with the table below, replace the steering lock (ignition) switch (see STEERING LOCK REPLACEMENT ).
6. After reconnecting the battery, enter the anti-theft codes for the audio system, then set the clock.
