Windshield Replacement

NOTE:

Put on gloves to protect your hands.
Wear eye protection while cutting the glass adhesive with piano wire.
Use seat covers to avoid damaging any surfaces.
When replacing a broken windshield, a commercially available windshield cutter can be efficiently used for cutting the adhesive. For details, follow the instructions of the tool manufacturer.

Remove these items:
- Rearview mirror (see REARVIEW MIRROR REPLACEMENT )
- A-pillar trim, both sides (see A-PILLAR TRIM )
- Windshield wiper arms (see WINDSHIELD WIPER MOTOR REPLACEMENT )
- Windshield side trim, both sides (see WINDSHIELD SIDE TRIM REPLACEMENT )
- Cowl covers (see COWL COVER REPLACEMENT )
Remove the molding (A) from the edge of the windshield (B). If necessary, cut the molding with a utility knife.

Fig 1: Identifying Molding From Edge Of Windshield
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the old glass is to be reinstalled, make alignment marks across the glass and body with a grease pencil.
Pull down the front portion of the headliner (see HEADLINER REMOVAL/INSTALLATION ). Take care not to bend the headliner excessively, or you may crease or break it.
Apply protective tape along the edge of the dashboard and body. Using an awl, make a hole through the rubber dam, adhesive, and dashboard seal from inside the vehicle at the corner portion of the glass. Push a piece of piano wire through the hole, and wrap each end around a piece of wood.

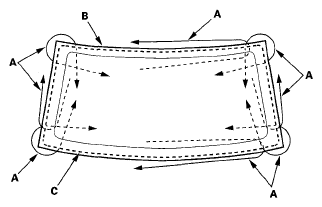

With a helper on the outside, pull the piano wire (A) back and forth in a sawing motion. Hold the piano wire as close to the windshield (B) as possible to prevent damage to the body and dashboard. Carefully cut through the rubber dam and adhesive (C) around the entire windshield.

Fig 2: Pulling Piano Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Cutting positions

Fig 3: Identifying Cutting Positions
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Carefully remove the windshield.
With a knife, scrape the old adhesive smooth to a thickness of about 2 mm (0.08 in.) on the bonding surface around the entire windshield opening flange:
- Do not scrape down to the painted surface of the body; damaged paint will interfere with proper bonding.
- Remove the rubber dam and fasteners from the body.
Clean the body bonding surface with a sponge dampened in alcohol. After cleaning, keep oil, grease and water from getting on the clean surface.
If the old windshield is to be reinstalled, use a putty knife to scrape off all of the old adhesive, the rubber dam, and the dashboard seal from the windshield. Clean the inside face and the edge of the windshield with alcohol where new adhesive is to be applied. Make sure the bonding surface is kept free of water, oil, and grease.

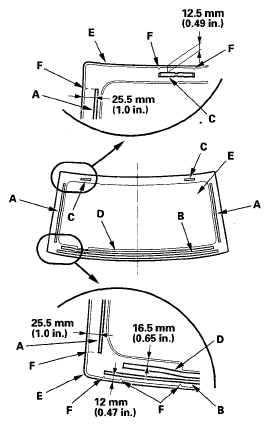

Attach the side rubber dam (A), lower rubber dam (B) with adhesive tape. Attach the clips (C) with adhesive tape and dashboard seal (D) to the inside face of the windshield (E) as shown:
- Be sure the side rubber dam, lower rubber dam, and dashboard seal line up with the alignment marks (F).
- Be careful not to touch the windshield where adhesive will be applied.
  Side rubber dam adhesive tape:
  - Thickness 0.16 mm (0.006 in.)
  - Width 3.5 mm (0.14 in.)
  Lower rubber dam adhesive tape:
  - Thickness 0.16 mm (0.006 in.)
  - Width 4 mm (0.16 in.)
  Clips adhesive tape:
  - Thickness 0.2 mm (0.008 in.)
  - Width 7.5 mm (0.30 in.)
  Fig 4: Identifying Side Rubber Dam, Lower Rubber Dam With Adhesive Tape
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Apply primer to the edge of the windshield between the alignment marks (A). Be careful not to touch the windshield where adhesive will be applied.

Fig 5: Applying Primer To Edge Of Windshield Between Alignment Marks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Attach the molding (A) with adhesive tape (B) to the edge of the windshield (C):
- Be sure the alignment mark (D) of the molding lines up with the alignment mark (E) of the windshield.
- Be careful not to touch the windshield where adhesive will be applied.
  Molding adhesive tape:
  - Thickness 0.8 mm (0.03 in.)
  - Width 4 mm (0.16 in.)
  Fig 6: Attaching Molding With Adhesive Tape To Edge Of Windshield
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

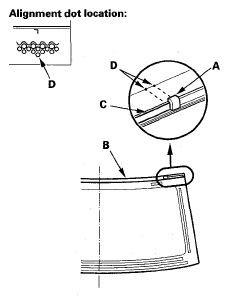

Attach the molding upper seal (A) to the inside surface of the molding (B), and attach the non-woven fabric (C) as shown:
- Be sure the molding upper seal and non-woven fabric line up with the alignment dots (D).
- Be careful not to touch the windshield where adhesive will be applied.

  Fig 7: Attaching Molding Upper Seal To Inside Surface Of Molding
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

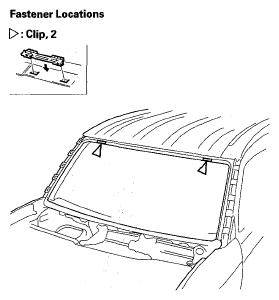

Install the clips to the body.

Fig 8: Identifying Clips To Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Set the windshield in the opening, and center it. Make alignment marks (A) across the windshield and body with a grease pencil at the four points shown. Be careful not to touch the windshield where adhesive will be applied.

Fig 9: Identifying Alignment Marks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the windshield.

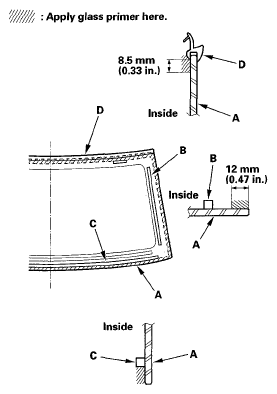

With a sponge, apply a light coat of glass primer around the edge of the windshield (A) between the side rubber dam (B), lower rubber dam (C), and molding (D) as shown, then lightly wipe it off with gauze or cheesecloth:
- Apply glass primer to the molding.
- Do not apply body primer to the windshield, and do not get body and glass primer sponges mixed up.
- Never touch the primed surfaces with your hands. If you do, the adhesive may not bond to the windshield properly, causing a leak after the windshield is installed.
- Keep water, dust, and abrasive materials away from the primed surface.

  Fig 10: Applying Light Coat Of Glass Primer Around Edge Of Windshield Between Side Rubber Dam & Molding
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
With a sponge, carefully apply a light coat of body primer to any exposed paint around the flange where new adhesive will be applied. Let the primer dry for at least 10 minutes:
- Do not apply body primer to any remaining original adhesive on the flange.
- Be careful not to mix up the body and glass primer sponges.
- Never touch the primed surfaces with your hands.

  Fig 11: Applying Light Coat Of Body Primer To Around Flange
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cut a "V" in the end of the nozzle (A) on the adhesive cartridge as shown.

Fig 12: Cutting "V" In End Of Nozzle On Adhesive Cartridge
Courtesy of AMERICAN HONDA MOTOR CO., INC.

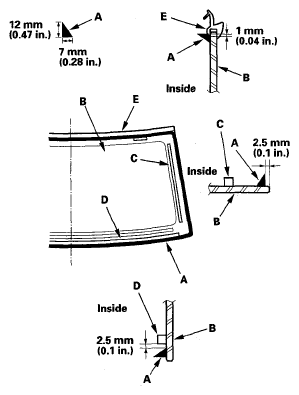

Put the cartridge in a caulking gun, and run a bead of adhesive (A) around the edge of the windshield (B) between the side rubber dam (C), lower rubber dam (D), and molding (E) as shown. Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker bead at each corner.

Fig 13: Applying Adhesive Edge Of Windshield Between Side Rubber Dam
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Use suction cups to hold the windshield over the opening, align it with the alignment marks made in step 16, and set it down on the adhesive. Lightly push on the windshield until its edges are fully seated on the adhesive all the way around.
NOTE: Do not open or close any of the doors for about an hour until the adhesive is dry.
Scrape or wipe the excess adhesive, off with a putty knife or towel. To remove adhesive from a painted surface or the windshield, wipe with a soft shop towel dampened with alcohol.
After the adhesive has dried, spray water over the windshield and check for leaks. Mark the leaking area, let the windshield dry, then seal with sealant:
- Let the vehicle stand for at least 4 hours after windshield installation. If the vehicle has to be used within the first 4 hours, it must be driven slowly.
- Keep the windshield dry for the first hour after installation.
Reinstall all remaining removed parts.
NOTE:
Advise the customer not to do the following things for 2 to 3 days:
- Slam the doors with all the windows rolled up.
- Twist the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
