Passenger's Power Window Motor Test

Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector (A) from the passenger's power window motor.

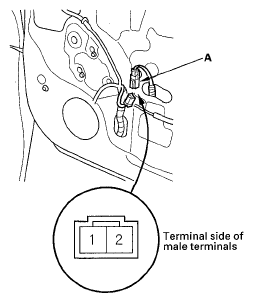

Fig 1: Identifying Passenger's Power Window Motor 2P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor in each direction by connecting battery power and ground according to the table below.
NOTE: To prevent damage to the motor, disconnect one lead as soon as the motor stops running.

Fig 2: Identifying Passenger's Power Window Motor Test Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
