Alternator Removal and Installation: Installation
- Install the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the positive crankcase ventilation (PCV) valve (see PCV VALVE REPLACEMENT
).

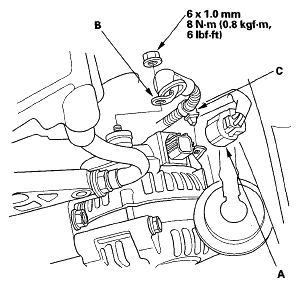

- Connect the alternator connector (A), BLK wire (B), and harness clamp (C) to the alternator. Make sure the crimped side of the ring terminal faces away from the alternator when you connect it.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT
).
- Install the drive belt (see DRIVE BELT REPLACEMENT
).
- Connect the negative cable to the battery.
- Enter the anti-theft code for the audio system.
- Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT
).
- Set the clock.
