Alternator Removal and Installation: Removal
- Make sure you have the anti-theft code for the audio system.
- Disconnect the negative cable from the battery.
- Remove the drive belt (see DRIVE BELT REPLACEMENT
).
- Remove the auto-tensioner (see DRIVE BELT AUTO-TENSIONER REPLACEMENT
).

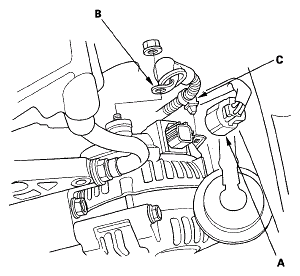

- Disconnect the alternator connector (A), BLK wire (B), and harness clamp (C) from the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the positive crankcase ventilation (PCV) valve (see PCV VALVE REPLACEMENT
).
- Remove the three bolts securing the alternator.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
