Tensioner Pulley Replacement

  1. Remove the drive belt. See Drive Belt Replacement .
  2. Remove the power steerig (P/S) pump without disconnecting the P/S hoses.

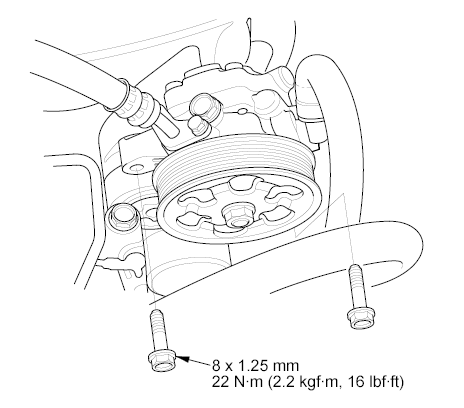

    3. Fig 1: Power Steering Pump Bolts With Torque Specifications
    G00487361Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the pulley bolt (A), and remove the tensioner pulley (B).

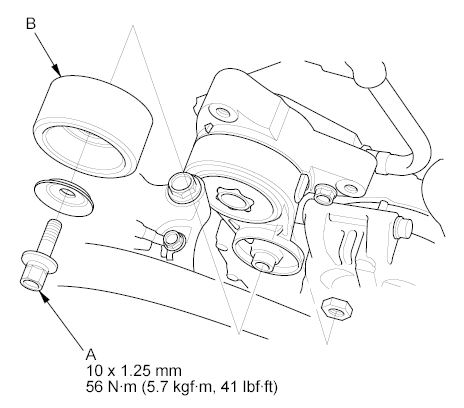

    4. Fig 2: Pulley Bolts With Torque Specifications
    G00487362Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the tensioner pulley in the reverse order of removal.
