Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

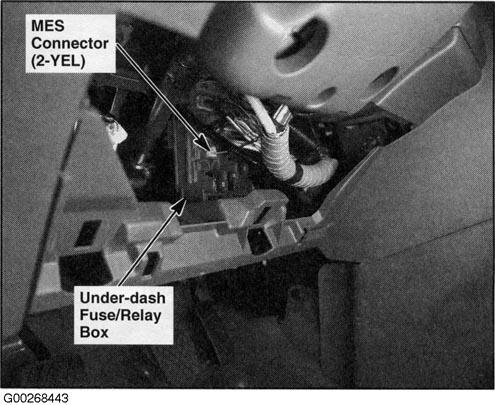

Underdash Fuse/Relay Box Behind left side of dash, right of steering column. See Figure.

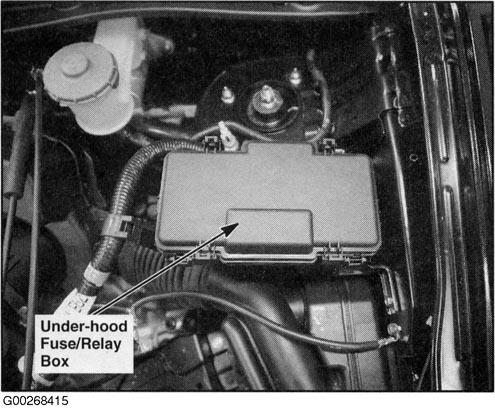

Underhood Fuse/Relay Box Left rear of engine compartment. See Figure.
