Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

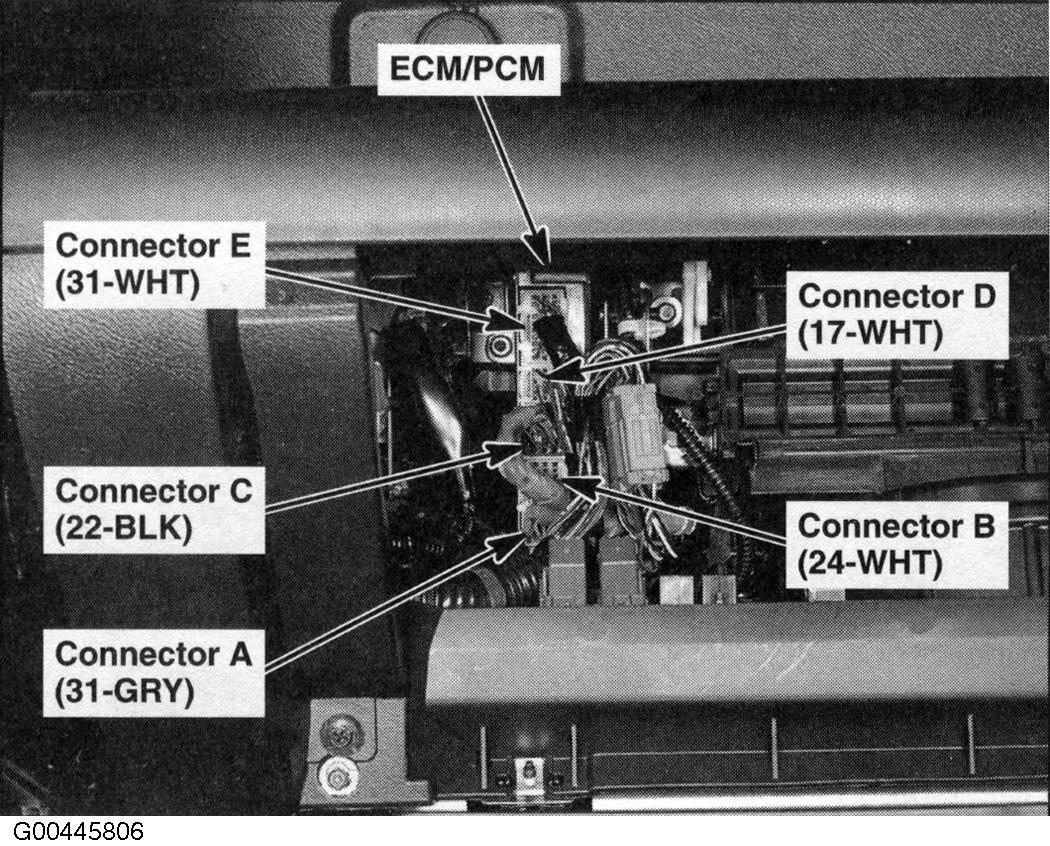

| ECM/PCM | Behind glove box. See Figure. |

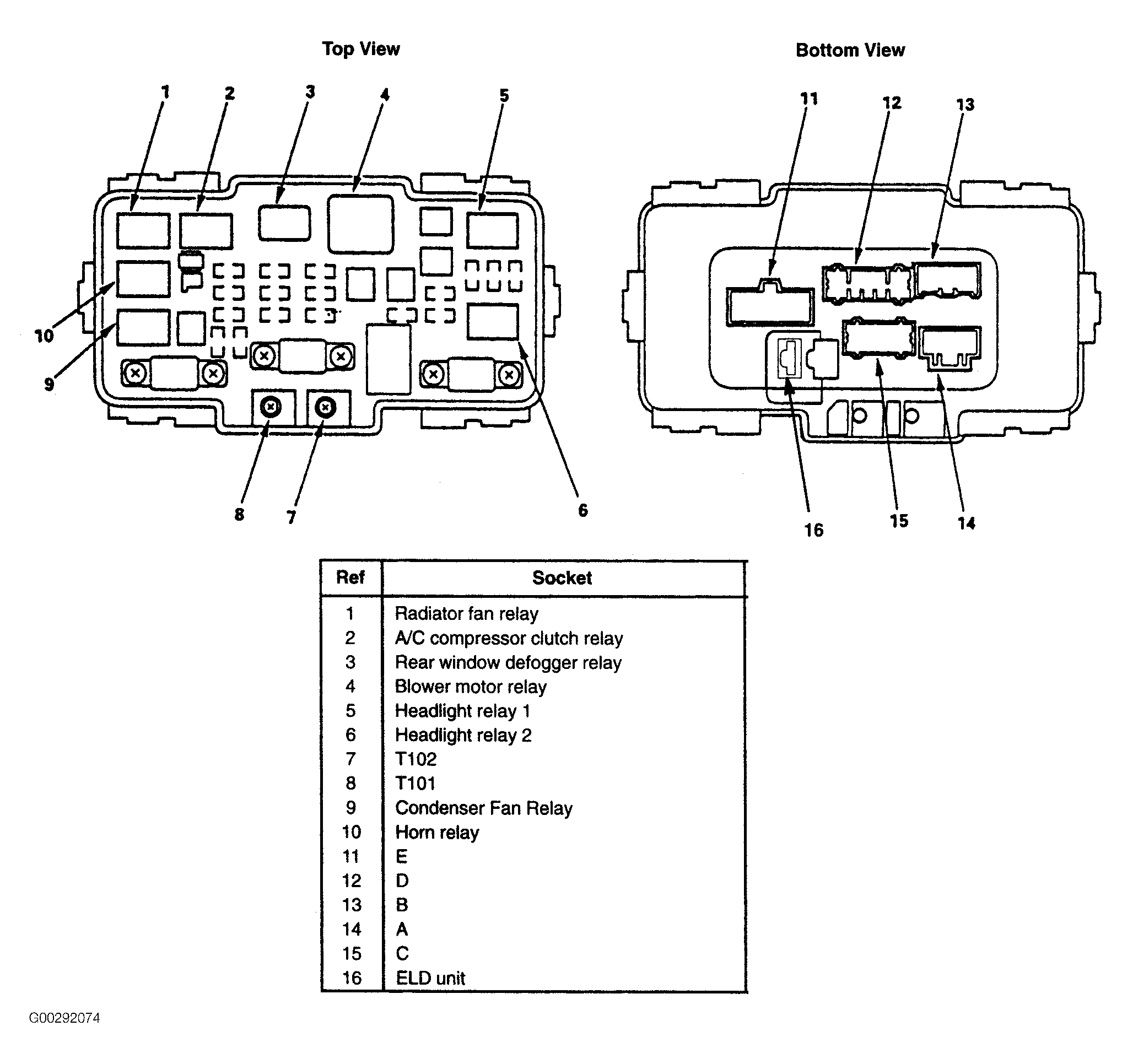

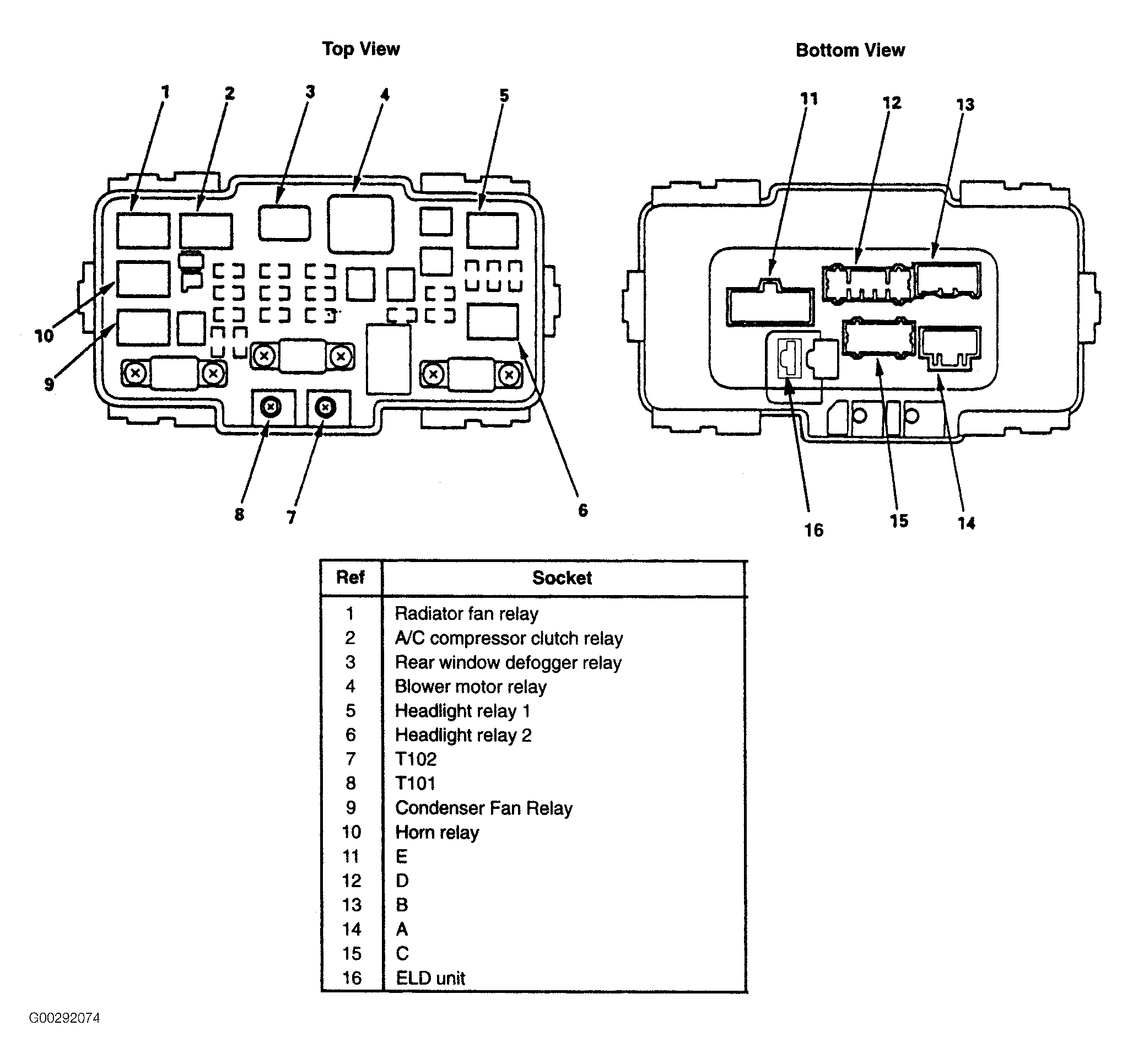

| ELD Unit | In underhood fuse/relay box. See Figure. |

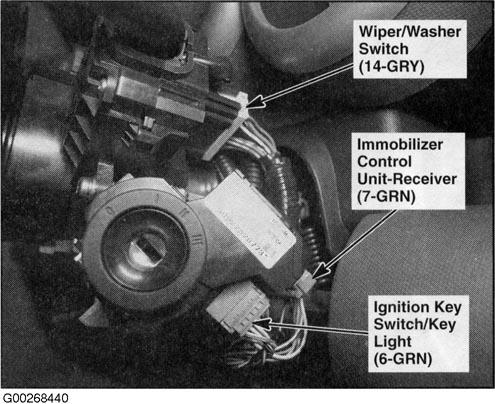

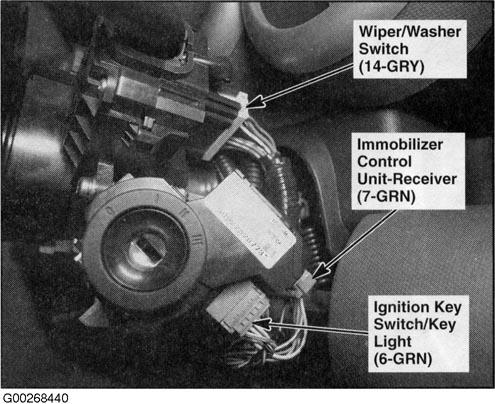

| Immobilizer Control Unit Receiver | In steering wheel cover. See Figure. |

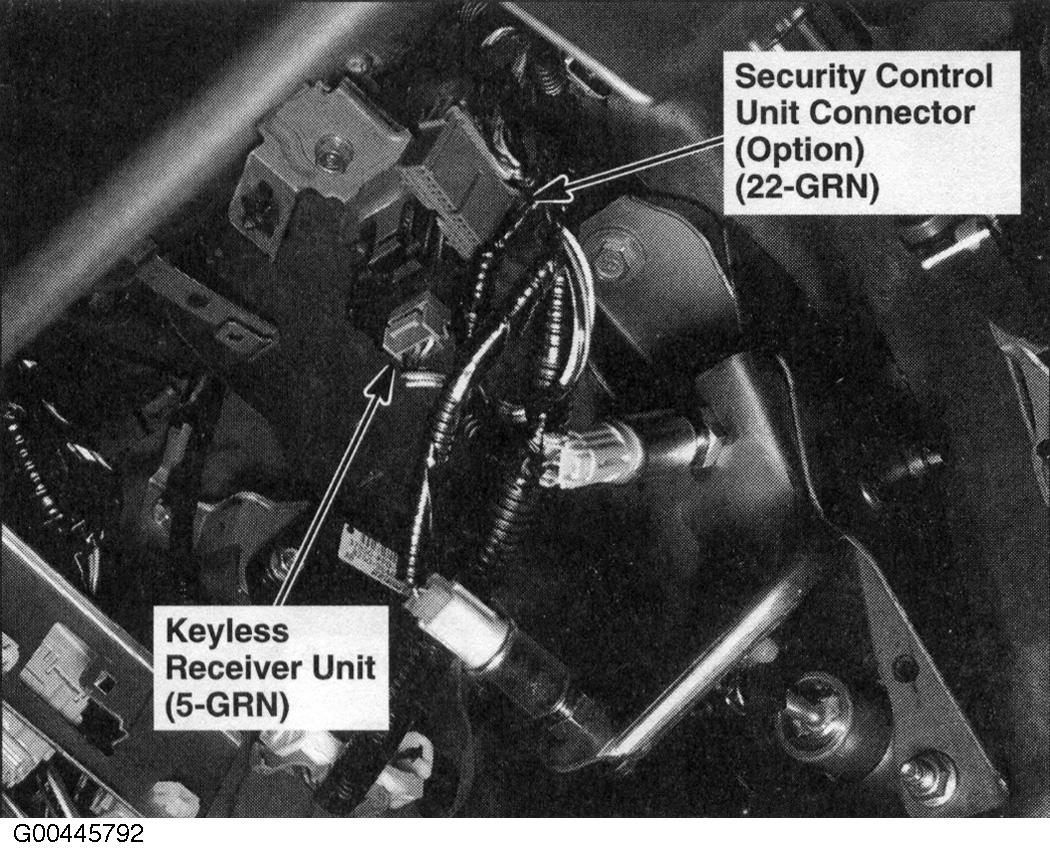

| Keyless Receiver Unit | Under left side of dash. See Figure. |

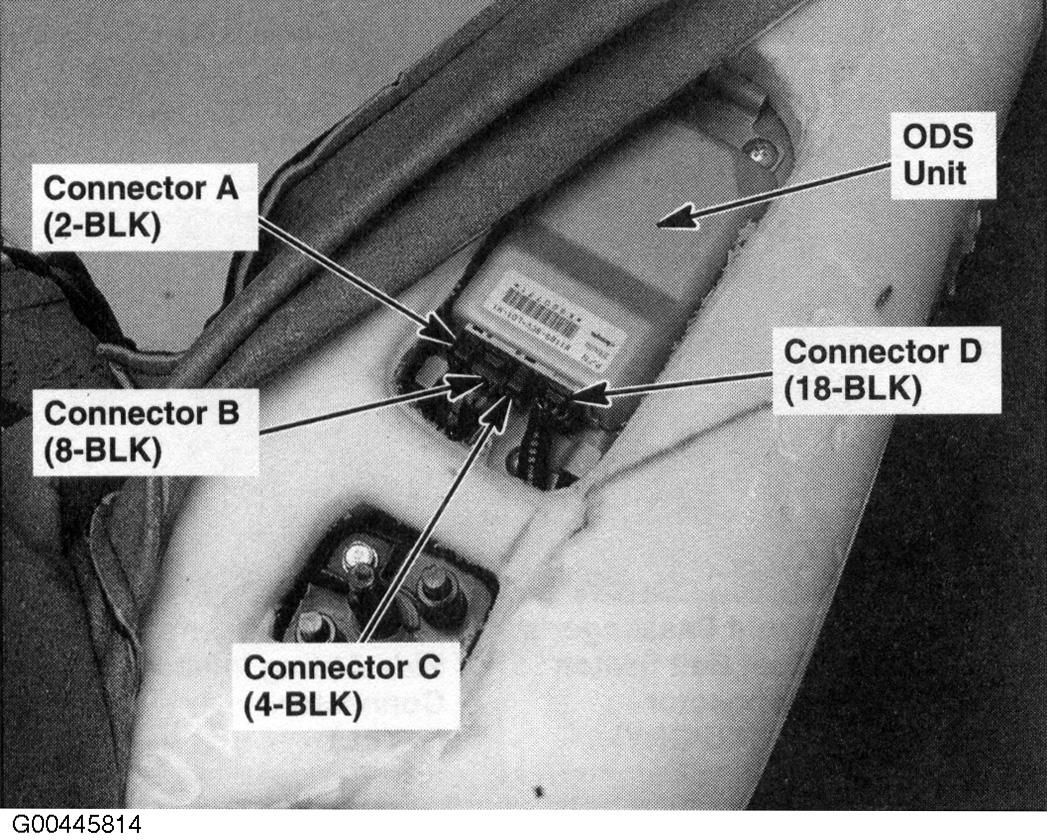

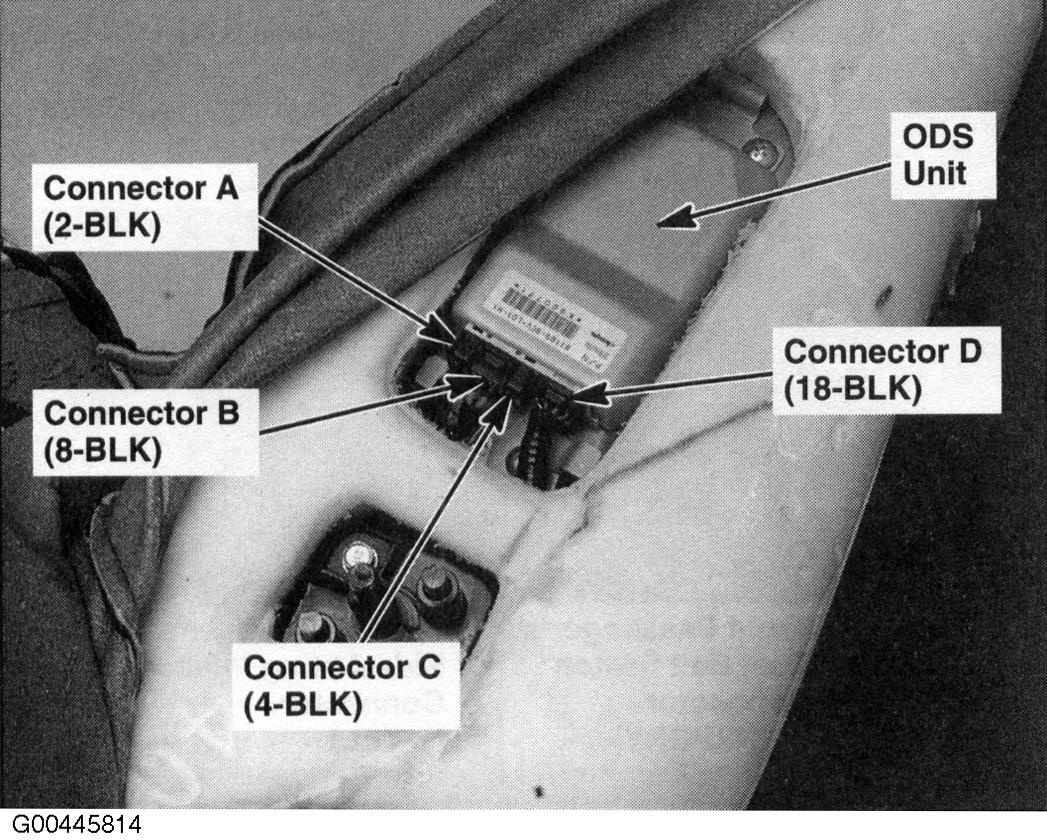

| ODS Unit | In side of front passenger's seat. See Figure. |

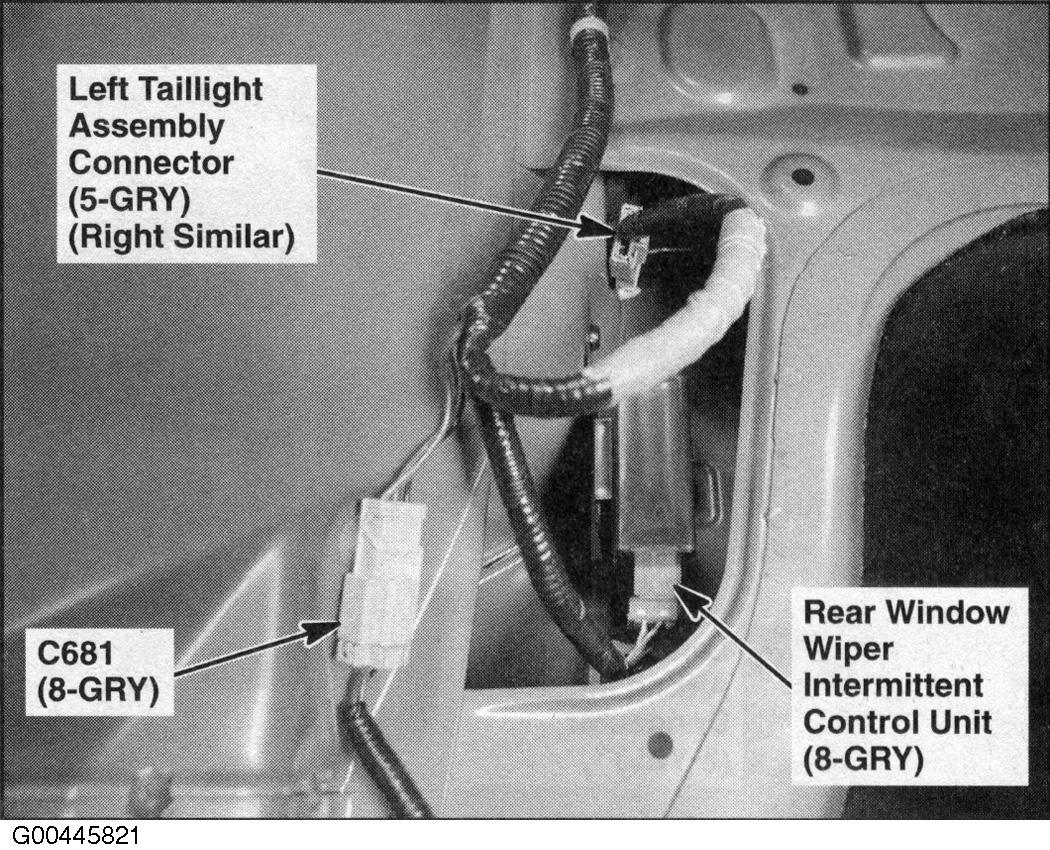

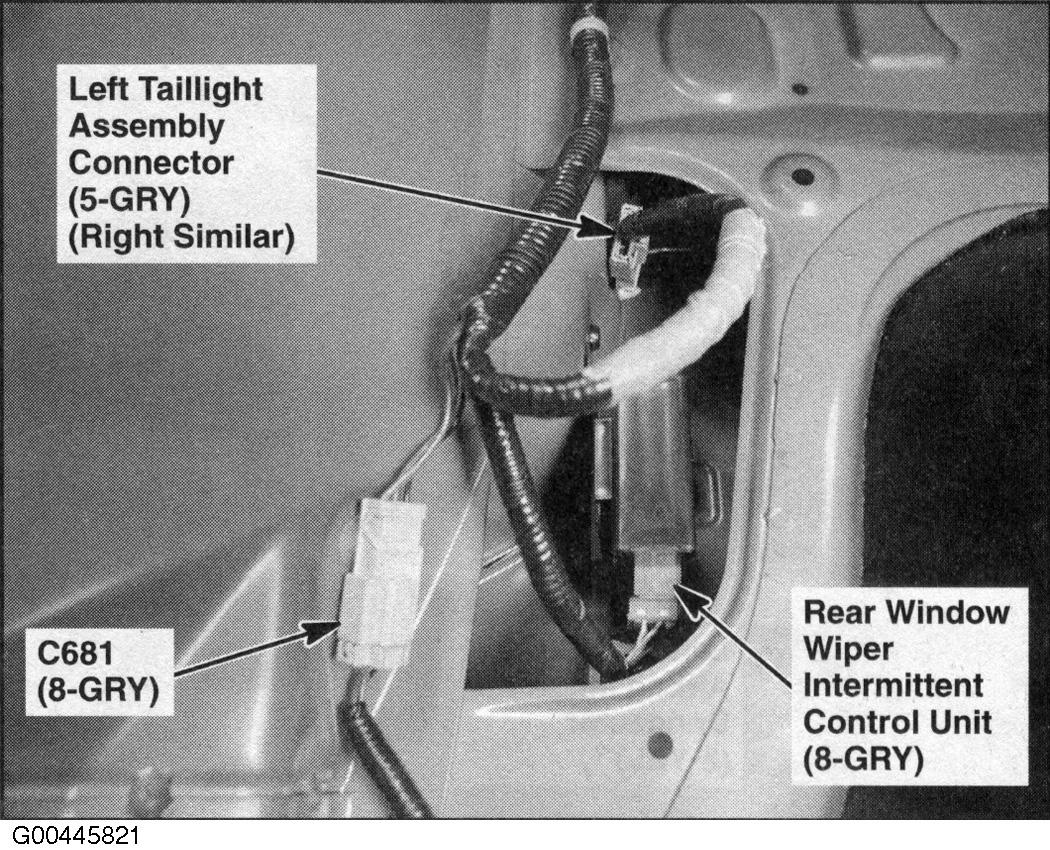

| Rear Window Wiper Intermittent Control Unit | Behind left quarterpanel. See Figure. |

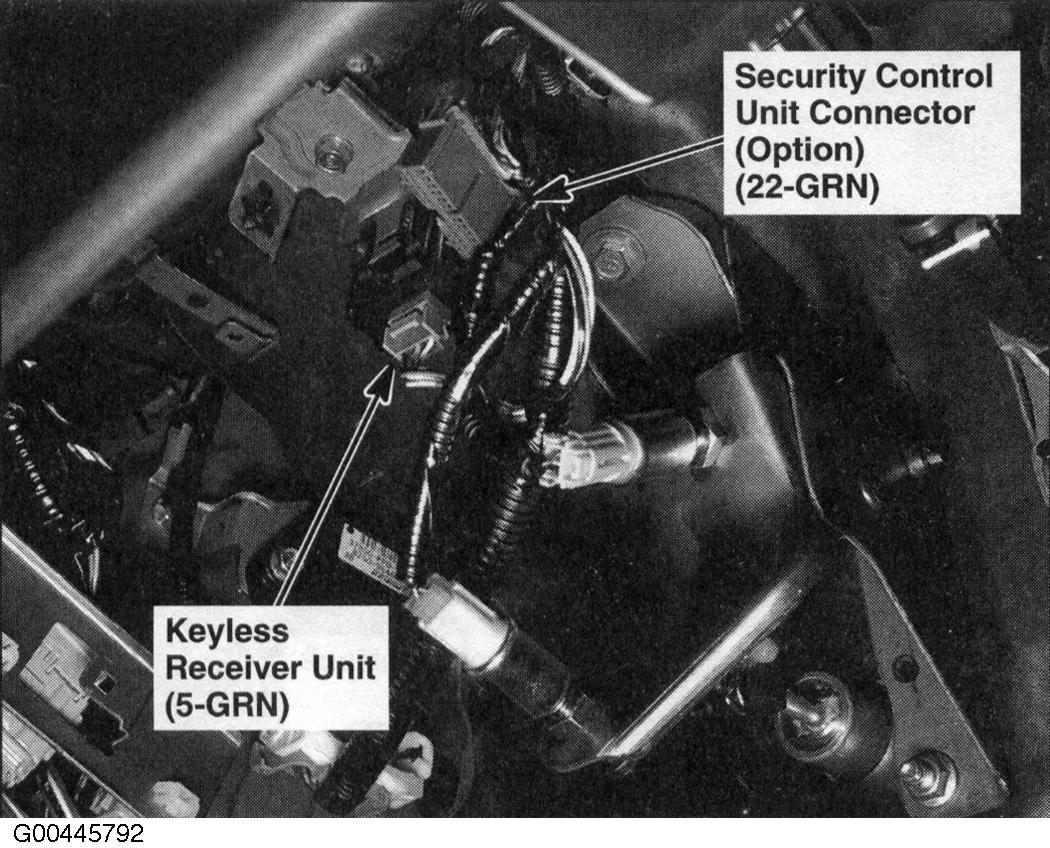

| Security Control Unit Connector (Optional) | Behind left side of dash. See Figure. |

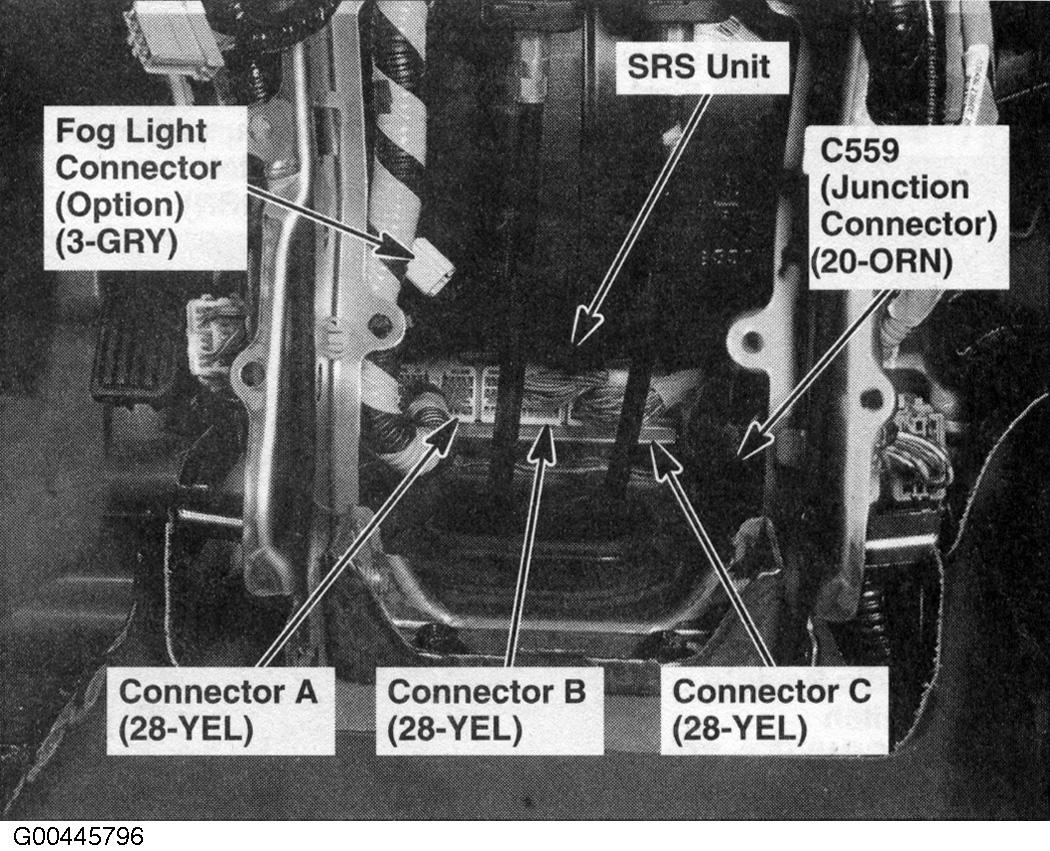

| SRS Unit | Below center of dash. See Figure. |

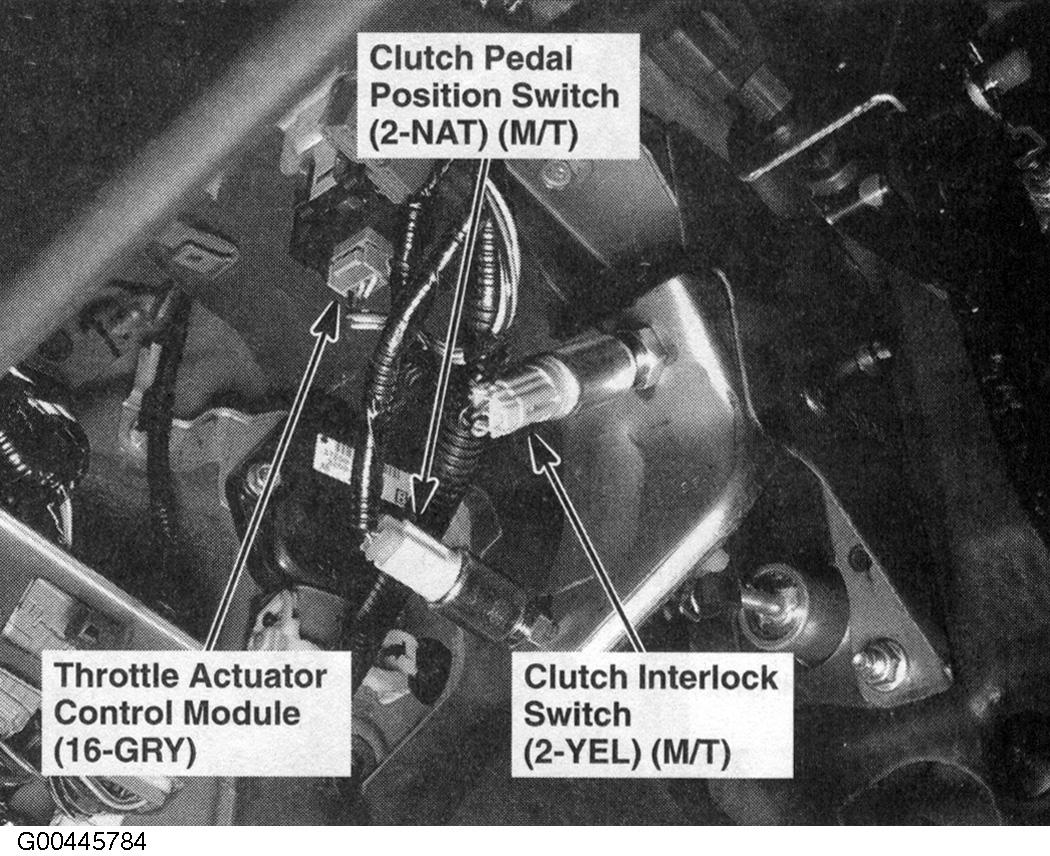

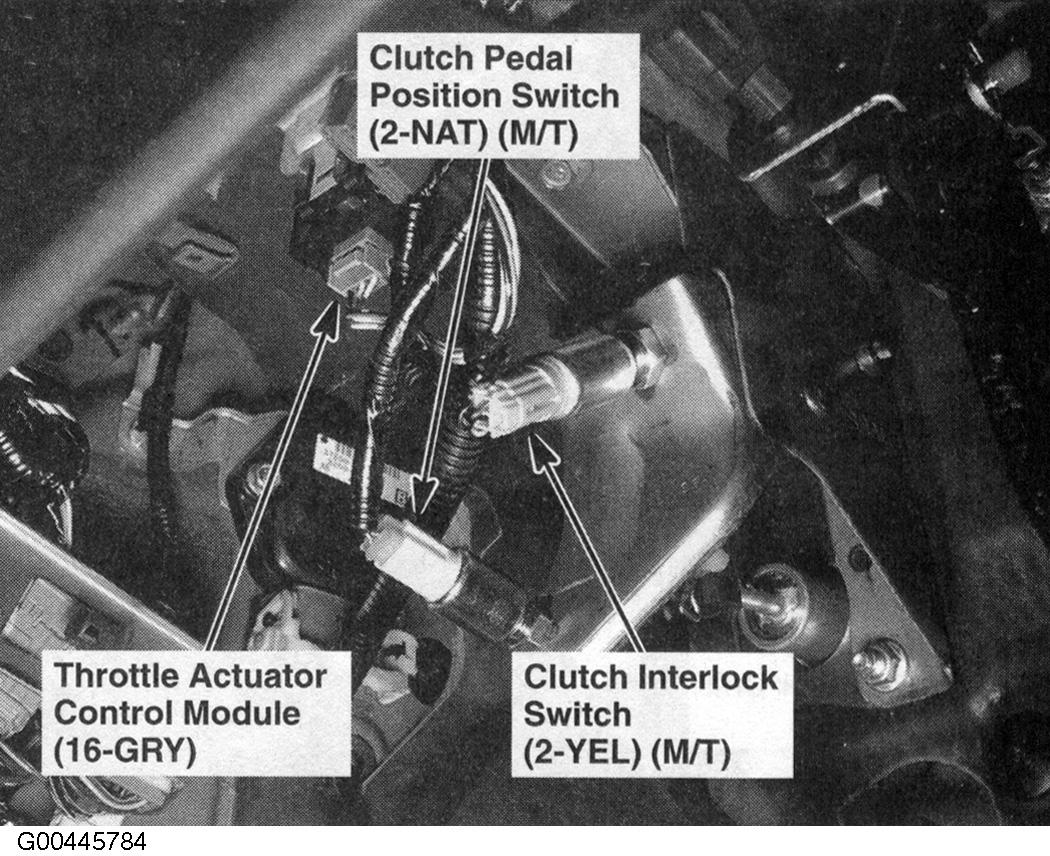

| Throttle Actuator Control Module | Under left side of dash. See Figure. |

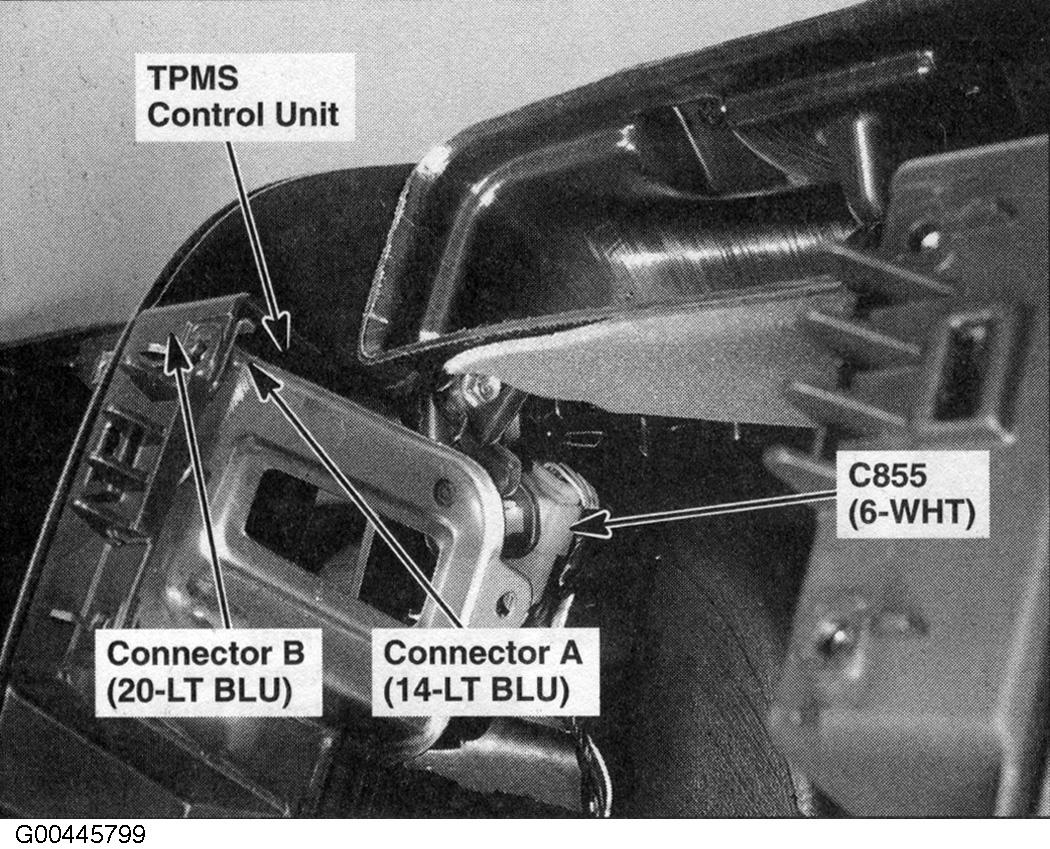

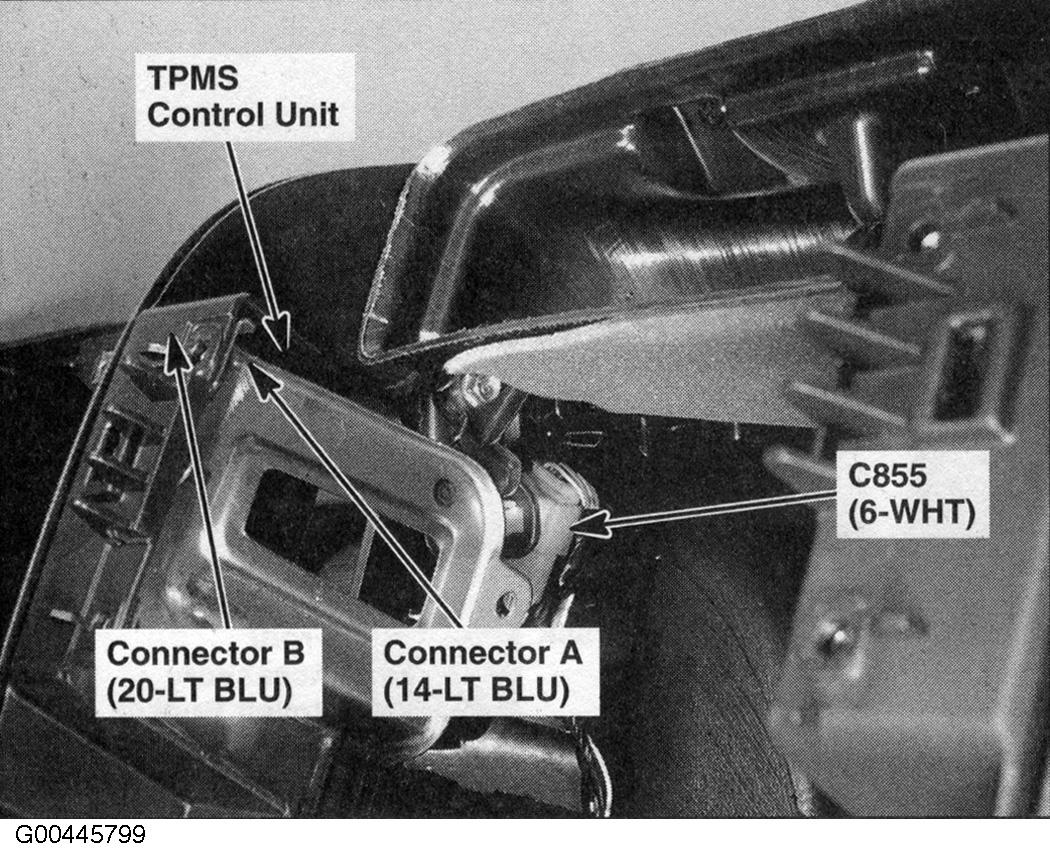

| TPMS Control Unit | Under middle of dash. See Figure. |

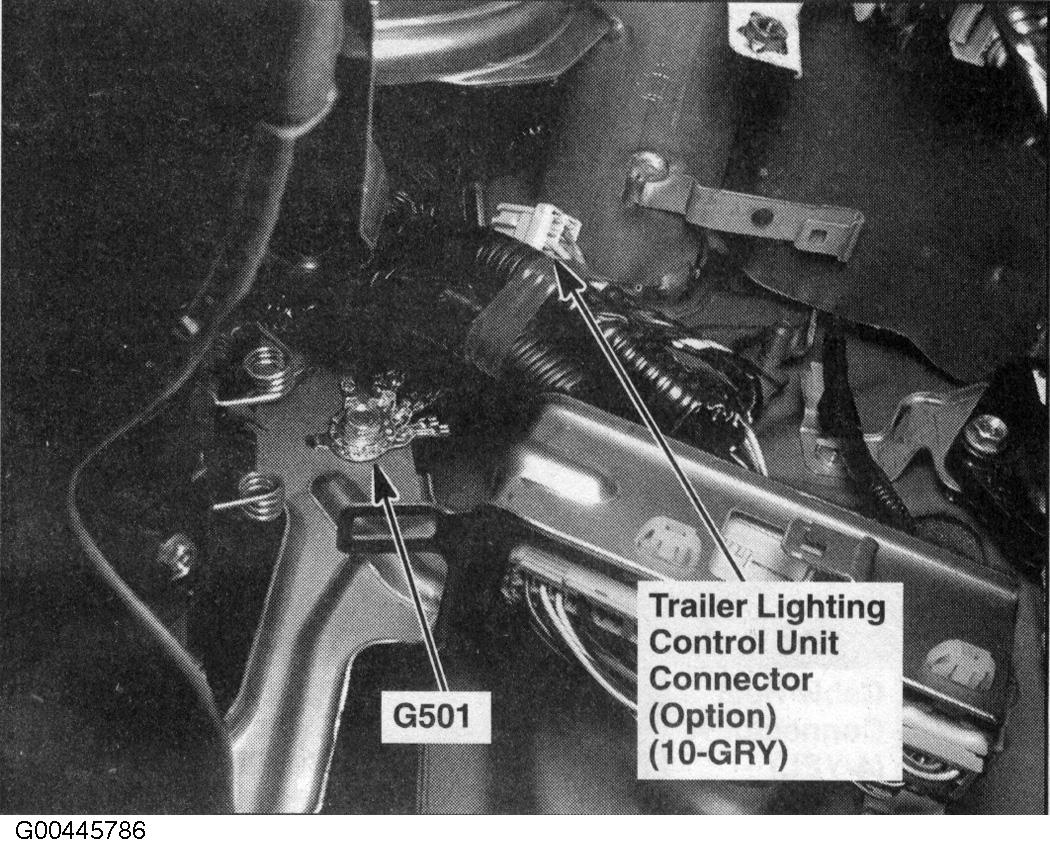

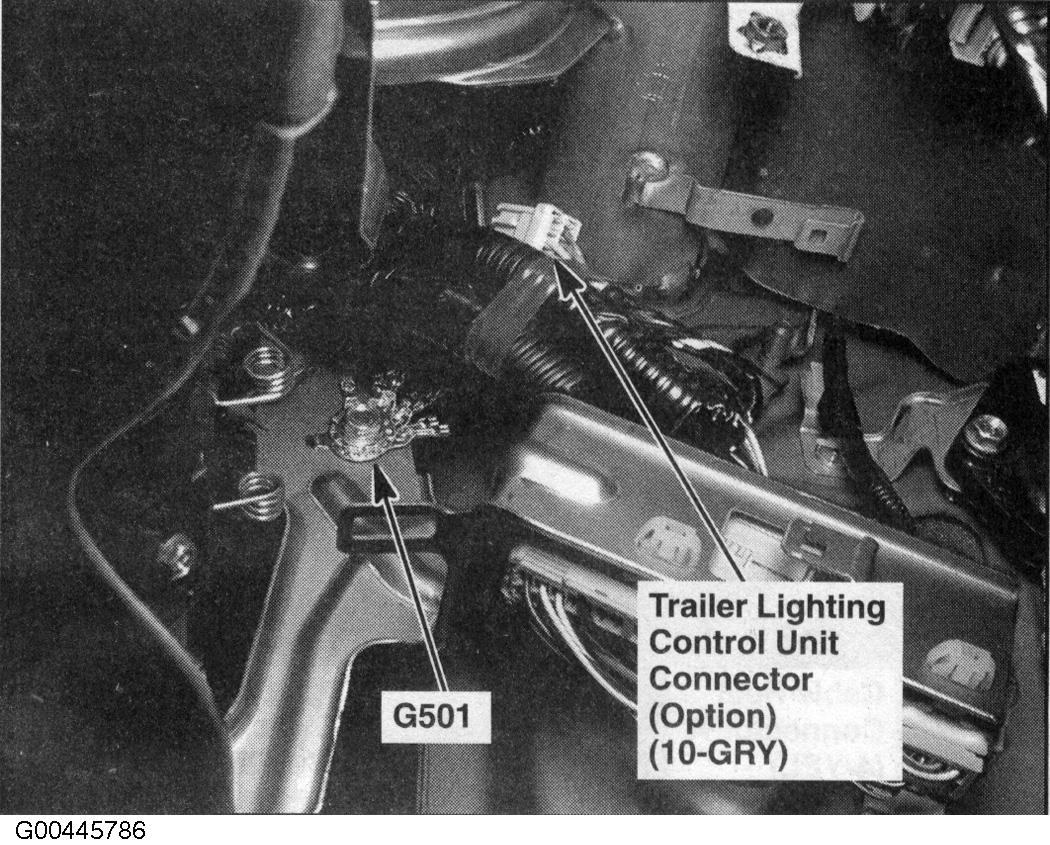

| Trailer Lighting Control Unit Connector | Under left side of dash. See Figure. |

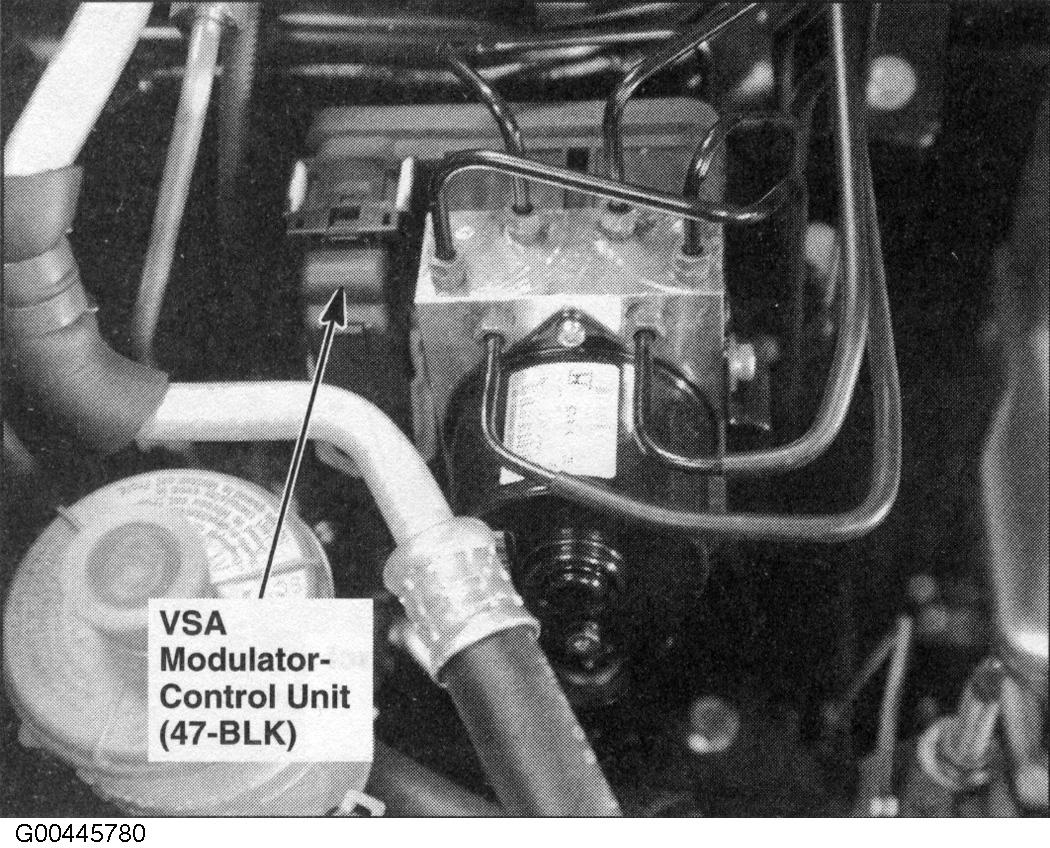

| VSA Modulator-Control Unit | Right rear corner of engine compartment. See Figure. |
