Starter Overhaul: Disassembly/Reassembly

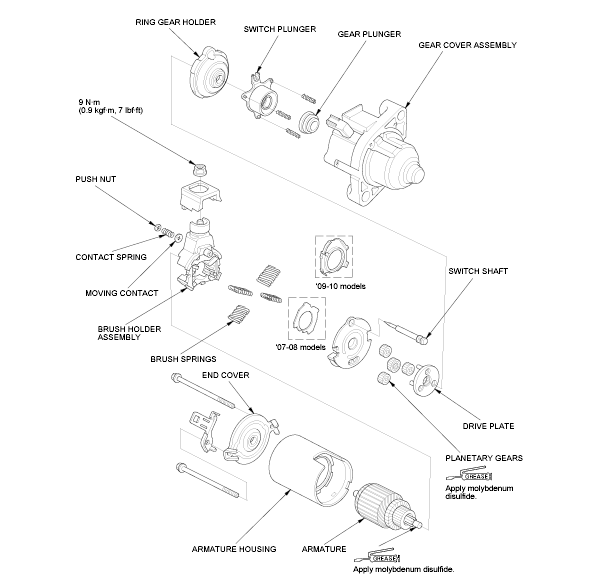

Fig 1: Exploded View Of Starter Overhaul Replacement Components
G00482821Courtesy of AMERICAN HONDA MOTOR CO., INC.
