Component Location Index

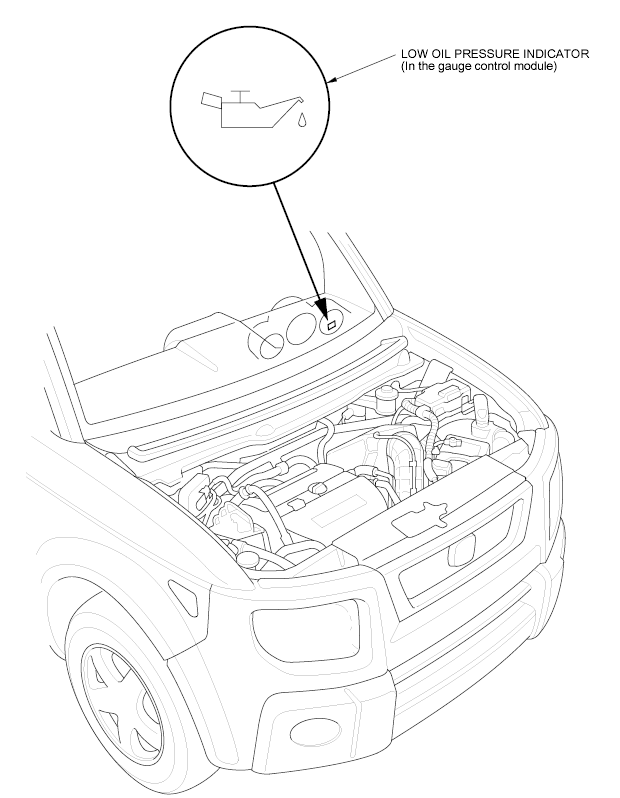

Fig 1: Identifying Low Oil Pressure Indicator
G00487366Courtesy of AMERICAN HONDA MOTOR CO., INC.

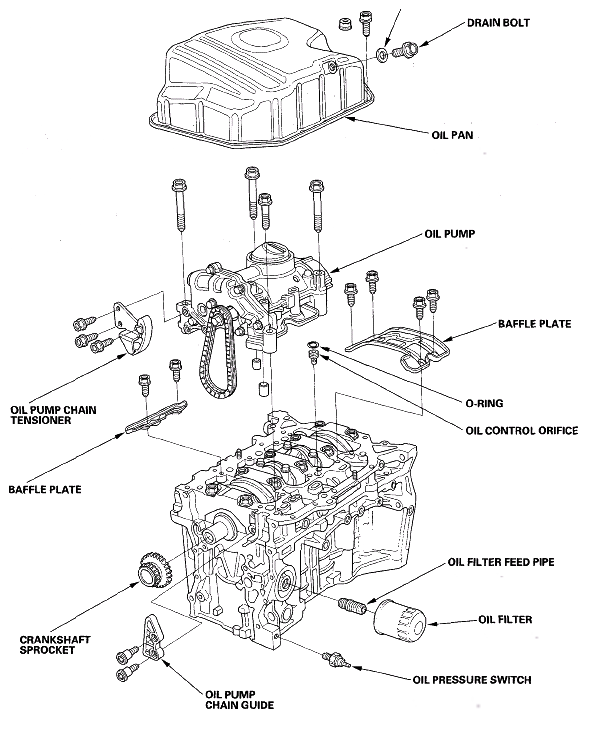

Fig 2: Identifying Engine Lubrication Replacement Components
G05448749Courtesy of AMERICAN HONDA MOTOR CO., INC.
