DTC P0711: Problem in ATF Temperature Sensor Circuit: Notes

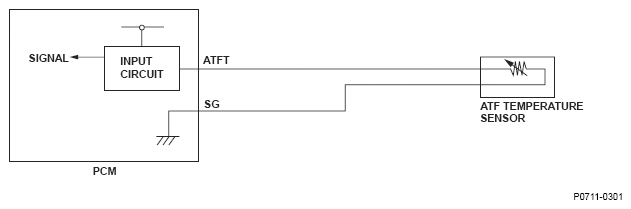

Fig 1: ATF Temperature Sensor Circuit Diagram
G04816805

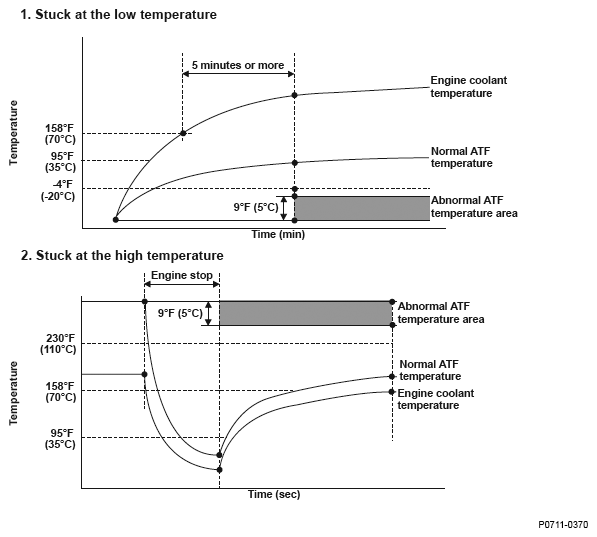

Fig 2: ATF Temperature Graph
G04816599
