DTC P0983: Open in Shift Solenoid Valve D Circuit: Notes

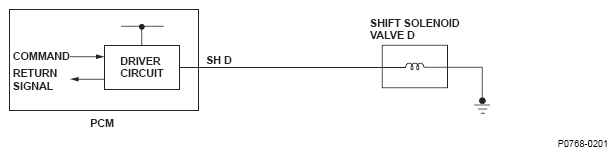

Fig 1: Shift Solenoid Valve D Circuit Diagram
G04816893

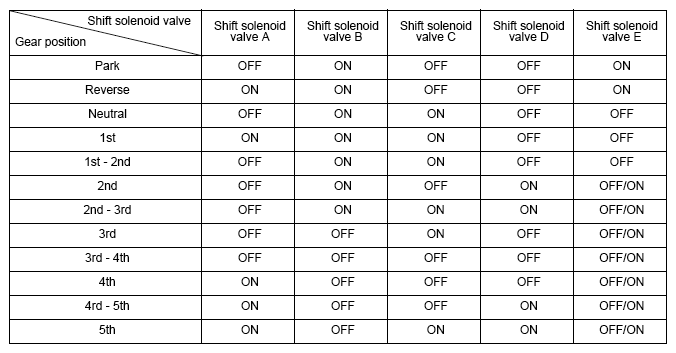

Fig 2: Shift Solenoid Valve Driving Signal Combination Table
G04826969
