EVAP Canister Purge Valve Replacement

  1. Disconnect the EVAP canister purge valve 2P connector (A).

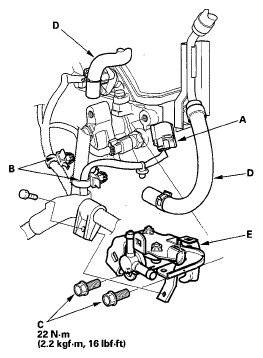

    Fig 1: EVAP Canister Purge Valve Replacement Components With Torque Specifications
    G05449332Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness clips (B), the bolts (C), and the hoses (D), then remove the EVAP canister purge valve assembly (E).
  3. Remove the screws (A).
    Fig 2: Identifying EVAP Canister Purge Valve & Screws
    G05449333Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EVAP canister purge valve (B) from the bracket.
  5. Install the parts in the reverse order of removal.
