ECM/PCM Electrical Connections

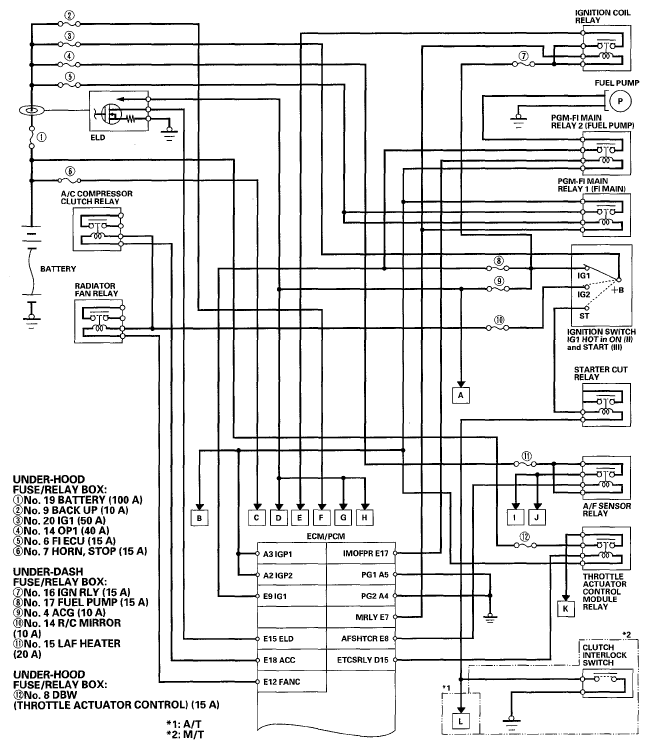

Fig 1: Identifying ECM/PCM Electrical Connections Diagram (1 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

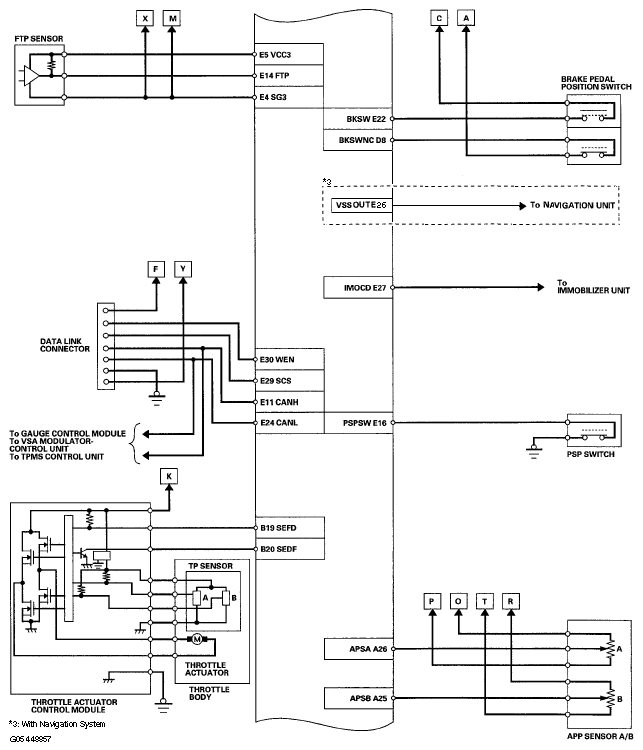

Fig 2: Identifying ECM/PCM Electrical Connections Diagram (2 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

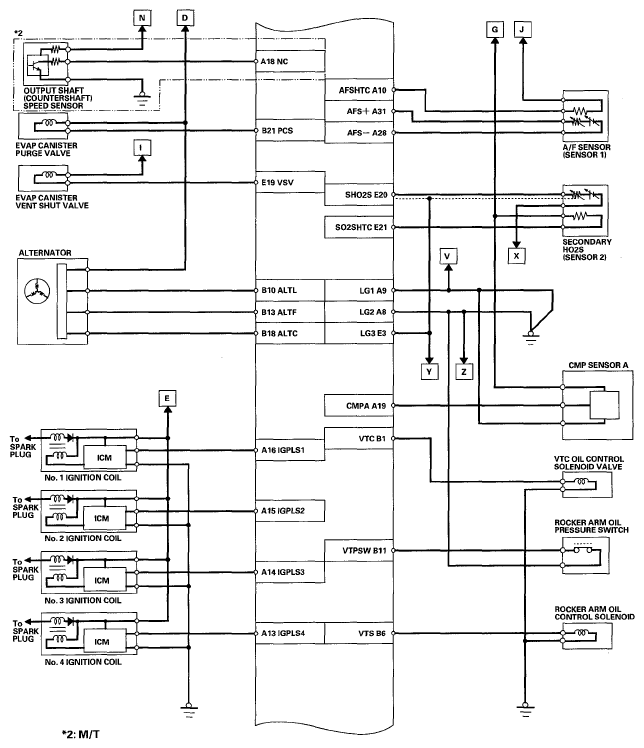

Fig 3: Identifying ECM/PCM Electrical Connections Diagram (3 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

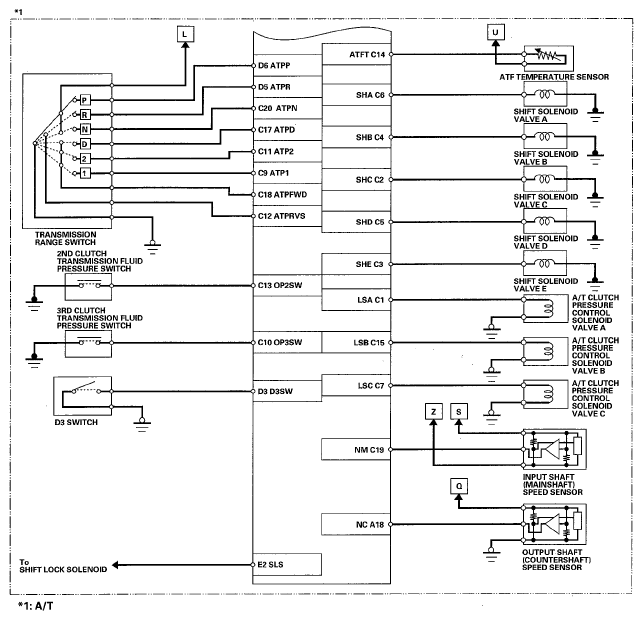

Fig 4: Identifying ECM/PCM Electrical Connections Diagram (4 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

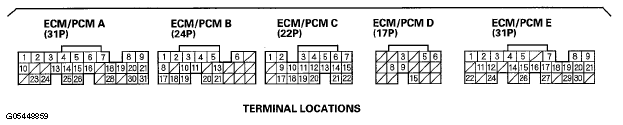

Fig 5: Identifying ECM/PCM Electrical Connections Diagram (5 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

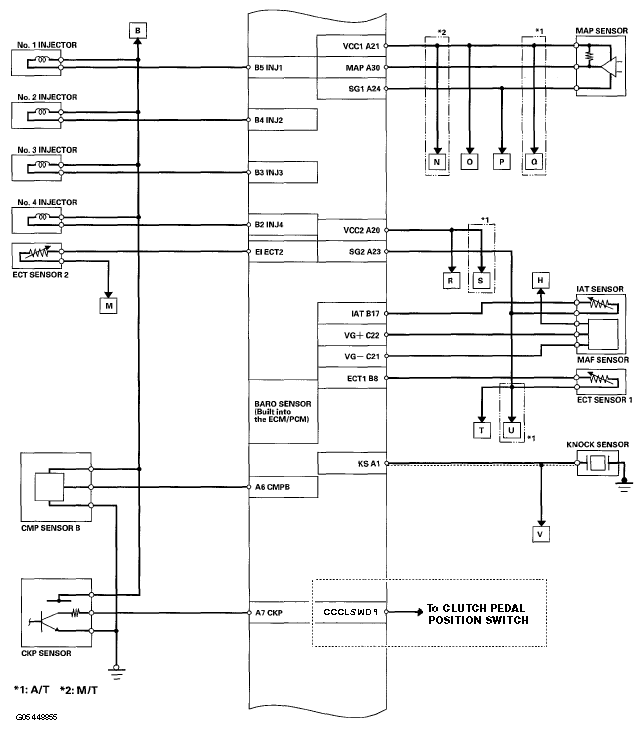

Fig 6: Identifying ECM/PCM Electrical Connections Diagram (6 Of 6)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
