Electronic Throttle Control System Diagram

The electronic throttle control system consists of the throttle actuator, throttle position (TP) sensor A/B, accelerator pedal position (APP) sensor A/B, throttle actuator control module, throttle actuator control module relay, and the ECM/PCM.

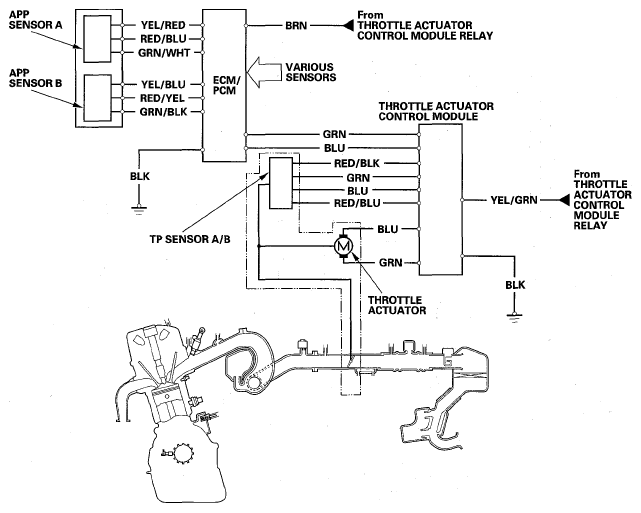

Fig 1: Identifying Electronic Throttle Control System Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
