Fuel Tank Replacement
- Drain the fuel tank (see FUEL TANK DRAINING
).
- Reinstall the fuel tank unit.
- Raise the vehicle, and support it with jackstands.

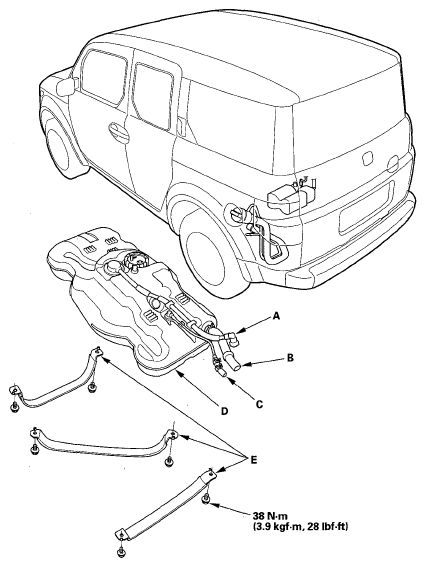

- Disconnect the filler neck, the fuel vapor hose (A), the fuel fill tube (B) and the fuel vapor hose (C). To avoid damaging the hoses, slide back the clamps, then twist the hoses as you pull them.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Place a jack or other support under the tank (D).
- Remove the strap bolts and the straps (E).
- Remove the fuel tank.
- Install the parts in the reverse order of removal.
