A/F Sensor Replacement

Special Tools Required

O2 sensor socket wrench. Snap-on YA8875 or SWR2, or equivalent, commercially available

1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).

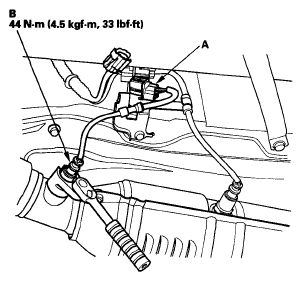

   Fig 1: Identifying A/F Sensor 4P Connector And A/F Sensor

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the parts in the reverse order of removal.
