Knock Sensor Replacement

  1. Disconnect the knock sensor connector (A).

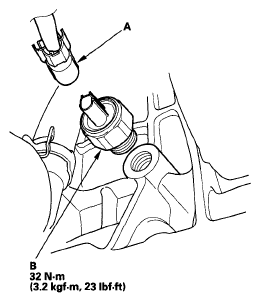

    Fig 1: Lnock Sensor Connector And Knock Sensor With Torque Specifications
    G06267519Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the knock sensor (B).
  3. Install the parts in the reverse order of removal.
