Without navigation system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

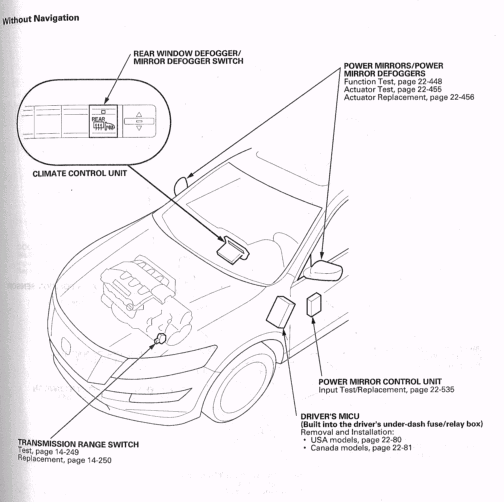

Fig 1: Identifying Driving Position Memory System (DPMS) Component Location - Without Navigation System (1 Of 3)
G06420493Courtesy of ABLE BODY CORP.

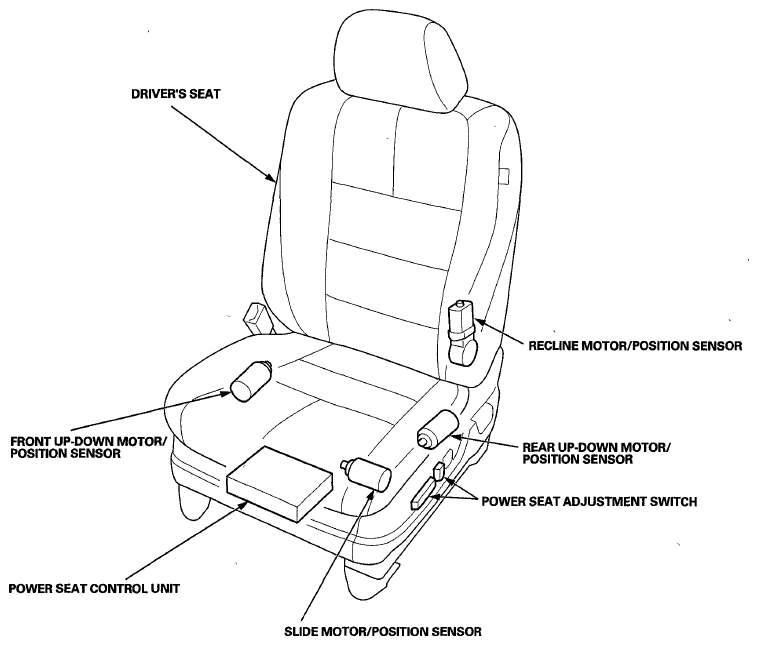

Fig 2: Identifying Driving Position Memory System (DBMS) Component Location - Without Navigation System (2 Of 3)
G06420494Courtesy of ABLE BODY CORP.

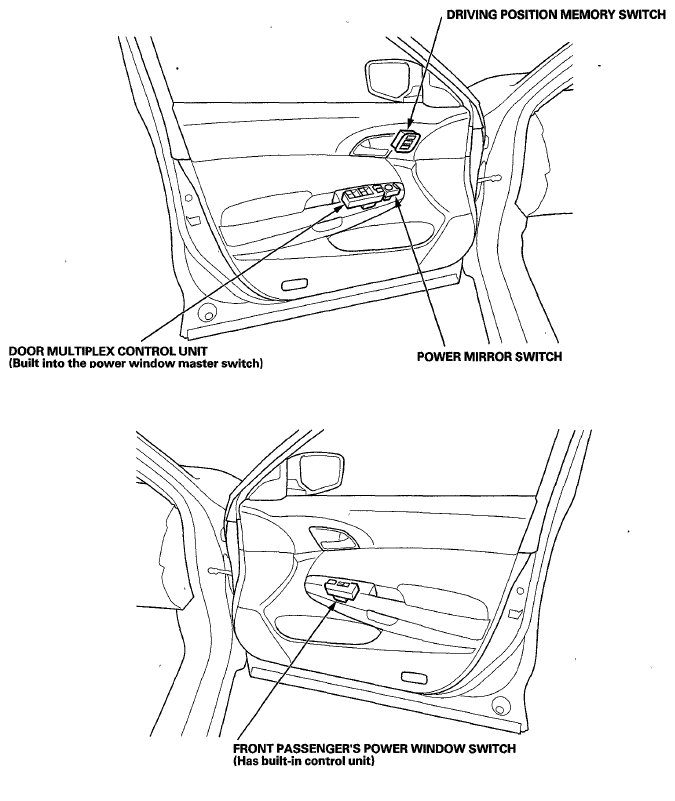

Fig 3: Identifying Driving Position Memory System (DBMS) Component Location - Without Navigation System (3 Of 3)
G06420495Courtesy of ABLE BODY CORP.
