Door Multiplex Control Unit Input Test
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Before troubleshooting the DPMS, troubleshooting the multiplex integrated control system first using B-CAN System DiagosisTest Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A
).
- Turn the ignition switch to LOCK (0).
- Open and close the driver's door, then remove the power window master switch (see POWER WINDOW MASTER SWITCH REPLACEMENT ).

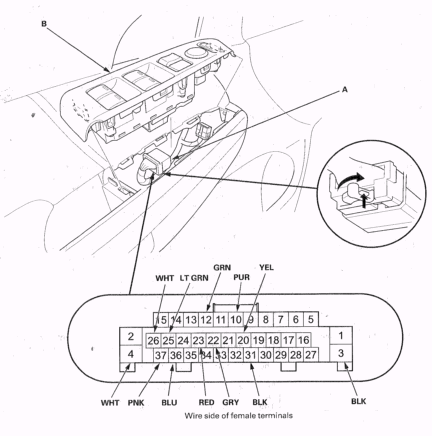

- Disconnect the 37P connector (A) from the power window master switch (B).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to next step.
- Reconnect the connector to the power window master switch, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to next step.CONNECTOR INPUT TESTS REFERENCE
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 26 WHT Under all conditions Measure the voltage to ground:
There should be battery voltage.- Blown No. A15 (10 A) fuse in the under-hood fuse/relay box
- An open or high resistance in the wire
25 LT GRN Ignition switch ON (II) Measure the voltage to ground:
There should be battery voltage.- Blown No. B16 (7.5 A) fuse in the driver's under-dash fuse/relay box
- An open or high resistance in the wire
4 WHT Under all conditions Measure the voltage to ground:
There should be battery voltage.- Blown No. A3-4 (DR F/B STD) (60 A) fuse in the under-hood fuse/relay box
- Blown No. B24 (20 A) fuse in the driver's under-dash fuse/relay box
- An open or high resistance in the wire
31 BLK In all ignition switch positions Measure the voltage to ground:
There should be less than 0.2 V.- Poor ground (G401)
- An open or high resistance in the ground wire
3 BLK In all ignition switch positions Measure the voltage to ground:
There should be less than 0.2 V.- Poor ground (G402)
- An open or high resistance in the ground wire
23 RED Ignition switch ON (II), position 2 switch pressed Measure the voltage to ground:
There should be less than 0.2 V.- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
Ignition switch ON (II), position 2 switch released Measure the voltage to ground:
There should be about 5 V.- Faulty driving position memory switch
- A short to ground in the wire
22 GRY Ignition switch ON (II), position 1 switch pressed Measure the voltage to ground:
There should be less than 0.2 V.- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
Ignition switch ON (II), position 1 switch released Measure the voltage to ground:
There should be about 5 V.- Faulty driving position memory switch
- A short to ground in the wire
20 YEL Ignition switch ON (II), SET switch pressed Measure the voltage to ground:
There should be less than 0.2 V.- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
Ignition switch ON (II), SET switch released Measure the voltage to ground:
There should be about 5 V.- Faulty driving position memory switch
- A short to ground in the wire
- Turn the ignition switch to LOCK (0), then disconnect the connector from the power window master switch, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the door multiplex control unit must be faulty; replace the power window master switch.NOTE: After replacing the power window master switch, reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).CONNECTOR INPUT TESTS REFERENCE
Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained 12 GRN Under all conditions Connect terminals No. 26 and No. 12:
The driving position memory switch indicator 2 should come on.- Faulty LED
- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
10 PUR Under all conditions Connect terminals No. 26 and No. 10:
The driving position memory switch indicator 1 should come on.- Faulty LED
- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
37 PNK Under all conditions Connect terminals No. 26 and No. 37:
The driving position memory switch lights should come on.- Faulty LED
- Faulty driving position memory switch
- Poor ground (G401) or an open in the ground wire
- An open or high resistance in the wire
30 BLU Under all conditions (disconnect the power seat control unit connector B (40P)) Check for continuity between terminal No. 30 and power seat control unit connector B (40P) terminal No. 21:
There should be continuity.An open in the B-CAN wire 28 PNK Under all conditions (disconnect the power seat control unit connector B (40P)) Check for continuity between terminal No. 28 and power seat control unit connector B (40P) terminal No. 22:
There should be continuity.An open in the B-CAN wire 36 BLU Disconnect the front passenger's power window switch 37P and the moonroof control unit/motor 14P connectors Check for continuity between terminal No. 36 and the front passenger's power window switch 37P connector terminal No. 34;
There should be continuity.
Check for continuity to ground: There should be no continuity.An open in UART wire
A short in the UART wire
