Driving Position Memory Switch Test/Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 7P connector (A) from the driver's position memory switch (B).

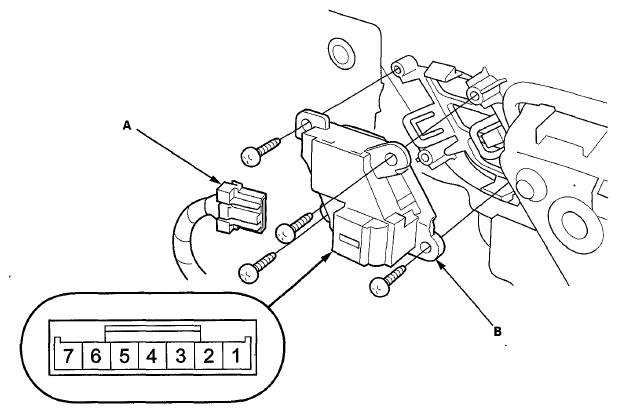

    Fig 1: Identifying 7P Connector And Driver's Position Memory Switch
    G06420561Courtesy of ABLE BODY CORP.
  3. Remove the four screws, then remove the switch from the door panel.
  4. Check for continuity between the terminals in each switch position according to the table.
    NOTE:
    • Make sure the correct test lead (+ or -) is placed on the terminal.
    • When checking for continuity across the diode, use the diode setting (→(symbol)) on the digital volt/ohm meter to check the diode bias.
    • Note this important operating characteristic: diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

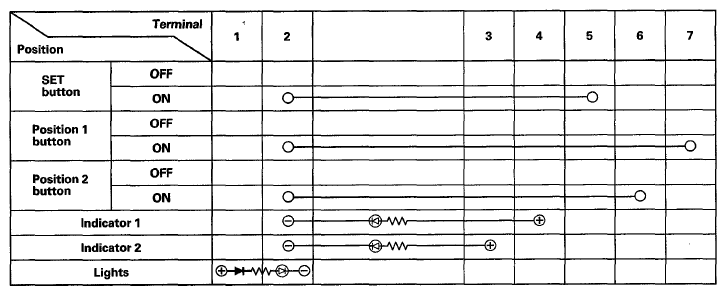

    Fig 2: Terminals Continuity Chart
    G06420562Courtesy of ABLE BODY CORP.
  5. If the continuity is not as specified, replace the switch.
  6. Install the switch in the reverse order of removal.
