Lubricants and Fluids

For details of lubrication points and type of lubricants to be applied, refer to Fig 1Fig 2 and various work procedures (such as Assembly/Reassembly, Replacement, Overhaul, Installation, etc.) .

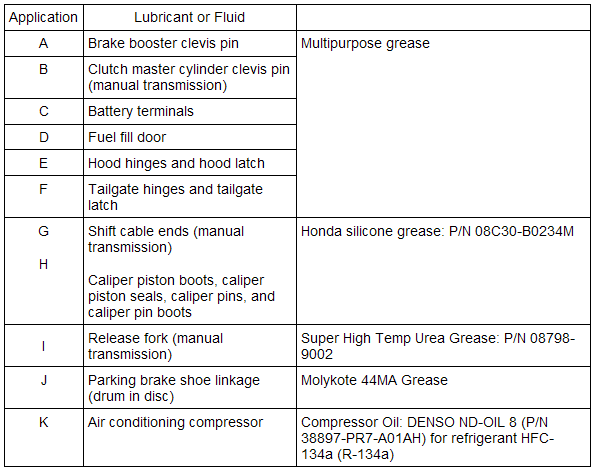

Fig 1: Lubricants And Fluids Specification Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.

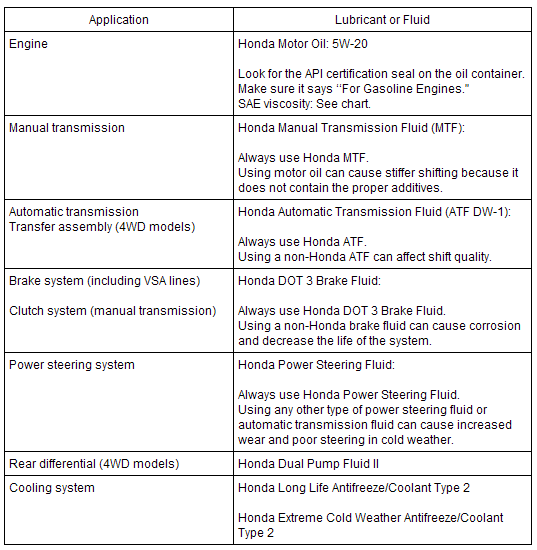

Fig 2: Lubricants And Fluids Specification Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.

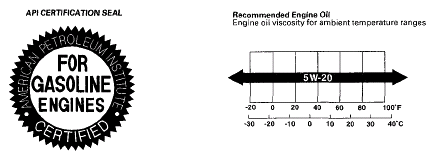

Fig 3: Identifying API Certifications Seal & Recommended Engine Oil

Courtesy of AMERICAN HONDA MOTOR CO., INC.

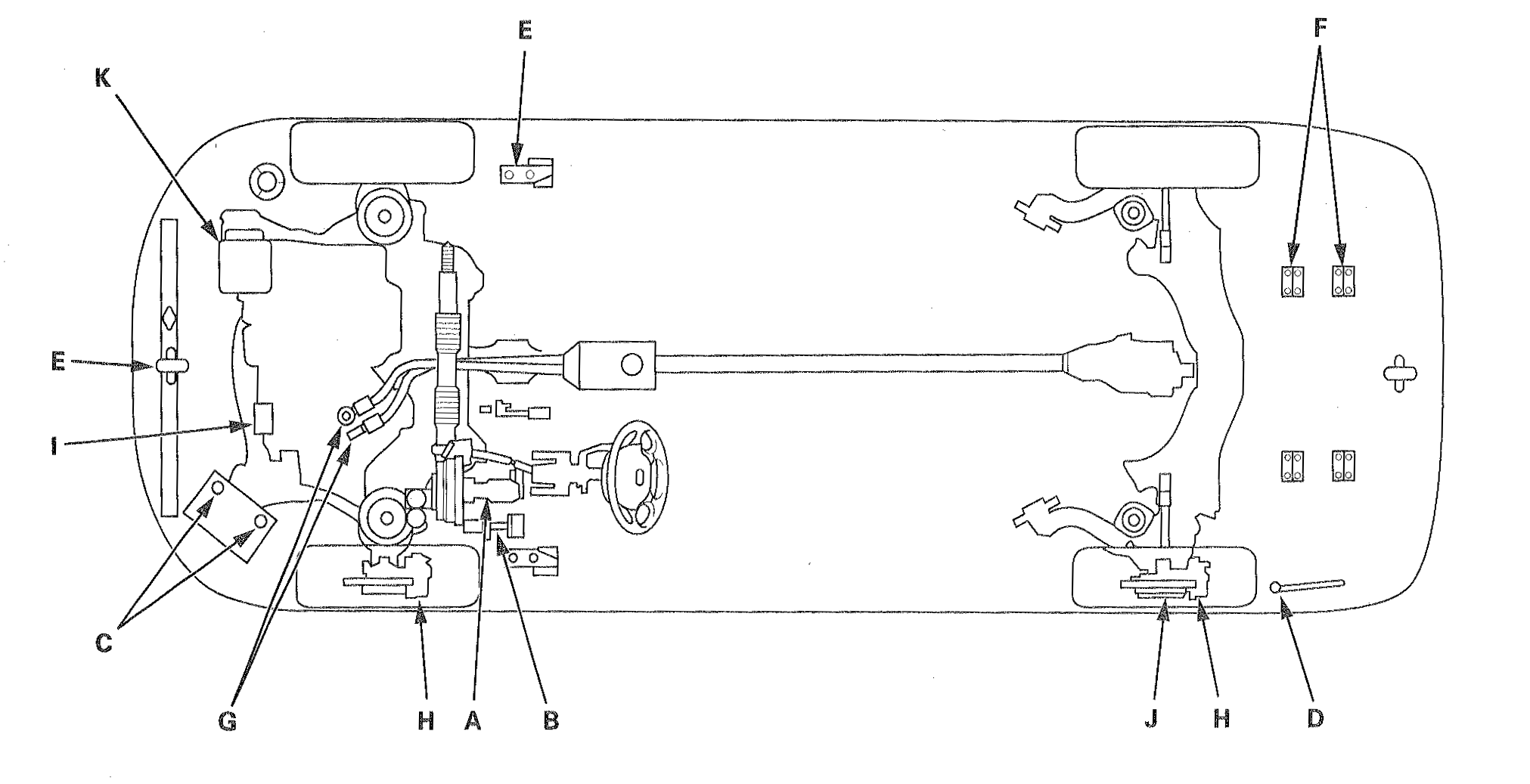

Fig 4: Identifying Lubrication Points

Courtesy of AMERICAN HONDA MOTOR CO., INC.
