Exploded View

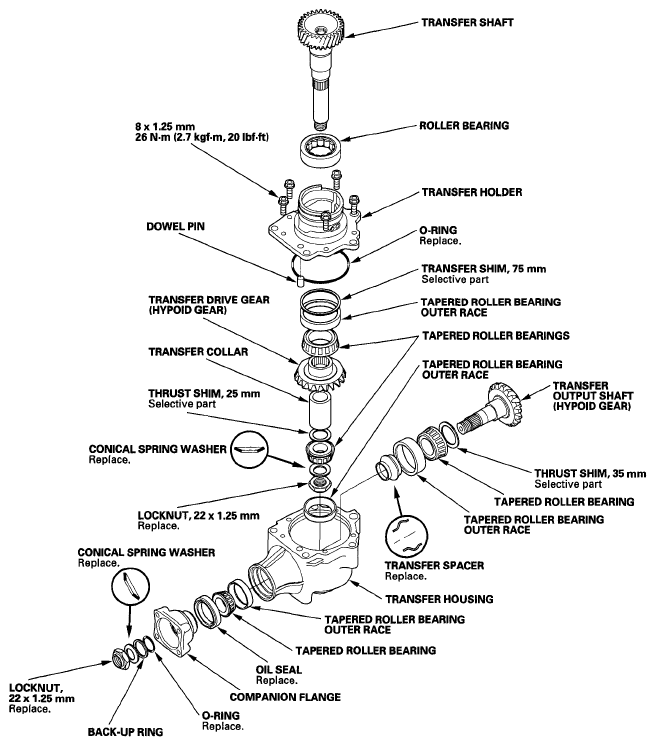

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Companion flange holder 07RAB-TB4010A or 07RAB-TB4010B
• Holder handle 07JAB-001020A

1. Remove the transfer holder (A) from the transfer housing (B).
   Fig 2: Identifying Transfer Holder And Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Cut the lock tab on the locknut using a chisel.
   Fig 3: Cutting Lock Tab On Locknut

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Secure the transfer housing (A) in a bench vise (B) with soft jaws. To prevent damaging the transfer housing, always use soft jaws or equivalent materials between the transfer housing and the vise.
   Fig 4: Securing Transfer Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the companion flange holder and the holder handle on the companion flange, then loosen the locknut.
5. Remove the companion flange holder and the holder handle.
6. Remove the locknut (A), the conical spring washer (B), the back-up ring (C), the O-ring (D), and the companion flange (E) from the transfer output shaft (F).
   Fig 5: Identifying Locknut, Conical Spring Washer, Back-Up Ring, O-Ring And Companion Flange

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Remove the transfer output shaft (A) from the transfer housing (B), then remove the transfer spacer (C) from the transfer output shaft.
   Fig 6: Identifying Transfer Output Shaft, Transfer Housing, Transfer Spacer And Transfer Output Shaft

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Remove the oil seal (A) and the tapered roller bearing (B) from the transfer housing (C).

Fig 7: Identifying Oil Seal And Tapered Roller Bearing

Courtesy of AMERICAN HONDA MOTOR CO., INC.
