Shift Lever Removal

Remove the center lower cover (see CENTER LOWER COVER REMOVAL/INSTALLATION ).
Remove the shift lever console trim (see SHIFT LEVER TRIM REMOVAL/INSTALLATION ).
Move the shift lever to R.
Remove the shift cable insulator (A) from the shift cable (B).

Fig 1: Removing Shift Cable Insulator And Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slide the lock tab (A) down on the shift cable end holder (B).

Fig 2: Sliding Lock Tab On Shift Cable End Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Grasp the shift cable lock (C) in the middle with angle-jaw needle-nose pliers (D), and remove it from the shift cable end and shift cable end holder. Do not pry the shift cable lock with a screwdriver, it may damage the shift cable end holder.
Separate the shift cable end (A) from the shift cable end holder (B).

Fig 3: Identifying Shift Cable Lock And Angle-Jaw Needle-Nose Pliers
Courtesy of AMERICAN HONDA MOTOR CO., INC.

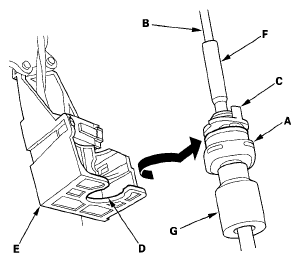

Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening (D) of the shift cable bracket (E). Then slide the socket holder to remove the shift cable from the shift cable bracket. Do not remove the shift cable by twisting the shift cable guide (F) and damper (G).

Fig 4: Rotating Socket Holder On Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the shift lever mounting bolts (A). A

Fig 5: Identifying Shift Lever Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the park pin switch connector (B).

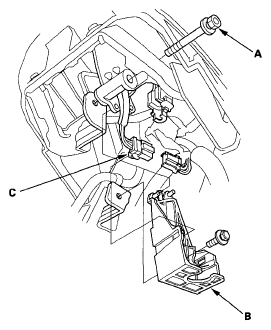

Remove the shift lever mounting bolt (A), and remove the shift cable bracket (B).

Fig 6: Identifying Shift Lever Mounting Bolt And Shift Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the D3 switch/shift lock solenoid connector (C), then disconnect the connector.
Cover around the opening of the console with tape to prevent damage to the console.
Remove the shift lever assembly.
