Horn Test/Replacement

Remove the left front inner fender (see FRONT INNER FENDER REPLACEMENT ).
Disconnect the 1P connector (A), and remove the horn (B).

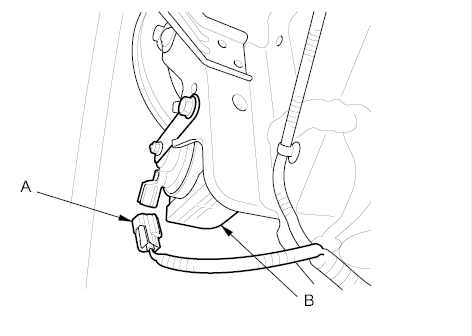

Fig 1: Identifying Horn & Horn 1P Connector ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Horn & Horn 1P Connector ('09-11 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the horn by connecting battery power to the terminal (A) and ground to the bracket (B). The horn should sound.

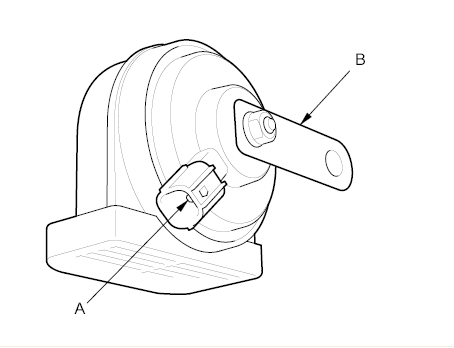

Fig 3: Identifying Horn Terminal & Bracket ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Identifying Horn Terminal & Bracket ('09-11 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
