Ignition Coil & Spark Plug Removal/Installation

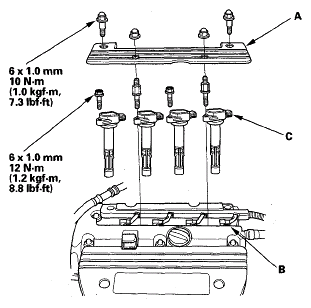

- Remove the ignition coil cover (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the ignition coil connectors (B), then remove the ignition coils (C).
- Remove the spark plug and inspect them. See Spark Plug Inspection .
- Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder head, finger tight. Torque them to 18 Nm (1.8 kgf-m, 13 lbf-ft).
- Install the ignition coils, then connect the ignition coil connectors.
- Install the ignition coil cover.
