Special Tools Required

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Disconnect the quick-connect fitting. Attach the fuel pressure gauge set and the fuel pressure gauge.

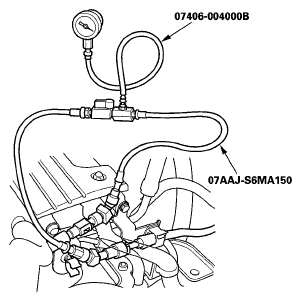

Fig 1: Attaching Fuel Pressure Gauge Set & Fuel Pressure Gauge
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Start the engine, and let it idle.
- If the engine starts, go to step 5.
- If the engine does not start, go to step 4.
Check to see if the fuel pump is running: listen to the fuel filler port with the fuel fill cap removed. The fuel pump should run for 2 seconds when the ignition switch is first turned on.
- If the pump runs, go to step 5.
- If the pump does not run, do FUEL PUMP CIRCUIT TROUBLESHOOTING ).
Read the fuel pressure gauge. The pressure should be:
320-370 kPa (3.3-3.8 kgf/cm ² , 47-54 psi)
- If the pressure is OK, the test is complete.
- If the pressure is out of specification, replace the fuel pressure regulator (see FUEL PRESSURE REGULATOR REPLACEMENT ) and the fuel filter (see FUEL FILTER REPLACEMENT ), then recheck the fuel pressure.
