Passenger's Power Window Switch Test/Replacement

1. Remove the switch cover from the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
2. Disconnect the 5P connector (A) from the switch (B).

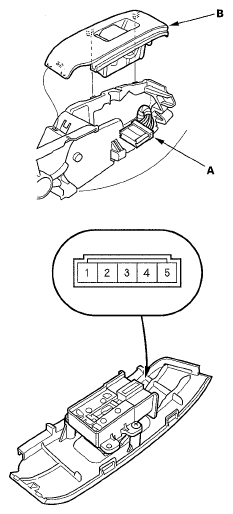

   Fig 1: Identifying Passenger's Power Window Switch 5P Connector Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to Fig 2.

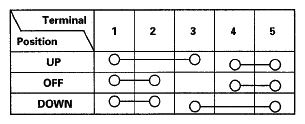

   Fig 2: Checking For Continuity Between Terminals In Each Switch Position

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. If the continuity is not as specified, replace the switch.
5. If the switch is faulty, replace it by removing the two mounting screws and the switch (A).

Fig 3: Identifying Passenger's Power Window Switch Screws

Courtesy of AMERICAN HONDA MOTOR CO., INC.
