Power Window Master Switch Test/Replacement

Remove the switch cover from the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 20P connector (A) from the master switch (B).

Fig 1: Identifying Power Window Master Switch Connector And Power Window Master Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the tables.

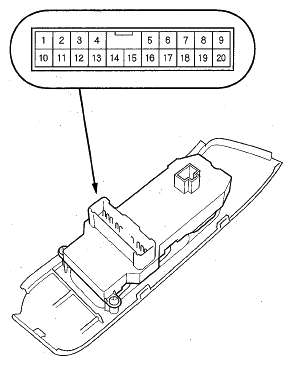

Fig 2: Identifying Power Window Master Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Driver's Switch

The driver's switch is combined with the control unit so you cannot isolate the switch to test it.

Instead, run the master switch input test procedures (see POWER WINDOW MASTER SWITCH INPUT TEST ). If the tests are normal, the driver's switch must be faulty.

Front Passenger's Switch

Fig 3: Checking For Continuity Between Terminals In Each Switch Position (Front Passenger's Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Left Rear Switch

Fig 4: Checking For Continuity Between Terminals In Each Switch Position (Left Rear Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Right Rear Switch

Fig 5: Checking For Continuity Between Terminals In Each Switch Position (Right Rear Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
If the switch is faulty, replace the switch by removing the three mounting screws and the switch (A).

Fig 6: Identifying Power Window Master Switch Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
