Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

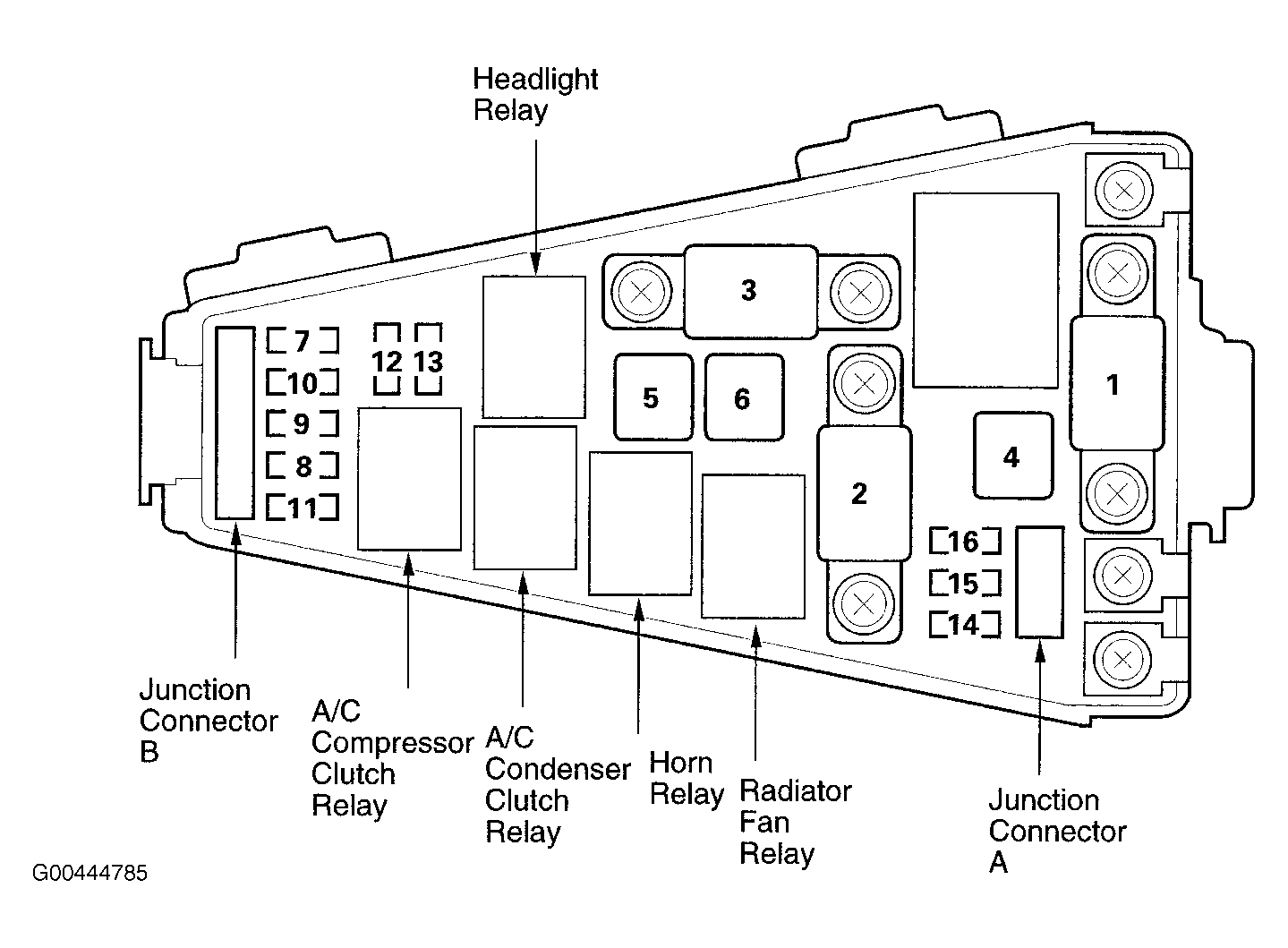

Fig 1: Underhood Fuse/Relay Box

G00444785

Courtesy of AMERICAN HONDA MOTOR CO., INC.

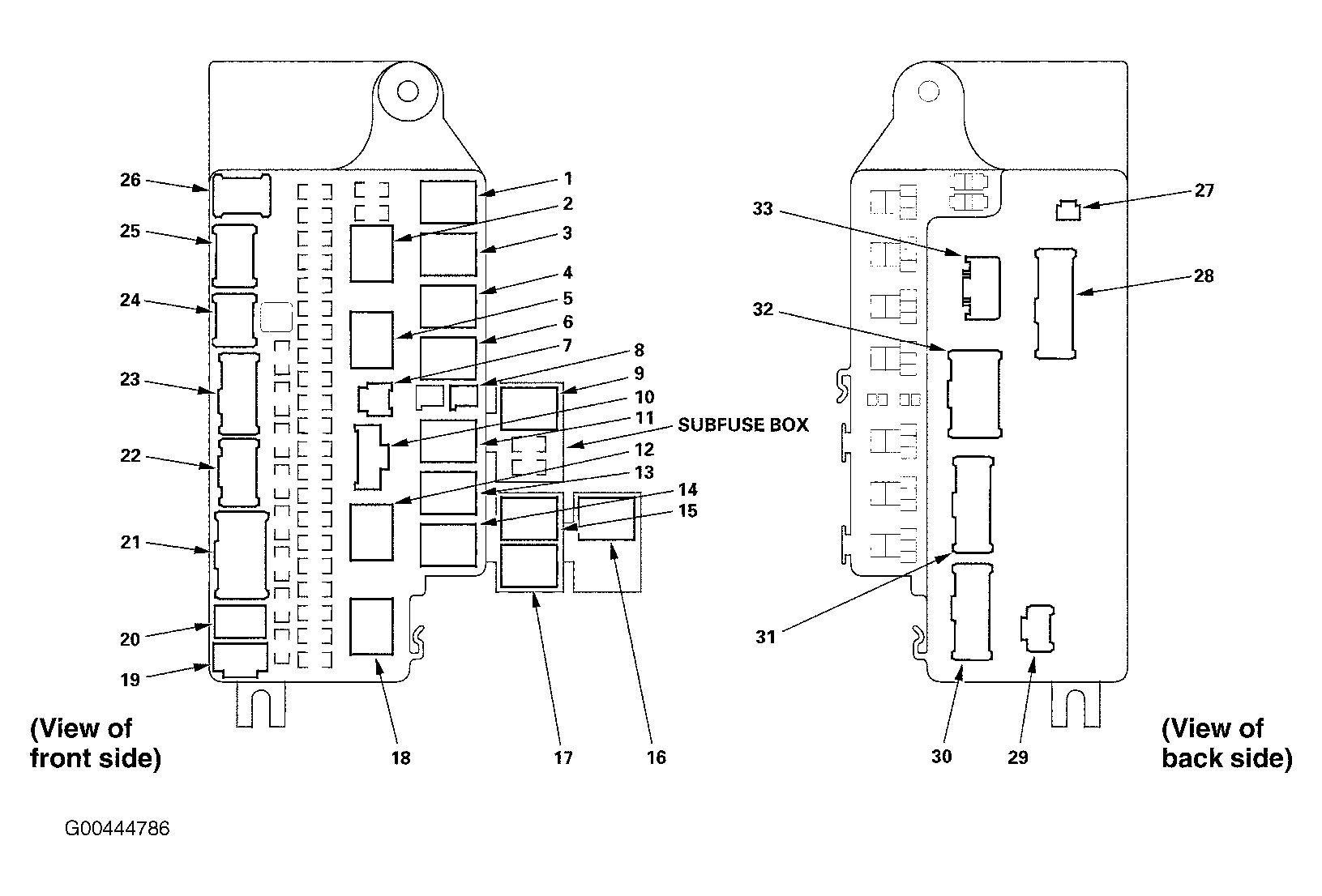

Fig 2: Underdash Fuse/Relay Box

G00444786

Courtesy of AMERICAN HONDA MOTOR CO., INC.

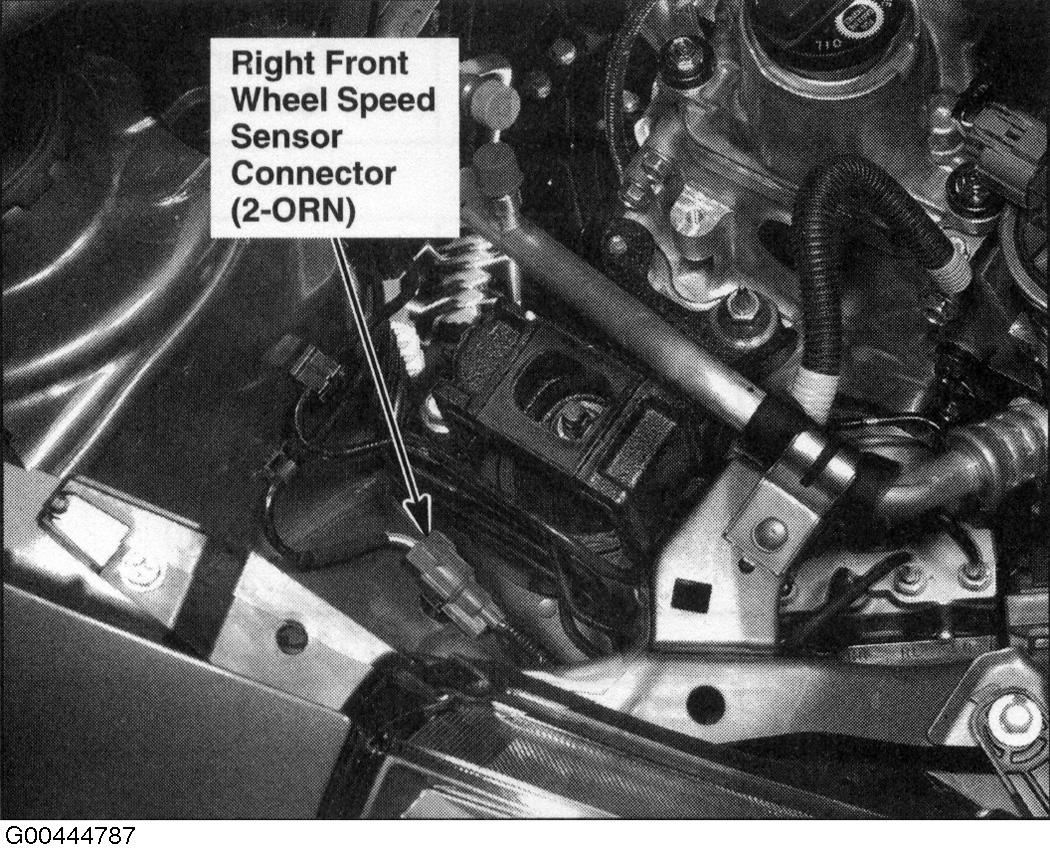

Fig 3: Right Side Of Engine Compartment

G00444787

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Right Side Of Engine Compartment

G00444788

Courtesy of AMERICAN HONDA MOTOR CO., INC.

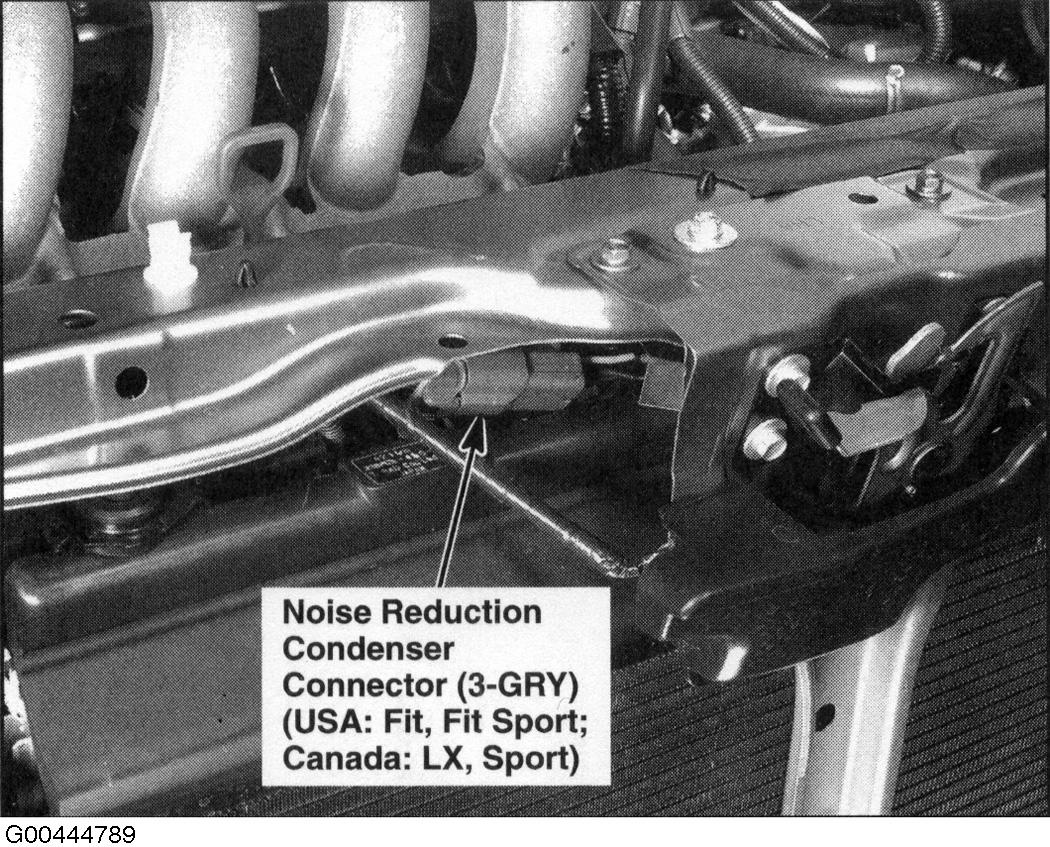

Fig 5: Front Of Engine Compartment

G00444789

Courtesy of AMERICAN HONDA MOTOR CO., INC.

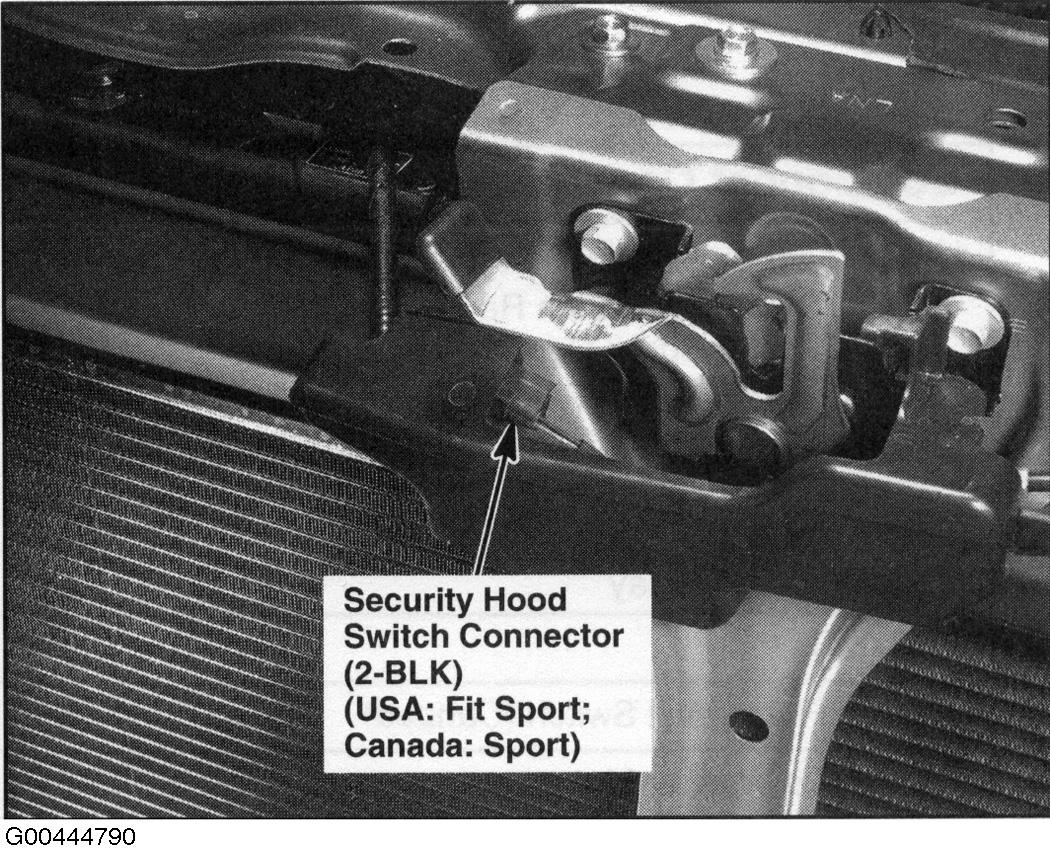

Fig 6: Front Of Engine Compartment

G00444790

Courtesy of AMERICAN HONDA MOTOR CO., INC.

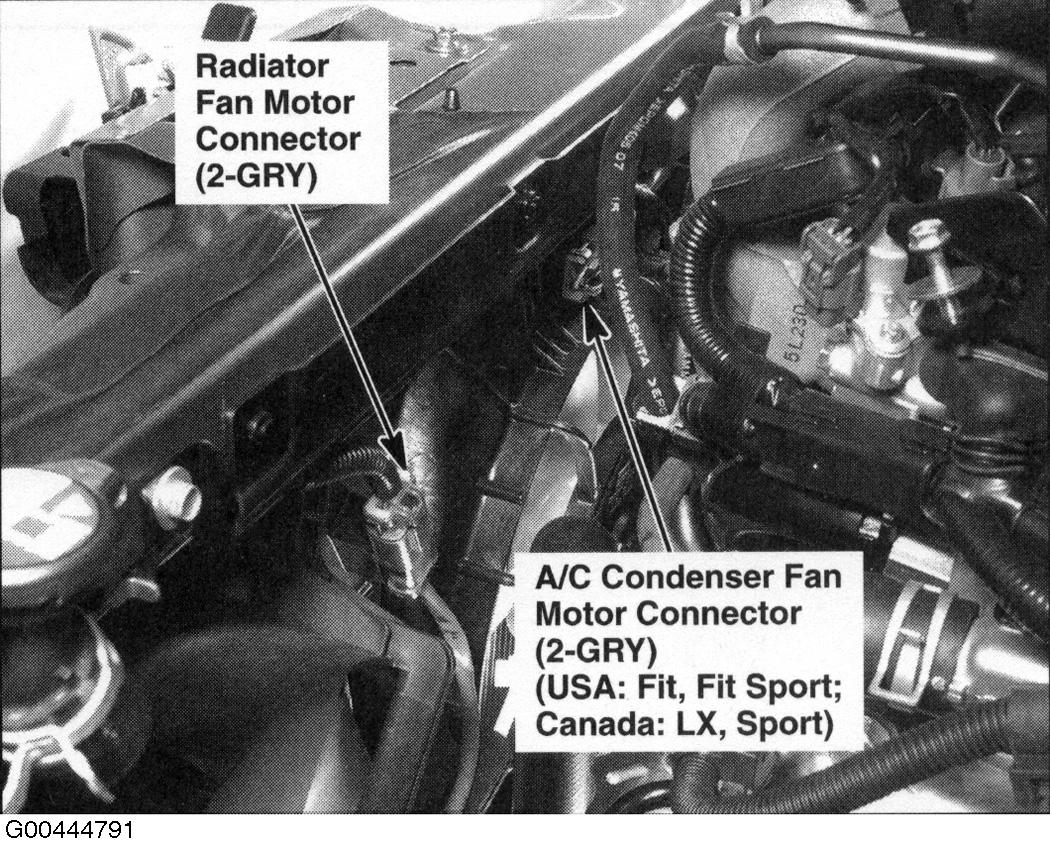

Fig 7: Front Of Engine Compartment

G00444791

Courtesy of AMERICAN HONDA MOTOR CO., INC.

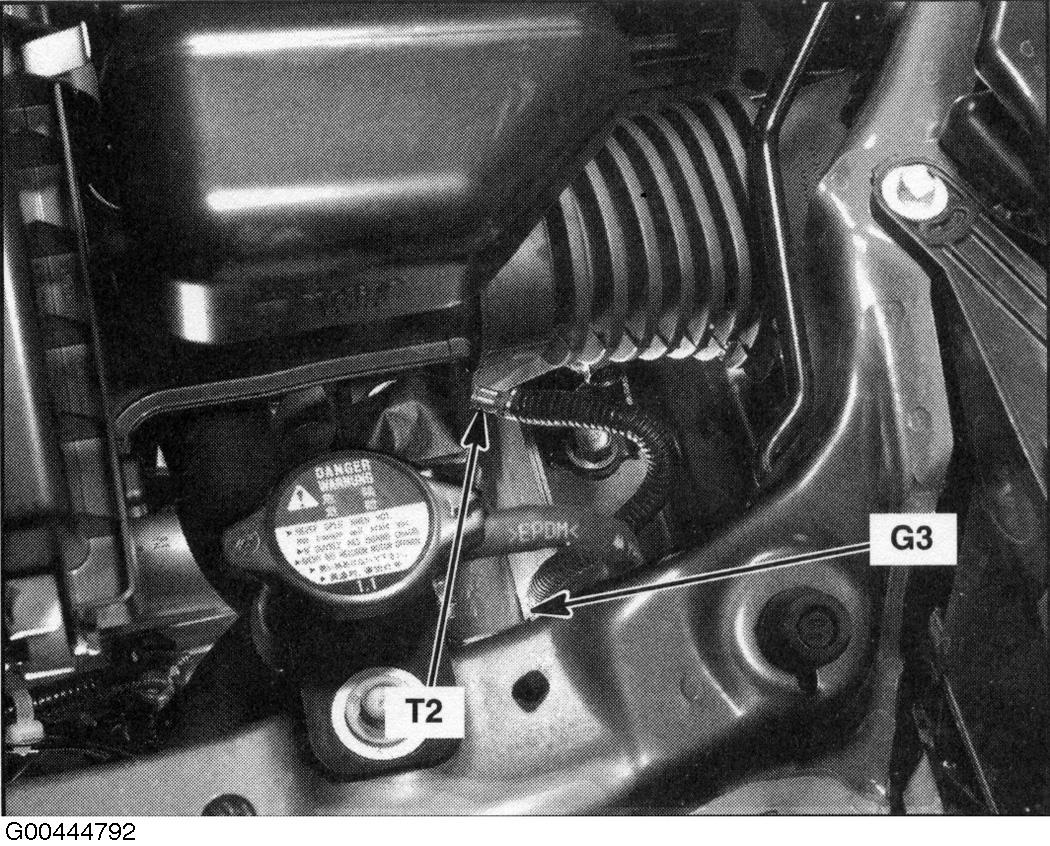

Fig 8: Left Side Of Engine Compartment (A/T)

G00444792

Courtesy of AMERICAN HONDA MOTOR CO., INC.

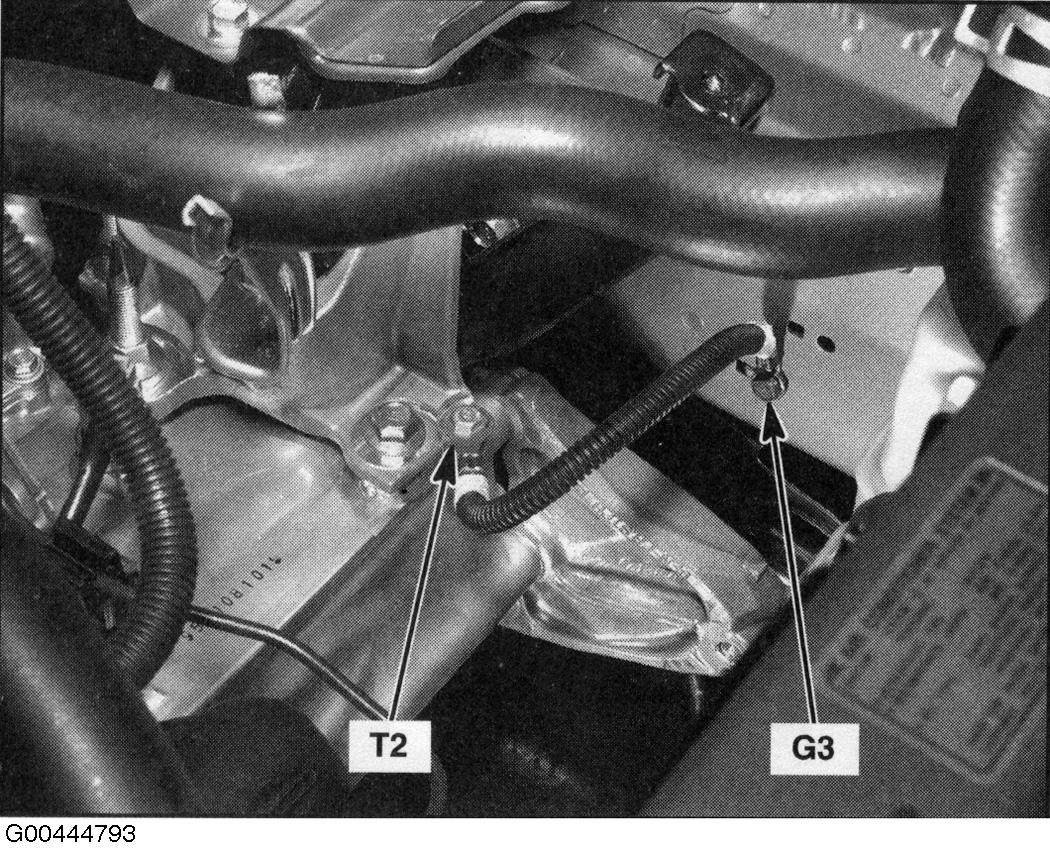

Fig 9: Left Side Of Engine Compartment (M/T)

G00444793

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Left Side Of Engine Compartment

G00444794

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Left Side Of Engine Compartment

G00444795

Courtesy of AMERICAN HONDA MOTOR CO., INC.

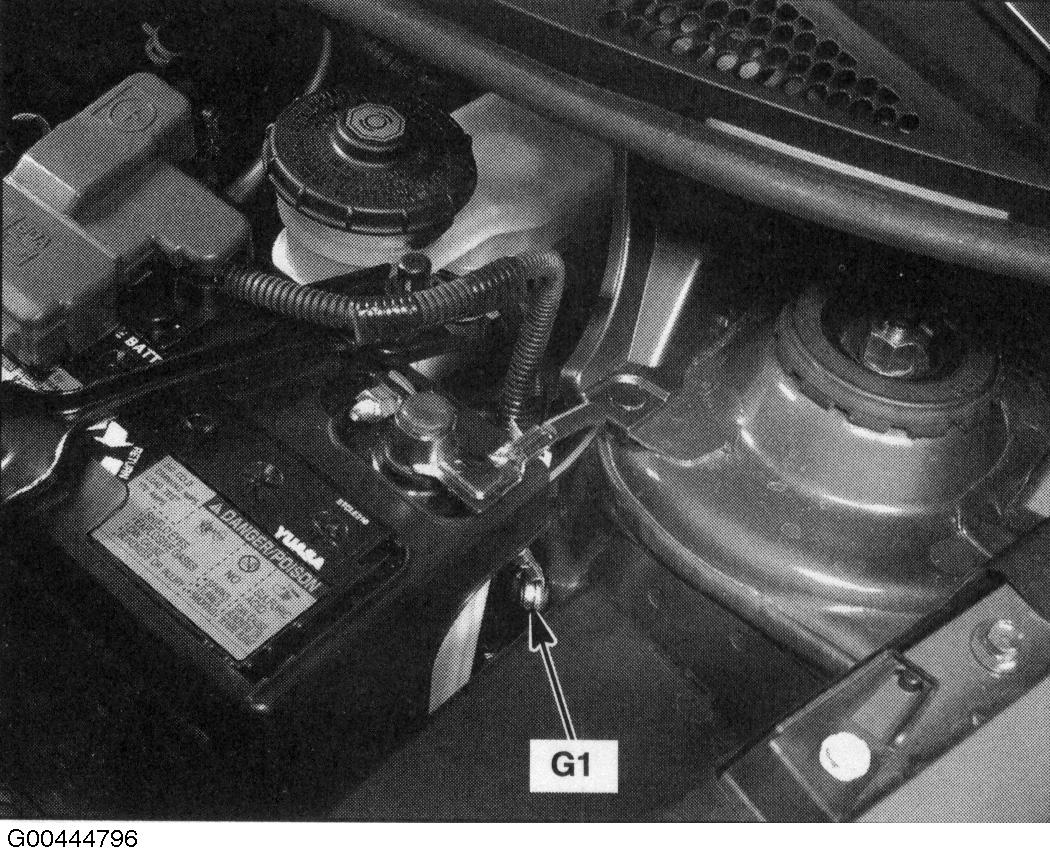

Fig 12: Left Rear Of Engine Compartment

G00444796

Courtesy of AMERICAN HONDA MOTOR CO., INC.

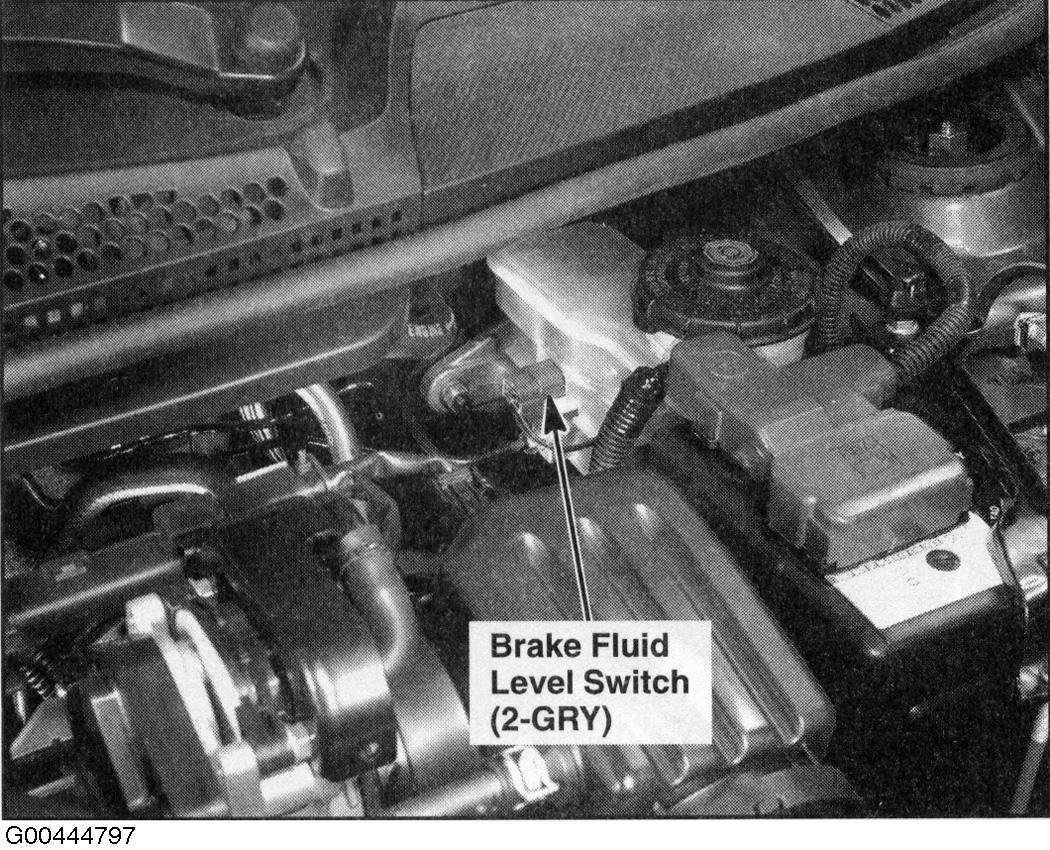

Fig 13: Left Rear Of Engine Compartment

G00444797

Courtesy of AMERICAN HONDA MOTOR CO., INC.

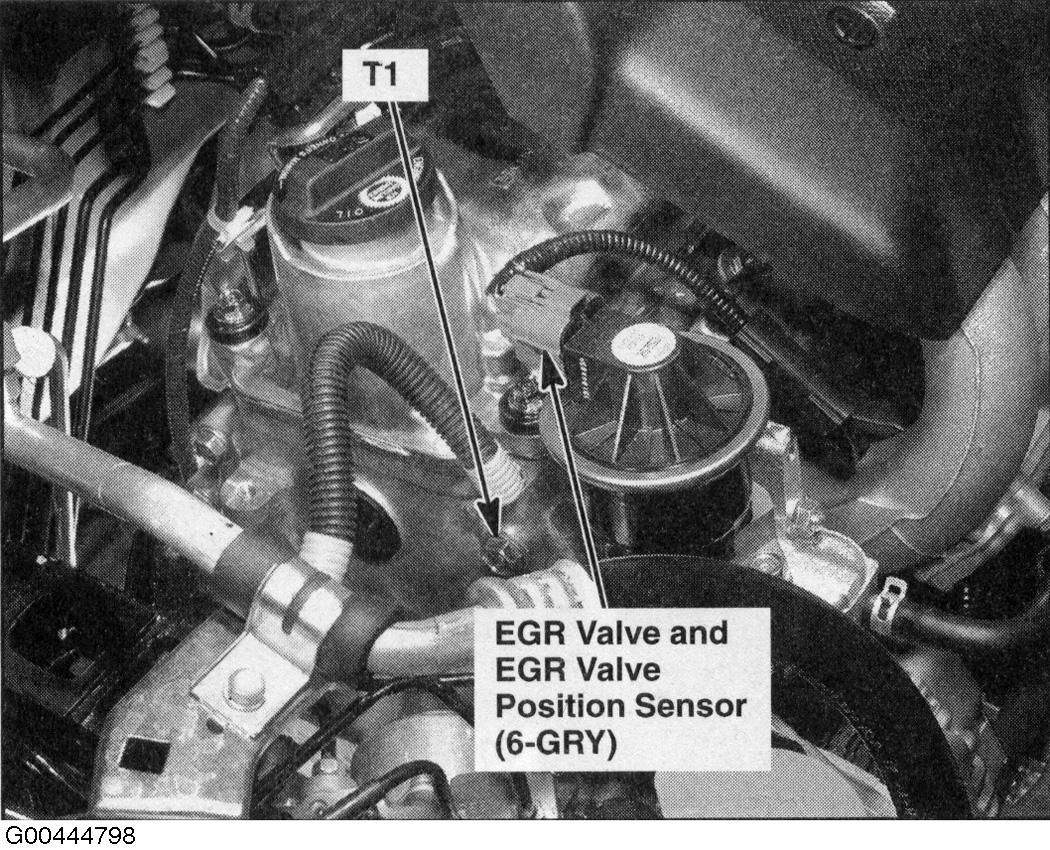

Fig 14: Front Of Engine

G00444798

Courtesy of AMERICAN HONDA MOTOR CO., INC.

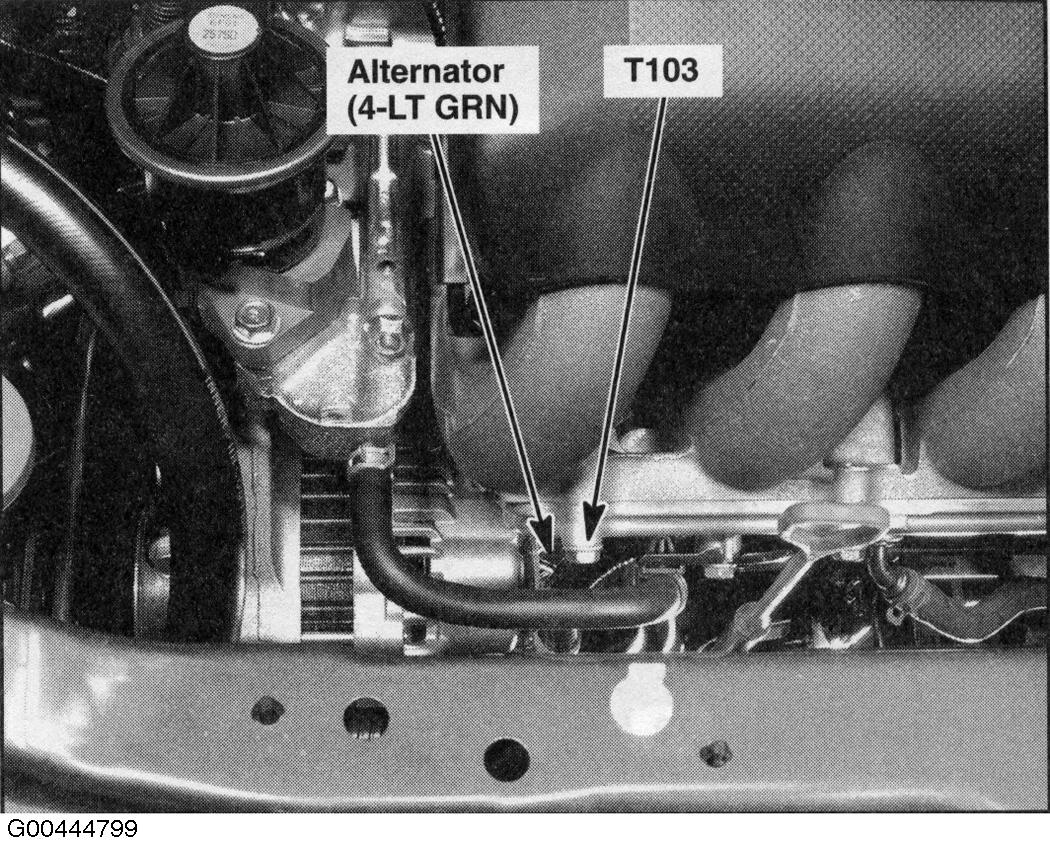

Fig 15: Top Front Of Engine

G00444799

Courtesy of AMERICAN HONDA MOTOR CO., INC.

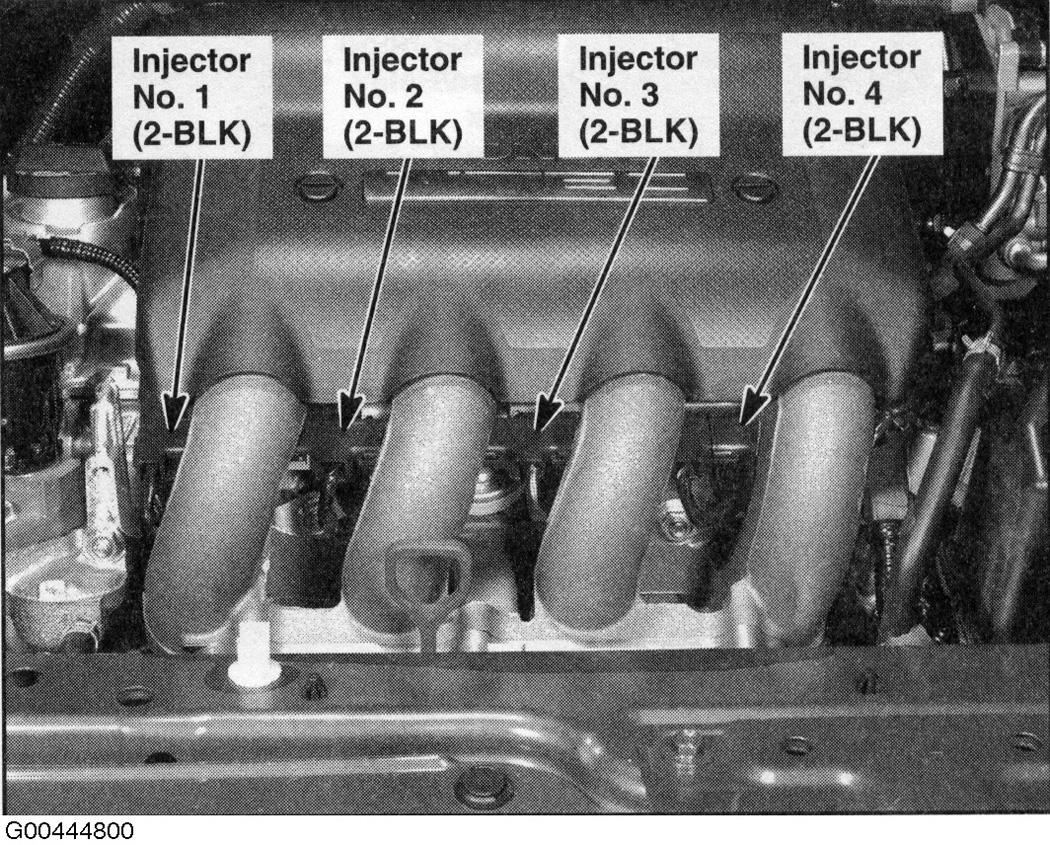

Fig 16: Top Left Side Of Engine

G00444800

Courtesy of AMERICAN HONDA MOTOR CO., INC.

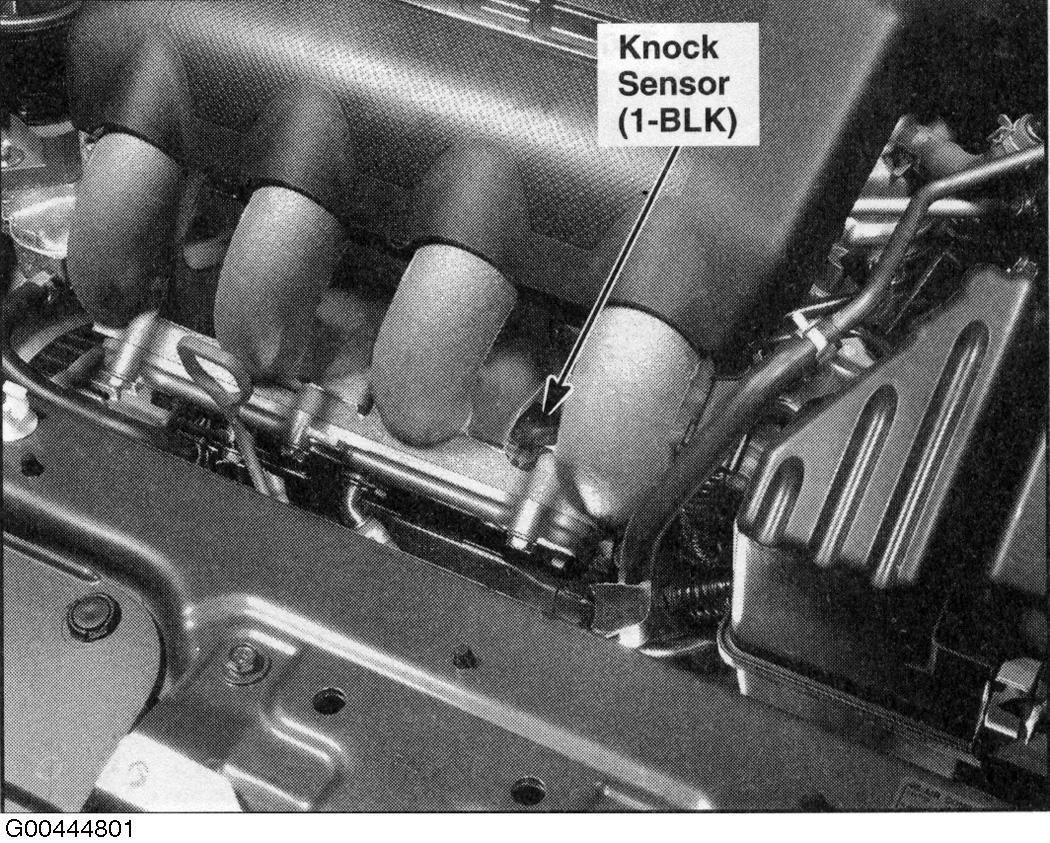

Fig 17: Top Rear Of Engine

G00444801

Courtesy of AMERICAN HONDA MOTOR CO., INC.

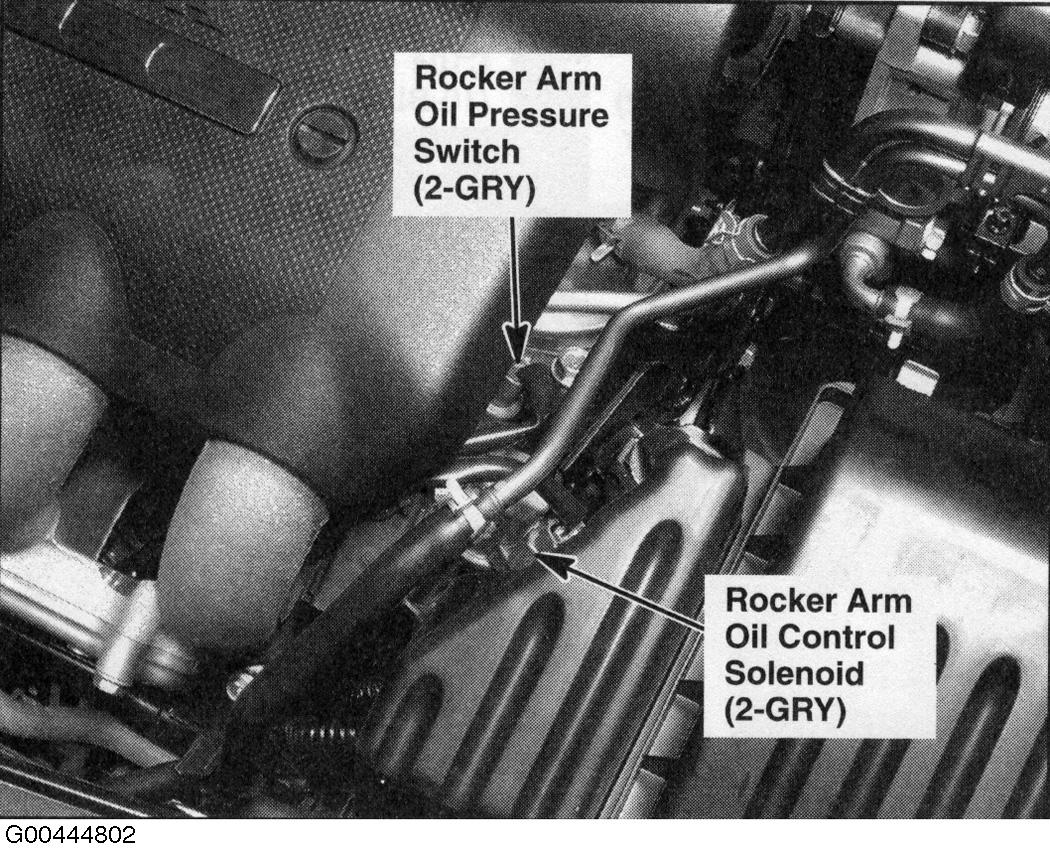

Fig 18: Top Rear Of Engine

G00444802

Courtesy of AMERICAN HONDA MOTOR CO., INC.

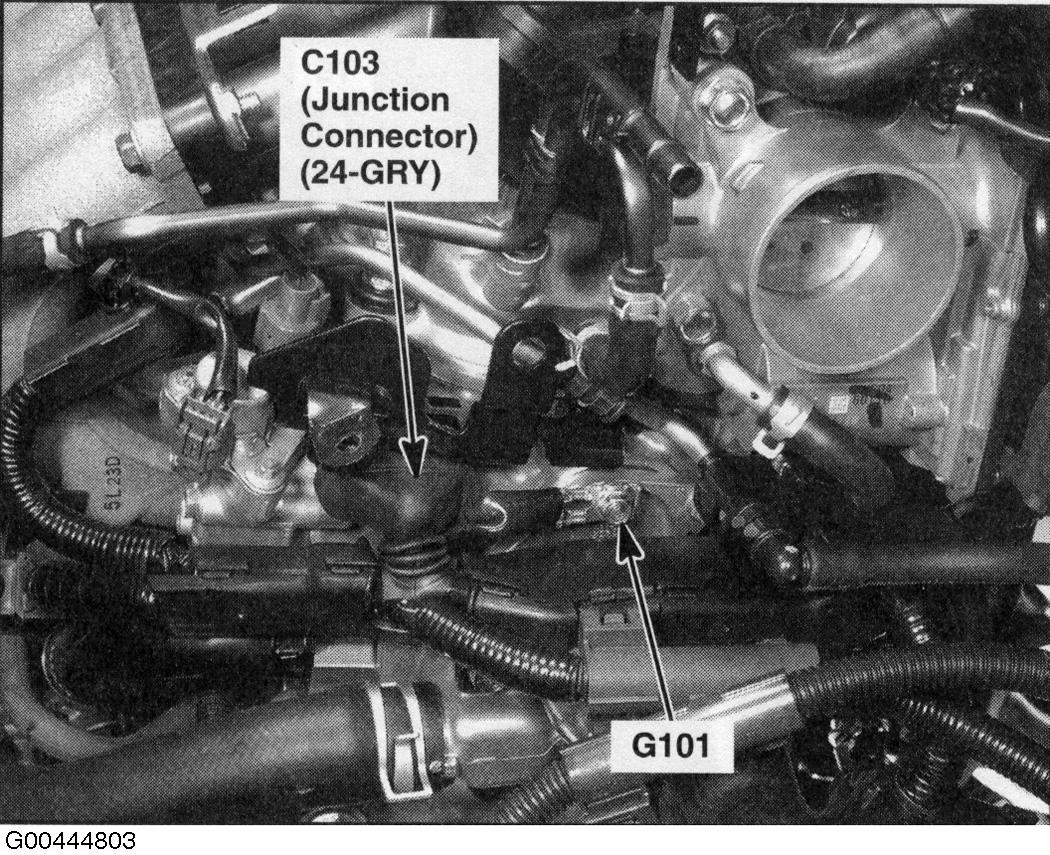

Fig 19: Top Rear Of Engine

G00444803

Courtesy of AMERICAN HONDA MOTOR CO., INC.

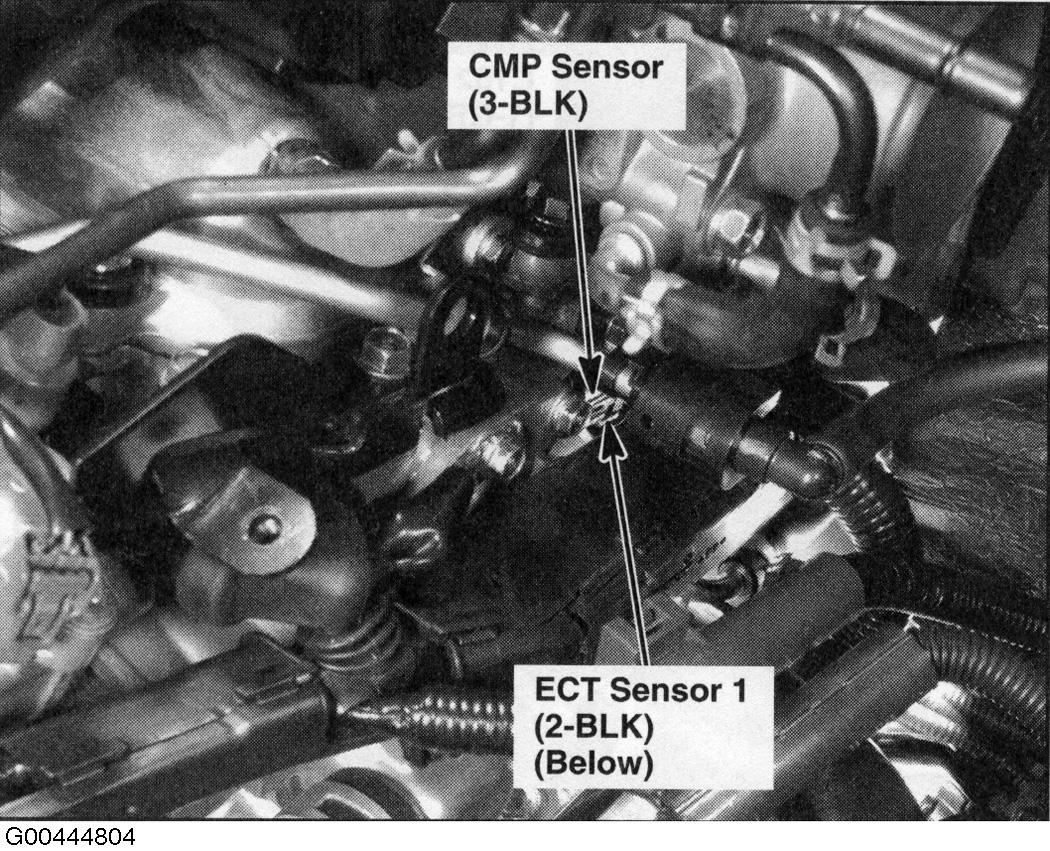

Fig 20: Top Rear Of Engine

G00444804

Courtesy of AMERICAN HONDA MOTOR CO., INC.

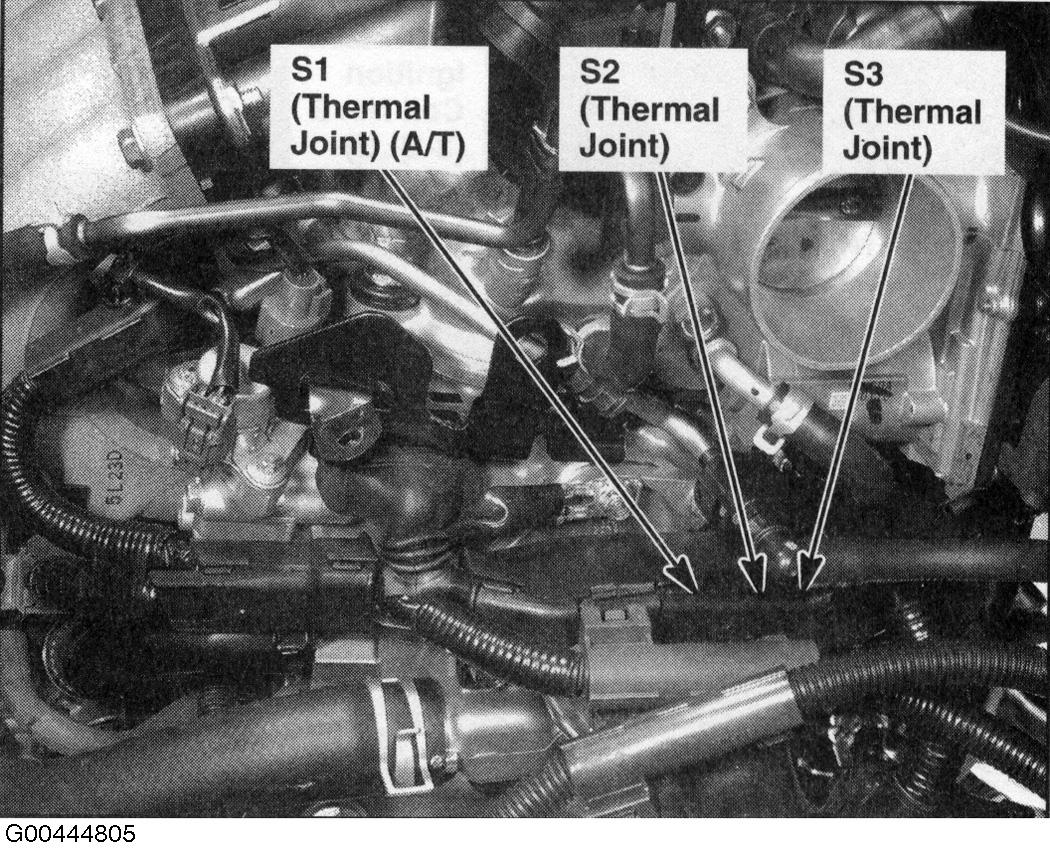

Fig 21: Top Rear Of Engine

G00444805

Courtesy of AMERICAN HONDA MOTOR CO., INC.

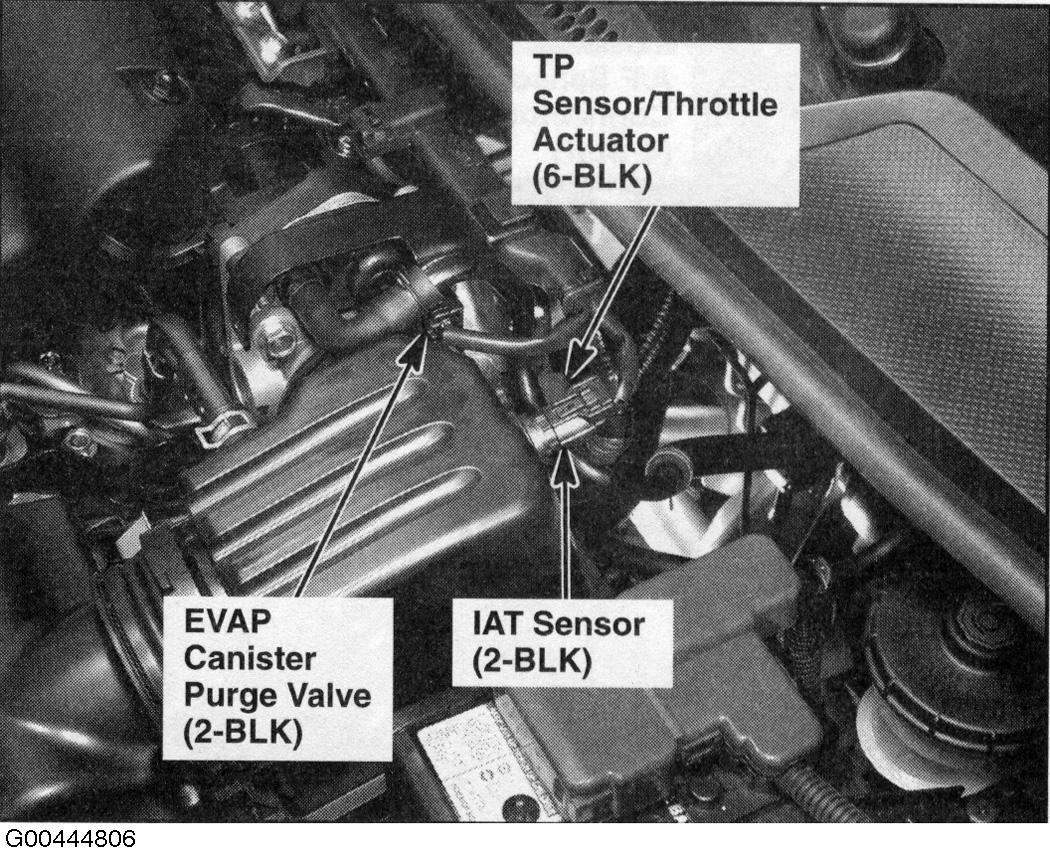

Fig 22: Right Rear Of Engine

G00444806

Courtesy of AMERICAN HONDA MOTOR CO., INC.

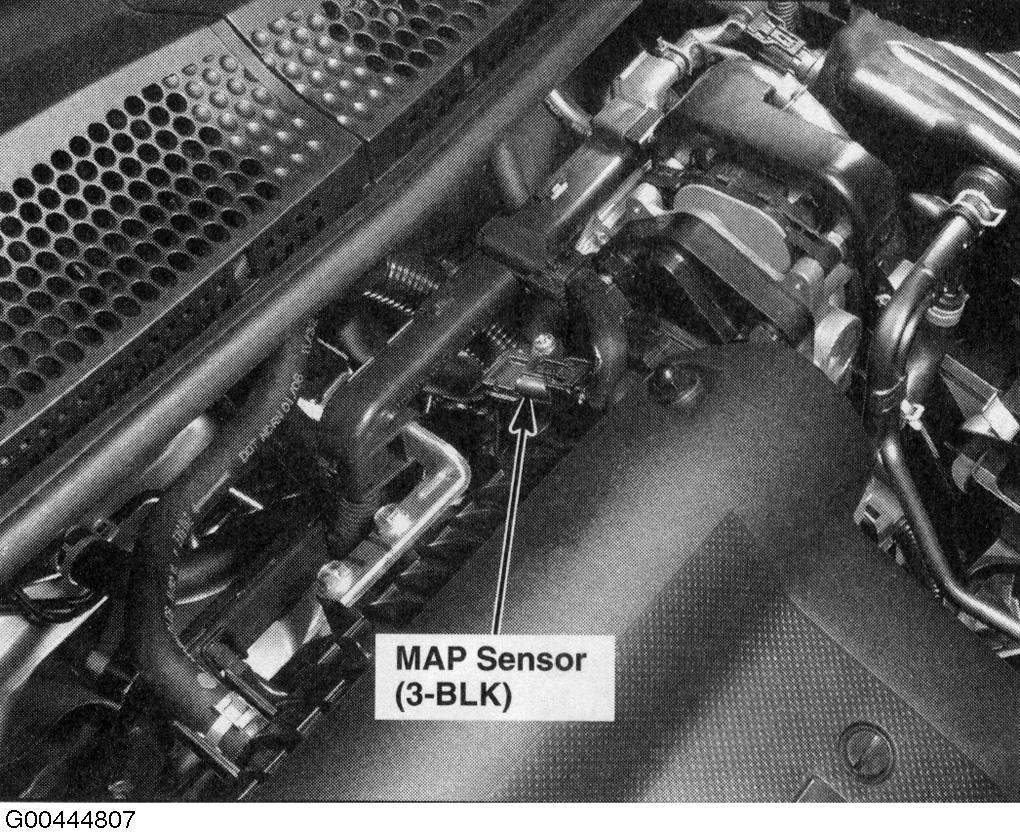

Fig 23: Right Rear Of Engine

G00444807

Courtesy of AMERICAN HONDA MOTOR CO., INC.

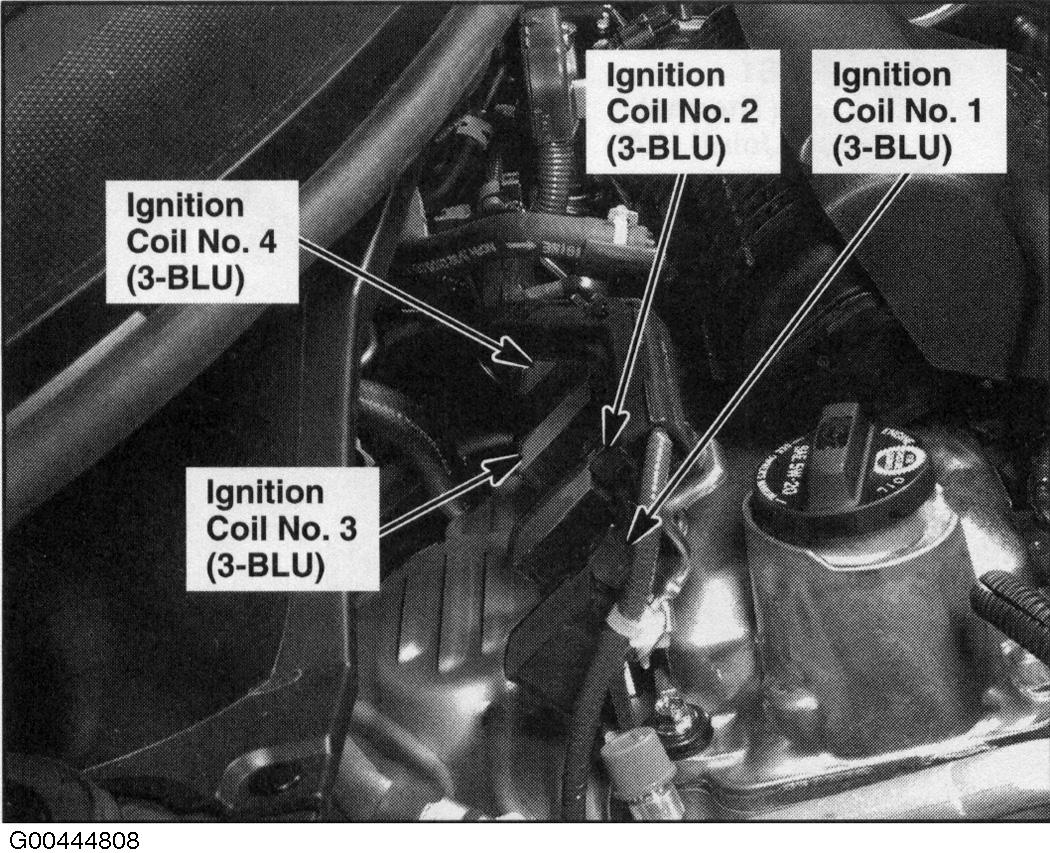

Fig 24: Top Right Of Engine

G00444808

Courtesy of AMERICAN HONDA MOTOR CO., INC.

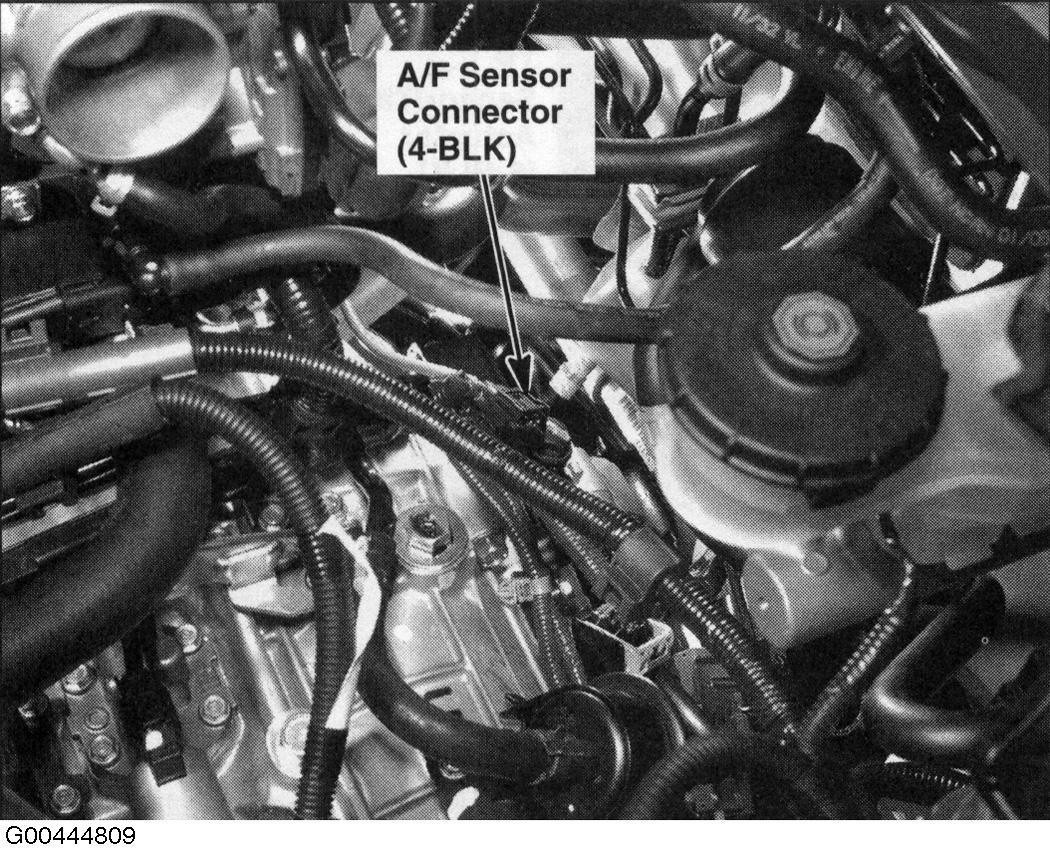

Fig 25: Top Rear Of Engine

G00444809

Courtesy of AMERICAN HONDA MOTOR CO., INC.

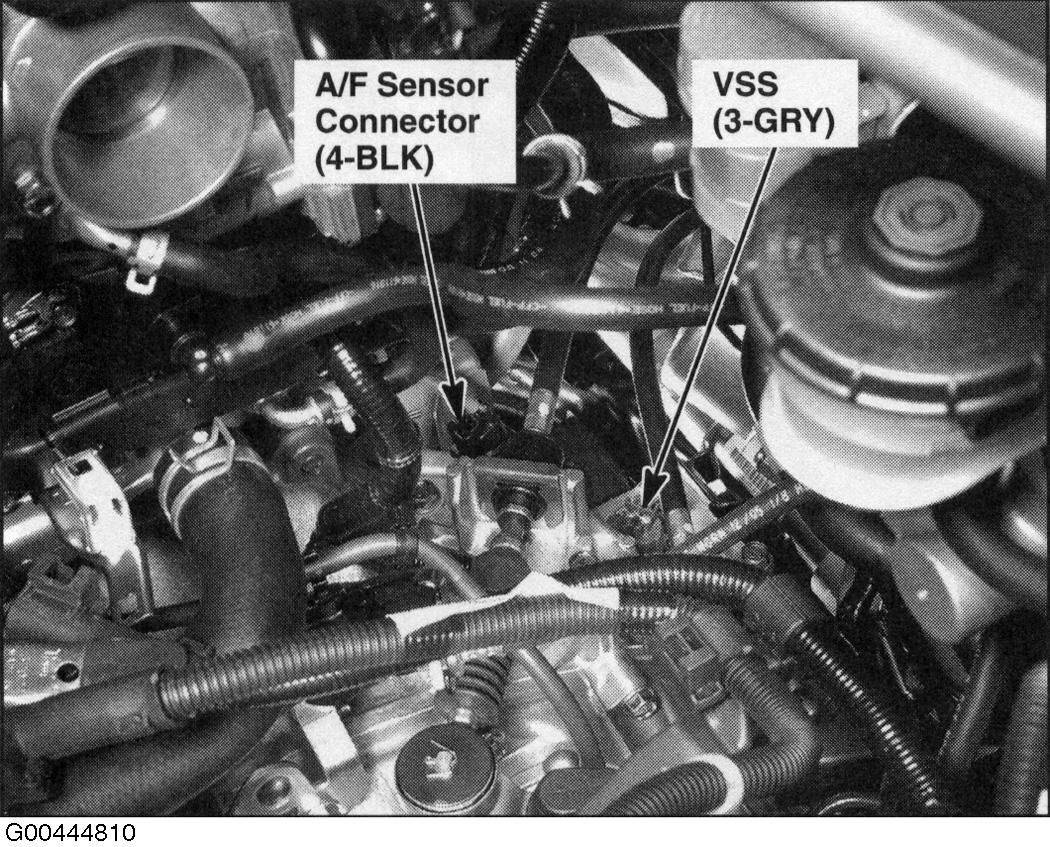

Fig 26: Top Rear Of Engine

G00444810

Courtesy of AMERICAN HONDA MOTOR CO., INC.

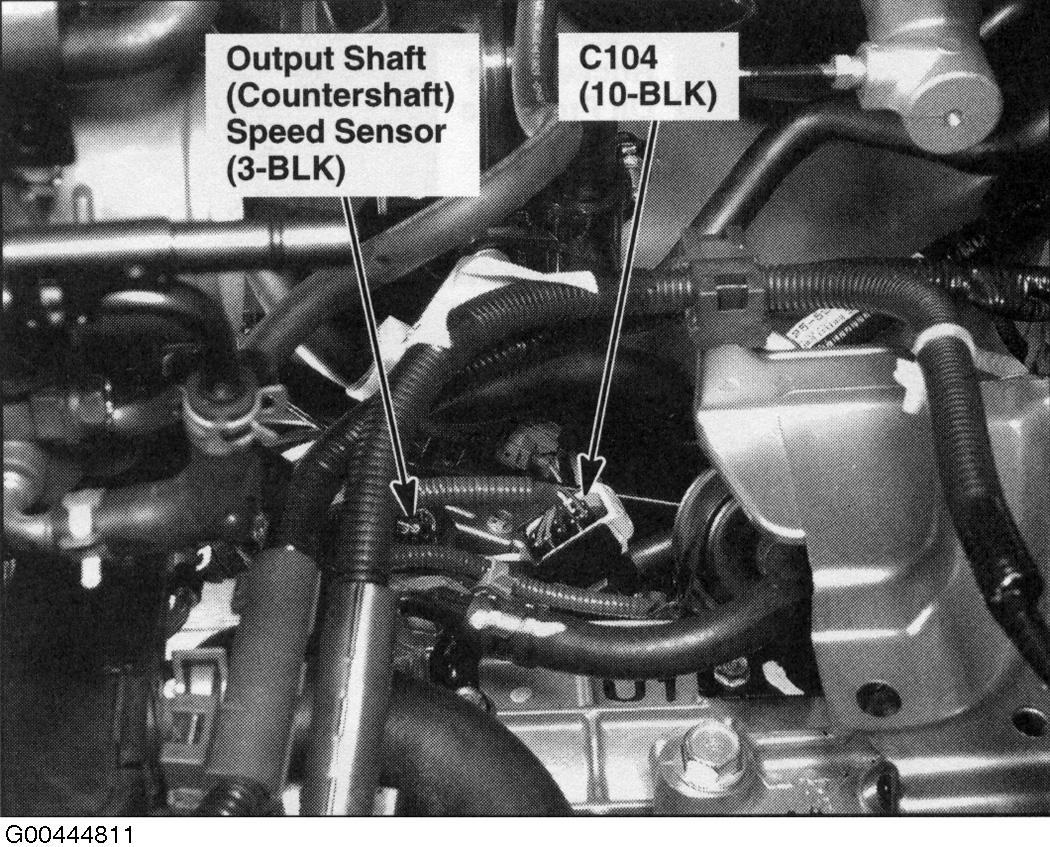

Fig 27: Automatic Transmission Housing

G00444811

Courtesy of AMERICAN HONDA MOTOR CO., INC.

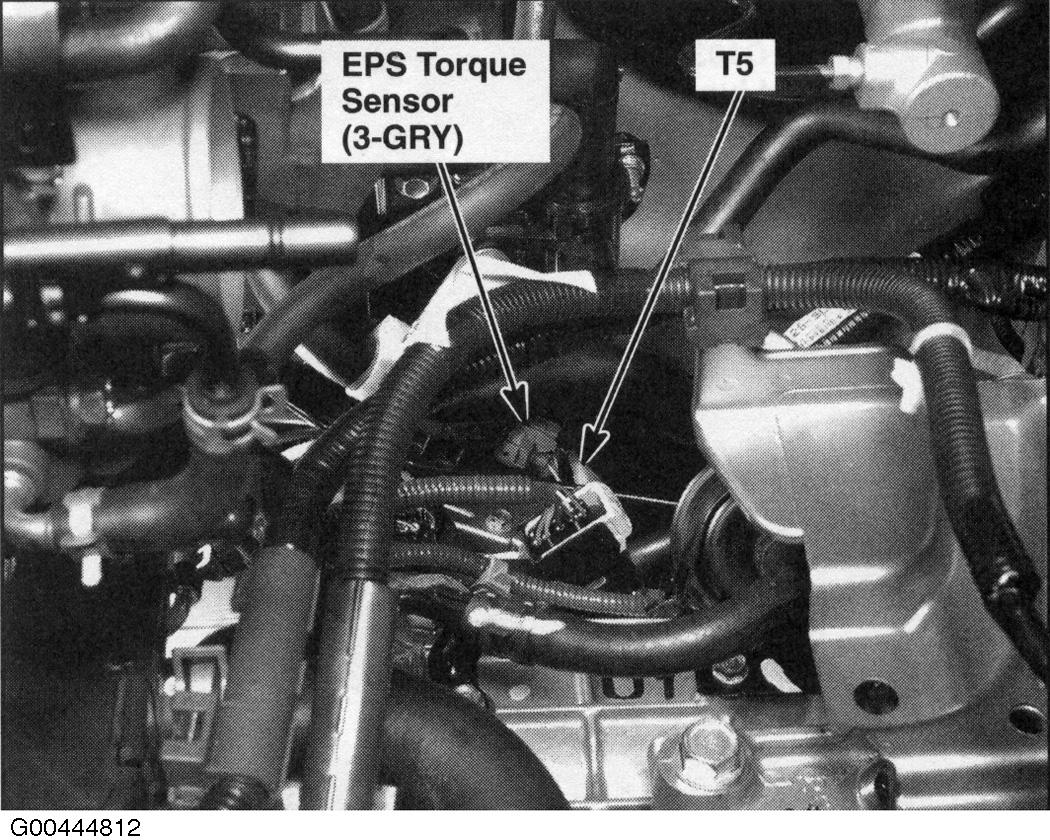

Fig 28: Automatic Transmission Housing

G00444812

Courtesy of AMERICAN HONDA MOTOR CO., INC.

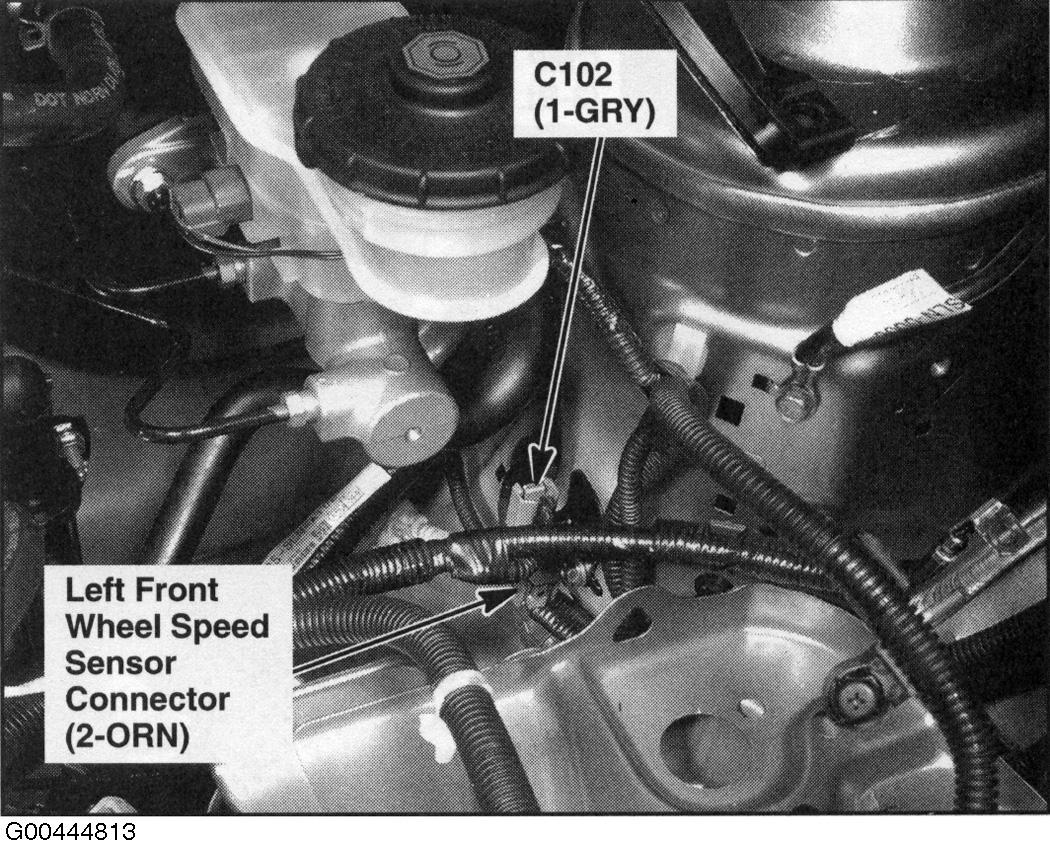

Fig 29: Left Rear Of Engine Compartment

G00444813

Courtesy of AMERICAN HONDA MOTOR CO., INC.

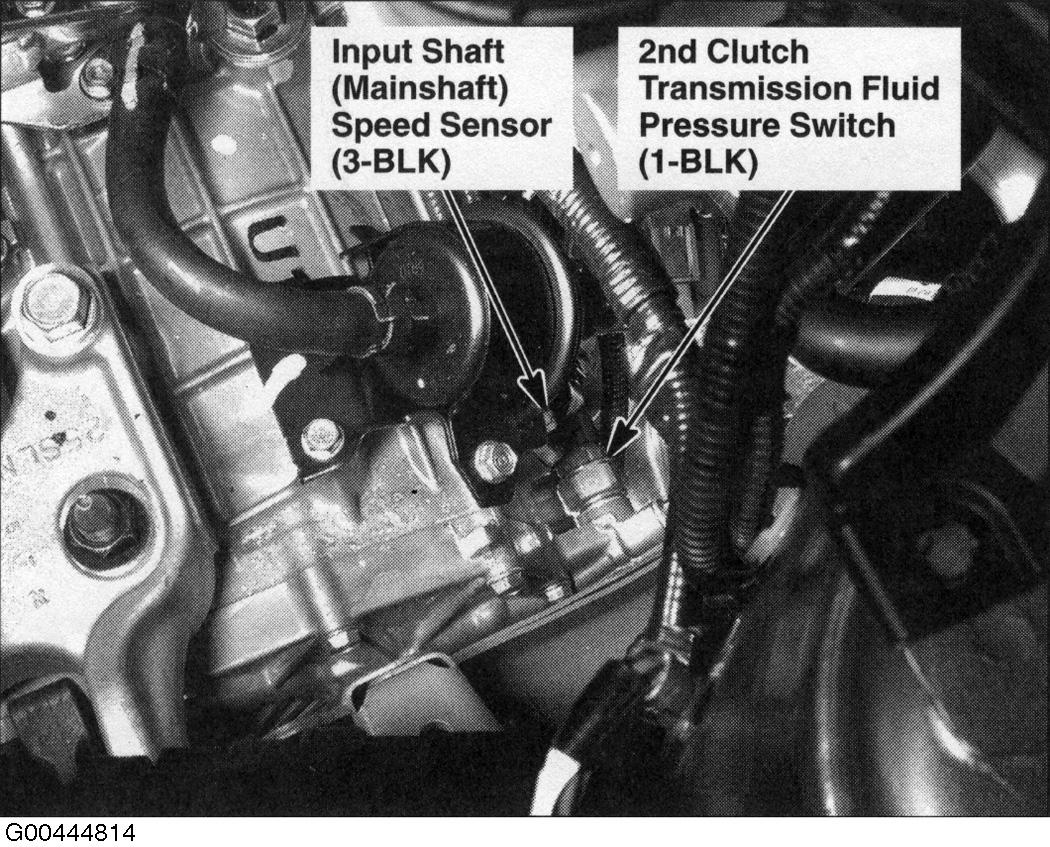

Fig 30: Automatic Transmission Housing

G00444814

Courtesy of AMERICAN HONDA MOTOR CO., INC.

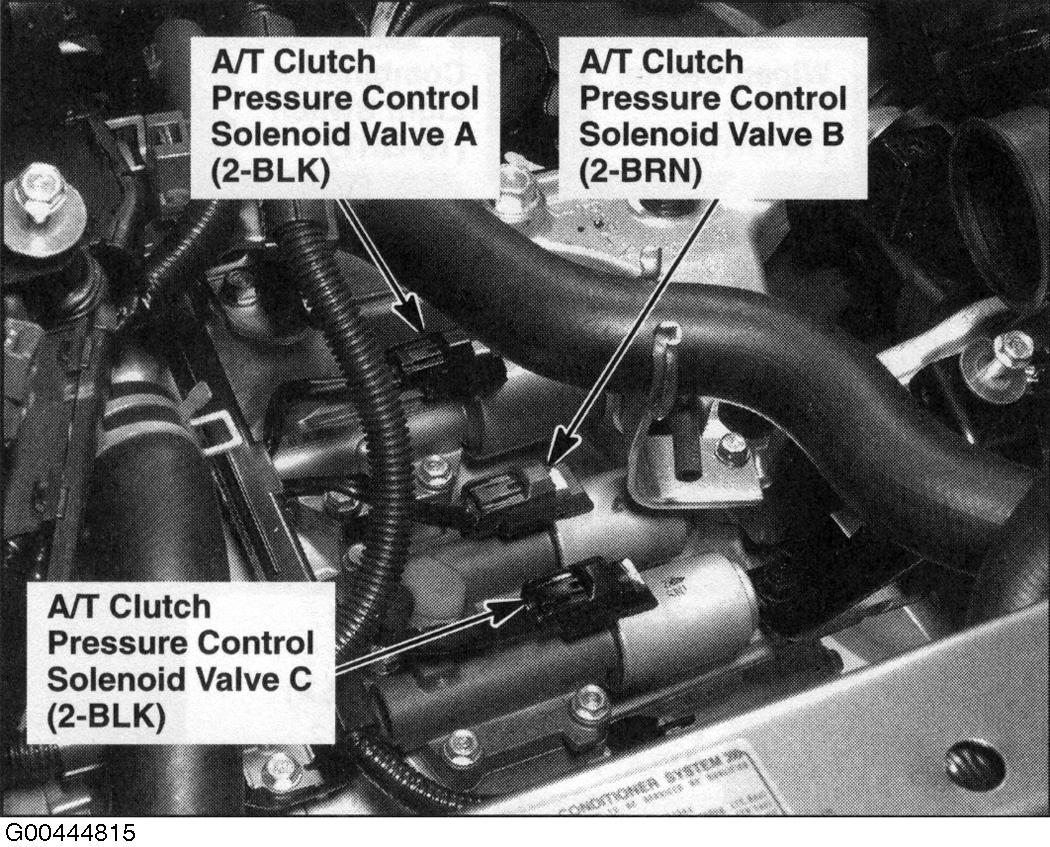

Fig 31: Automatic Transmission Housing

G00444815

Courtesy of AMERICAN HONDA MOTOR CO., INC.

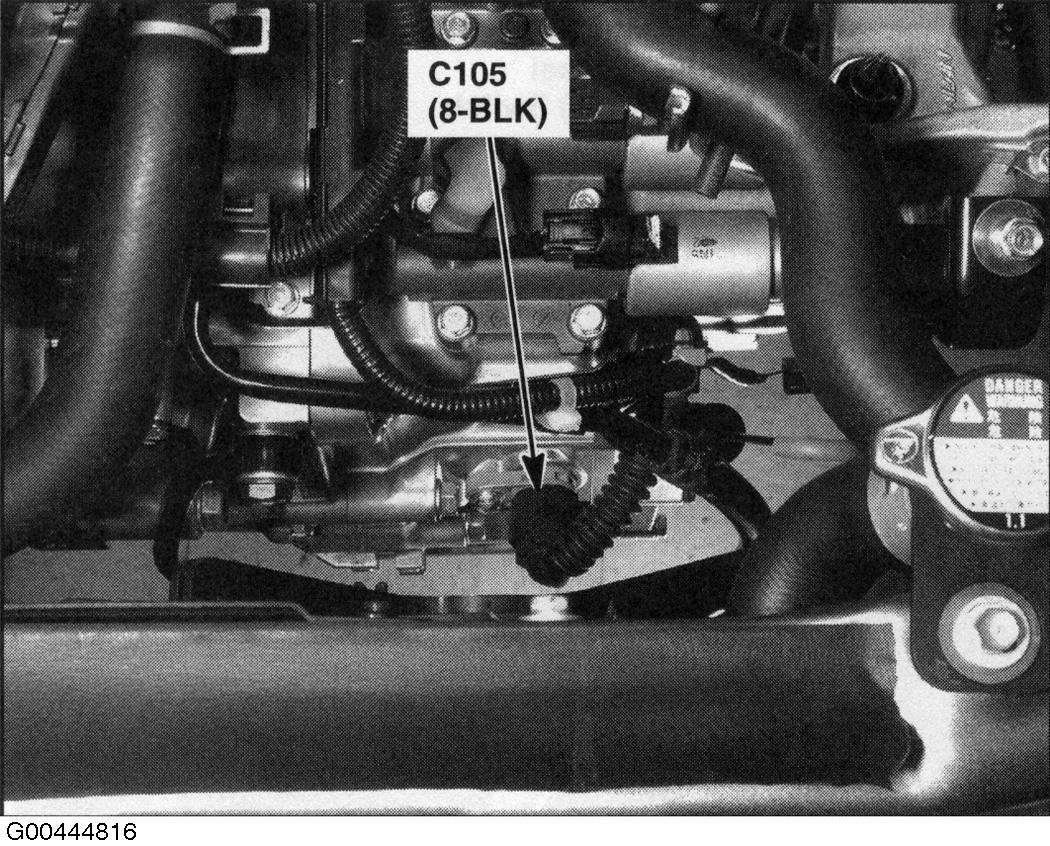

Fig 32: Automatic Transmission Housing

G00444816

Courtesy of AMERICAN HONDA MOTOR CO., INC.

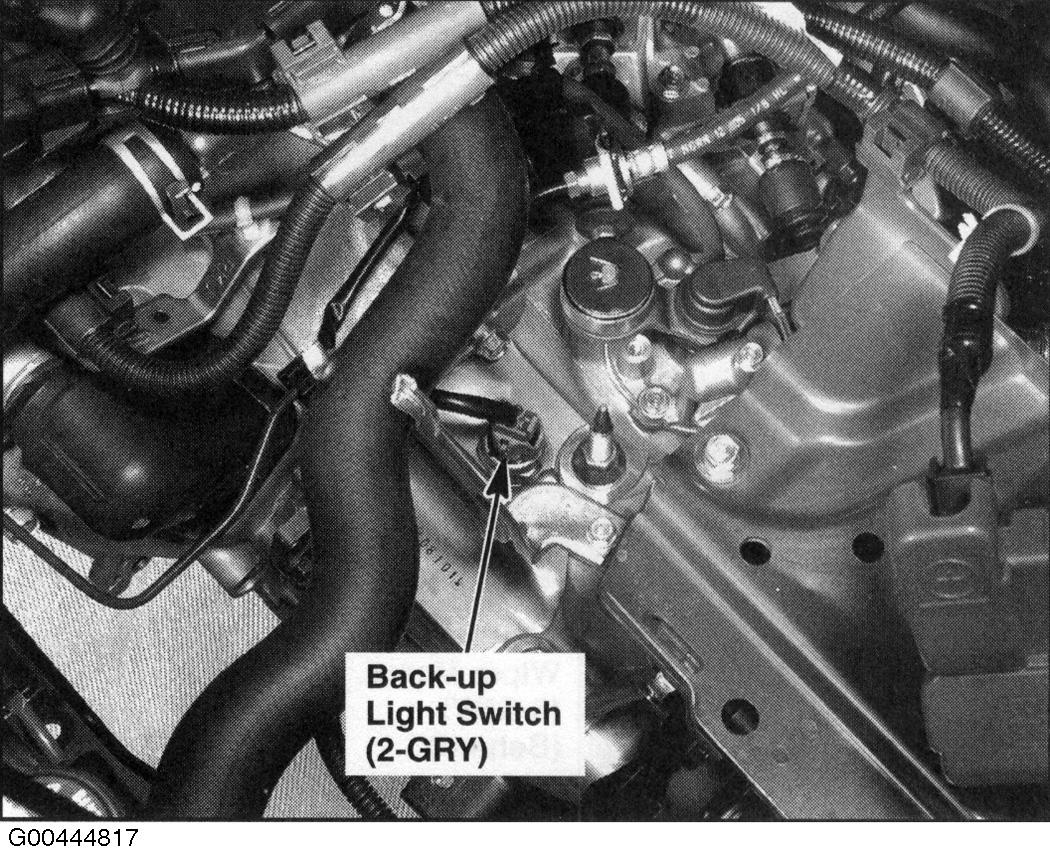

Fig 33: Top Of Manual Transmission

G00444817

Courtesy of AMERICAN HONDA MOTOR CO., INC.

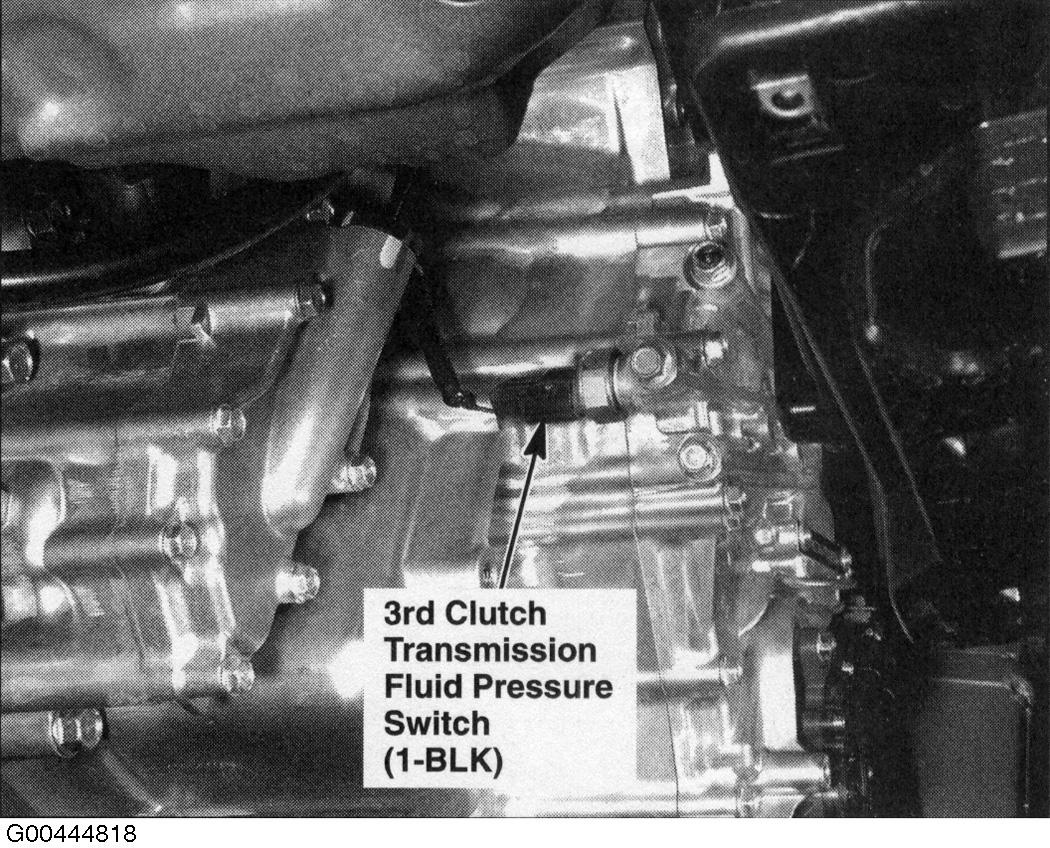

Fig 34: Automatic Transmission Housing

G00444818

Courtesy of AMERICAN HONDA MOTOR CO., INC.

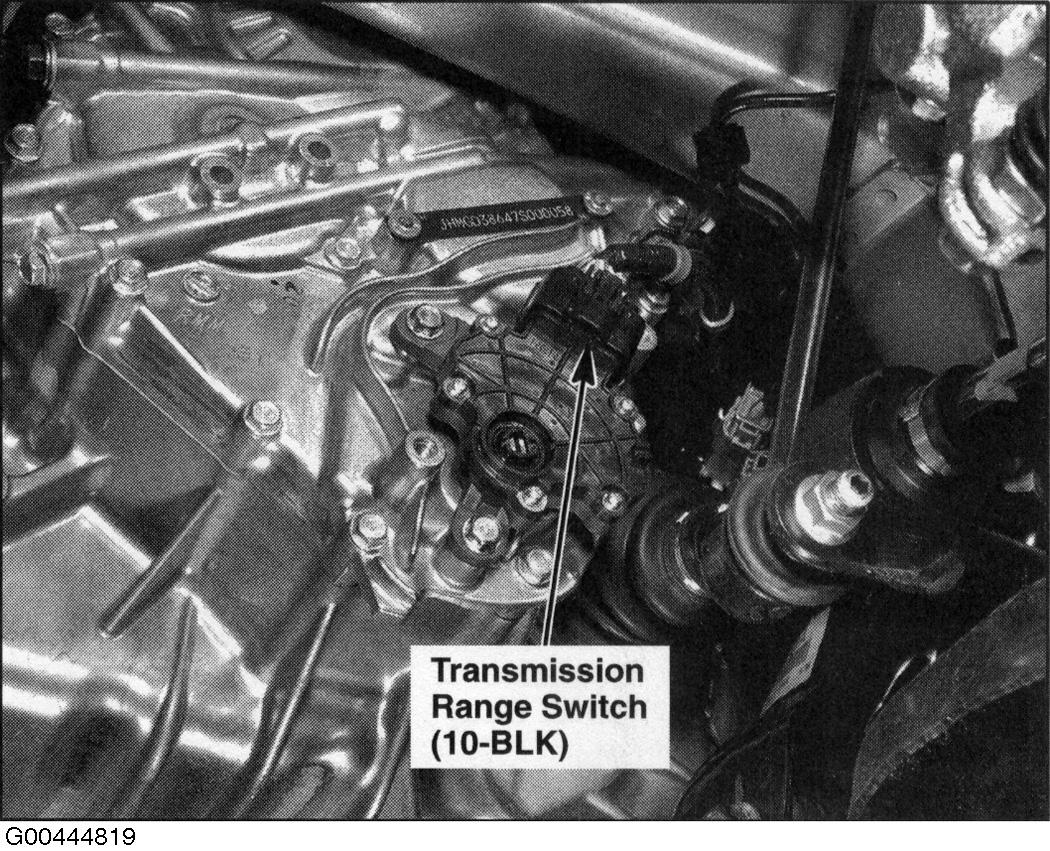

Fig 35: Automatic Transmission Housing

G00444819

Courtesy of AMERICAN HONDA MOTOR CO., INC.

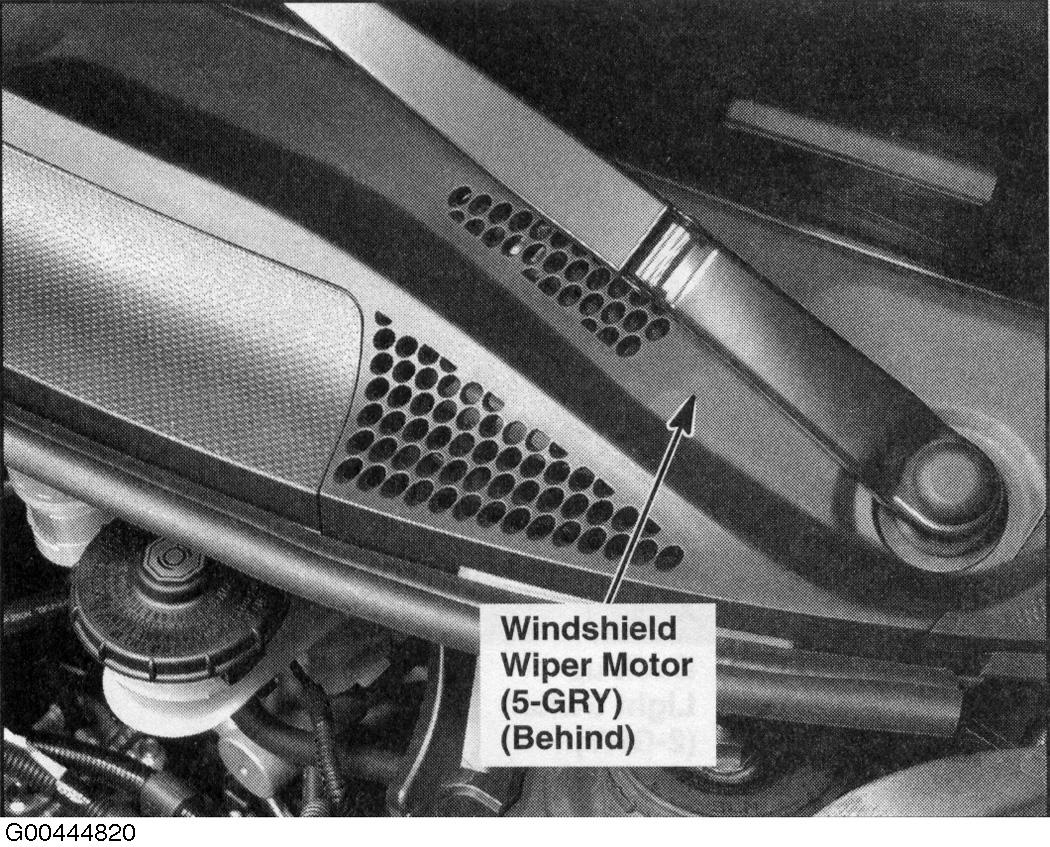

Fig 36: Under Left Side Of Cowl Cover

G00444820

Courtesy of AMERICAN HONDA MOTOR CO., INC.

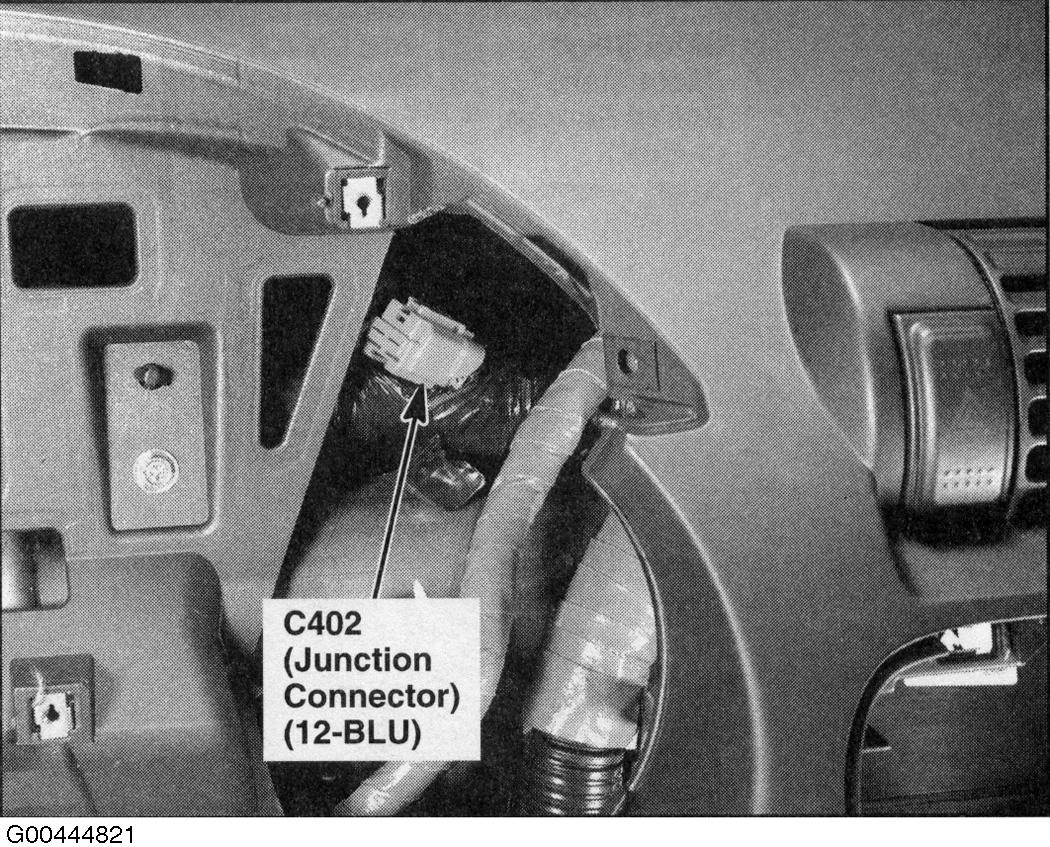

Fig 37: Left Side Of Dash

G00444821

Courtesy of AMERICAN HONDA MOTOR CO., INC.

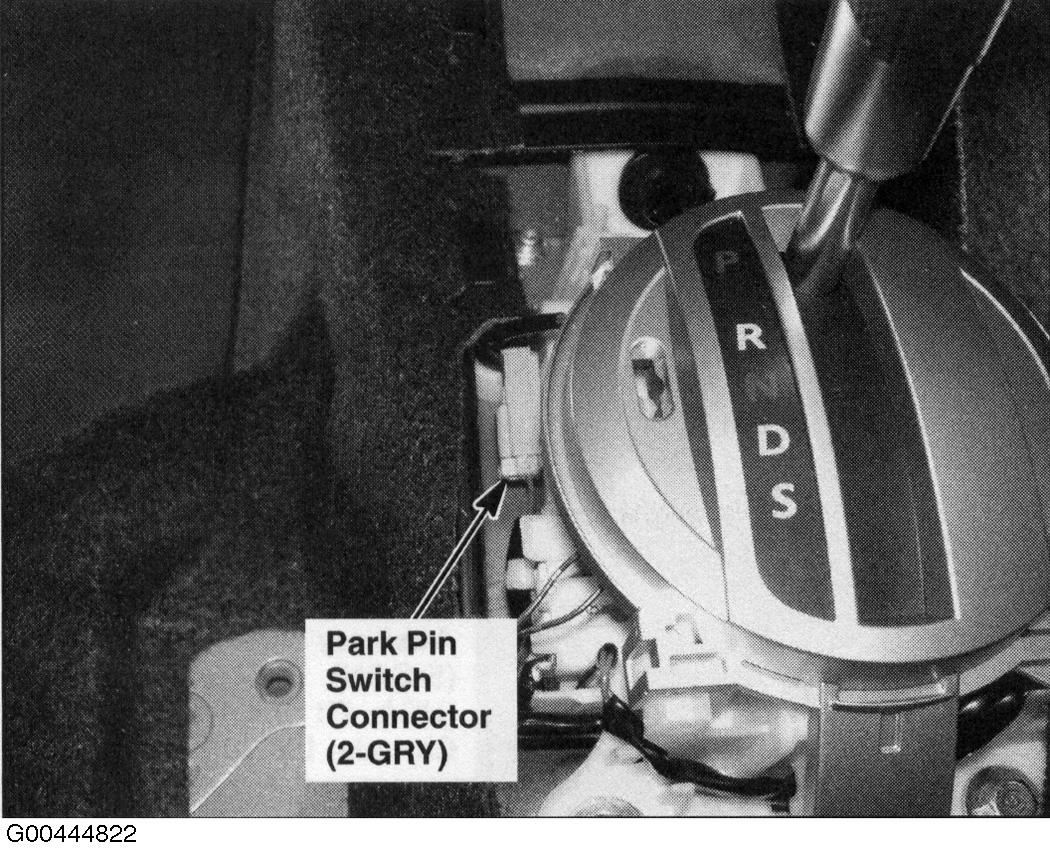

Fig 38: Center Console (A/T)

G00444822

Courtesy of AMERICAN HONDA MOTOR CO., INC.

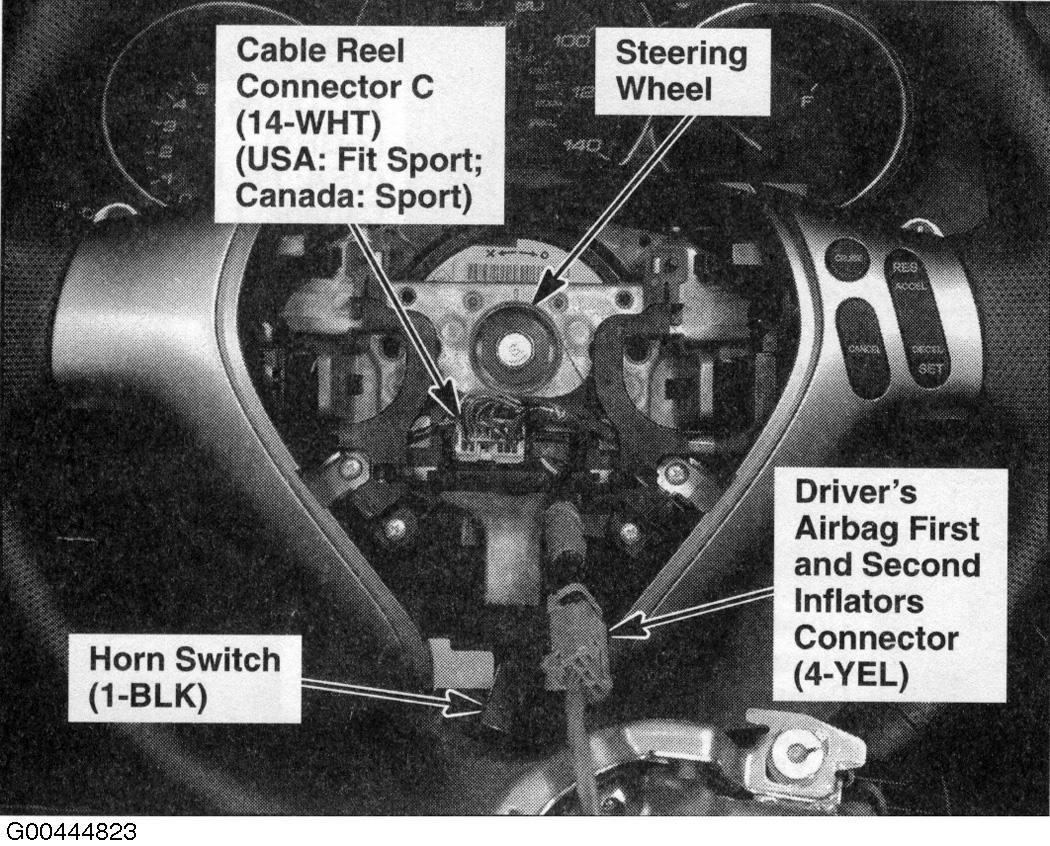

Fig 39: Steering Wheel

G00444823

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 40: Steering Column

G00444824

Courtesy of AMERICAN HONDA MOTOR CO., INC.

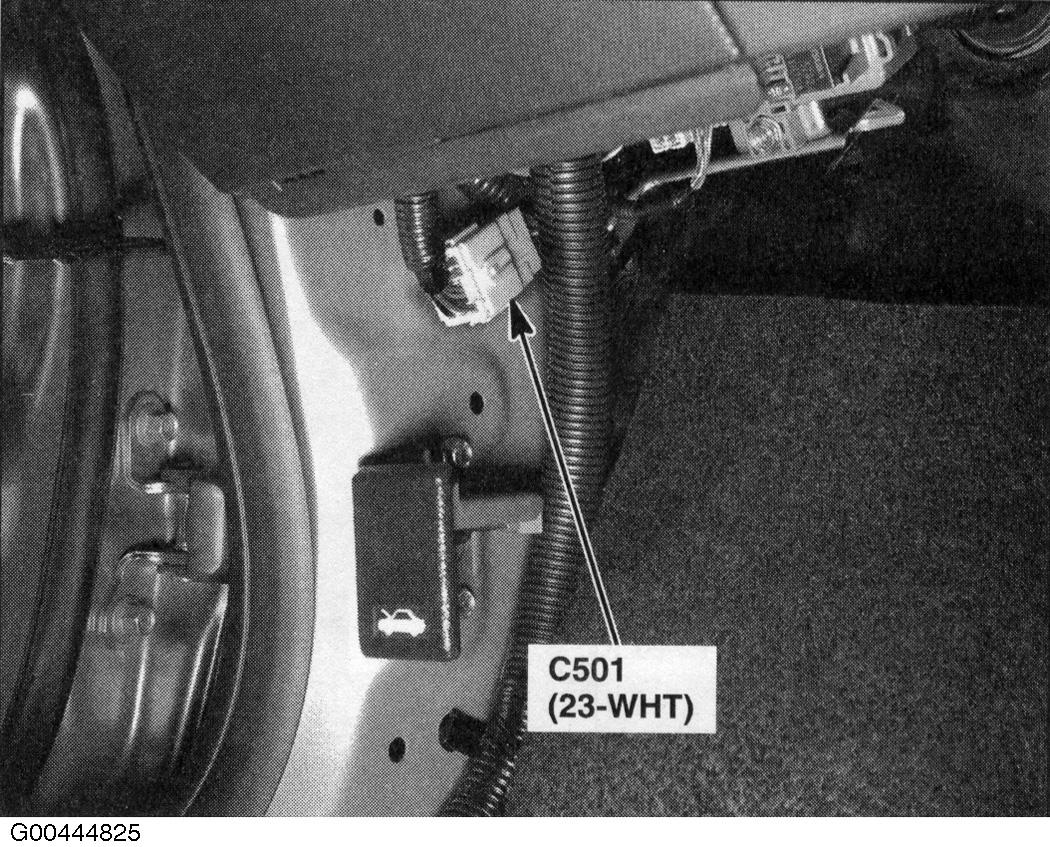

Fig 41: Left Kick Panel

G00444825

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 42: Left Side Of Dash

G00444826

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Left Side Of Dash

G00444827

Courtesy of AMERICAN HONDA MOTOR CO., INC.

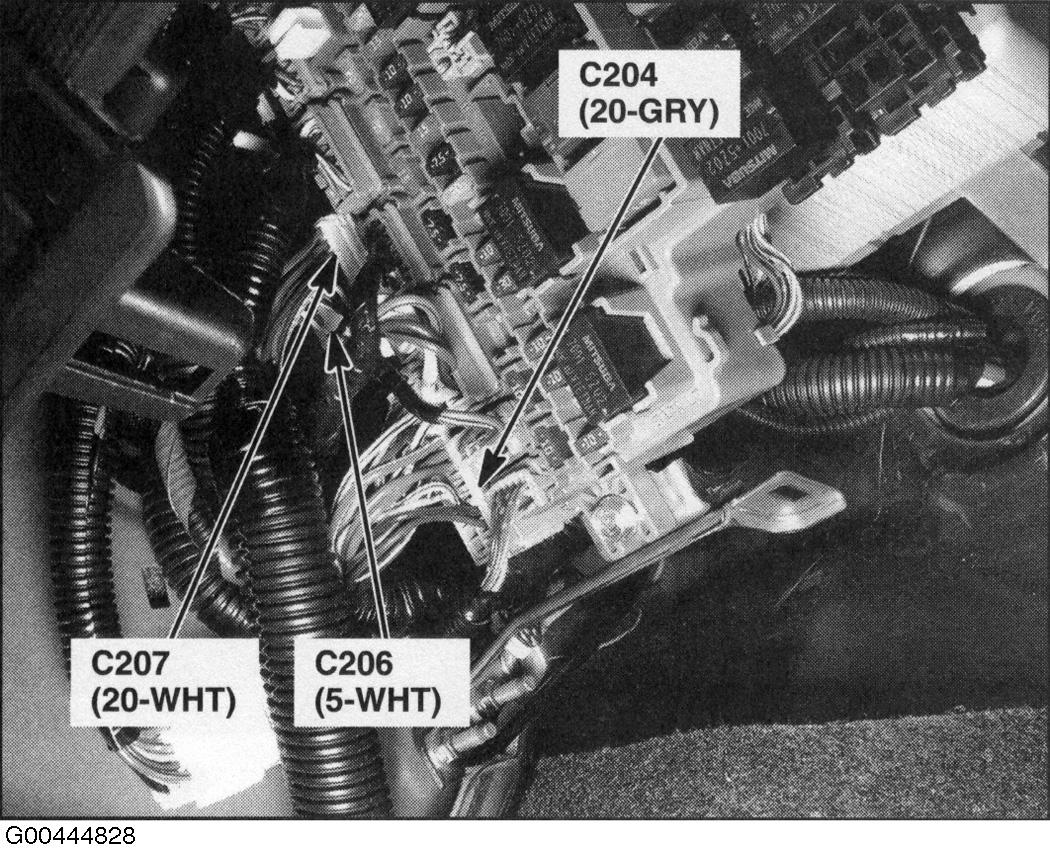

Fig 44: Left Side Of Dash

G00444828

Courtesy of AMERICAN HONDA MOTOR CO., INC.

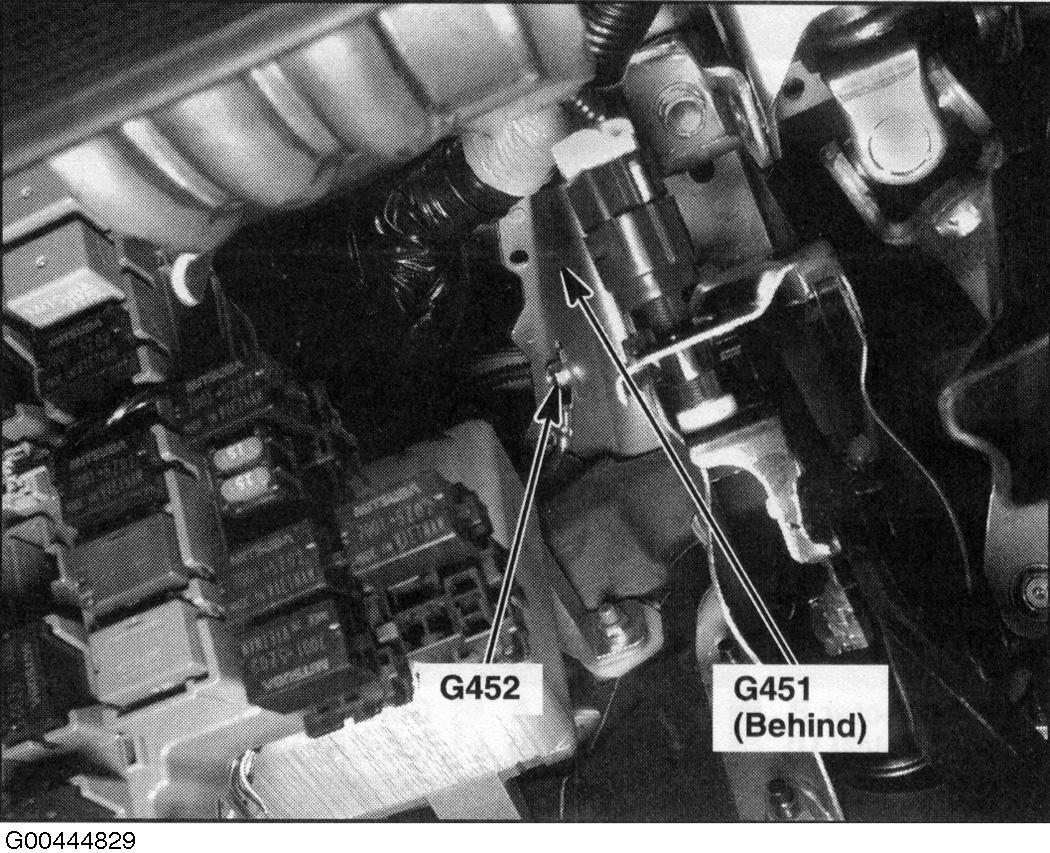

Fig 45: Left Side Of Dash

G00444829

Courtesy of AMERICAN HONDA MOTOR CO., INC.

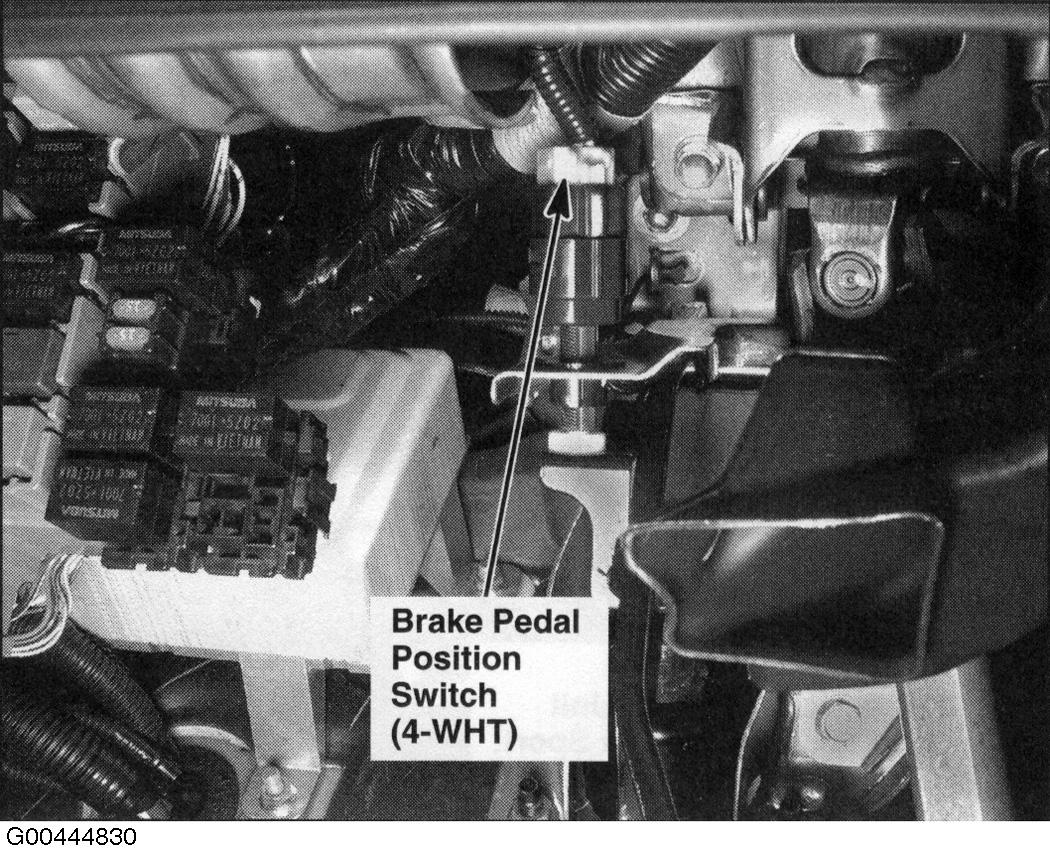

Fig 46: Left Side Of Dash

G00444830

Courtesy of AMERICAN HONDA MOTOR CO., INC.

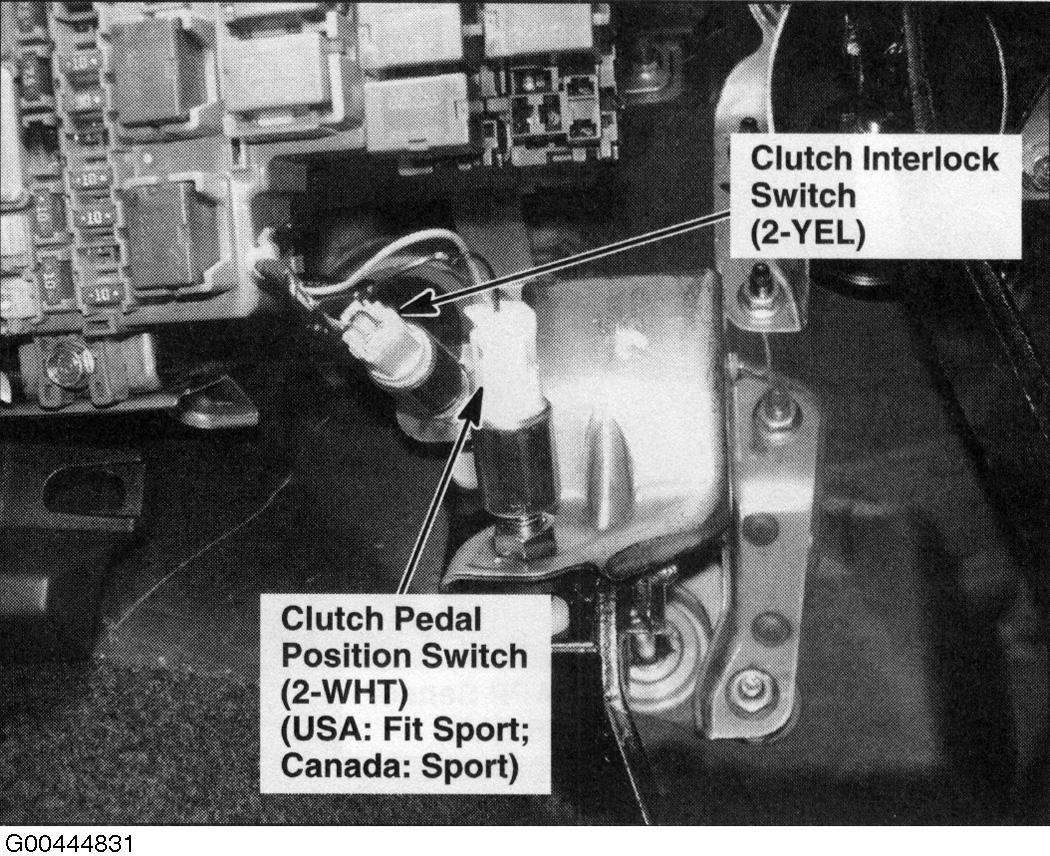

Fig 47: Left Side Of Dash (M/T)

G00444831

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Left Side Of Dash

G00444832

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 49: Left Side Of Dash

G00444833

Courtesy of AMERICAN HONDA MOTOR CO., INC.

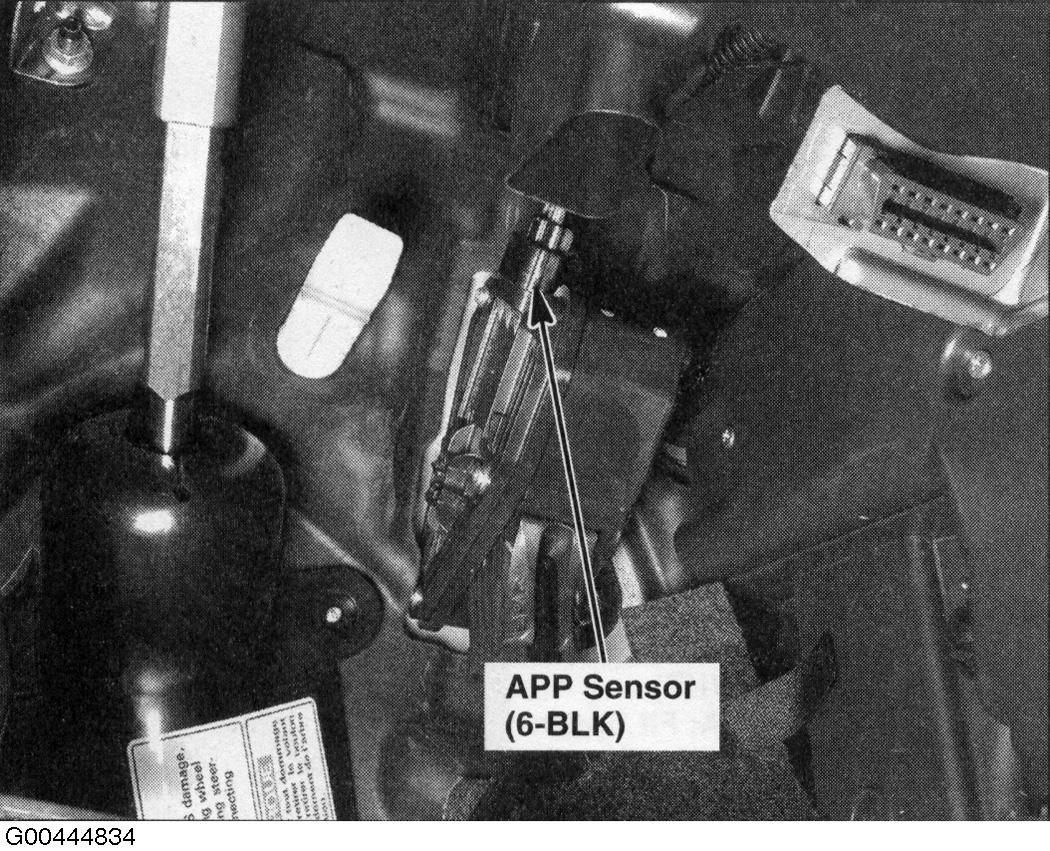

Fig 50: Left Side Of Dash

G00444834

Courtesy of AMERICAN HONDA MOTOR CO., INC.

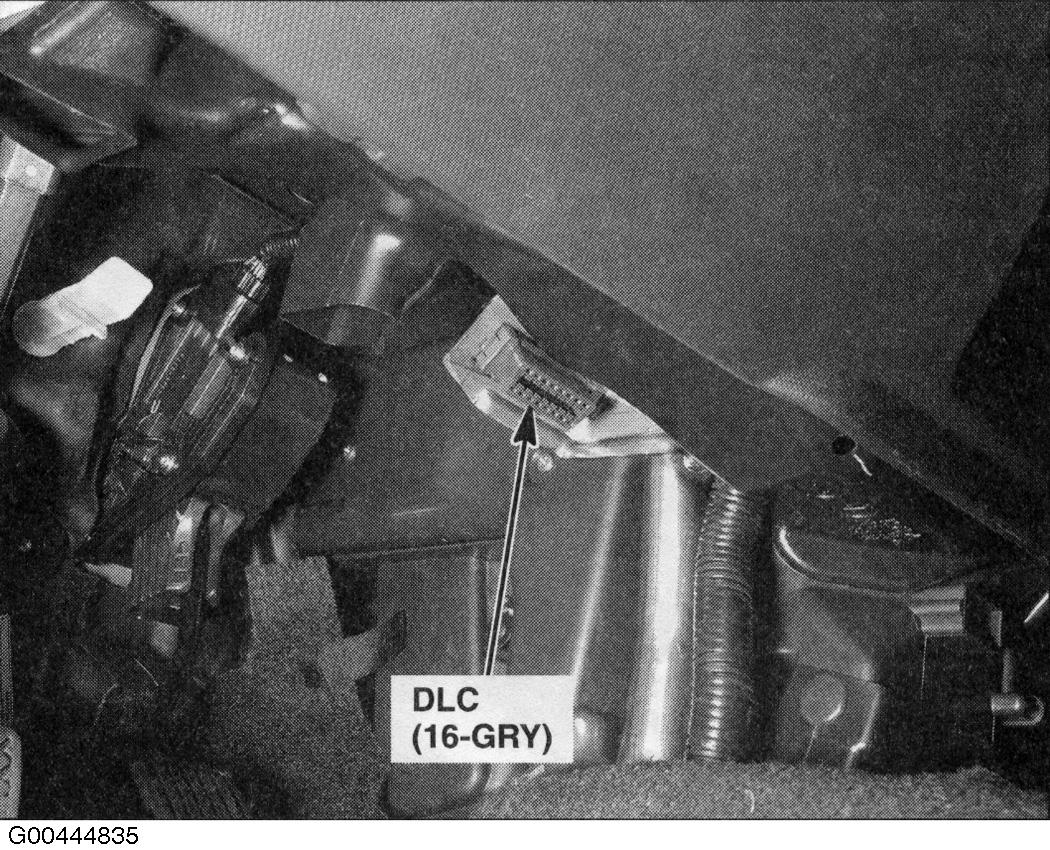

Fig 51: Left Side Of Dash

G00444835

Courtesy of AMERICAN HONDA MOTOR CO., INC.

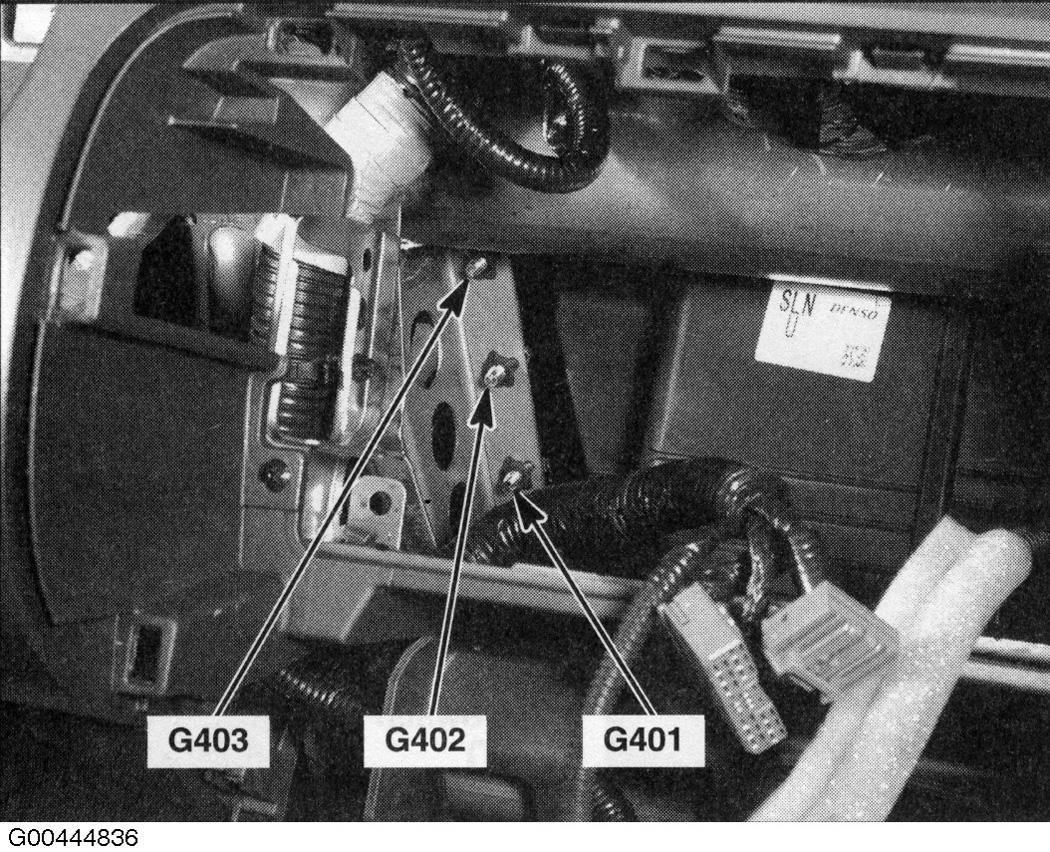

Fig 52: Middle Of Dash

G00444836

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Middle Of Dash

G00444837

Courtesy of AMERICAN HONDA MOTOR CO., INC.

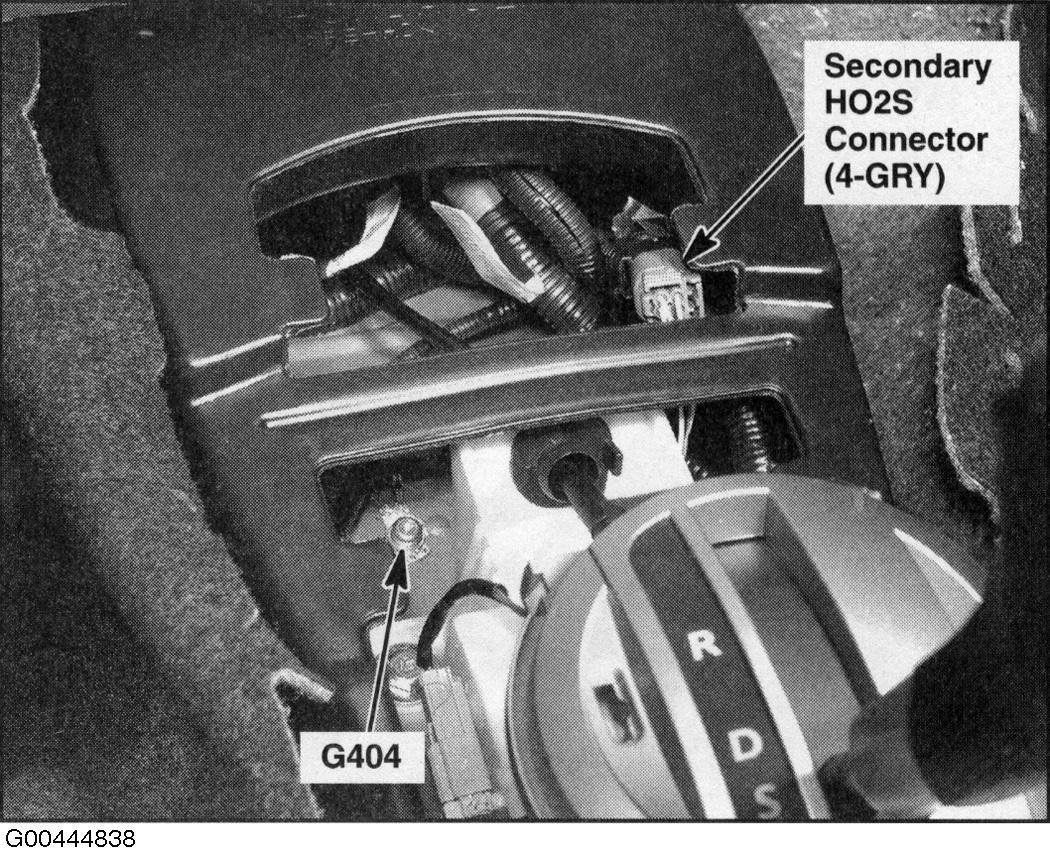

Fig 54: Center Console

G00444838

Courtesy of AMERICAN HONDA MOTOR CO., INC.

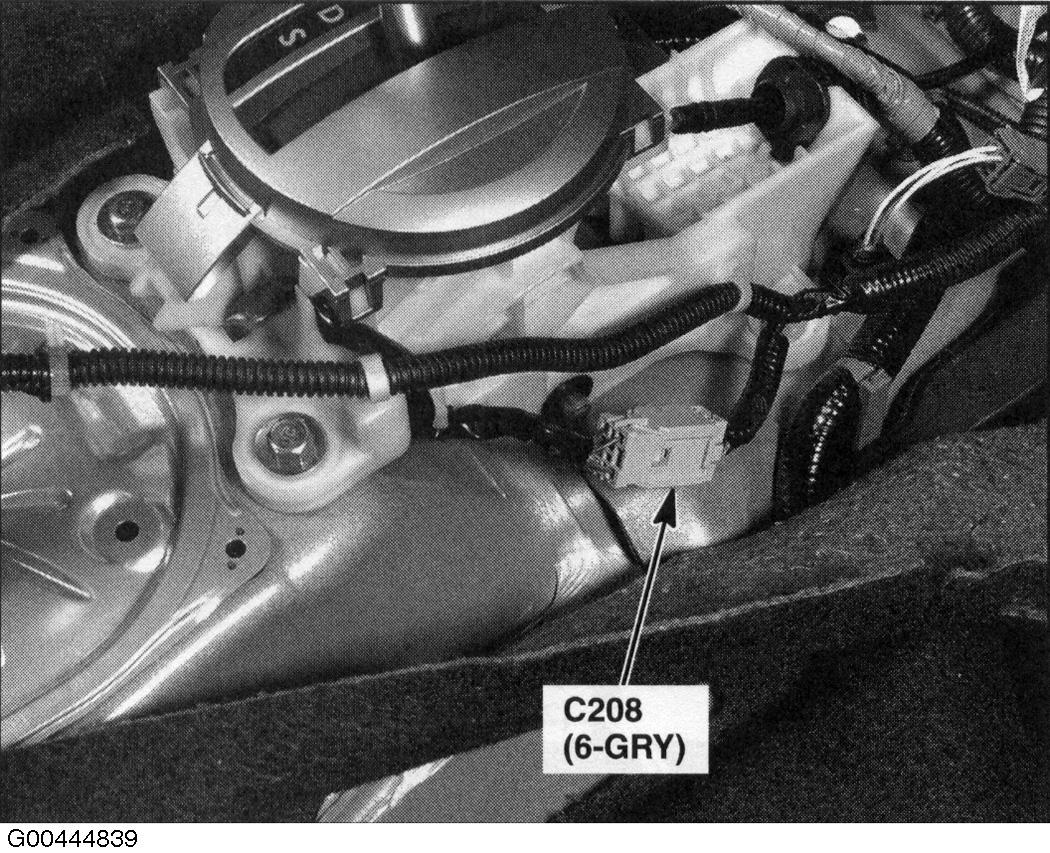

Fig 55: Center Console (A/T)

G00444839

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 56: Under Center Console

G00444840

Courtesy of AMERICAN HONDA MOTOR CO., INC.

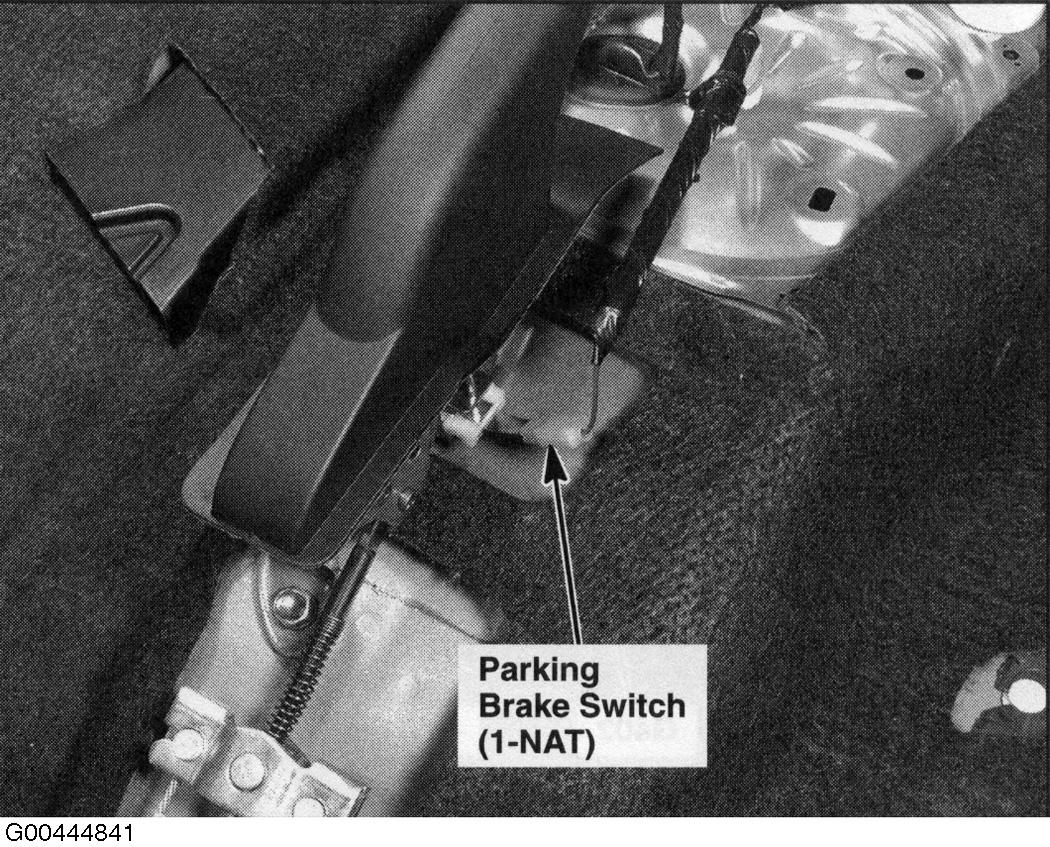

Fig 57: Under Center Console

G00444841

Courtesy of AMERICAN HONDA MOTOR CO., INC.

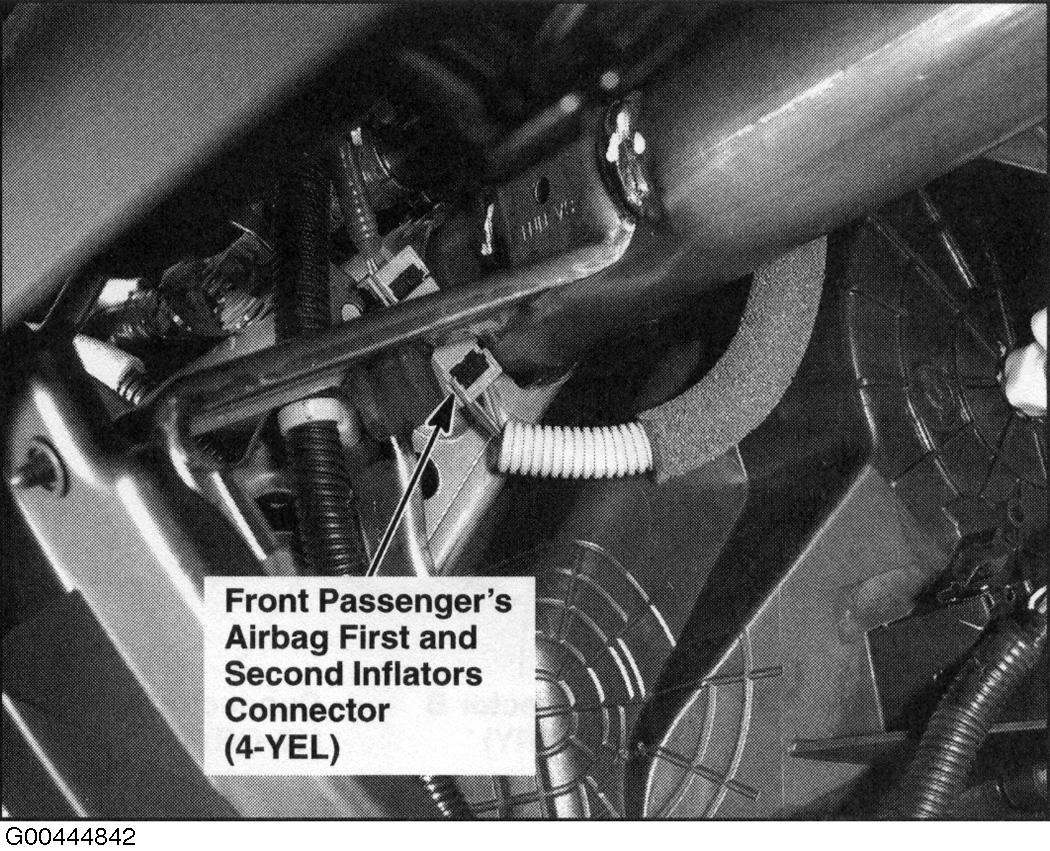

Fig 58: Right Side Of Dash

G00444842

Courtesy of AMERICAN HONDA MOTOR CO., INC.

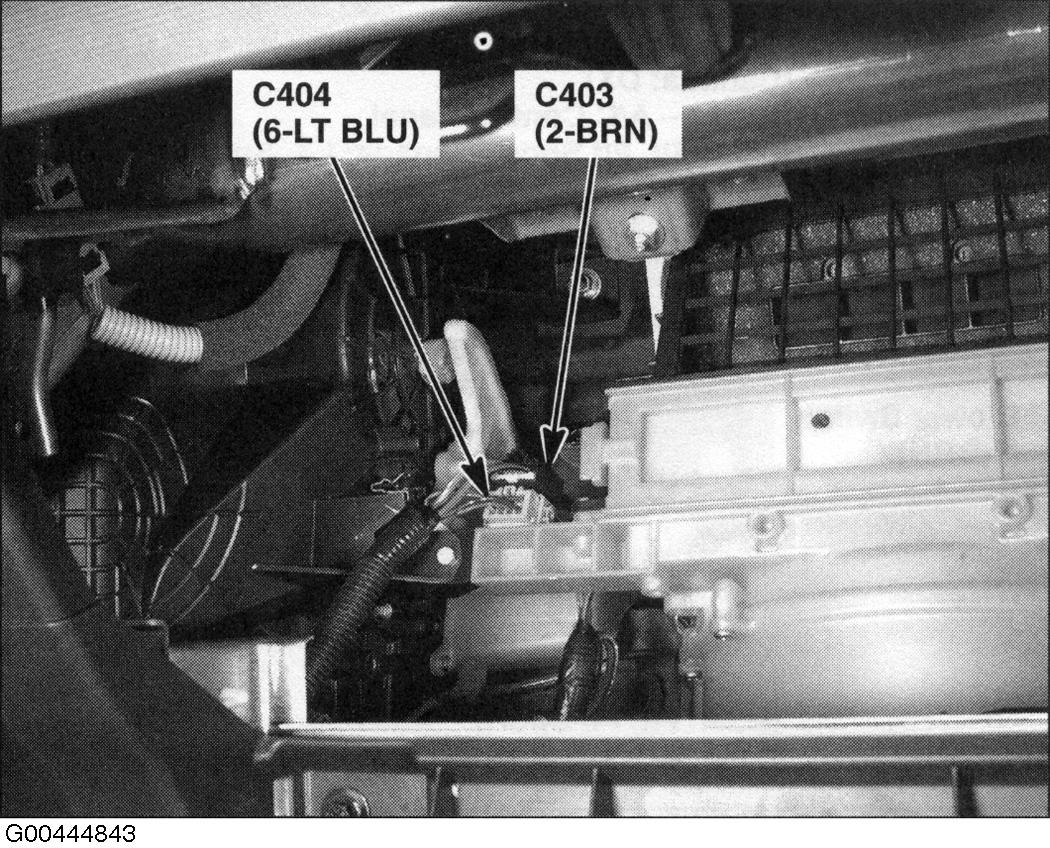

Fig 59: Right Side Of Dash

G00444843

Courtesy of AMERICAN HONDA MOTOR CO., INC.

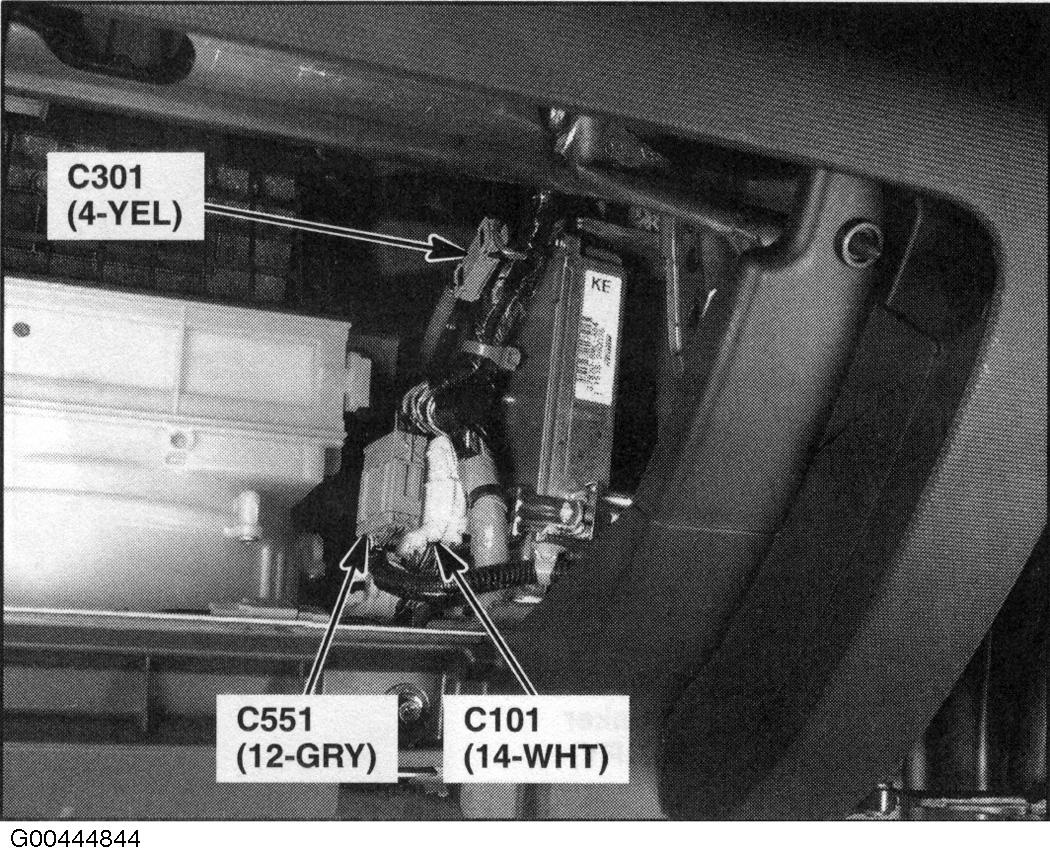

Fig 60: Right Side Of Dash

G00444844

Courtesy of AMERICAN HONDA MOTOR CO., INC.

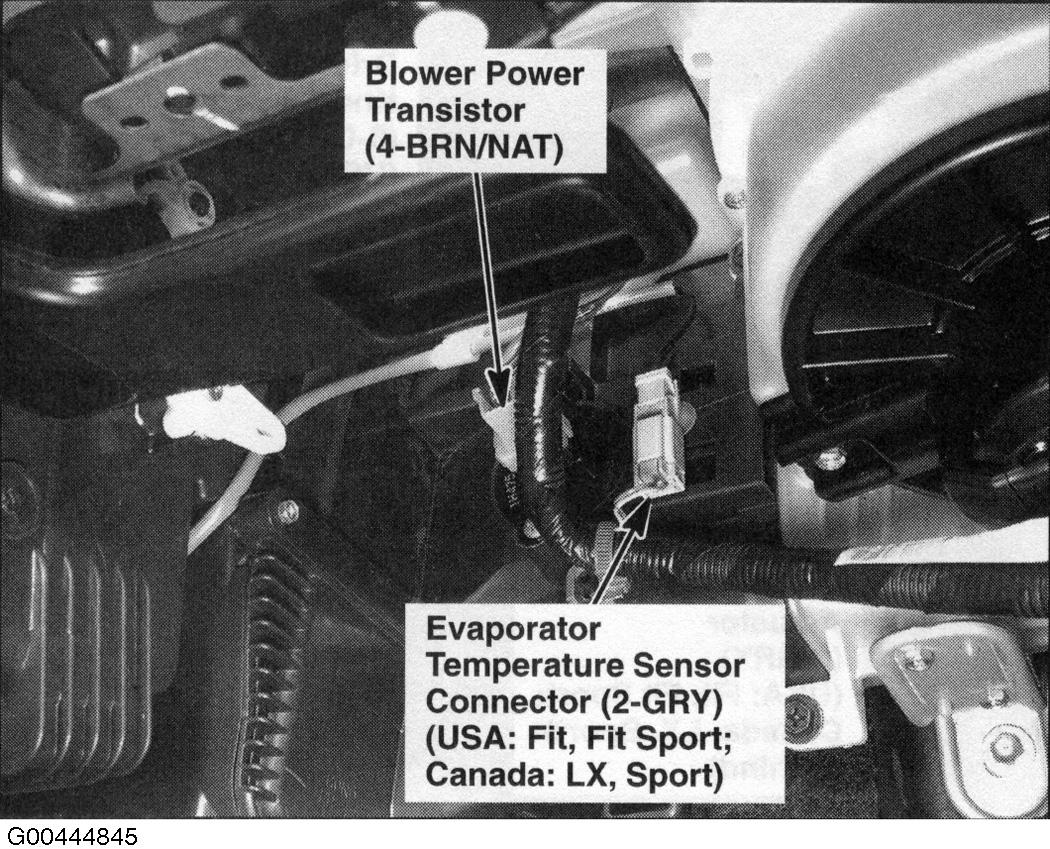

Fig 61: Right Side Of Dash

G00444845

Courtesy of AMERICAN HONDA MOTOR CO., INC.

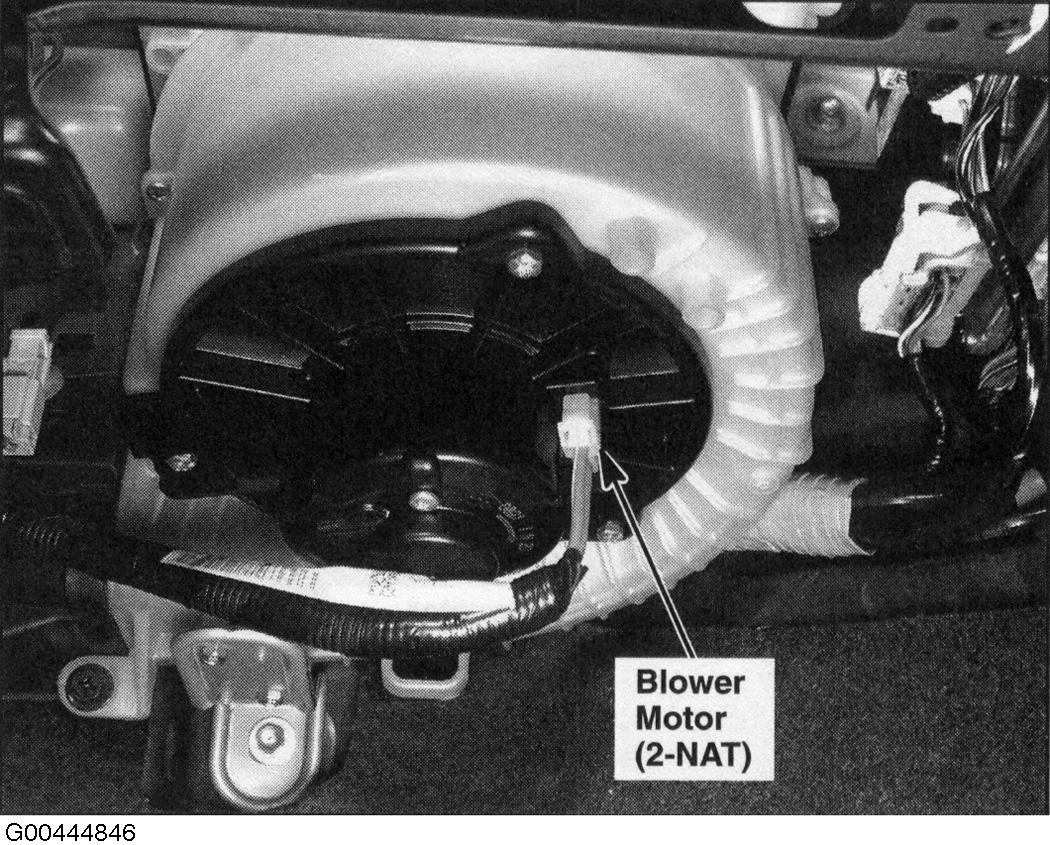

Fig 62: Right Side Of Dash

G00444846

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 63: Right Side Of Dash

G00444847

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 64: Right Side Of Dash

G00444848

Courtesy of AMERICAN HONDA MOTOR CO., INC.

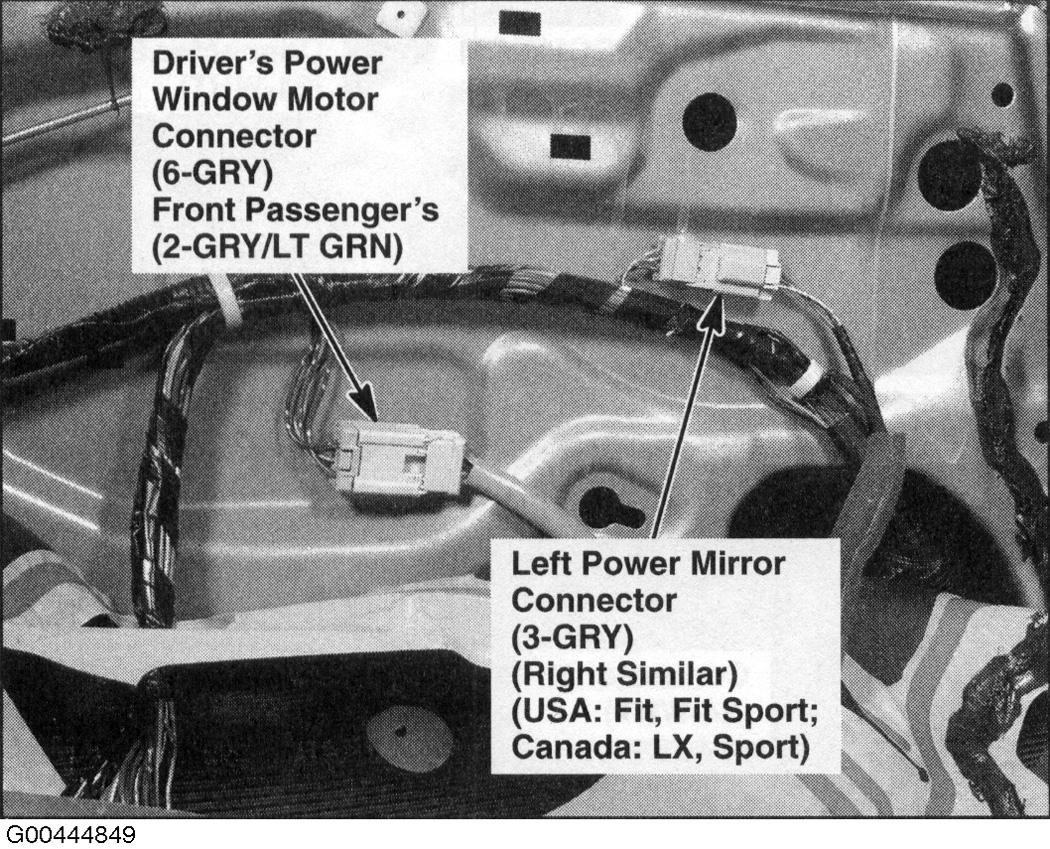

Fig 65: Driver's Door (Front Passenger's Similar)

G00444849

Courtesy of AMERICAN HONDA MOTOR CO., INC.

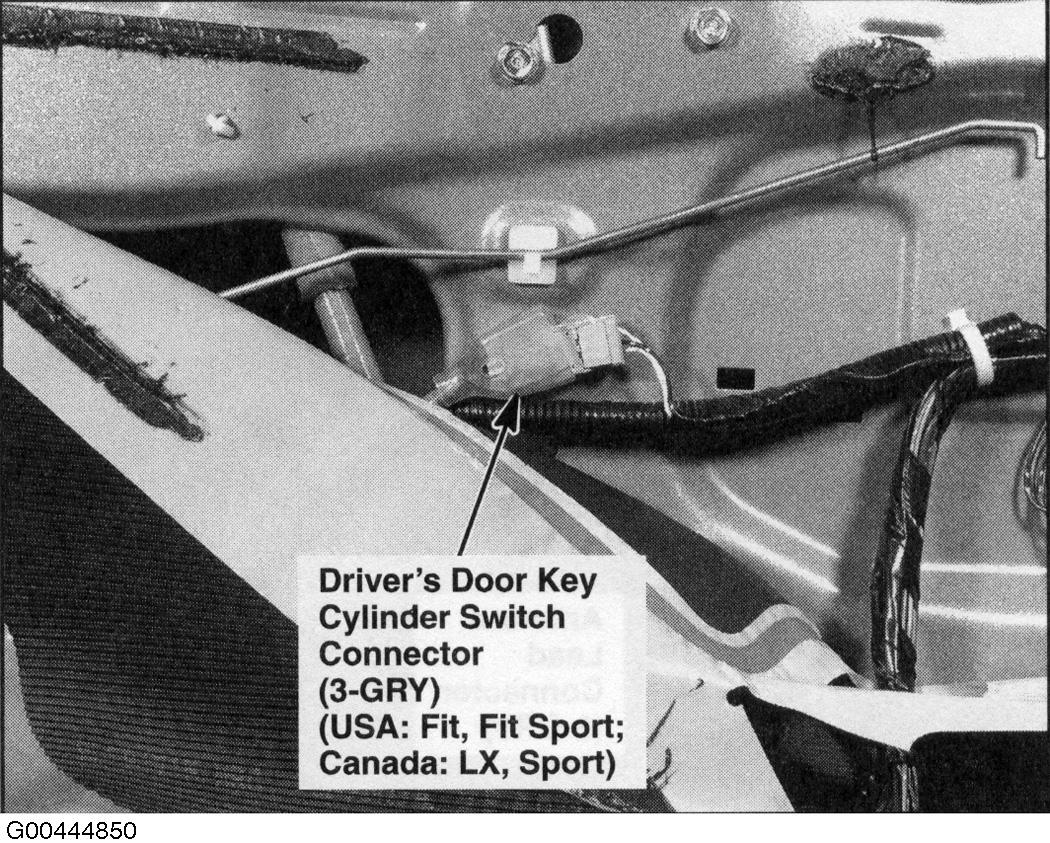

Fig 66: Driver's Door

G00444850

Courtesy of AMERICAN HONDA MOTOR CO., INC.

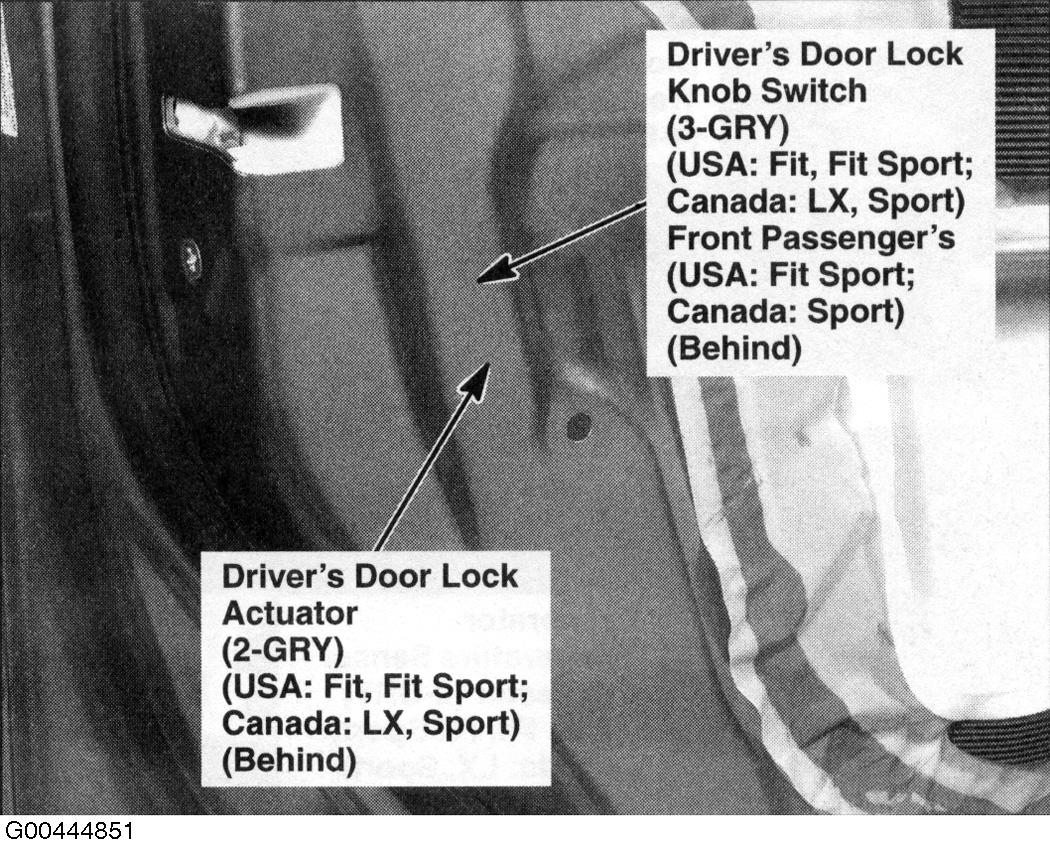

Fig 67: Driver's Door (Front Passenger's Similar)

G00444851

Courtesy of AMERICAN HONDA MOTOR CO., INC.

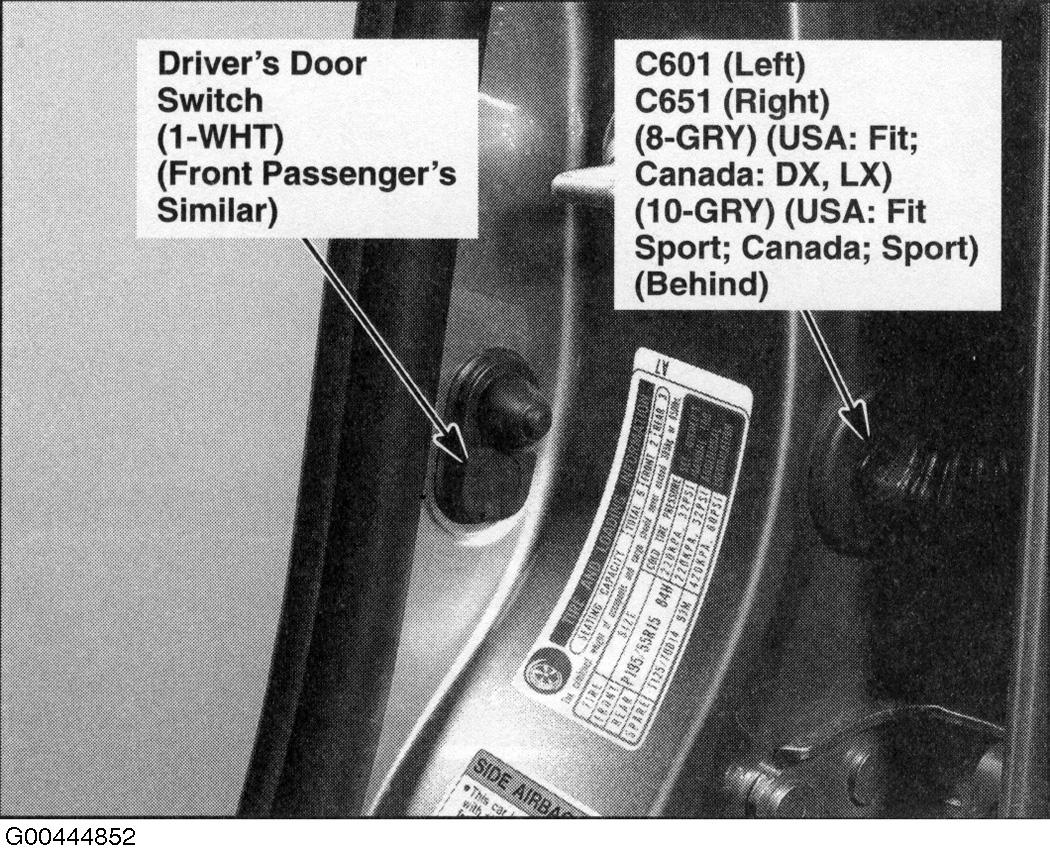

Fig 68: Left "B" Pillar (Right Similar)

G00444852

Courtesy of AMERICAN HONDA MOTOR CO., INC.

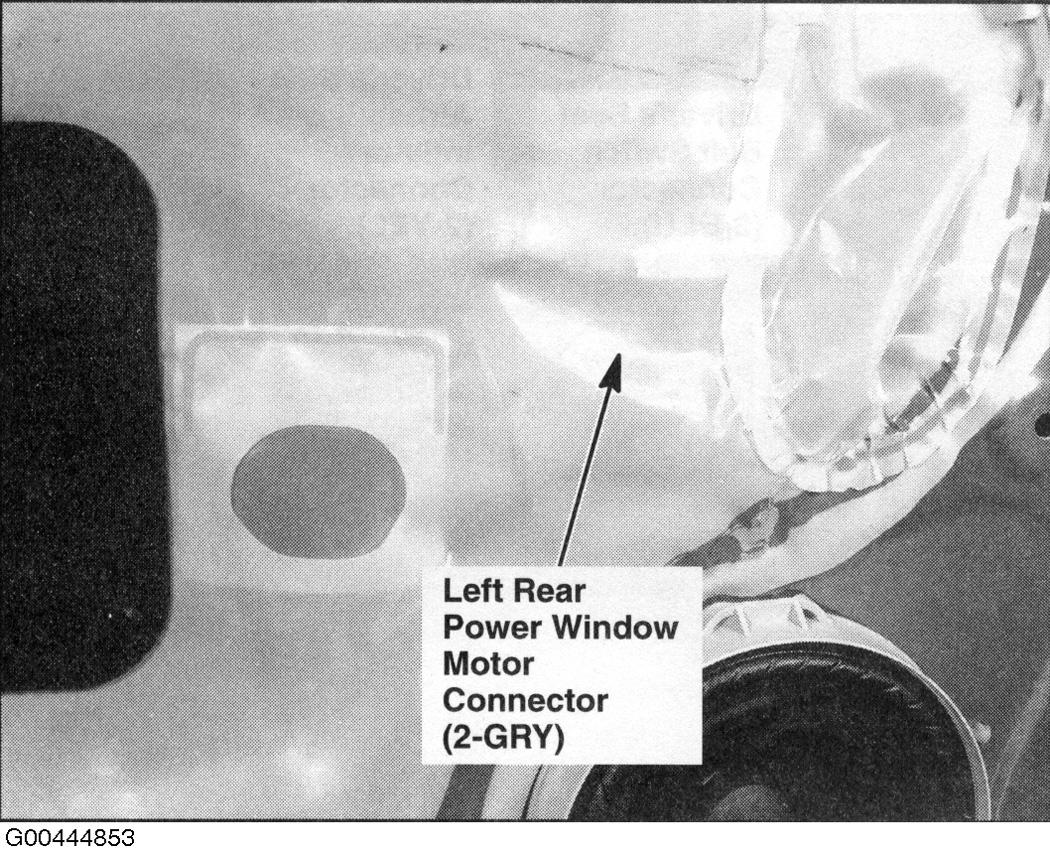

Fig 69: Left Rear Door (Right Similar)

G00444853

Courtesy of AMERICAN HONDA MOTOR CO., INC.

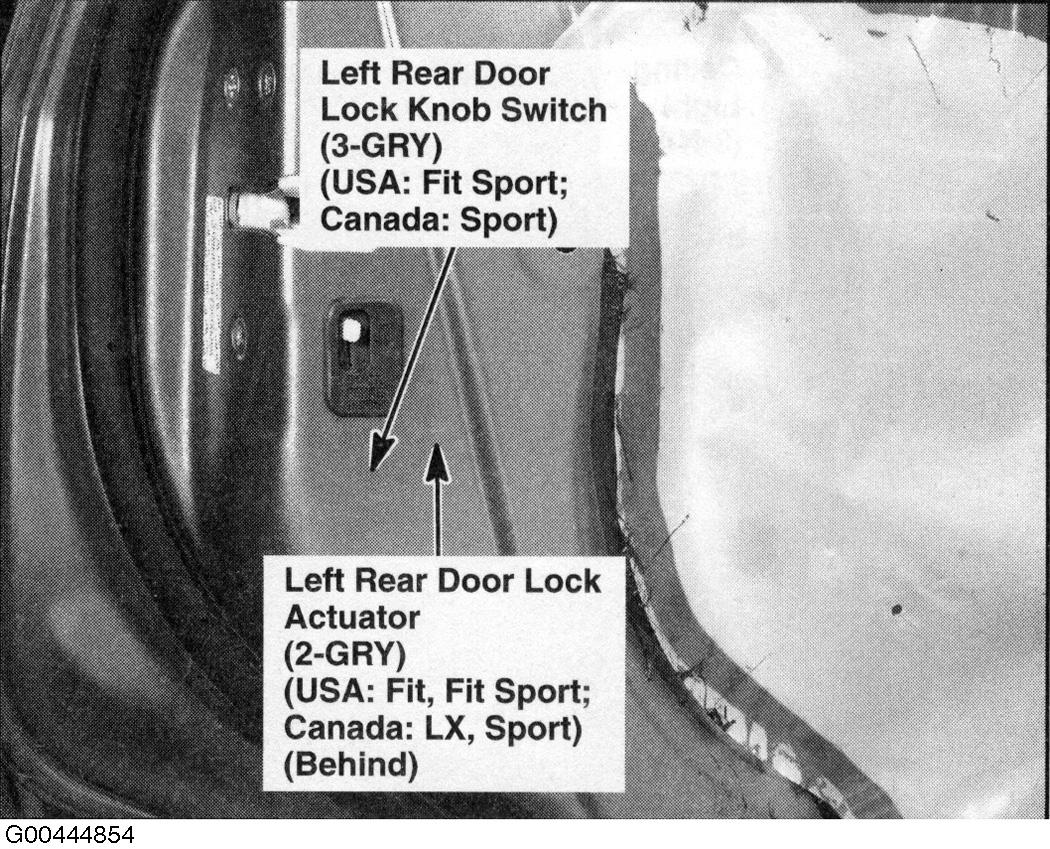

Fig 70: Left Rear Door (Right Similar)

G00444854

Courtesy of AMERICAN HONDA MOTOR CO., INC.

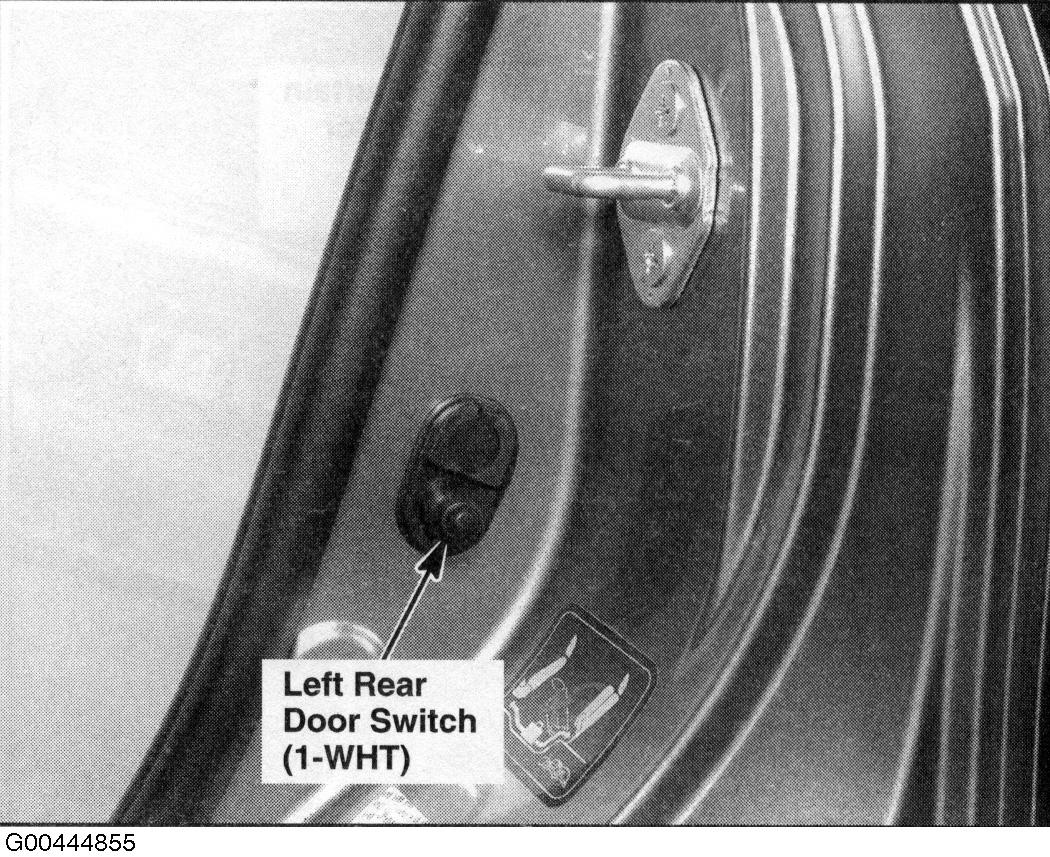

Fig 71: Left "C" Pillar (Right Similar)

G00444855

Courtesy of AMERICAN HONDA MOTOR CO., INC.

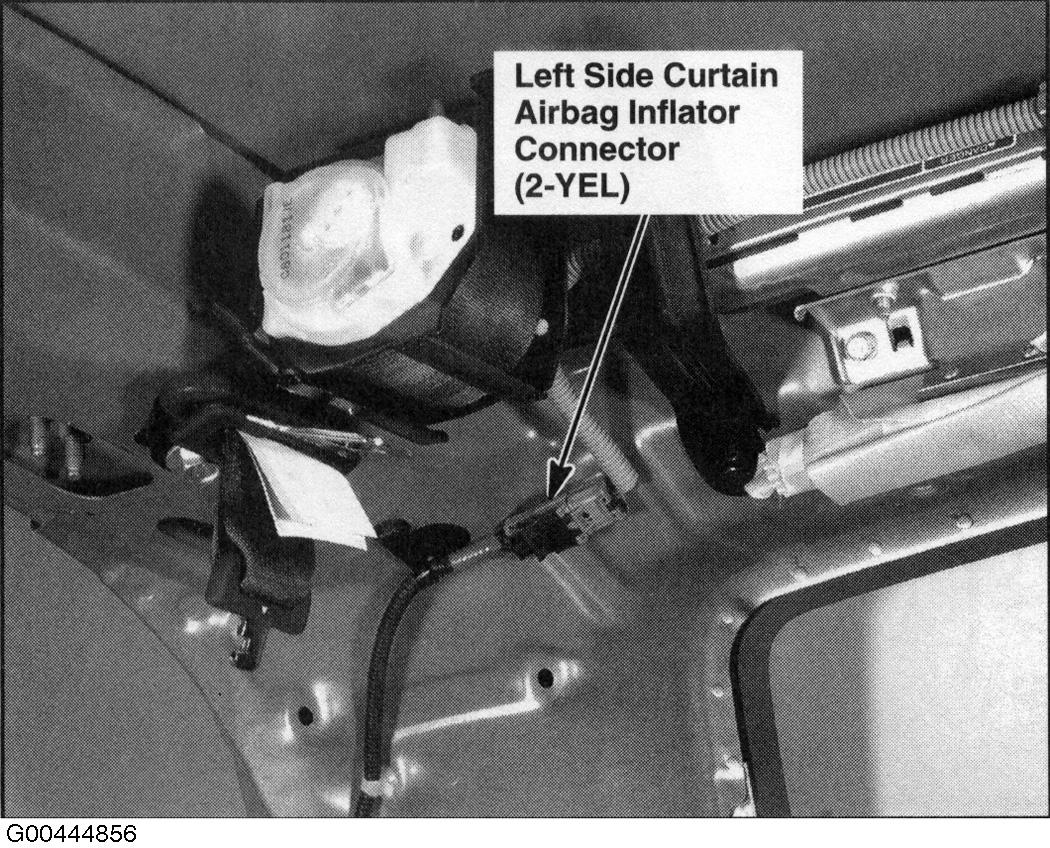

Fig 72: Left "D" Pillar (Right Similar)

G00444856

Courtesy of AMERICAN HONDA MOTOR CO., INC.

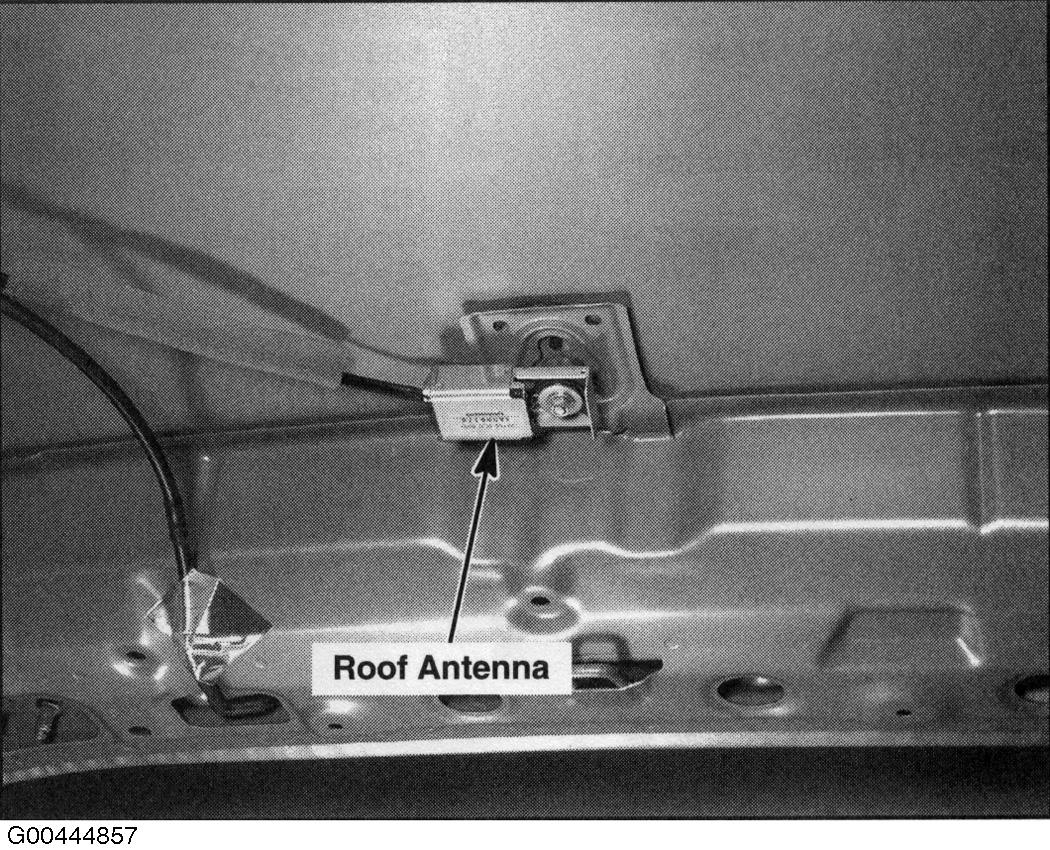

Fig 73: Rear Of Roof

G00444857

Courtesy of AMERICAN HONDA MOTOR CO., INC.

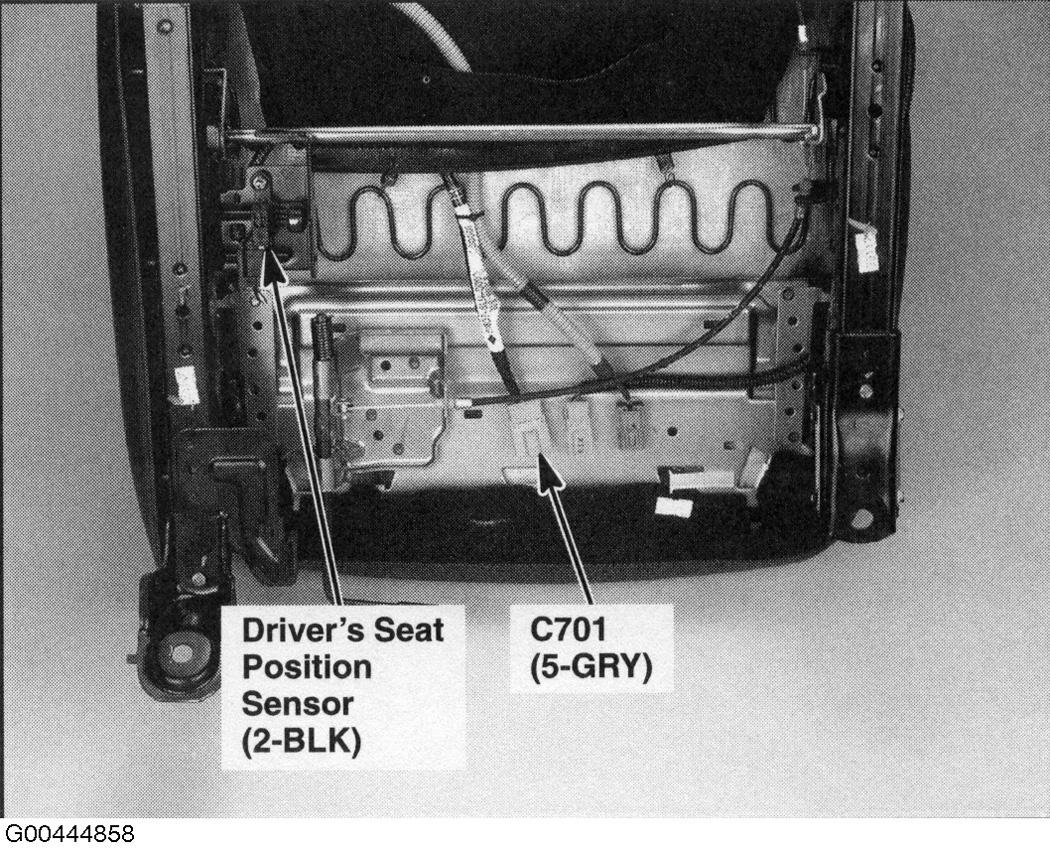

Fig 74: Under Driver's Seat

G00444858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

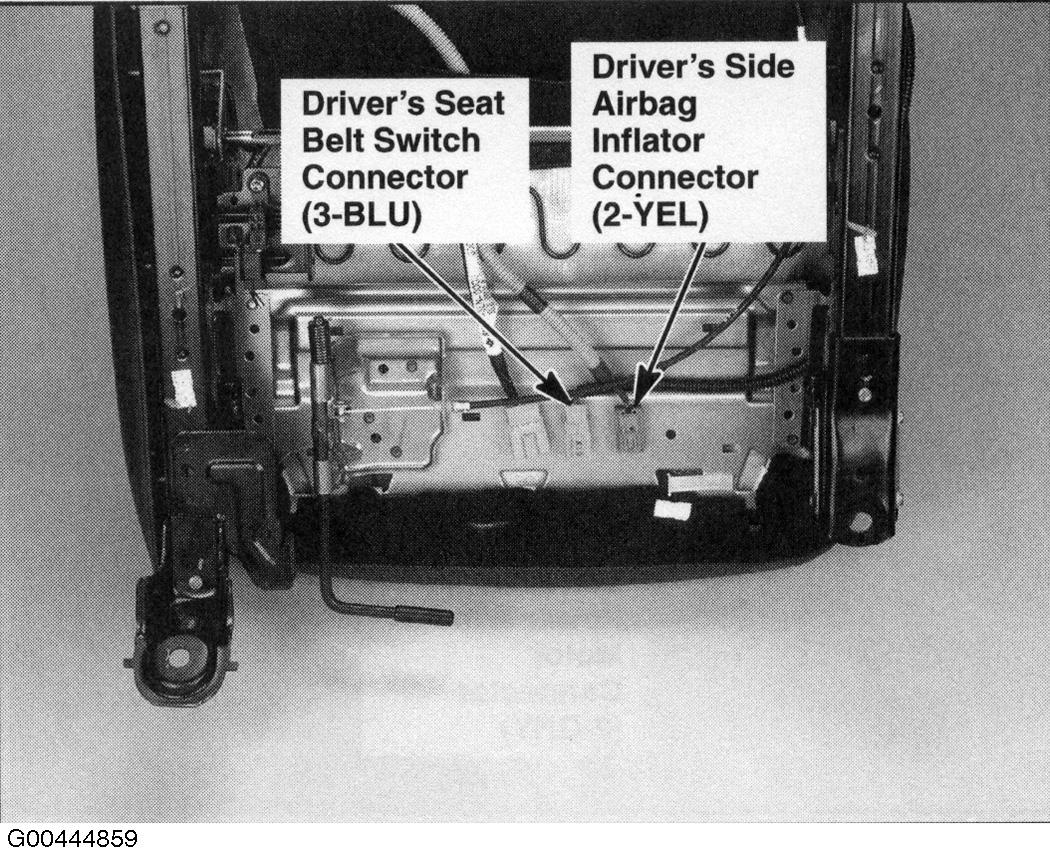

Fig 75: Under Driver's Seat

G00444859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

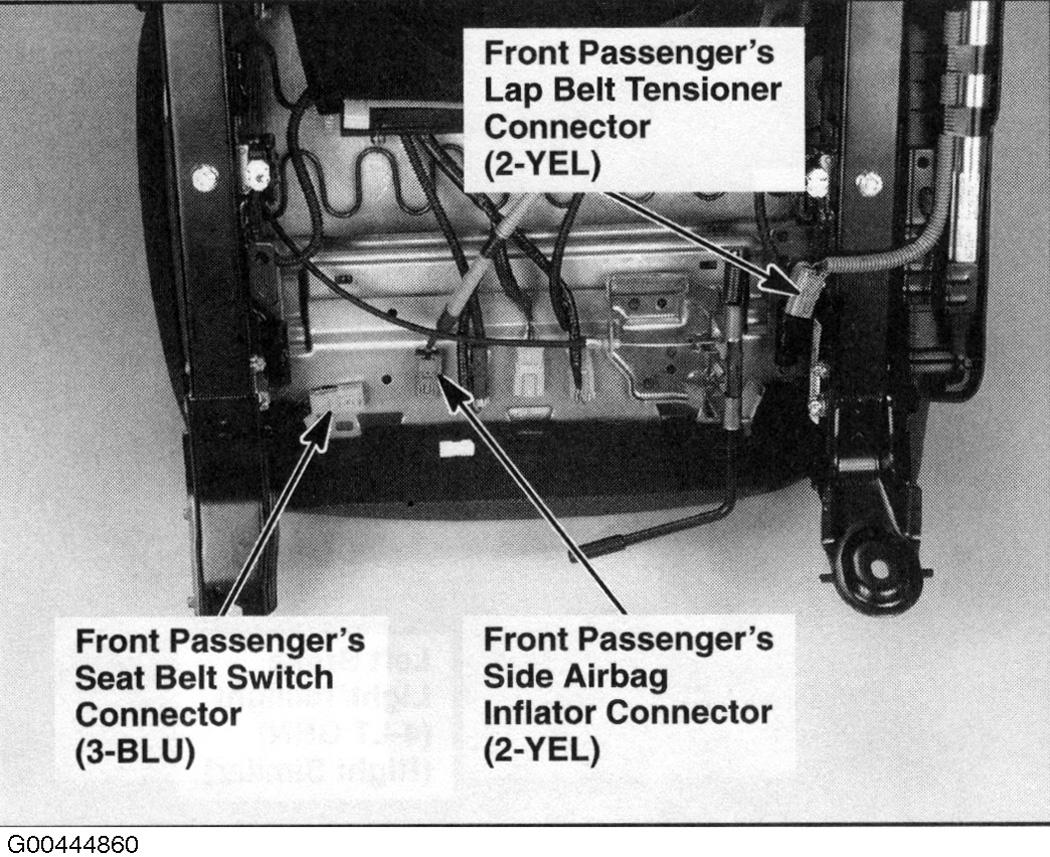

Fig 76: Under Front Passenger's Seat

G00444860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

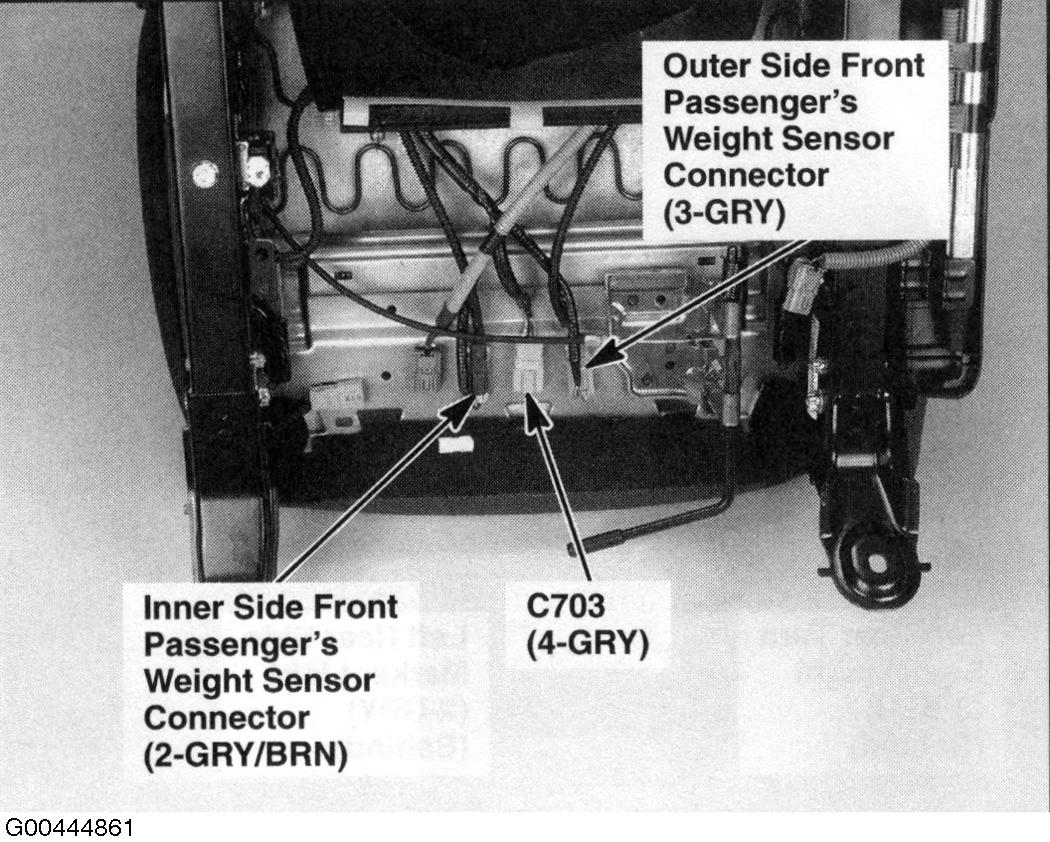

Fig 77: Under Front Passenger's Seat

G00444861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

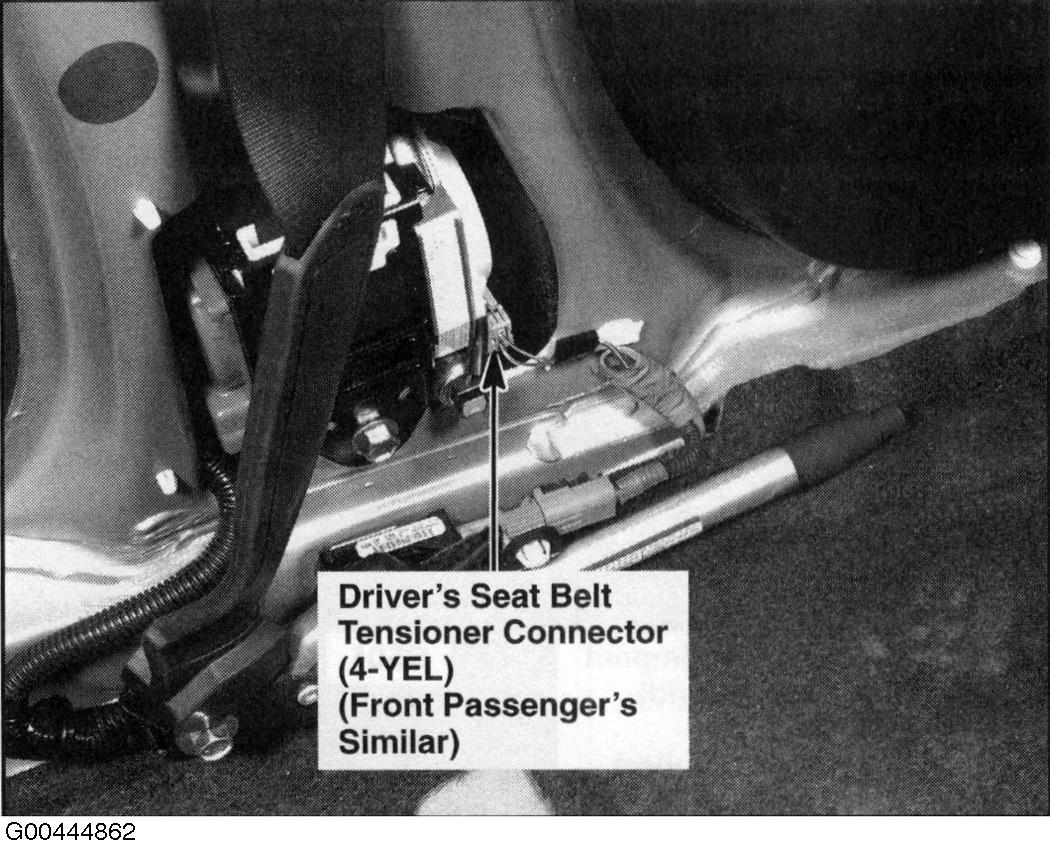

Fig 78: Left "B" Pillar (Right Similar)

G00444862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

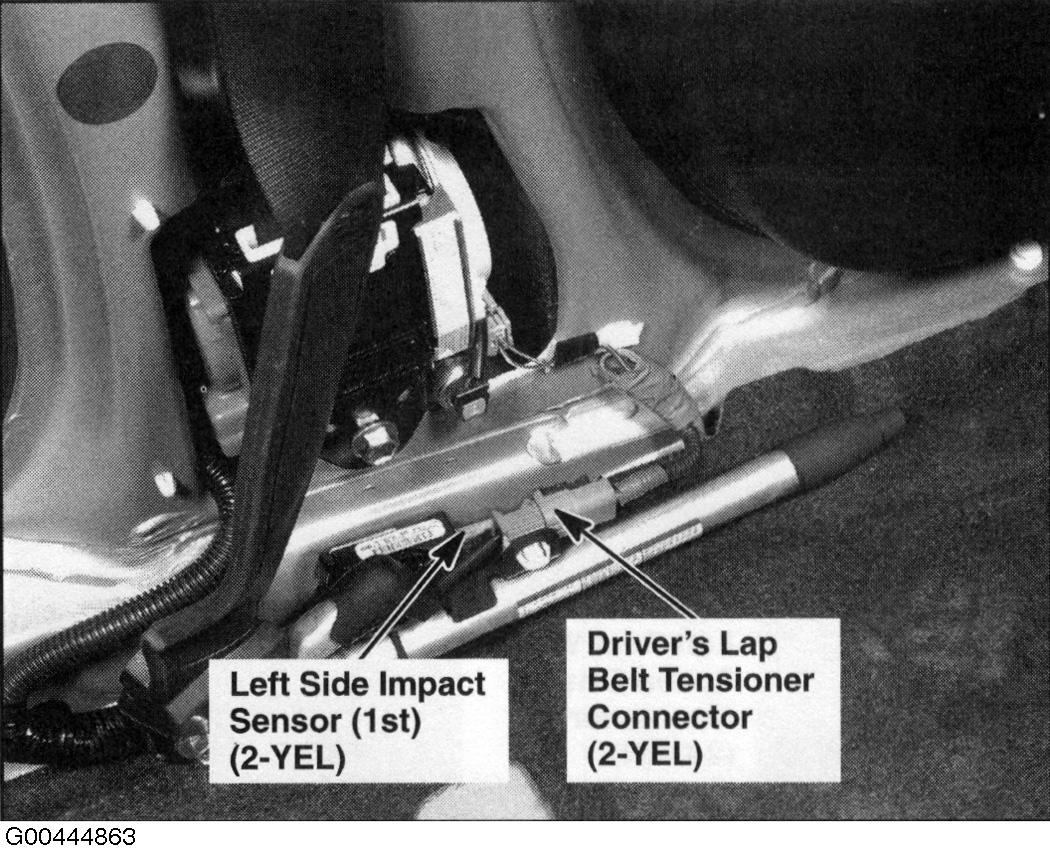

Fig 79: Left "B" Pillar

G00444863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

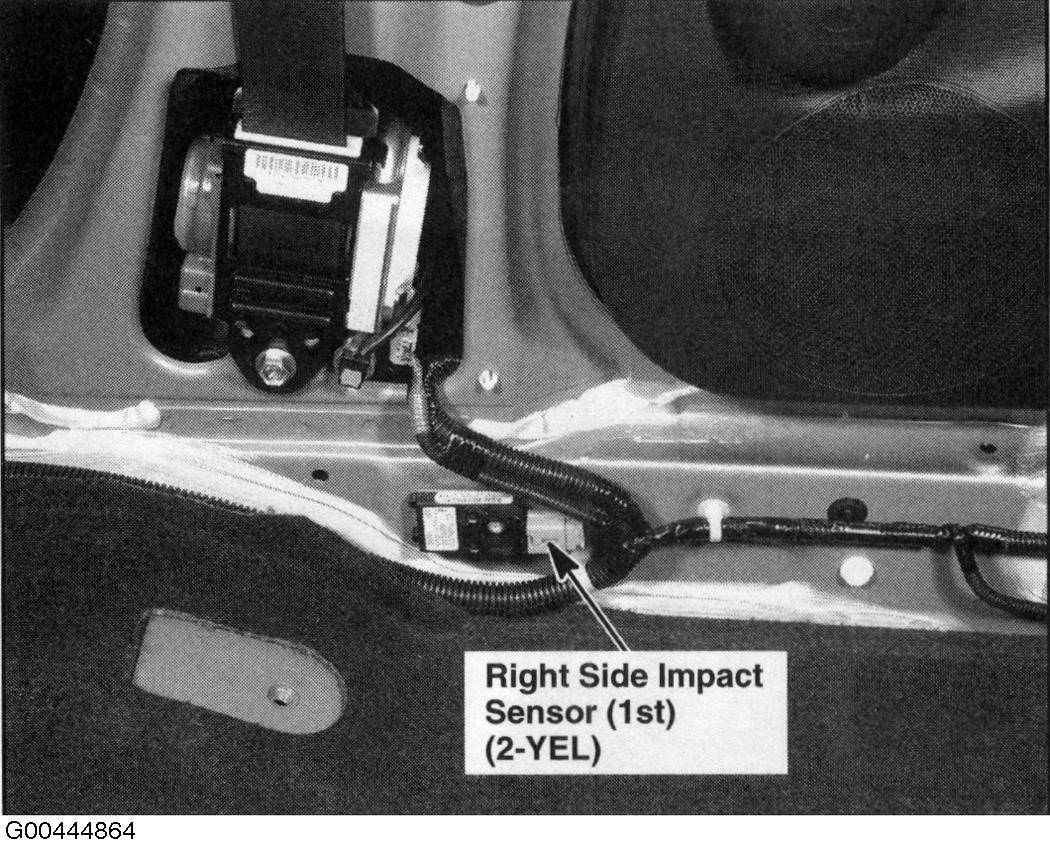

Fig 80: Right "B" Pillar

G00444864

Courtesy of AMERICAN HONDA MOTOR CO., INC.

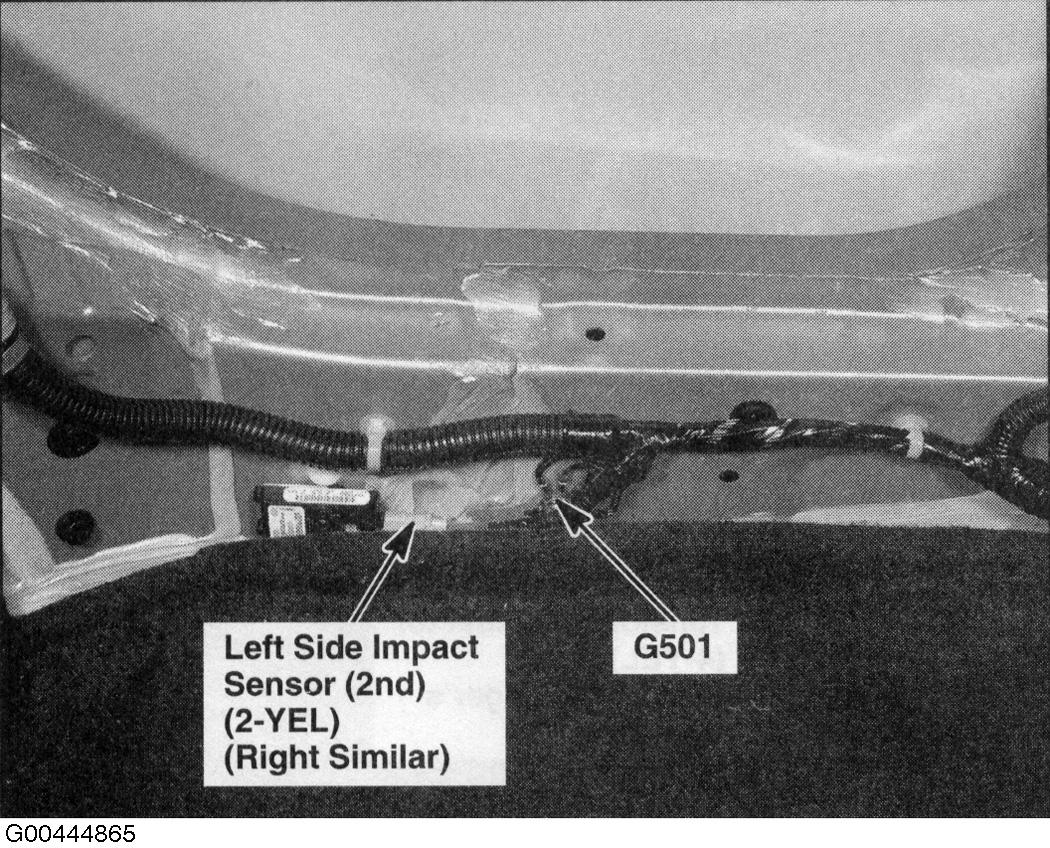

Fig 81: Left Side Of Floor (Right Similar)

G00444865

Courtesy of AMERICAN HONDA MOTOR CO., INC.

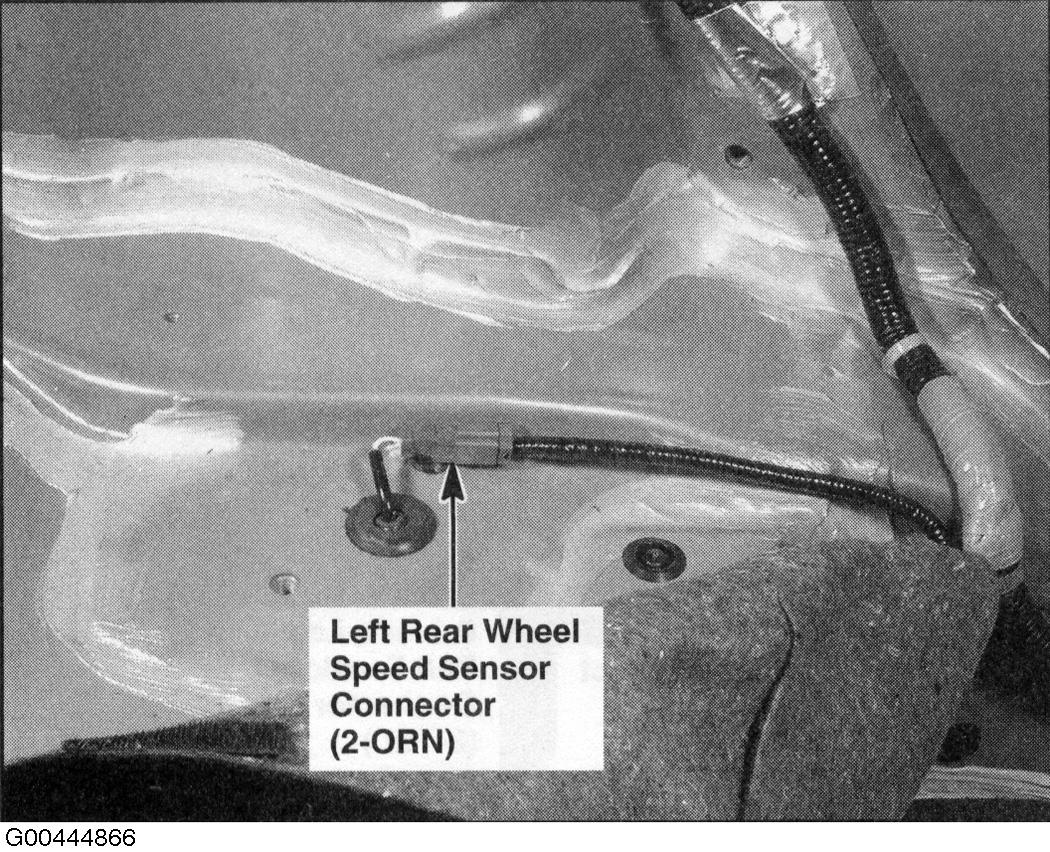

Fig 82: Left Rear Of Floor (Right Similar)

G00444866

Courtesy of AMERICAN HONDA MOTOR CO., INC.

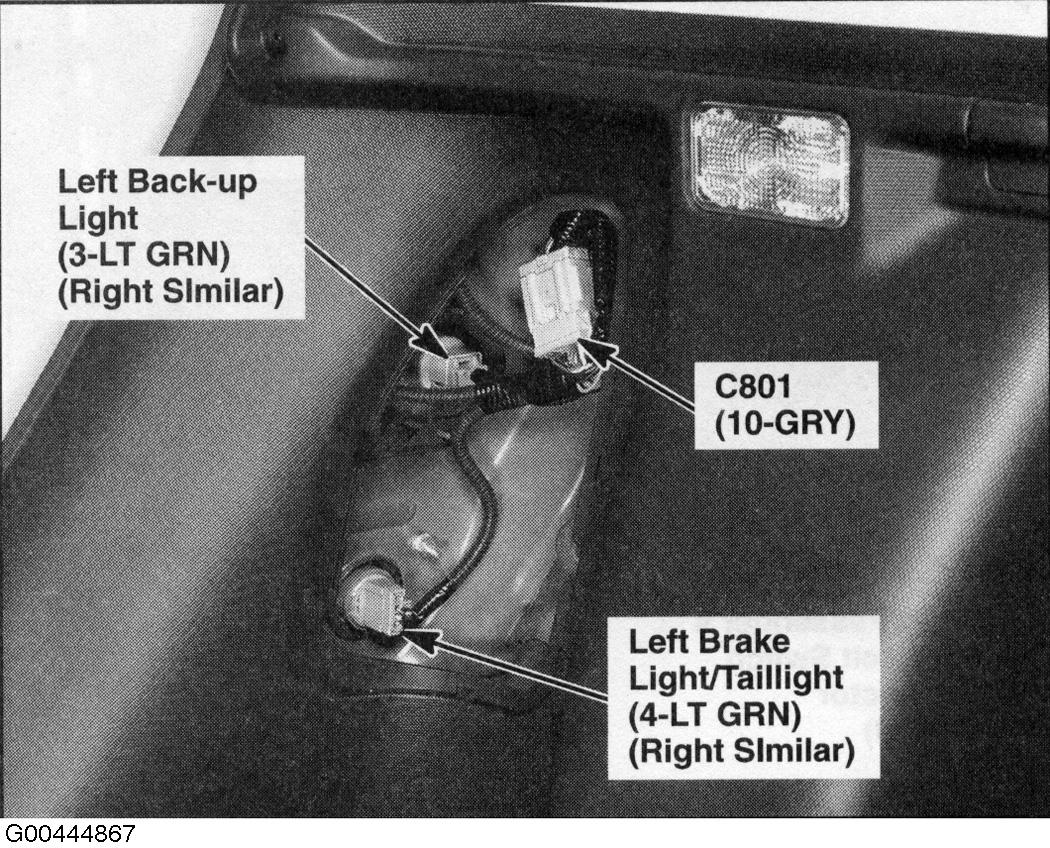

Fig 83: Left Side Of Cargo Area

G00444867

Courtesy of AMERICAN HONDA MOTOR CO., INC.

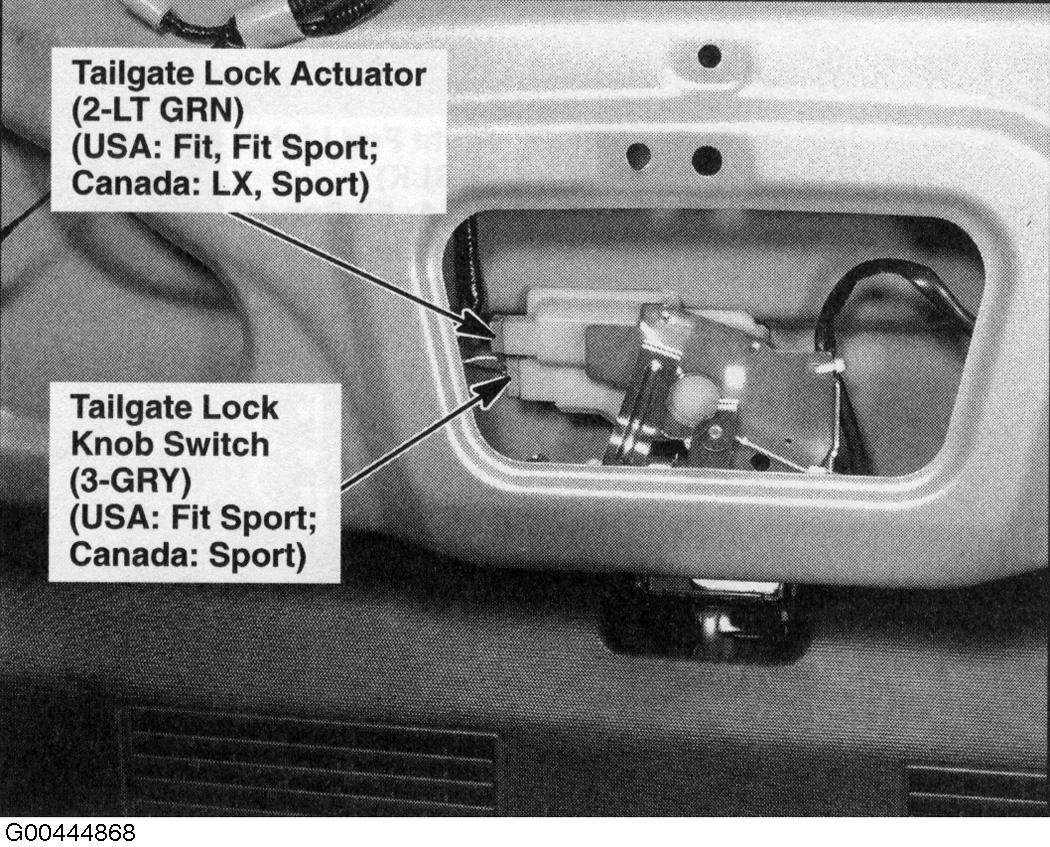

Fig 84: Tailgate

G00444868

Courtesy of AMERICAN HONDA MOTOR CO., INC.

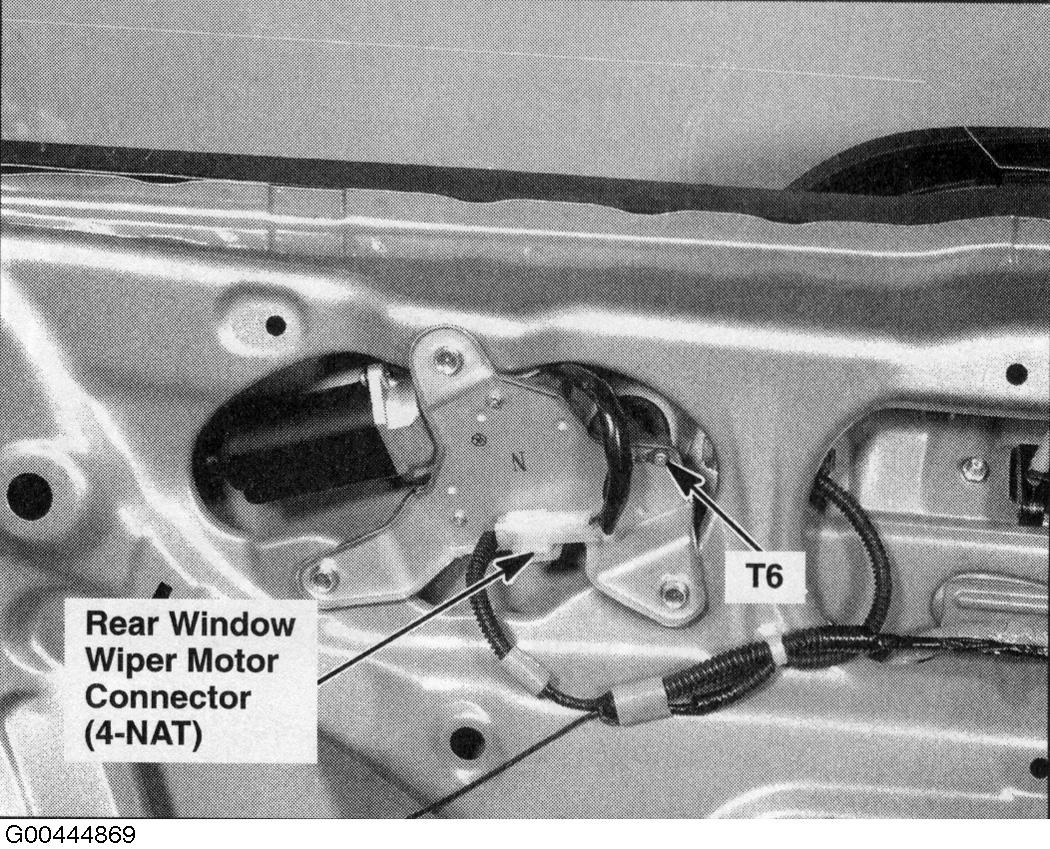

Fig 85: Tailgate

G00444869

Courtesy of AMERICAN HONDA MOTOR CO., INC.

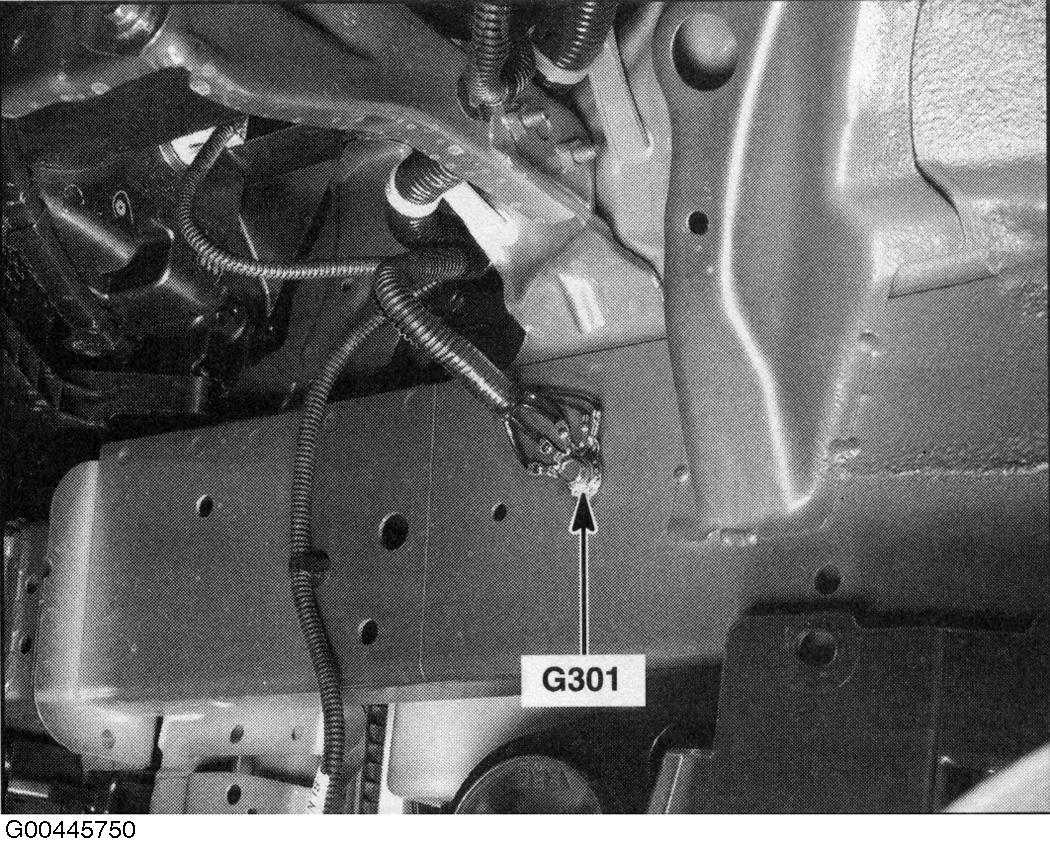

Fig 86: Left Side Of Front Bumper

G00445750

Courtesy of AMERICAN HONDA MOTOR CO., INC.

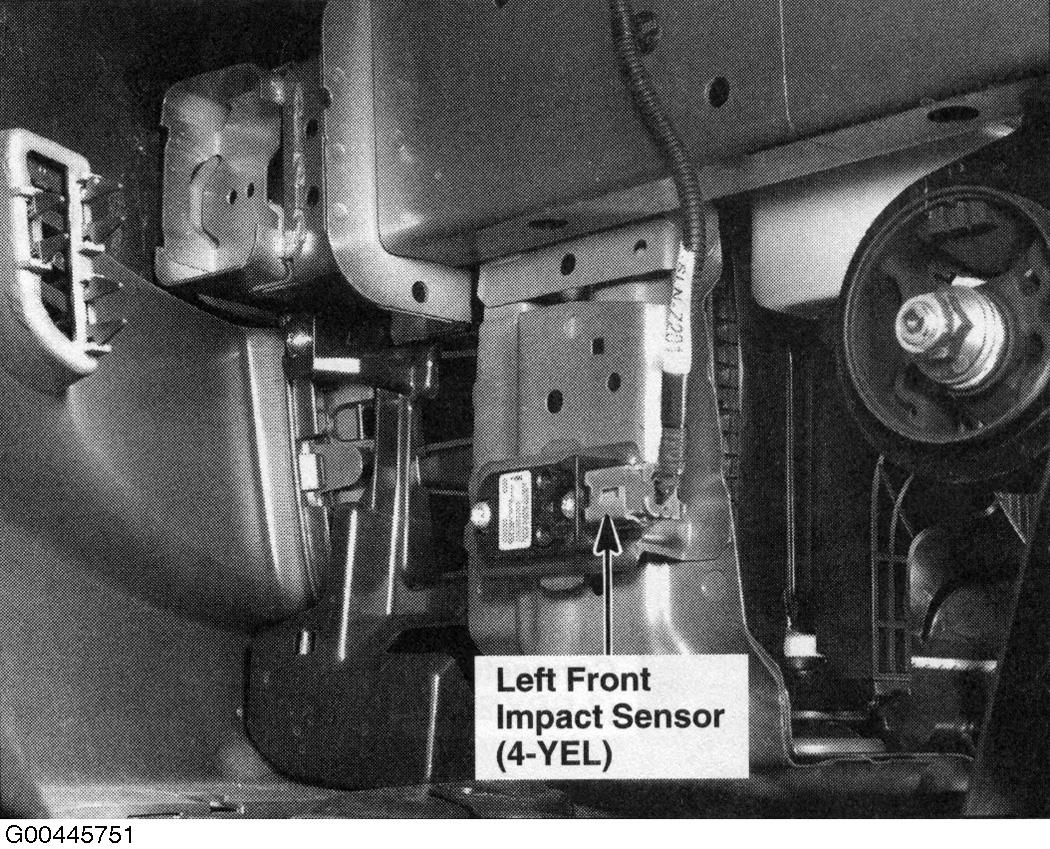

Fig 87: Left Side Of Front Bumper (Right Similar)

G00445751

Courtesy of AMERICAN HONDA MOTOR CO., INC.

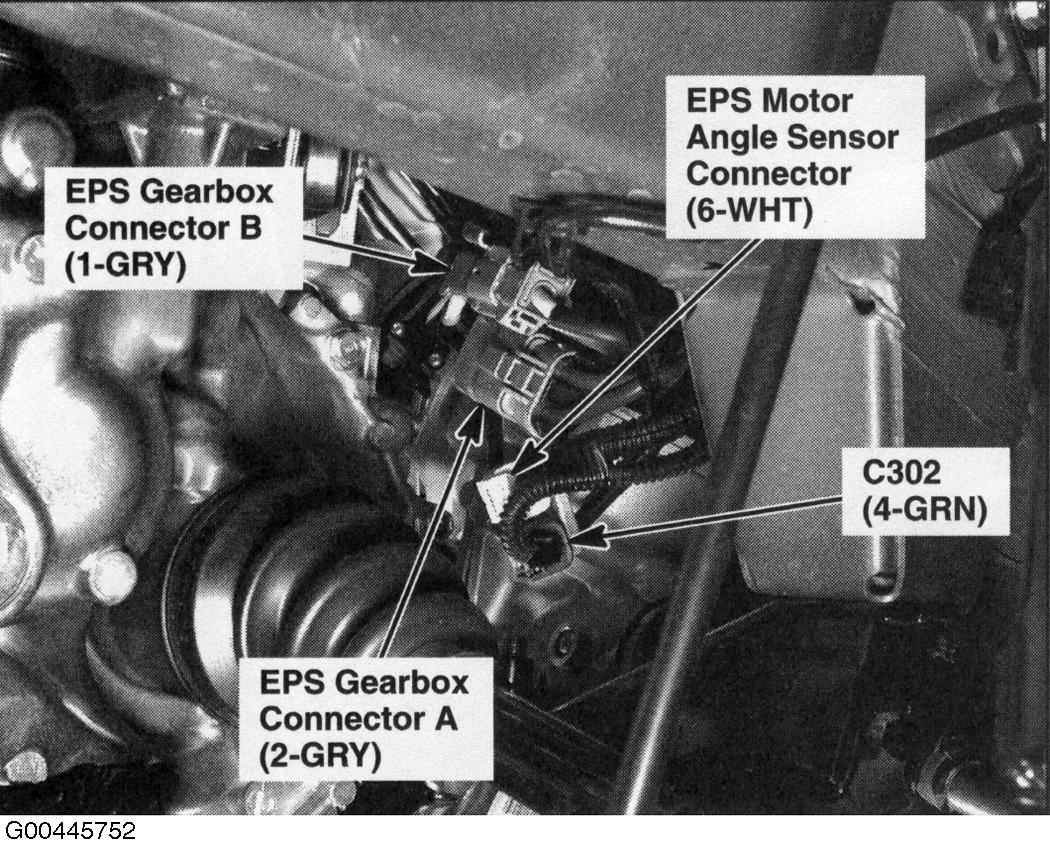

Fig 88: Lower Left Side Of Engine Compartment

G00445752

Courtesy of AMERICAN HONDA MOTOR CO., INC.

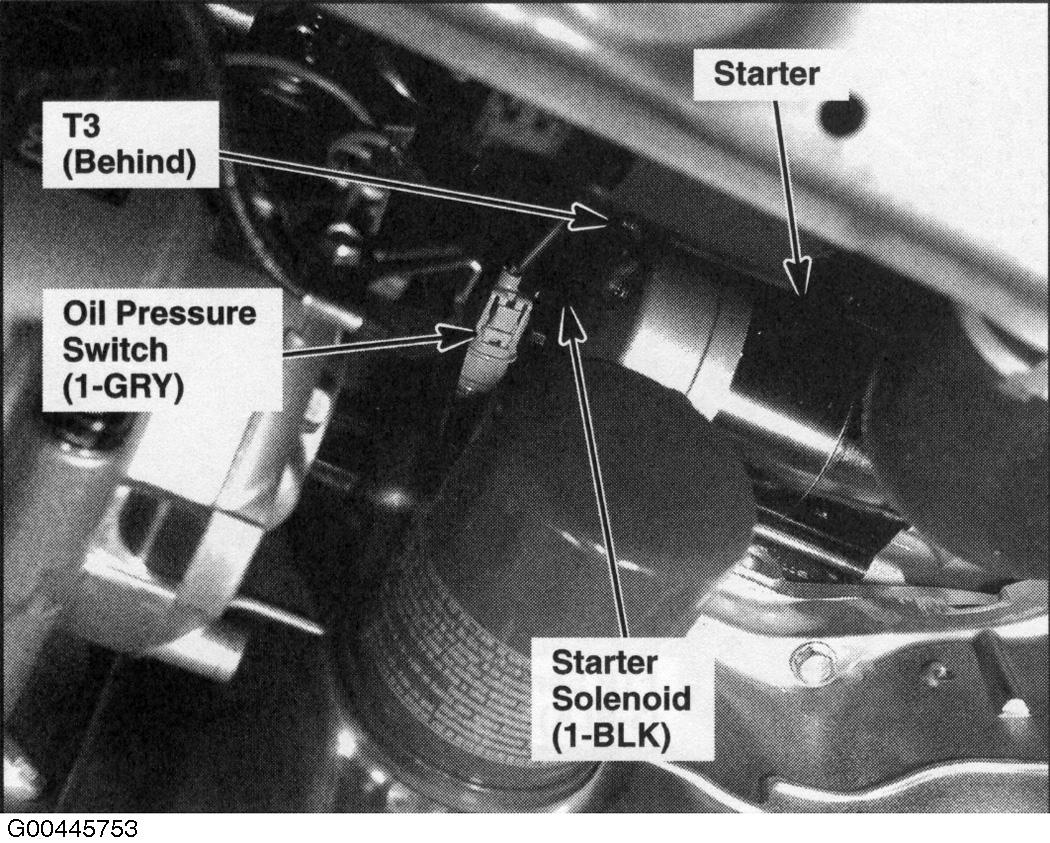

Fig 89: Bottom Of Engine

G00445753

Courtesy of AMERICAN HONDA MOTOR CO., INC.

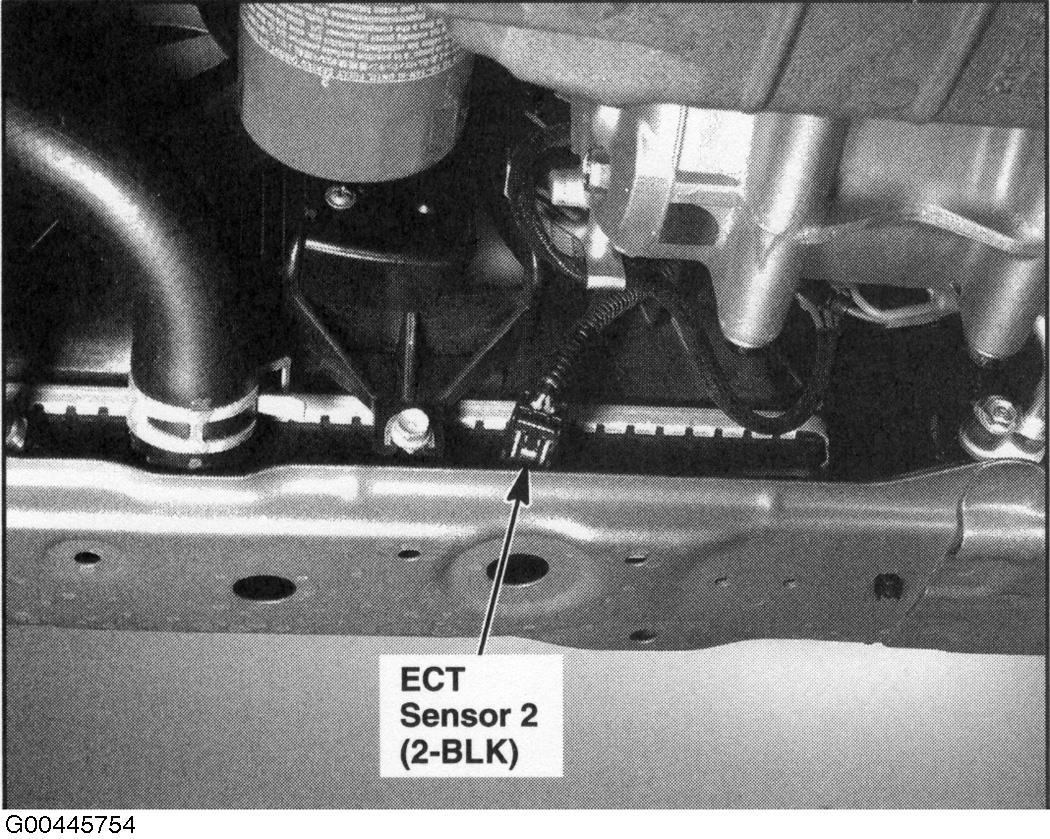

Fig 90: Lower Right Front Of Engine Compartment

G00445754

Courtesy of AMERICAN HONDA MOTOR CO., INC.

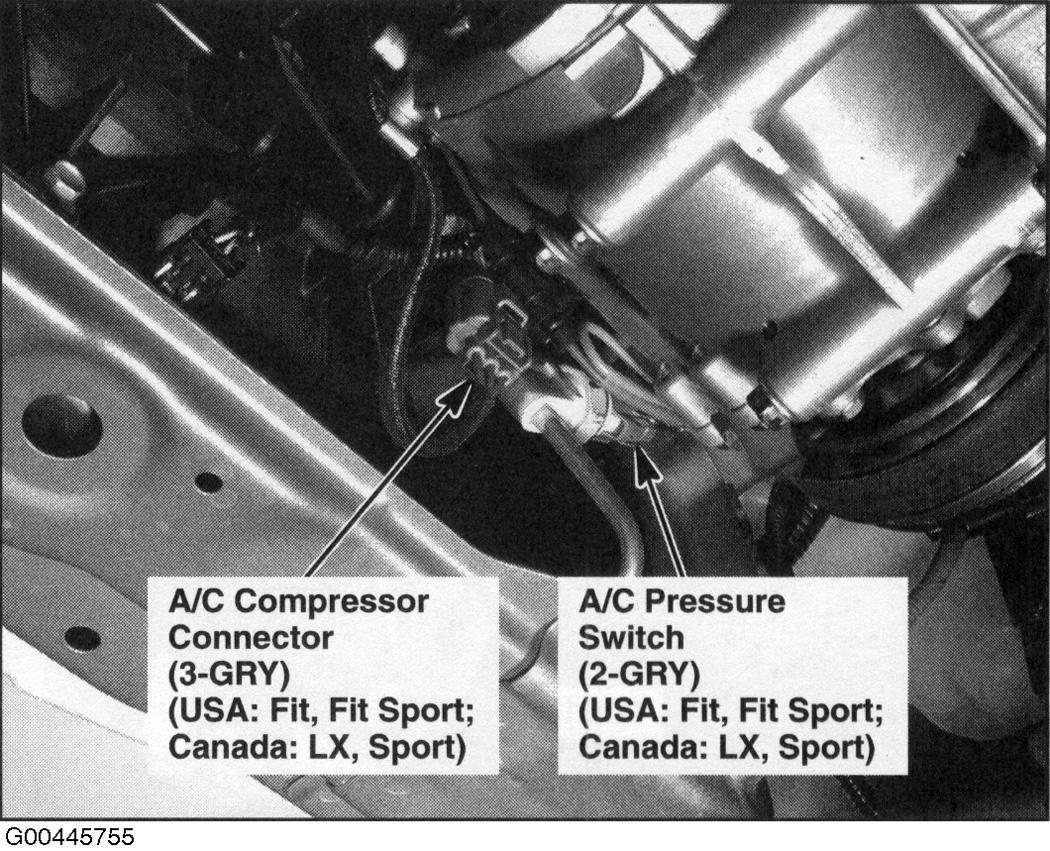

Fig 91: Lower Right Front Of Engine Compartment

G00445755

Courtesy of AMERICAN HONDA MOTOR CO., INC.

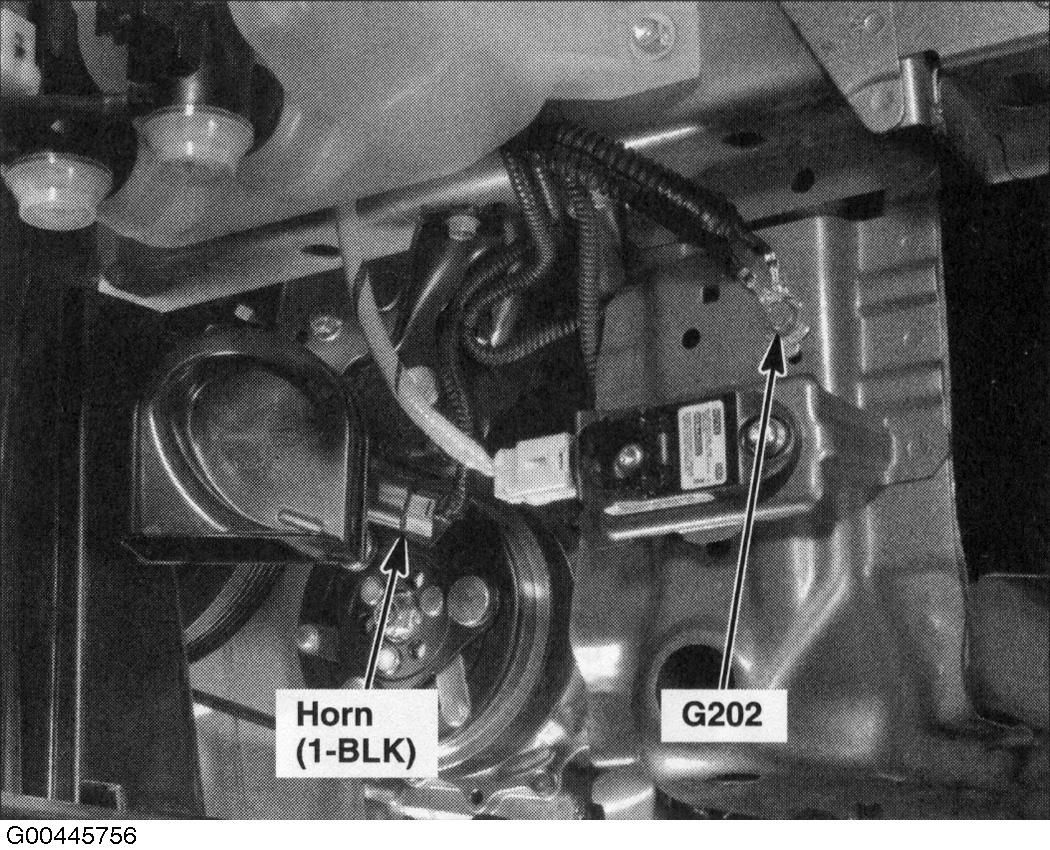

Fig 92: Right Side Of Front Bumper

G00445756

Courtesy of AMERICAN HONDA MOTOR CO., INC.

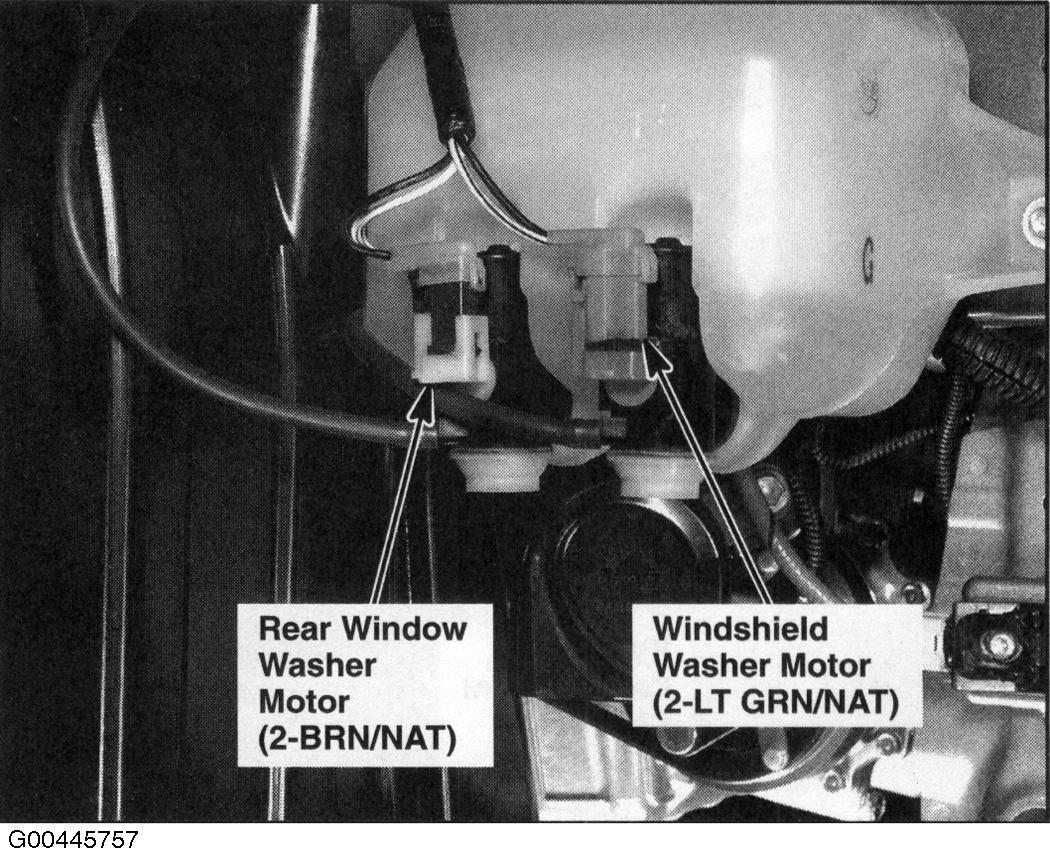

Fig 93: Right Side Of Front Bumper

G00445757

Courtesy of AMERICAN HONDA MOTOR CO., INC.

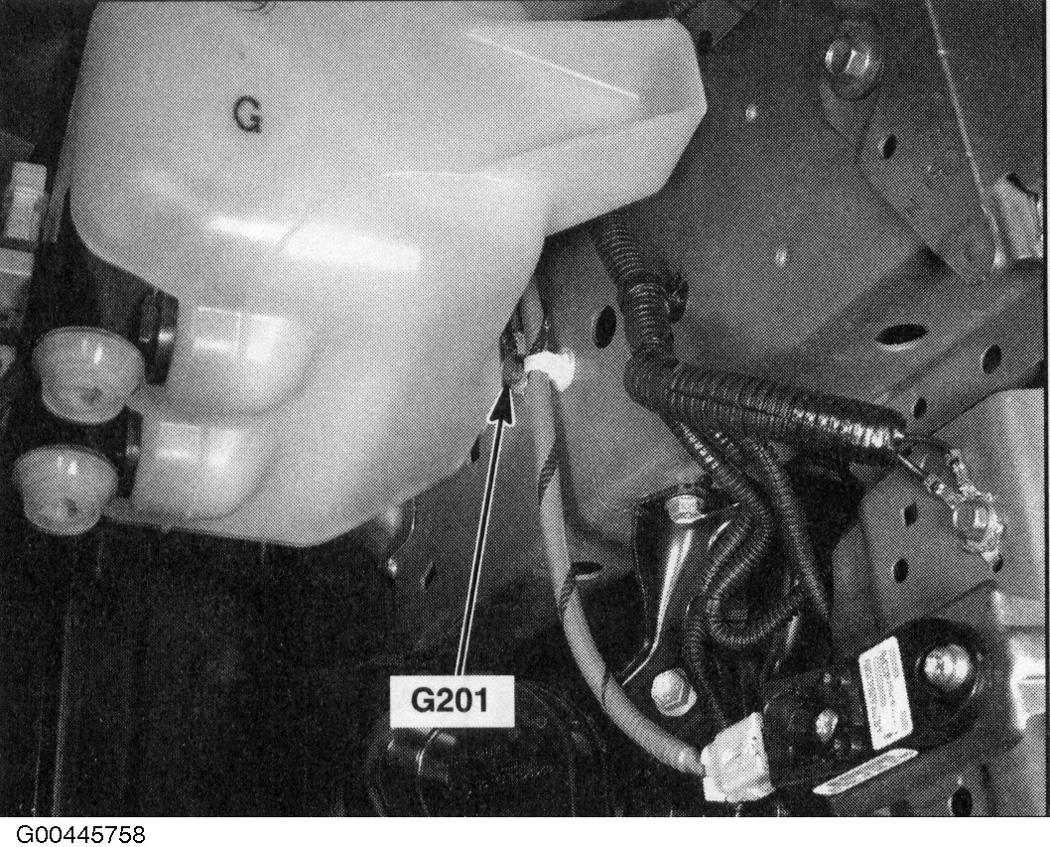

Fig 94: Right Side Of Front Bumper

G00445758

Courtesy of AMERICAN HONDA MOTOR CO., INC.

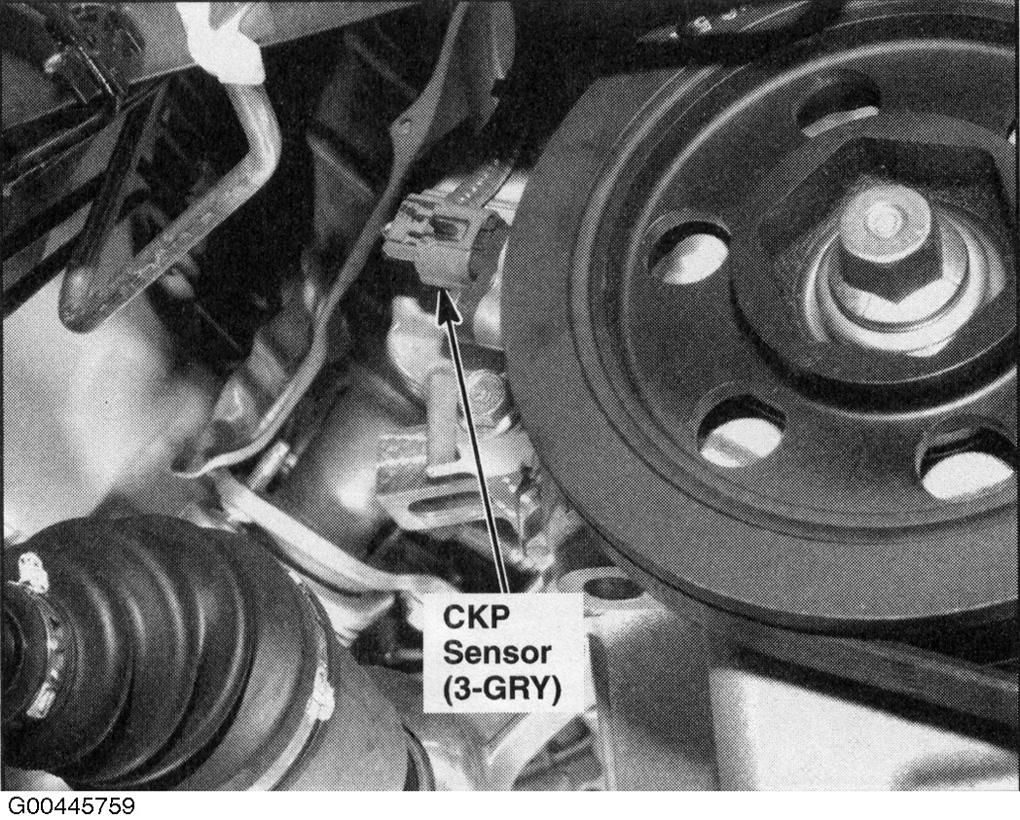

Fig 95: Lower Right Front Of Engine

G00445759

Courtesy of AMERICAN HONDA MOTOR CO., INC.

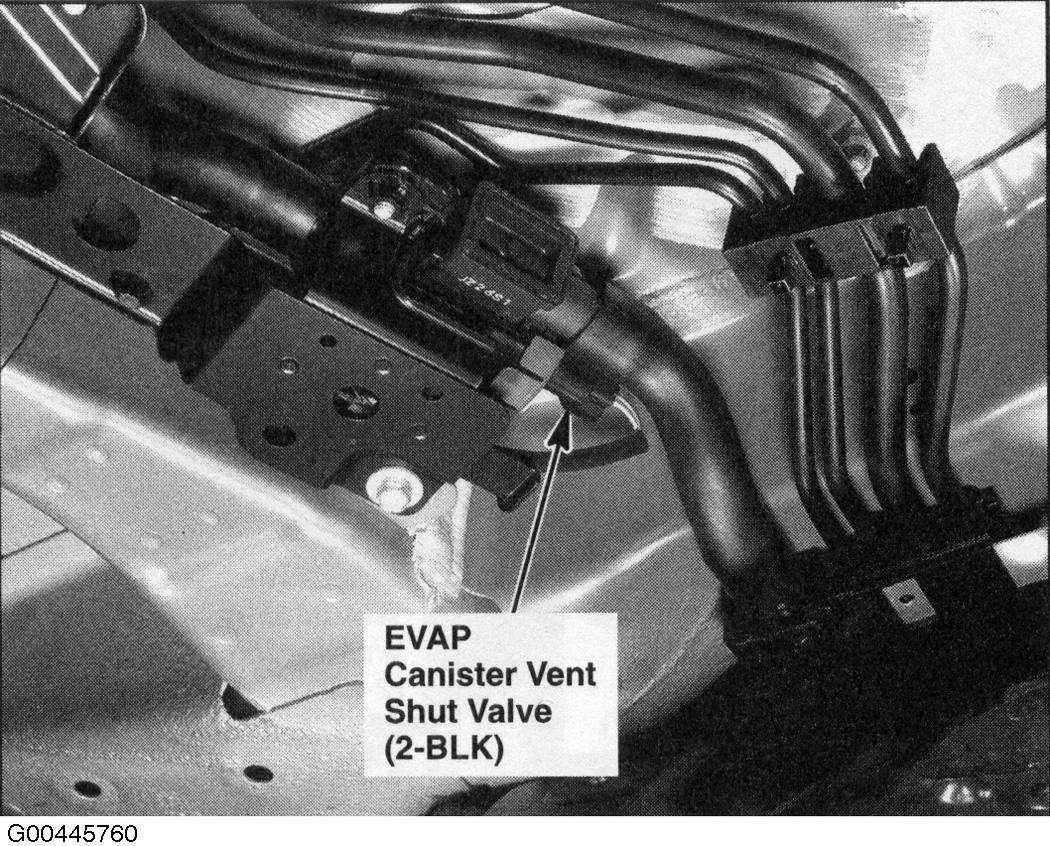

Fig 96: Left Underside Of Vehicle

G00445760

Courtesy of AMERICAN HONDA MOTOR CO., INC.

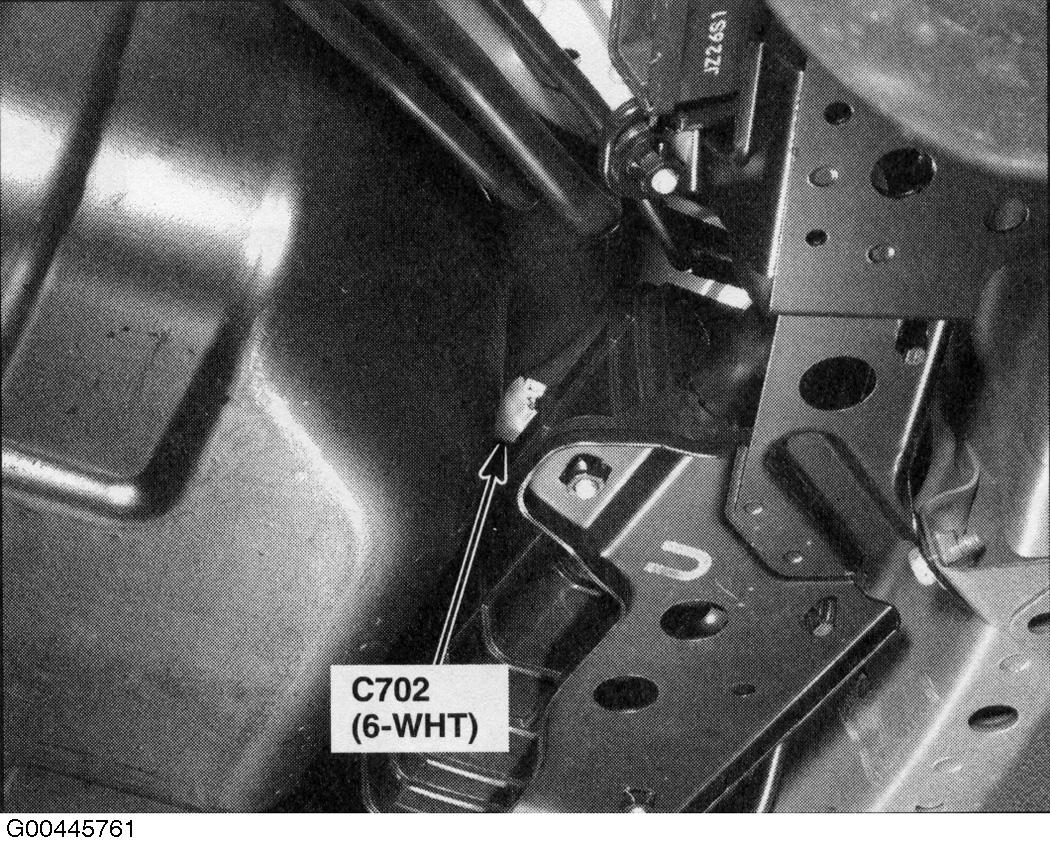

Fig 97: Left Underside Of Vehicle

G00445761

Courtesy of AMERICAN HONDA MOTOR CO., INC.

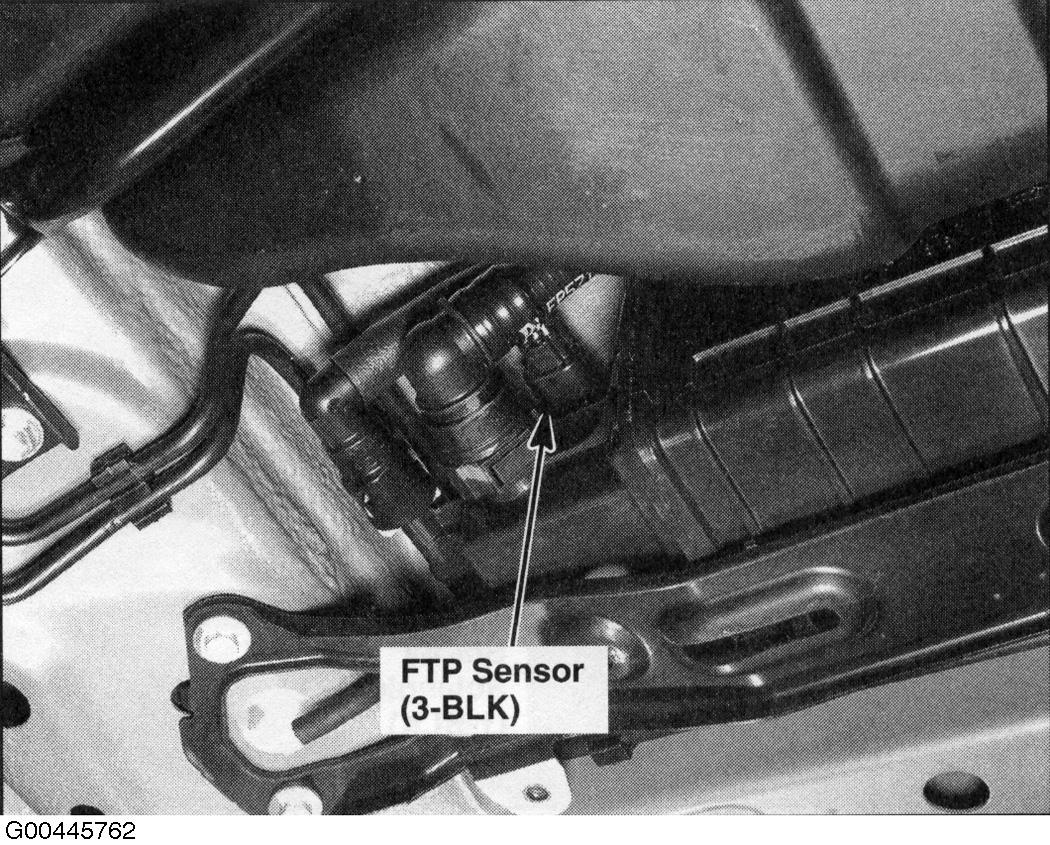

Fig 98: Left Underside Of Vehicle

G00445762

Courtesy of AMERICAN HONDA MOTOR CO., INC.

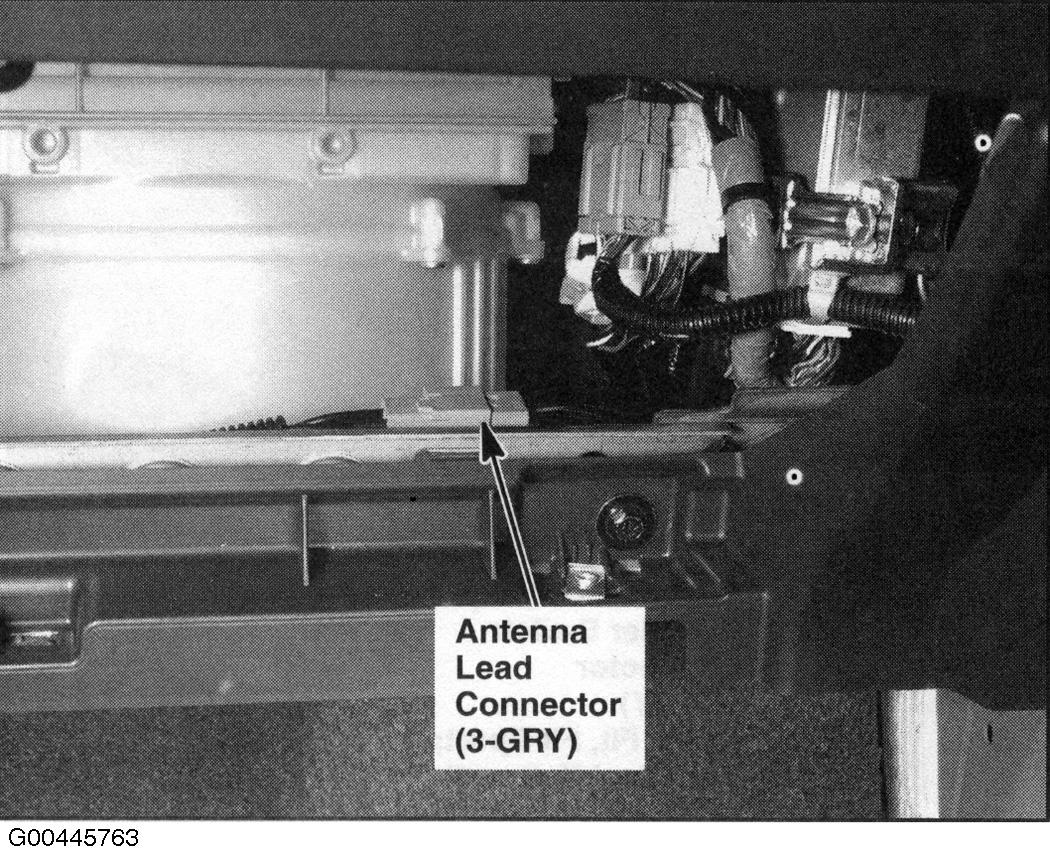

Fig 99: Behind Glove Box

G00445763

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Front Passenger's Seat

G00445764

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 101: Tailgate

G00582444

Courtesy of AMERICAN HONDA MOTOR CO., INC.
