Exploded View: Notes

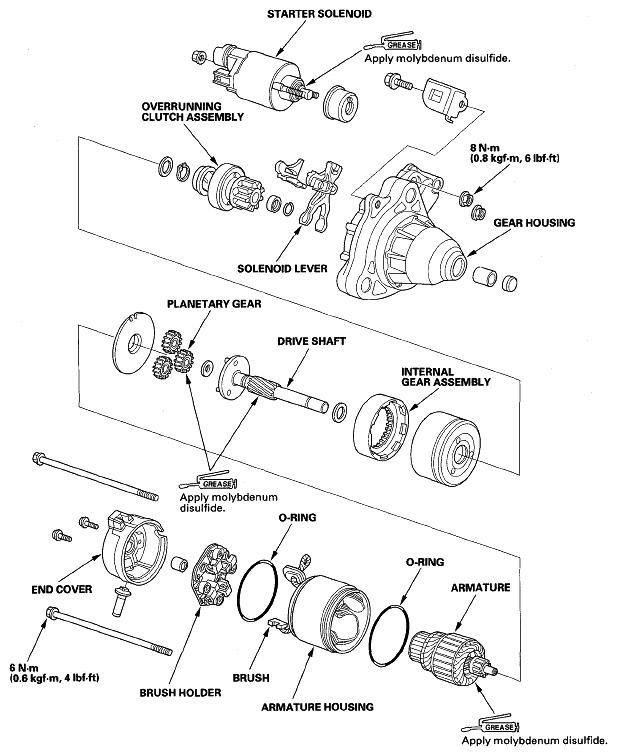

Fig 1: Exploded View Of Starter With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
