EVAP Canister Replacement

  1. Remove the floor center cross-member stiffener (A).

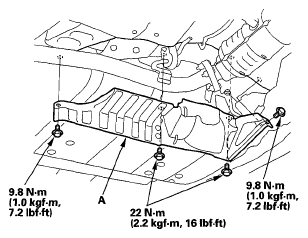

    Fig 1: Floor Center Cross-Member Stiffener With Torque Specifications
    G05454897Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the fuel tank cover (A).
    Fig 2: Fuel Tank Cover With Torque Specification
    G05454898Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel pipe cover (A).
    Fig 3: Identifying Fuel Pipe Cover
    G05454899Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the hoses (A), and disconnect the EVAP canister subharness 6P connector (B).

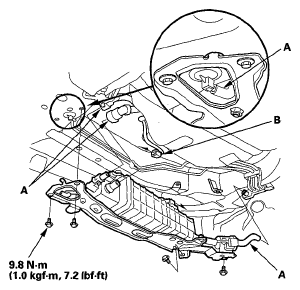

    Fig 4: EVAP Canister Subharness 6P Connector And Hoses With Torque Specification
    G05454900Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the bolts (A).
    Fig 5: EVAP Canister Bolts With Torque Specifications
    G05454901Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the EVAP canister assembly (B).
  7. Disconnect the FTP sensor connector (C), hose (D), and clips (E).
  8. Install the parts in the reverse order of removal.
