Fuel Fill Pipe Removal/Installation

Relieve the fuel pressure (see FUEL PRESSURE RELIEVING ).
Drain the fuel tank (see FUEL TANK DRAINING ).
Remove the fuel fill cap.
Remove the fuel fill pipe cover (A).

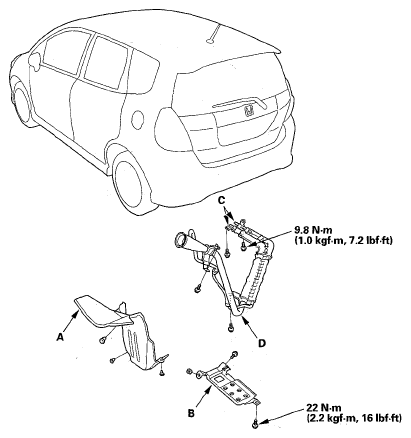

Fig 1: Fuel Fill Pipe Cover, Tank Mount Bracket And Fuel Fill Pipe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the tank mount bracket (B).
Disconnect the fuel fill hose and fuel suction tube from the pipes (C).
Remove the fuel fill pipe (D).
Install the parts in the reverse order of removal.
