Fuel Line/Quick-Connect Fitting Precautions

The fuel line/quick-connect fittings (A), (B), (C), (D), (E), (F), (G), (H), (I), (J), (K) connect the fuel rail (L) to fuel feed hose (M), the fuel feed hose to the fuel feed line (N), the fuel feed line (O) to the fuel tank unit (P), the fuel tank unit to the fuel vent tube (Q), the fuel tank unit to the suction line (R), the fuel vent tube to the fuel tank vapor control valve hose (S), the suction tube to the fuel tank vapor recirculation tube (T), the suction tube to the breather pipe (U), the breather pipe to the non-return valve tube (V), the fuel purge pipe (W) to the EVAP canister (X). When removing or installing the fuel feed hose, the fuel tank unit, the fuel tank, or the suction tube, it is necessary to disconnect or connect the quick-connect fittings.

Pay attention to the following:

• The fuel feed hoses, fuel line, and quick-connect fittings are not heat-resistant; be careful not to damage them during welding or other heat-generating procedures.
• The fuel feed hoses, fuel line, and quick-connect fittings are not acid-proof; do not touch them with a shop towel that was used for wiping battery electrolyte. Replace them if they come in contact with electrolyte or something similar.
• When connecting or disconnecting the fuel feed hoses, fuel line, and quick-connect fittings, be careful not to bend or twist them excessively. Replace them if they are damaged.

Fig 1: Connecting Fuel Rail To Fuel Feed Hose

Courtesy of AMERICAN HONDA MOTOR CO., INC.

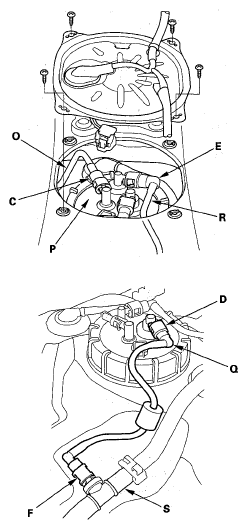

Fig 2: Identifying Fuel Line/Quick-Connect Fittings

Courtesy of AMERICAN HONDA MOTOR CO., INC.

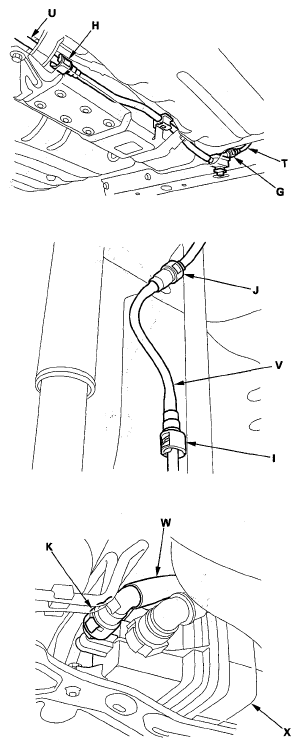

Fig 3: Identifying Fuel Line/Quick-Connect Fittings

Courtesy of AMERICAN HONDA MOTOR CO., INC.

A disconnected quick-connect fitting can be reconnected, but the retainer on the mating line cannot be reused once it has been removed from the tine. Replace the retainer when:

• replacing the fuel rail.
• replacing the fuel feed line.
• replacing the fuel pump.
• replacing the fuel filter.
• replacing the fuel gauge sending unit.
• replacing the EVAP purge line.
• replacing the EVAP canister.
• replacing the fuel fill pipe,
• replacing the fuel tank.
• replacing the suction tube.
• it has been removed from the line.
• it is damaged.
