ECM/PCM Replacement

Special Tools Required

• Honda diagnostic system (HDS) tablet tester
• Honda interface module (HIM) and an iN workstation with HDS and CM update software
• HDS pocket tester
• GNA600 and an iN workstation with HDS and CM update software

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.
   Fig 1: Connecting HDS To DLC

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the ECM/PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING (PART 1) ). If you are returning from DLC circuit troubleshooting, skip steps  4 through  9,  17 through  22, and  25 through  27, and do this after replacing the ECM/PCM:
   • Replace the engine oil (see ENGINE OIL REPLACEMENT ) and the engine oil filter (see ENGINE OIL FILTER REPLACEMENT ).
   • Replace the ATF (A/T) (see ATF REPLACEMENT ).
   • Clean the throttle body (see THROTTLE BODY CLEANING ).
4. Select the PGM-FI system with the HDS.
5. Select the INSPECTION MENU with the HDS.
6. Select the ETCS TEST, then select the TP POSITION CHECK, and follow the screen prompts.
   NOTE: If the TP POSITION CHECK indicates FAILED, continue with this procedure.
7. Select the REPLACE ECM/PCM MENU, then select READ DATA and follow the screen prompts.
   NOTE:

   • Doing this step copies (READS) the engine oil life data from the original ECM/PCM so you can later download (WRITE) it into the new ECM/PCM.
   • If READ DATA indicates FAILED, continue with this procedure.
8. A/T: Select the A/T system with the HDS.
9. A/T: Select the REPLACE TCM/PCM MENU, then select READ DATA and follow the screen prompts.
   NOTE:

   • Doing this step copies (READS) the ATF life data from the original PCM so you can later download (WRITE) it into the new PCM.
   • If READ DATA indicates FAILED, continue with this procedure.
10. Turn the ignition switch OFF.
11. Jump the SCS line with the HDS.
12. Remove the passenger's dashboard under cover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ), the side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).

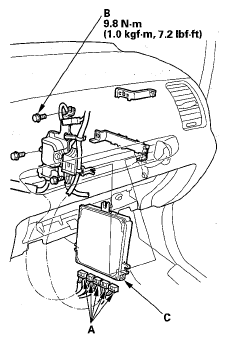

13. Disconnect the connectors (A), and remove the bolts (B) then remove the ECM/PCM (C).
    Fig 2: ECM/PCM Bolts With Torque Specification

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Install the ECM/PCM in the reverse order of removal.
15. Turn the ignition switch ON (II).
16. Manually input the VIN to the ECM/PCM with the HDS.
    NOTE: DTC P0630 "VIN Not Programmed or Mismatch" may be stored because the VIN has not been programmed into the ECM/PCM; ignore it, and continue this procedure.
17. If the READ DATA (engine oil life) failed in step  7, go to step  20 (A/T) or step  23 (M/T). Otherwise, go to step 18.
18. Select the PGM-FI system with the HDS.
19. Select the REPLACE ECM/PCM MENU, then select WRITE DATA and follow the screen prompts.
    NOTE: If the WRITE DATA indicates FAILED, continue with this procedure.
20. A/T: If the READ DATA (ATF life) failed in step  9, go to step  23. Otherwise go to step 21.
21. A/T: Select the A/T SYSTEM with the HDS.
22. A/T: Select the REPLACE TCM/PCM MENU, then select WRITE DATA and follow the screen prompts.
    NOTE: If the WRITE DATA indicates FAILED, continue with this procedure.
23. Select IMMOBI system with the HDS.
24. Enter the immobilizer code with the ECM/PCM replacement procedure in the HDS; it allows you to start the engine.
25. If the TP POSITION CHECK failed in step 6 clean the throttle body (see THROTTLE BODY CLEANING ), then go to step 26.
26. If the READ DATA failed in step  7 or the WRITE DATA failed in step 19, replace the engine oil (see ENGINE OIL REPLACEMENT ) and engine oil filter (see ENGINE OIL FILTER REPLACEMENT ), then go to step 27 (A/T) or step  28 (M/T).
27. If the READ DATA failed in step  9 or the WRITE DATA failed in step  22, replace the ATF (see ATF REPLACEMENT ), then go to step 28.
28. Select PGM-FI system, and reset the ECM/PCM with the HDS.
29. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ).
30. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).
31. Do the CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP) PATTERN LEARN ).
