Park Pin Switch Test

  1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the shift lock solenoid/park pin switch/A/T gear position indicator panel light connector from the shift lever bracket base, then disconnect the connector.
    Fig 1: Identifying Shift Lock Solenoid/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector Terminal
    G05455460
  3. Shift into P, and check for continuity between shift lock solenoid/park pin switch/A/T gear position indicator panel light connector terminals No. 4 and No. 5. Do not press the shift lever button. There should be no continuity.
  4. Shift out of P, and check for continuity between connector terminals No. 4 and No. 5. There should be continuity.
  5. If the park pin switch tests OK, connect the connector and install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  6. If the park pin switch tests incorrectly, test the park pin switch at the park pin switch 2P connector.
  7. Disconnect the park pin switch 2P connector, and remove it from the bracket base.

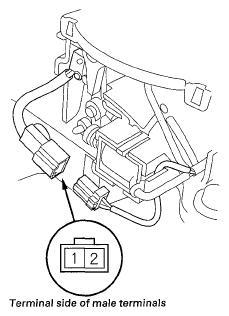

    Fig 2: Identifying Park Pin Switch 2P Connector Terminals
    G05455461
  8. Shift into P, and check for continuity between park pin switch 2P connector terminals No. 1 and No. 2. Do not press the shift lever button. There should be no continuity.
  9. Shift out of P, and check for continuity between connector terminals No. 1 and No. 2. There should be continuity.
  10. If the park pin switch tests OK at the 2P connector, there is a break or short in the wire between shift lock solenoid/park pin switch/A/T gear position indicator panel light connector and the 2P connector. Replace the shift lock solenoid (see SHIFT LOCK SOLENOID REPLACEMENT ); the shift lock solenoid is combined with the park pin switch harness and the indicator panel light harness/socket, and supplied as an assembly.
  11. If the park pin switch fails the test, replace the park pin switch (see PARK PIN SWITCH REPLACEMENT ).
  12. Install the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
