Shift Cable Replacement

  1. Raise the vehicle, and make sure it is securely supported.
  2. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  3. Shift into N.
  4. Remove the nut securing the shift cable end, then separate the cable end from the shift lever.
    Fig 1: Identifying Shift Cable End With Nut
    G05455391
  5. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be in the opening of the shift lever bracket base (D). Then slide the holder to remove the shift cable from the shift lever bracket base.
    Fig 2: Identifying Socket Holder, Shift Cable, Quarter Turn; Tab, Shift Lever Bracket Base
    G05455392
  6. Remove the three way catalytic converter (TWO heat shield.
  7. Remove the shift cable bracket (A) and the grommet (B), then pull the shift cable (C) out through the hole in the body.
    Fig 3: Identifying Shift Cable Bracket, Grommet And Shift Cable
    G05455393
  8. Remove the shift cable cover (A), then remove the shift cable holder (B).

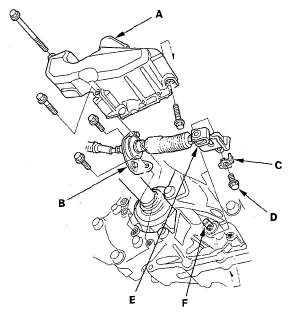

    Fig 4: Identifying Shift Cable Cover, Holder, Lock Washer, Selector Control Shaft And Bolts
    G05455394
  9. Pry up the lock tab of the lock washer (C), and remove the lock bolt (D) and the lock washer, then separate the shift cable (E) from the selector control shaft (F).
  10. Insert the new shift cable (A) through the grommet hole (B), and install the grommet (C) in its hole. Do not bend the shift cable excessively.
    Fig 5: Shift Cable, Bracket Grommet Hole And Grommet With Torque Specification
    G05455395
  11. Secure the shift cable bracket (D) with the nuts.
  12. Install the control lever (A) over the selector control shaft (B). Secure the control lever with new lock washer (C) and the lock bolt (D), then bend the lock tab of the lock washer against the bolt head.

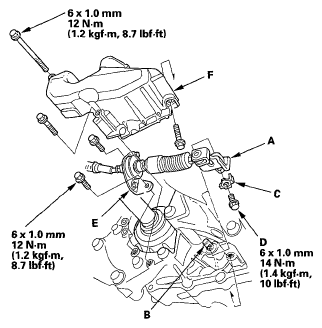

    Fig 6: Control Lever, Selector Control Shaft, Lock Washer And Bolts With Torque Specifications
    G05455396
  13. Install the shift cable holder (E), then install the shift cable cover (F).
  14. Install the TWC heat shield.
  15. Install the shift cable on the shift lever, and adjust the cable (see step 5 on SHIFT CABLE ADJUSTMENT ).
