Shift Lever Disassembly/Reassembly

Apply silicone grease to movable joints of the shift lock mechanism, shift lever, and lock pin rod.

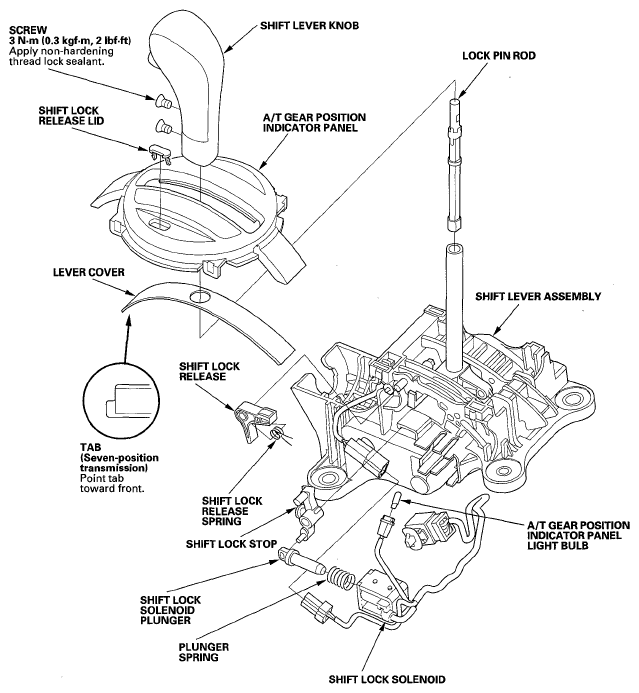

Fig 1: Disassembled View Of Shift Lever With Torque Specification
G05455390
