N Position

The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and the positions of the shift valves are as follows:

Shift solenoid valve A is turned OFF, shift valve A stays on the right side, and cut valve A stays on the left side.
Shift solenoid valve B is turned OFF, and shift valve B stays on the right side.
Shift solenoid valve C is turned OFF, and shift valve C stays on the right side.

Line pressure (1) passes through the manual valve and stops at cut valve B. Line pressure (1) also flows to the shift solenoid valves and A/T clutch pressure control solenoid valve A. Under this condition, hydraulic pressure is not applied to the clutches.

NOTE:

When used, "left" or "right" indicates direction on the hydraulic circuit.
The illustration shows the seven-position transmission; the five-position transmission: manual-valve-position differs from the seven-position transmission.

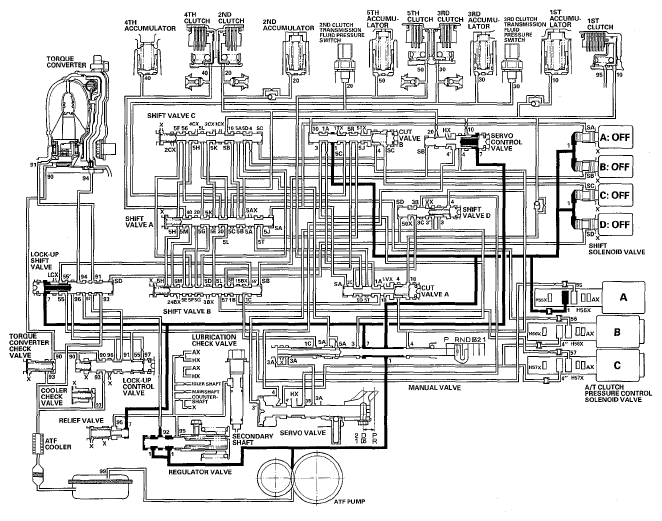

Fig 1: Automatic Transmission Hydraulic Flow - N Position
