Component Location Index

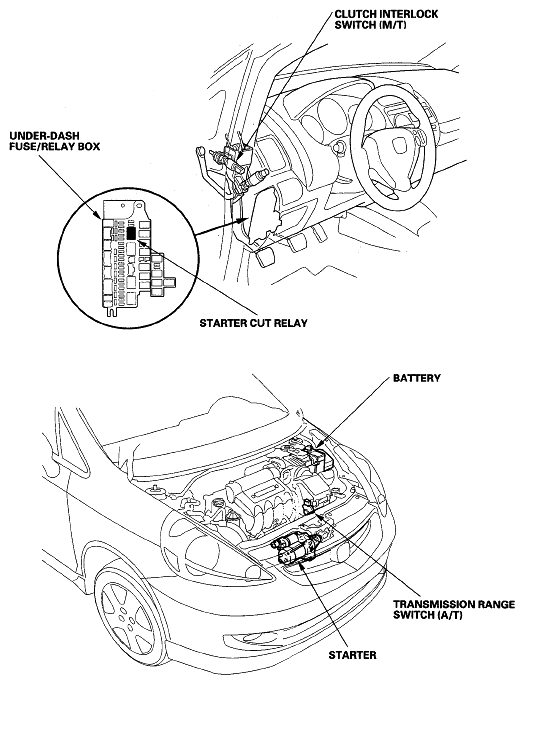

Fig 1: Identifying Starting System Component Location Index
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
